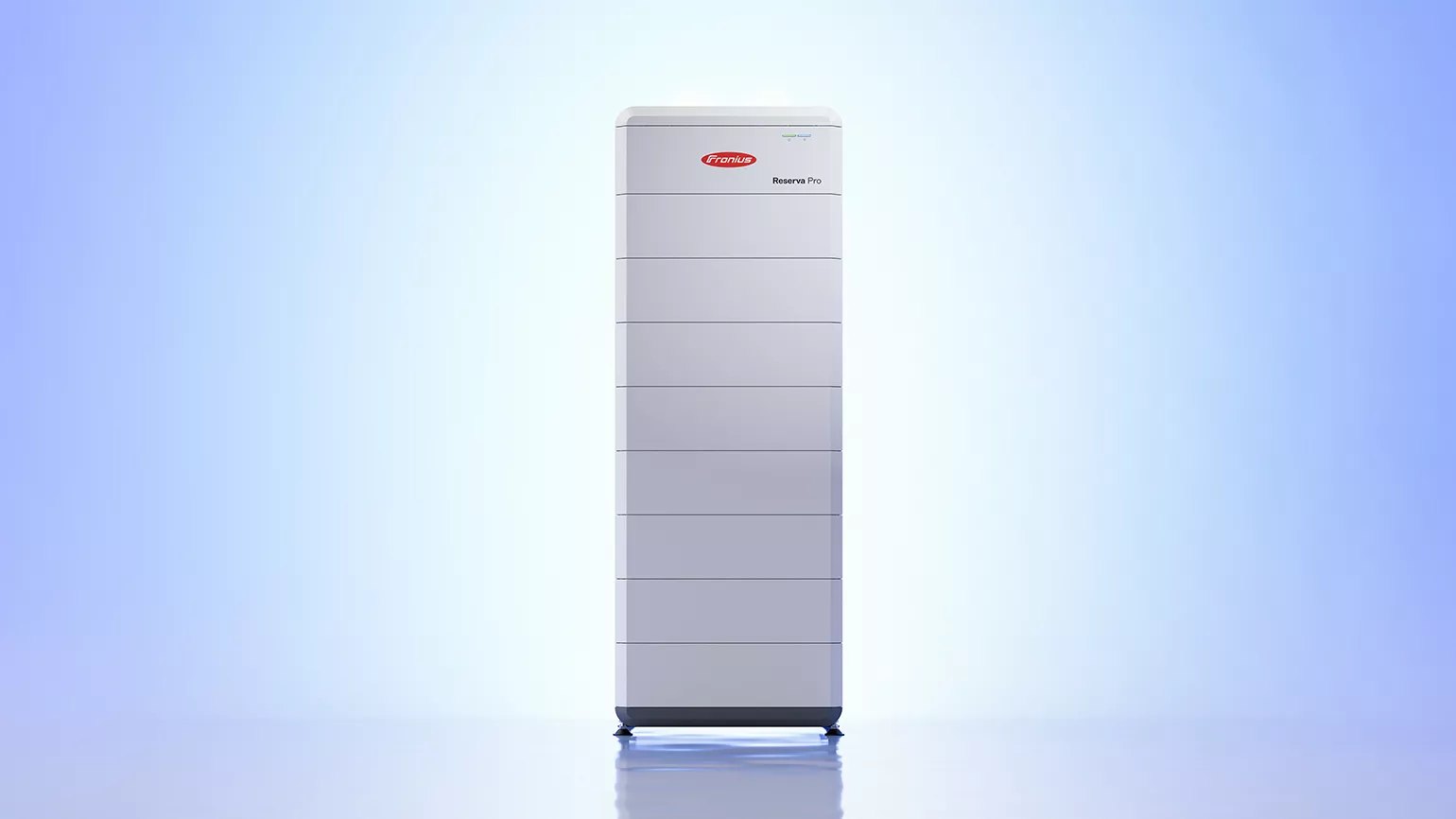

Fronius Reserva Pro 24.0
Official manufacturer GLOBAL перевірено 20 вересня 2026 р.
Identity
| category | batteries |
| ean | — |
| firmware | {'documented_version': 'UNKNOWN', 'constraints': 'UNKNOWN'} |
| generation | — |
| manufacturer | Fronius |
| market_version | International English page; certifications listed include CE (EU) and RCM (AU/NZ) |
| model | Reserva Pro 24.0 |
| mpn | — |
| product_family | Reserva Pro |
| product_status | active |
| region | GLOBAL |
| release_year | — |
| series | Reserva Pro |
| sku | — |
Electrical
| bms | — |
| cell_chemistry | Lithium iron phosphate (LFP) |
| cell_configuration | — |
| communication | Modbus (RS485) |
| depth_of_discharge_pct | — |
| expandable_to_kwh | — |
| max_charge_current_a | — |
| max_charge_power_w | — |
| max_discharge_current_a | 50 |
| max_discharge_power_w | — |
| modules_per_stack | 6 |
| nominal_energy_kwh | — |
| nominal_voltage_v | 425.04 |
| parallel_units_max | 4 |
| peak_discharge | — |
| round_trip_efficiency_pct | — |
| usable_energy_kwh | 23.9 |
| voltage_range_v | 330–481.8 V |
Physical / mechanical
| ac_terminal | — |
| cooling | — |
| dc_connector | Stäubli MC4 Evo Stor |
| depth_mm | 449 |
| dimensions_mm | 1,255×579×449 mm (H × W × D as printed) |
| display | — |
| enclosure_material | — |
| height_mm | 1255 |
| mounting | — |
| noise_db | — |
| weight_kg | 234 |
| width_mm | 579 |
Installation
| cable_requirements | — |
| commissioning | — |
| installation_angle | — |
| location | Indoor and protected outdoor areas |
| mounting_clearances | — |
| torque | — |
Environment
| ingress_protection | IP65 |
| max_altitude_m | — |
| operating_temperature_c | –20 to +50 °C |
| pollution_degree | — |
| protective_class | — |
| relative_humidity_pct | 5–95 % |
| storage_temperature_c | — |
Interfaces & connectors
| app | — |
| communication | ['Modbus (RS485)'] |
| dry_contact | — |
| meter_interface | — |
| monitoring_portal | — |
| protocols | ['Modbus'] |
Protection
| anti_islanding | — |
| arc_fault | — |
| dc_switch | — |
| insulation_monitoring | — |
| overvoltage_category | — |
| rcmu | — |
| reverse_polarity | — |
| surge_protection_ac | — |
| surge_protection_dc | — |
Certifications
| standards | ['VDE2510-50', 'IEC 62619:2022', 'IEC62040-1', 'CE', 'RCM', 'UN38.3'] |
Warranty & service
| conditions | 10 years (80% SOH) |
| extension_options | — |
| standard_years | 10 |
Документи
Додаткові задокументовані параметри
Записано дослівно з джерела; поля схеми для них поки немає.
| Dimensions (H×W×D) | 1,255×579×449 mm |
| Interface | Modbus (RS485) |
| Maximum output current | 50 A |
