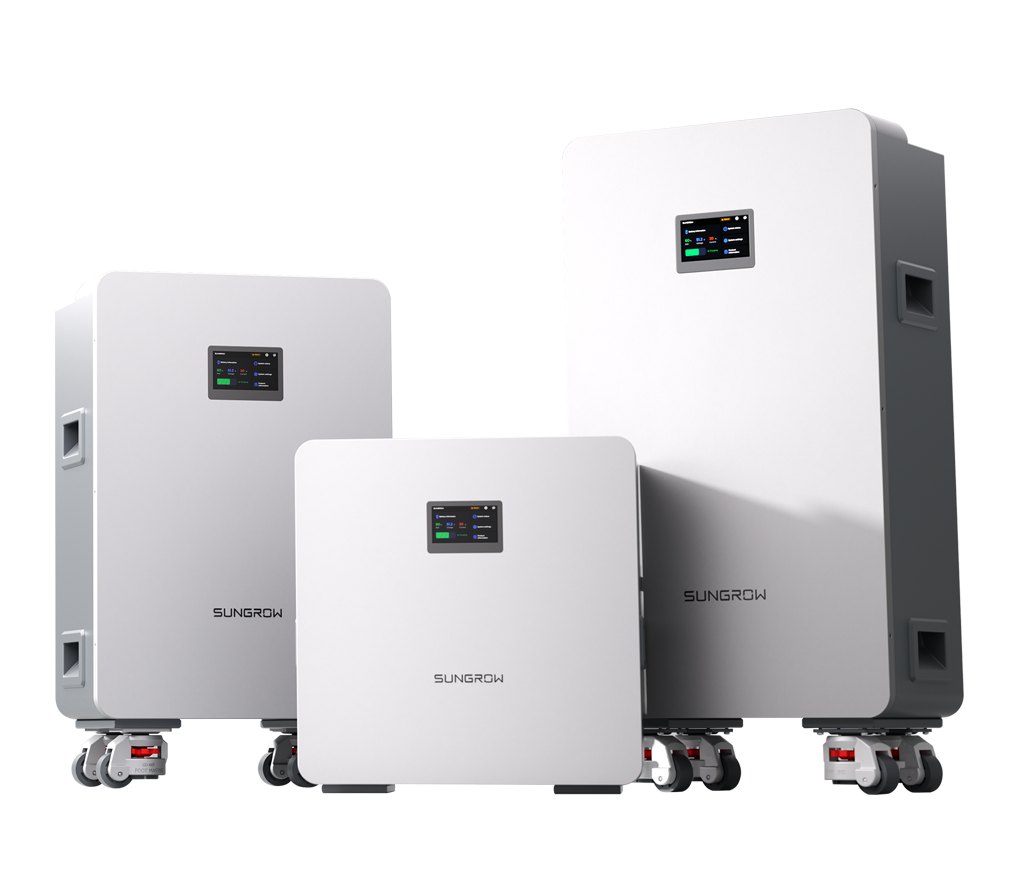

Sungrow MBL160
Official manufacturer UNKNOWN перевірено 22 вересня 2026 р.
Identity
| category | batteries |
| ean | — |
| firmware | {'documented_version': 'UNKNOWN', 'constraints': 'UNKNOWN'} |
| generation | — |
| manufacturer | Sungrow |
| market_version | — |
| model | MBL160 |
| mpn | — |
| product_family | MB Series low-voltage residential battery |
| product_status | active |
| region | — |
| release_year | — |
| series | MBL |
| sku | — |
Electrical
| bms | — |
| cell_chemistry | LiFePO4 |
| cell_configuration | — |
| communication | CAN / RS485 |
| depth_of_discharge_pct | — |
| expandable_to_kwh | 320 kWh (max. expandable capacity) |
| max_charge_current_a | — |
| max_charge_power_w | — |
| max_discharge_current_a | — |
| max_discharge_power_w | — |
| modules_per_stack | — |
| nominal_energy_kwh | 16.08 |
| nominal_voltage_v | 51.2 |
| official_manual_url |
https://info-support.sungrowpower.com/cms/af994f1d-bb0d-408a-b310-6ad732402c99/GUID-E227CFE9-0AC8-40E1-A337-4F55301E262F_1_en-US_PDF (产品信息设计部_基础版)_1785207089849_compressed.pdf
User Manual Low Voltage Battery MBL050/120/160 (MBL050/120/160-UEN-Ver11-202605)
|
| parallel_units_max | 20 |
| peak_discharge | Peak discharging (3 s): 300 A; peak charging figure failed the acceptance test, see raw_discovered |
| round_trip_efficiency_pct | — |
| usable_energy_kwh | — |
| voltage_range_v | 44.8 V – 57.6 V |
Physical / mechanical
| ac_terminal | — |
| cooling | Natural convection |
| dc_connector | — |
| depth_mm | 243 |
| dimensions_mm | 432 mm × 855 mm × 243 mm |
| display | — |
| enclosure_material | — |
| height_mm | 855 |
| mounting | Floor-mounted (requires accessories) |
| noise_db | — |
| weight_kg | 114.2 kg |
| width_mm | 432 |
Installation
| cable_requirements | — |
| commissioning | Installation location: indoor |
| installation_angle | — |
| mounting_clearances | — |
| torque | — |
Environment
| ingress_protection | IP20 |
| max_altitude_m | 2000 |
| operating_temperature_c | Charge 0 ℃ to 55 ℃ (32 ℉ to 131 ℉) / Discharge -20 ℃ to 55 ℃ (-4 ℉ to 131 ℉) |
| pollution_degree | — |
| protective_class | — |
| relative_humidity_pct | 5% to 95% (non-condensing) |
| storage_temperature_c | — |
Interfaces & connectors
| app | iSolarCloud |
| communication | ['CAN', 'RS485'] |
| dry_contact | — |
| meter_interface | — |
| monitoring_portal | iSolarCloud |
| protocols | [] |
Protection
| anti_islanding | — |
| arc_fault | — |
| dc_switch | — |
| insulation_monitoring | — |
| overvoltage_category | — |
| rcmu | — |
| reverse_polarity | — |
| surge_protection_ac | — |
| surge_protection_dc | — |
Certifications
| standards | ['CE', 'IEC 62619', 'IEC 62477', 'UN 38.3', 'MSDS', 'RoHS'] |
Warranty & service
| conditions | Battery cycles printed in the datasheet: 8000 |
| extension_options | — |
| standard_years | — |
Документи
installation_manual
User Manual Low Voltage Battery MBL050/120/160 (MBL050/120/160-UEN-Ver11-202605)
quick-guide
{# Located but never retrieved: listed, but deliberately not linked, and it
backs no stored value. #}
MBL050/120/160 Quick Installation Guide — знайдено, не отримано
rev UNKNOWN
Додаткові задокументовані параметри
Записано дослівно з джерела; поля схеми для них поки немає.
| Battery cycles | 8000 |
| Max. charging / discharging current | 200 A / 200 A |
| Min. discharging current | 2 A |
| Nominal charging / discharging current | 157 A / 157 A |
| Peak charging (1s) / discharging (3s) | 210 A / 300 A |
| Sungrow MBL datasheet Version 4 MEA, column MBL160 | Nominal charging / discharging current 157 A / 157 A |
| Sungrow MBL datasheet Version 4 MEA, cross-column comparison | MBL160 Max. charging / discharging current 200 A / 200 A, but the smaller MBL120 prints 230 A / 230 A |
| identity.region_as_printed | MEA (datasheet edition 'Version 4 MEA') |
