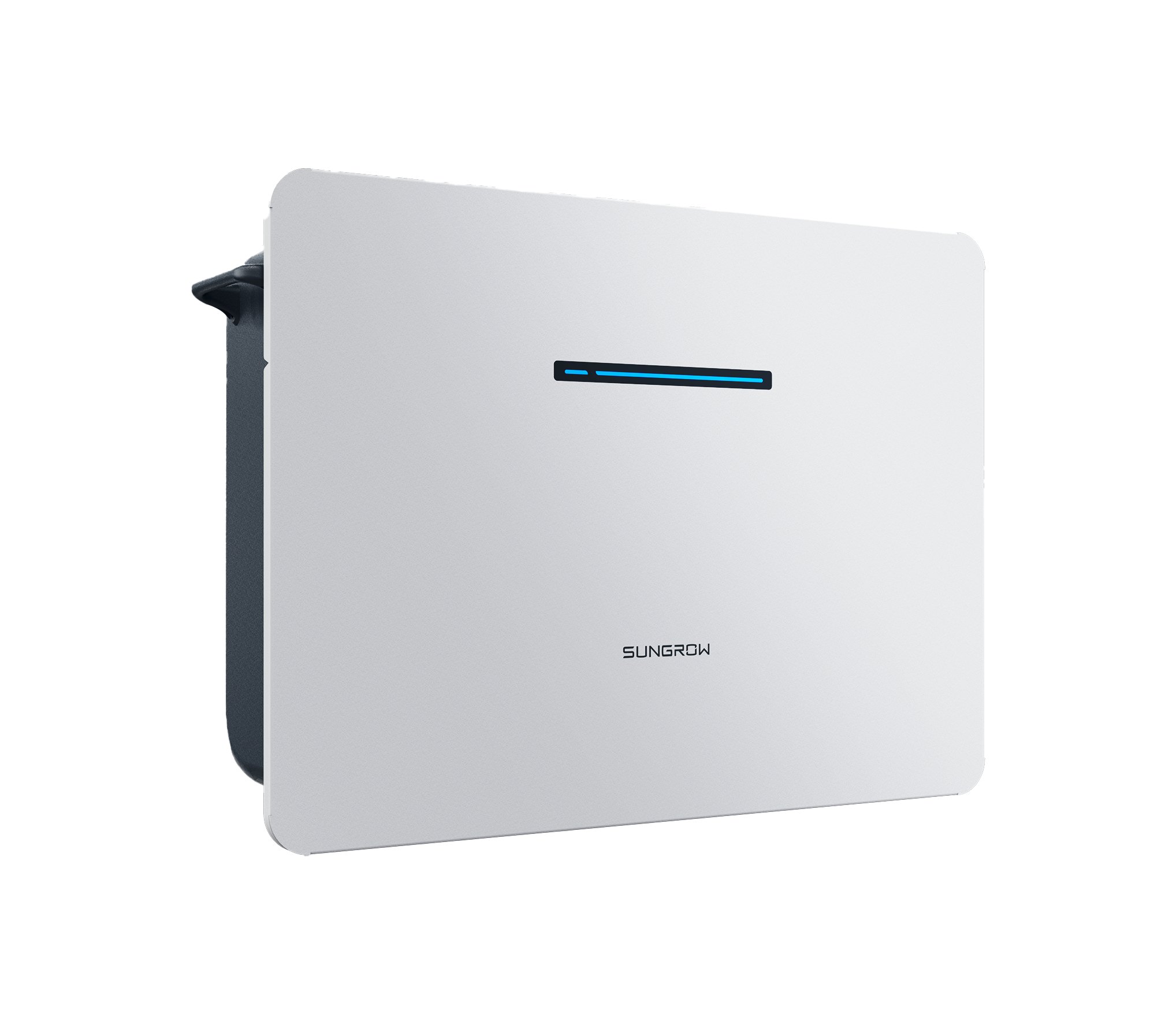

Sungrow MGL060
Official manufacturer GLOBAL перевірено 20 вересня 2026 р.
Identity
| category | batteries |
| ean | — |
| firmware | {'documented_version': 'UNKNOWN', 'constraints': 'UNKNOWN'} |
| generation | — |
| manufacturer | Sungrow |
| market_version | — |
| model | MGL060 |
| mpn | — |
| product_family | MG Series low-voltage residential battery |
| product_status | active |
| region | GLOBAL |
| release_year | — |
| series | MGL |
| sku | — |
Electrical
| bms | — |
| cell_chemistry | LiFePO4 |
| cell_configuration | — |
| communication | CAN |
| depth_of_discharge_pct | — |
| expandable_to_kwh | 1-16 batteries in parallel (6-96 kWh) |
| max_charge_current_a | 60 |
| max_charge_power_w | — |
| max_discharge_current_a | 60 |
| max_discharge_power_w | — |
| modules_per_stack | — |
| nominal_energy_kwh | 6.0 |
| nominal_voltage_v | 51.2 |
| parallel_units_max | 16 |
| peak_discharge | Peak charge / discharge current (10 s): 60 A / 78 A |
| round_trip_efficiency_pct | — |
| usable_energy_kwh | 5.8 |
| voltage_range_v | — |
Physical / mechanical
| ac_terminal | — |
| cooling | Natural convection |
| dc_connector | — |
| depth_mm | 225 |
| dimensions_mm | 650 mm * 490 mm * 225 mm |
| display | LED |
| enclosure_material | — |
| height_mm | 490 |
| mounting | Wall-mounting bracket / Floor-standing bracket |
| noise_db | — |
| weight_kg | ≤ 53 kg |
| width_mm | 650 |
Installation
| cable_requirements | — |
| commissioning | Installation location: indoor / outdoor |
| installation_angle | — |
| mounting_clearances | — |
| torque | — |
Environment
| ingress_protection | IP65 |
| max_altitude_m | 2000 |
| operating_temperature_c | Charge 0 ℃ to 55 ℃ / Discharge -20 ℃ to 55 ℃ |
| pollution_degree | — |
| protective_class | — |
| relative_humidity_pct | 5% – 95% |
| storage_temperature_c | — |
Interfaces & connectors
| app | iSolarCloud |
| communication | ['CAN'] |
| dry_contact | — |
| meter_interface | — |
| monitoring_portal | iSolarCloud |
| protocols | [] |
Protection
| anti_islanding | — |
| arc_fault | — |
| dc_switch | DC breaker: Yes |
| insulation_monitoring | — |
| overvoltage_category | — |
| rcmu | — |
| reverse_polarity | Reverse connection protection: Yes |
| surge_protection_ac | — |
| surge_protection_dc | — |
Certifications
| standards | ['CE', 'CEC', 'IEC 62619', 'IEC 62040', 'UN 38.3', 'IEC 63056', 'IEC 62477'] |
Warranty & service
| conditions | — |
| extension_options | — |
| standard_years | — |
Документи
quick-guide
{# Located but never retrieved: listed, but deliberately not linked, and it
backs no stored value. #}
MGL060 Quick Installation Guide — знайдено, не отримано
rev UNKNOWN
user-manual
{# Located but never retrieved: listed, but deliberately not linked, and it
backs no stored value. #}
MGL060 User Manual — знайдено, не отримано
rev UNKNOWN
Додаткові задокументовані параметри
Записано дослівно з джерела; поля схеми для них поки немає.
| Battery Cell Capacity (product page) | 314Ah |
| Peak Charge/Discharge Current (10s) | 78 A (product page) / 60 A charge, 78 A discharge (datasheet) |
| Sungrow MGL060 datasheet Version 3 APAC MEA | Peak charging / discharging current ( 10 s ): 60 A / 78 A |
| documented_relationship:inverter_battery | {"to_manufacturer": "Sungrow", "to_model": "MG5RL / MG6RL / MG8RL / MG10RL", "relationship_type": "inverter_battery", "match_level": "family", "status": "compatible", "source": "PDP MGL060 - SUNGROW", "source_url": "https://www.sungrowpower.com/en/products/residential-energy-storage-system/mgl060", "source_page": "Compatible inverters", "confidence": "officially-verified", "required_accessories": "UNKNOWN", "required_firmware": "UNKNOWN", "region": "GLOBAL", "notes": "The page prints 'MG5~10RL Hybrid Inverter (5~10 kW models)'. MGL060 also appears as a column in the Version 3 datasheet shared with those inverters."} |
| identity.region_as_printed | APAC / MEA (datasheet edition) / GLOBAL (product page) |
