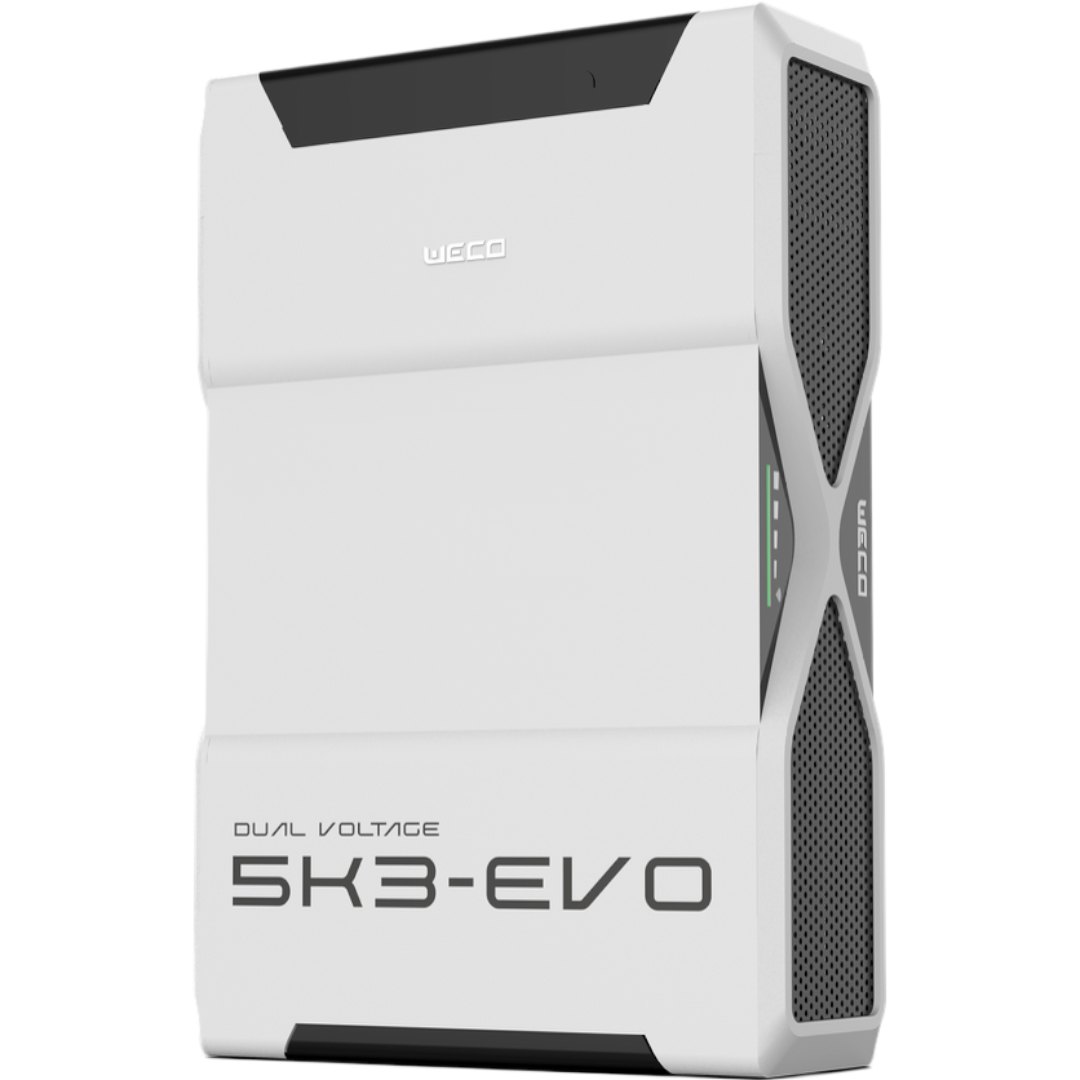

FRONT VIEW · WECO
PRODUCT PHOTO · WECO
Identity
category
batteries
ean
—
firmware
{'documented_version': 'UNKNOWN', 'constraints': 'UNKNOWN'}
generation
—
manufacturer
WECO
market_version
Dual Voltage (LV/HV) outdoor module
model
5K3 EVO
mpn
—
product_family
5K3
product_status
active
region
EU
release_year
—
series
5K3 EVO
sku
—
Electrical
bms
Auto Balancing BMS, 16 Channels Equalizer
cell_chemistry
LiFePO4 (page: 'high-efficiency LiFePO₄ solution')
cell_configuration
—
communication
RS485, CAN, RS232 + Wi-Fi / Bluetooth Integrated
depth_of_discharge_pct
Up to 98%
expandable_to_kwh
LV scenario 548 kWh; HV scenario 887 kWh
max_charge_current_a
—
max_charge_power_w
—
max_discharge_current_a
100 A (peak)
max_discharge_power_w
—
modules_per_stack
—
nominal_energy_kwh
5,22 kWh (as printed)
nominal_voltage_v
51.2 VDC
parallel_units_max
LV: Max 15 Modules in Parallel / 105 with HUB LV; HV: Max. 17 Modules in Series / 170 with multi-cluster
peak_discharge
100 A
round_trip_efficiency_pct
—
usable_energy_kwh
5115 Wh at max DoD
voltage_range_v
47,5 - 56.8 VDC
Physical / mechanical
ac_terminal
—
cooling
—
dc_connector
—
depth_mm
—
dimensions_mm
680 x 440 x 160
display
—
enclosure_material
—
height_mm
—
mounting
—
noise_db
—
weight_kg
50
width_mm
—
Installation
cable_requirements
—
commissioning
—
installation_angle
—
mounting_clearances
—
torque
—
Environment
ingress_protection
IP 66 (HV) / IP64 (LV)
max_altitude_m
—
operating_temperature_c
discharge -20 ~ +60; charge -10 ~ +55
pollution_degree
—
protective_class
—
relative_humidity_pct
—
storage_temperature_c
—
Interfaces & connectors
app
—
communication
['RS485', 'CAN', 'RS232', 'Wi-Fi', 'Bluetooth']
dry_contact
—
meter_interface
—
monitoring_portal
—
protocols
[]
Protection
anti_islanding
—
arc_fault
—
dc_switch
—
insulation_monitoring
—
overvoltage_category
—
rcmu
—
reverse_polarity
—
surge_protection_ac
—
surge_protection_dc
—
Certifications
standards
['IEC62619', 'UL1973', 'CE', 'IEC 61000', 'UN38.3']
Warranty & service
conditions
Cycle life > 7000 (25°C); design life 10 Years (25°C)
extension_options
—
standard_years
—
Документи
installation-manual
{# Located but never retrieved: listed, but deliberately not linked, and it
backs no stored value. #}
5K3 EVO Installation Manual (ENG) — знайдено, не отримано
rev UNKNOWN
Додаткові задокументовані параметри
Записано дослівно з джерела; поля схеми для них поки немає.
Capacity 102 (Cell Capacity 108 Ah) WECO 5K3 EVO datasheet, scalability max 1000 VDC system (HV scenario); 887 kWh HV / 548 kWh LV cluster
