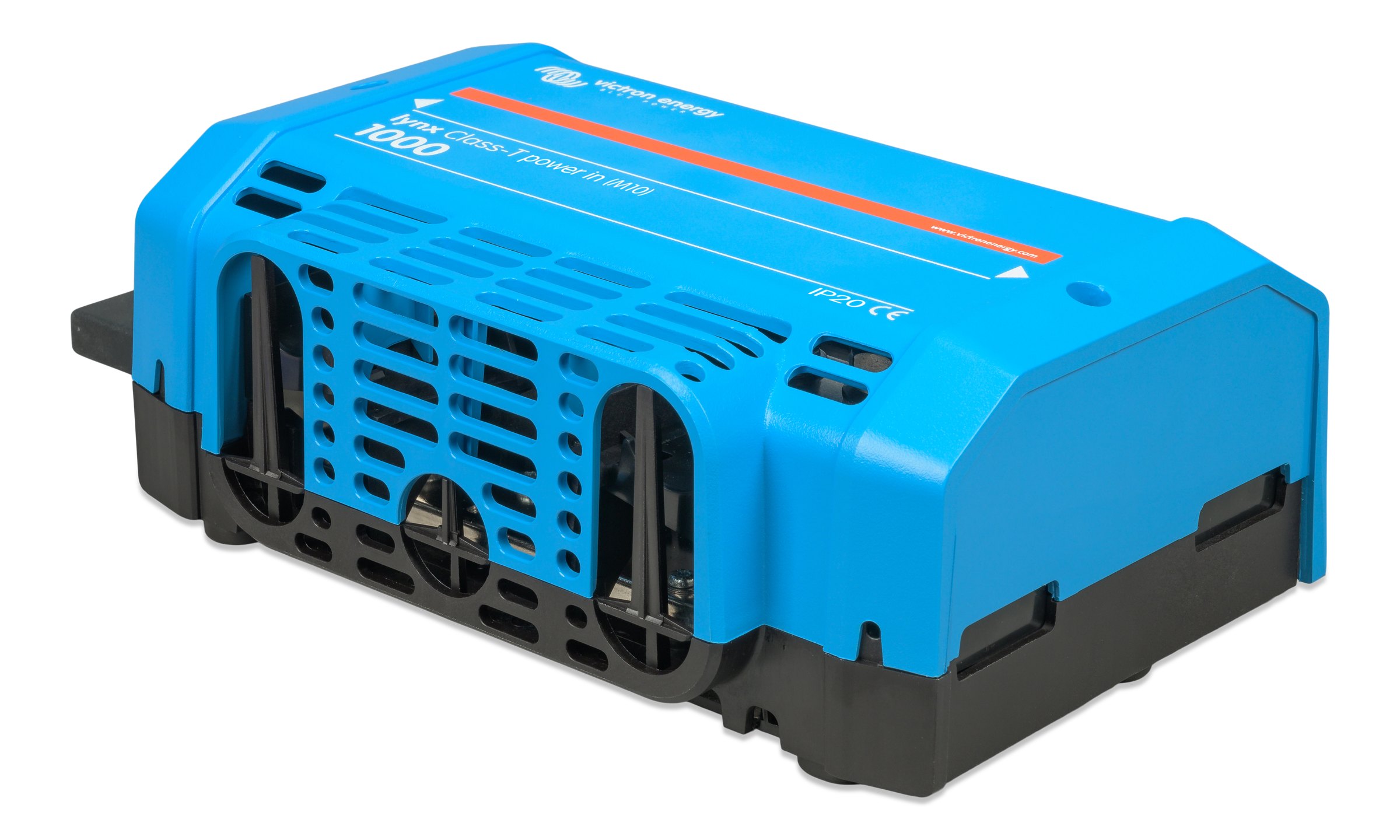

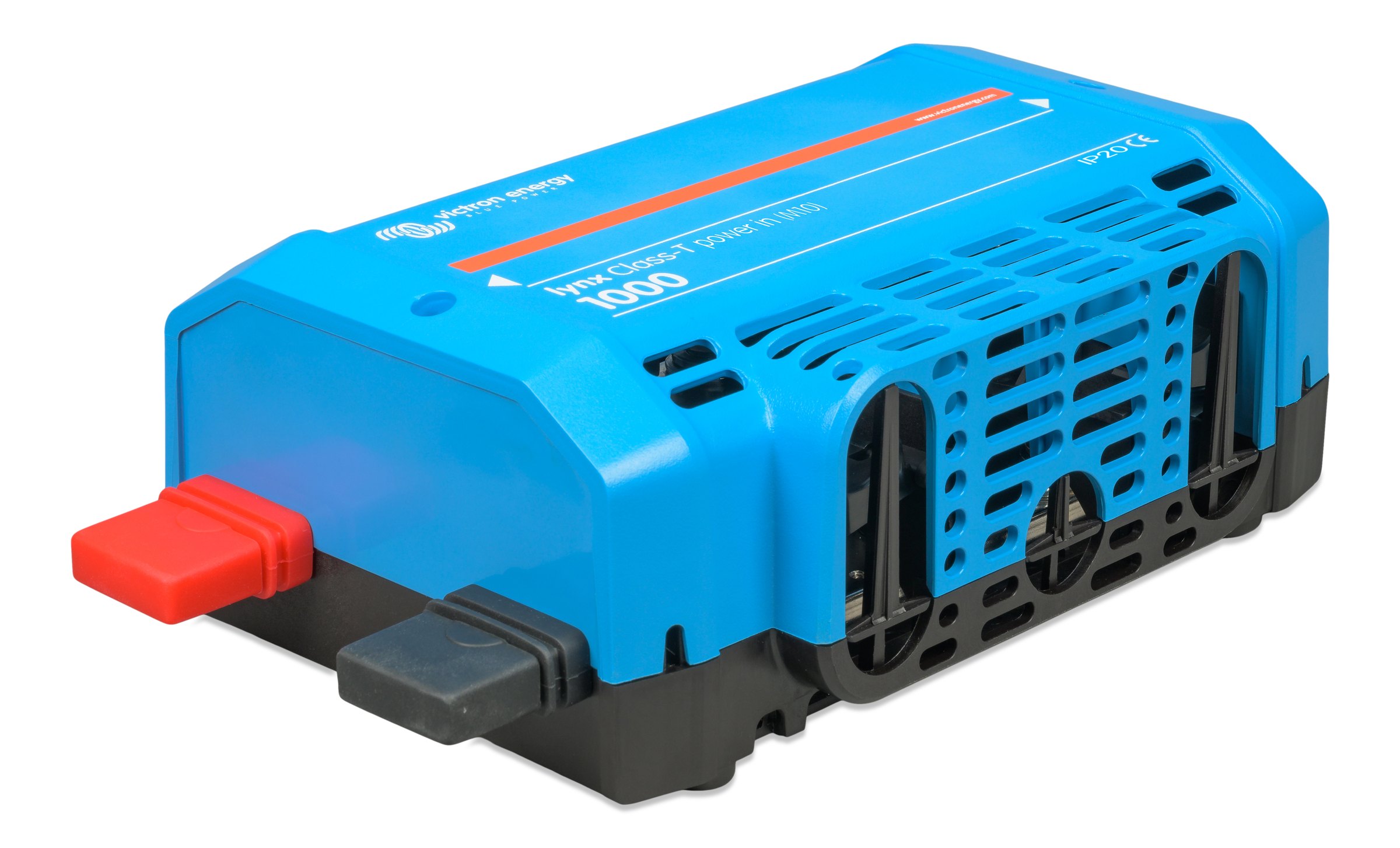

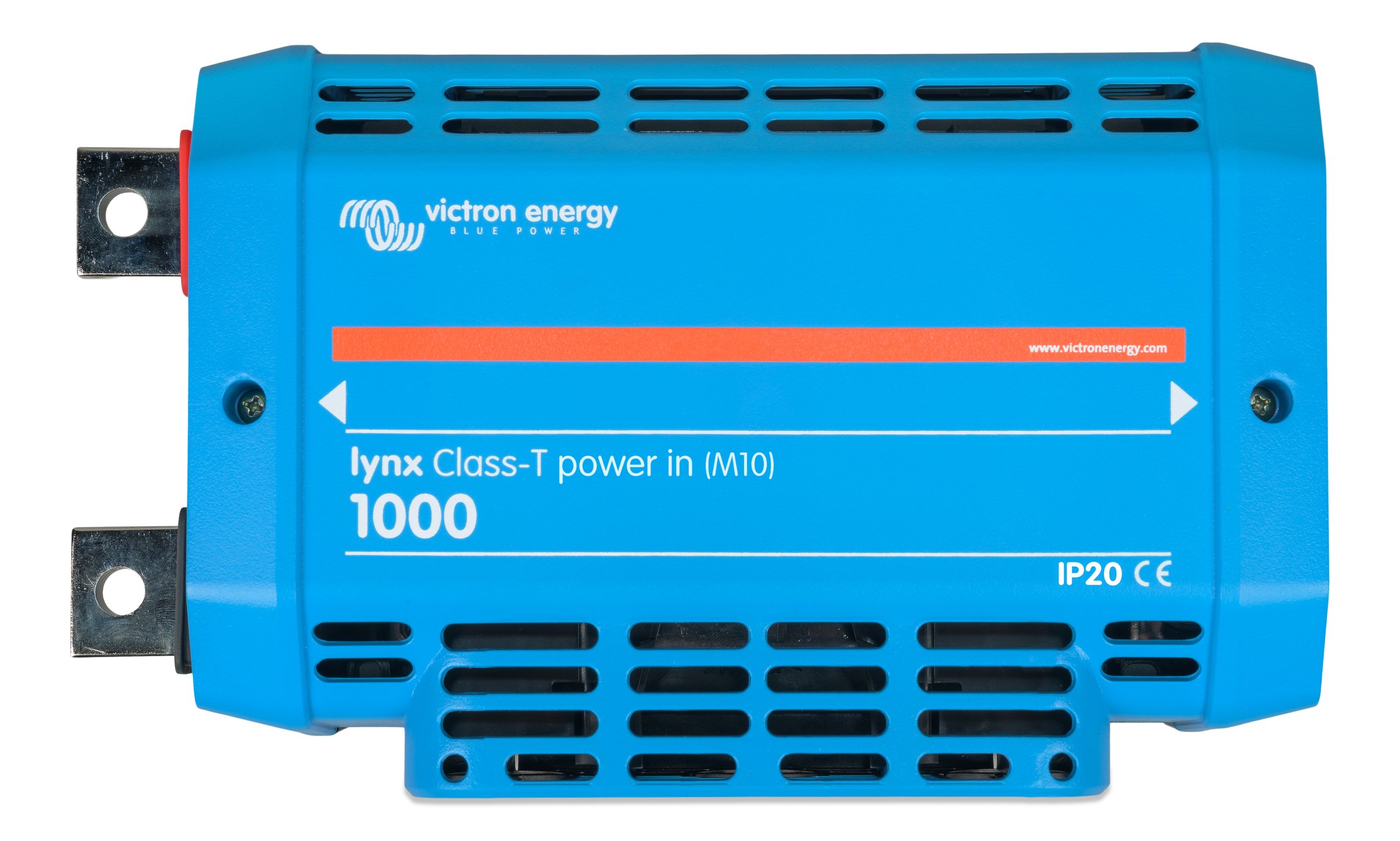

Victron Energy Lynx Class-T Power In (M10)
Official manufacturer Global (12/24/48V DC systems) перевірено 25 вересня 2026 р.
Identity
| busbar_version | M10 |
| category | dc_distribution |
| manufacturer | Victron Energy B.V. суперечливе |
| model | Lynx Class-T Power In (M10) |
| product_family | Lynx Distribution System |
| product_status | active |
| product_status_evidence | Listed as a current product in the DC distribution systems category on victronenergy.com; a newer addition to the Lynx range aimed at lithium battery strings. |
| region | Global (12/24/48V DC systems) |
| sku | LYN060404010 |

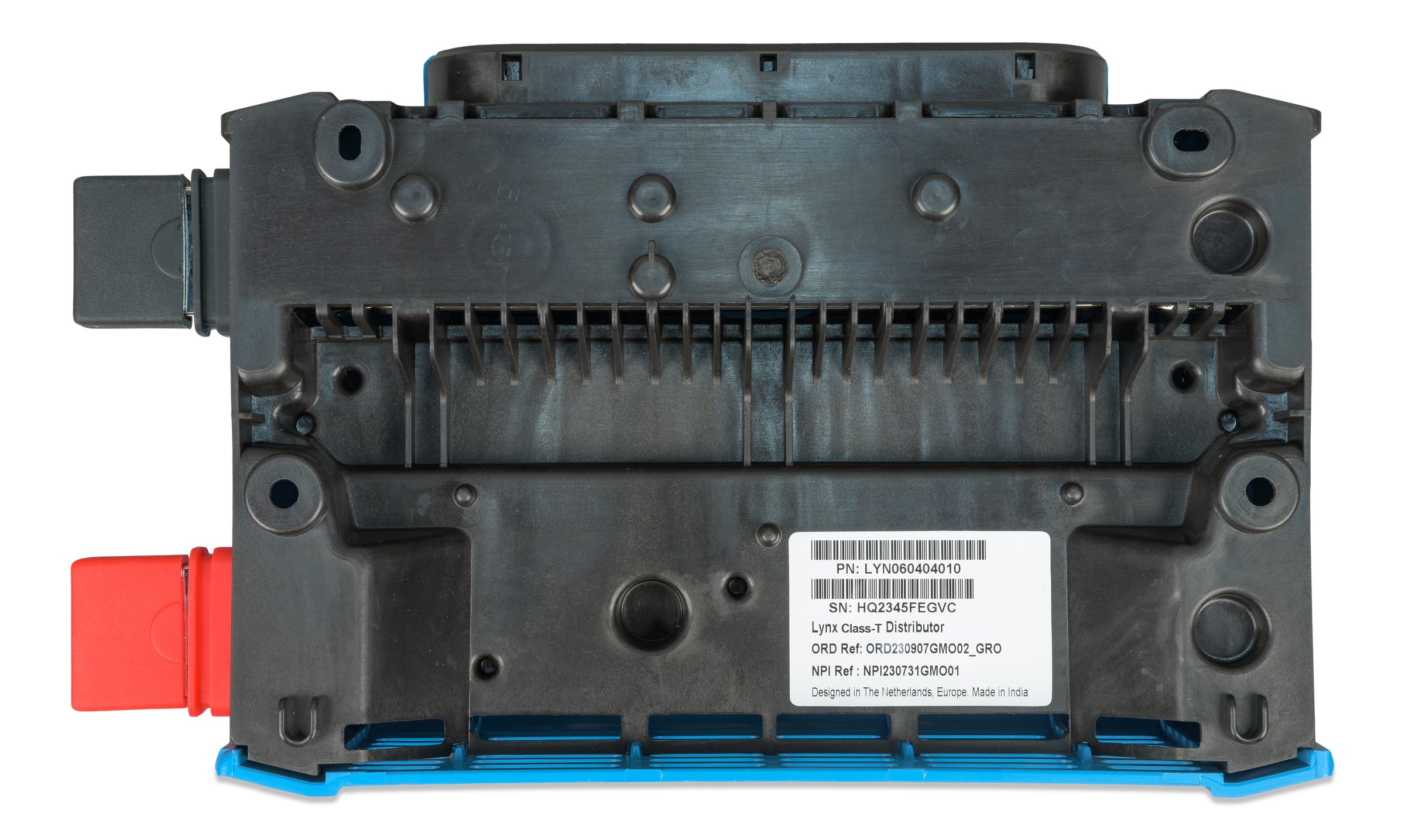

| sku_note | Appears as the leading token in every official product photo filename on the Victron product page, e.g. 'LYN060404010 Lynx Class-T Power In (M10) (front).png'. |
Electrical
| continuous_current_rating | 1000Adc continuous |
| current_rating_statement | 'The Lynx Distributor, Lynx Shunt VE.Can, Lynx Class-T Power In and the Lynx Power In are rated for a nominal current of 1000A for 12, 24 or 48 System voltages.' |
| reverse_polarity_protection | — |
| voltage_range | 9 - 60Vdc |
Physical / mechanical
| busbar_dimensions_hxw | 8 x 30mm |
| busbar_material | Tinned copper |
| dimensions_hxwxd | 279 x 169 x 97 mm |
| enclosure_material | ABS |
| protection_class | IP20 |
| weight | 2.1 kg |
Installation
| available_fuse_ratings | ['225A', '250A', '350A', '400A'] |
| bolt_torque | — |
| busbar_connection | M10 |
| fuse_connection | 3/8" |
| fuse_type | Class-T fuses. 'Class-T fuses are available in 225A, 250A, 350A, and 400A ratings' and are sold separately. |
| fuses_included | No - sold separately |
| ground_connection | Yes - 'a connection to ground the DC system' |
| number_of_battery_strings | Up to two strings of lithium batteries; for three or more strings multiple modules can be combined |
| number_of_fuse_positions | Two - 'connections for two Class-T fuses' |
Environment
| humidity | Max. 95% (non-condensing) |
| operating_temperature_range | -40°C to +60°C |
| storage_temperature_range | -40°C to +60°C |
Interfaces & connectors
| monitoring | None documented - no LEDs, RJ10, VE.Can or Bluetooth appear in the fetched specification table |
Protection
| fusing | Two Class-T fuse positions for lithium battery strings; Class-T is specified because of its high breaking capacity, appropriate for lithium batteries |
Certifications
| standards | ['UNKNOWN - not stated in the fetched specification table'] |
Warranty & service
| summary | 5-year standard warranty |
Документи
drawing
{# Located but never retrieved: listed, but deliberately not linked, and it
backs no stored value. #}
Lynx Class-T Power In (M10) enclosure dimensions — знайдено, не отримано
manual
{# Located but never retrieved: listed, but deliberately not linked, and it
backs no stored value. #}
Lynx Class-T Power In Manual (PDF) — знайдено, не отримано
product-page
Lynx Class-T Power In | Victron Energy
Зафіксовані конфлікти
identity.manufacturer Review required
Victron Energy B.V. — stored value
Victron Energy — incoming package
Detected during import wave6-2026-09-batch08
identity.manufacturer Review required
Victron Energy B.V. — stored value
Victron Energy — incoming package
Detected during import system-topology-2026-09-batch04
Додаткові задокументовані параметри
Записано дослівно з джерела; поля схеми для них поки немає.
| Class-T fuse ratings available | 225A, 250A, 350A, and 400A |
| For three or more battery strings, multiple modules can be combined | multiple modules can be combined |
| Fuses | 3/8" |
| Protection class | IP20 |
| builder_completeness | partial |
| region_notes | ANMA's stored region for this record is the sentence 'Global (12/24/48V DC systems)'. It is carried verbatim here so the importer can match the row; the defect is reported in identity_review and is NOT corrected by this record. |
