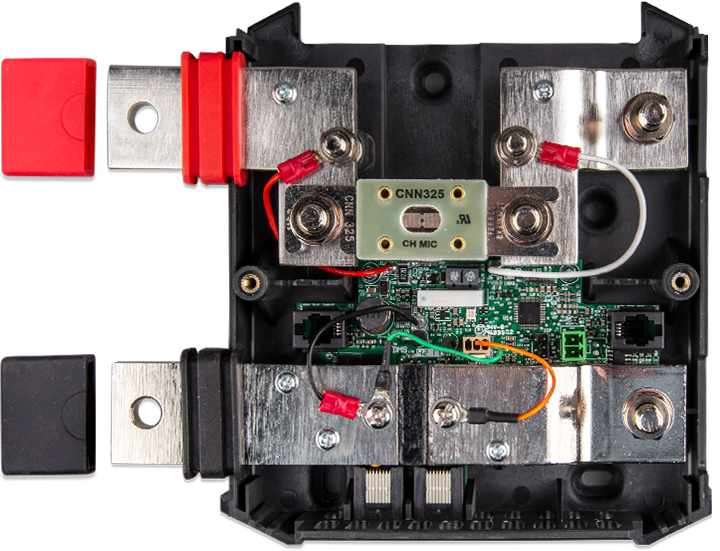

Victron Energy Lynx Shunt VE.Can (M8)
Official manufacturer Global (12/24/48V DC systems) перевірено 20 вересня 2026 р.
Identity
| busbar_version | M8 |
| category | dc_distribution |
| manufacturer | Victron Energy B.V. суперечливе |
| model | Lynx Shunt VE.Can (M8) |
| product_family | Lynx Distribution System |
| product_status | active |
| product_status_evidence | Listed as a current product in the DC distribution systems category on victronenergy.com, with a dedicated current manual for this busbar version. |
| region | Global (12/24/48V DC systems) |
| sku | — |
| sku_note | No article/order code appears in the fetched manual or product page text. |
Electrical
| battery_monitor_accuracy | — |
| continuous_current_rating | 1000 Adc continuous |
| current_rating_statement | 'The Lynx Distributor, Lynx Shunt VE.Can, Lynx Class-T Power In and the Lynx Power In are rated for a nominal current of 1000A for 12, 24 or 48 System voltages.' |
| potential_free_alarm_contact_rating | 3 A, 30 Vdc, 250 Vac |
| power_consumption | 60 mA @ 12 V, 33 mA @ 24 V, 20 mA @ 48 V |
| reverse_polarity_protection | No |
| shunt_rating | 1000 A (integral shunt) |
| supply_voltage_range | 9 - 70 Vdc |
| supported_system_voltages | 12, 24 or 48 V |
Physical / mechanical
| busbar_dimensions_hxw | 8 x 30mm |
| busbar_material | Tinned copper |
| dimensions_hxwxd | 190 x 180 x 80 mm |
| enclosure_material | ABS |
| protection_class | IP22 |
| weight | 1.4 kg |
Installation
| bolt_torque | — |
| busbar_connection | M8 |
| fuse_connection | M8 (Mega fuse installable on M6 bolts) |
| fuse_type | MEGA fuse |
| fuses_included | No - 'need to be purchased separately' |
| m10_busbar_bypass | — |
| number_of_fuse_positions | One - a fuse holder for the main system fuse |
| relay_connection | Screw terminal |
| temperature_sensor_connection | Terminal connector (included) |
Environment
| humidity | Max. 95 % (non-condensing) |
| operating_temperature_range | -40 °C to +60 °C |
| storage_temperature_range | -40 °C to +60 °C |
Interfaces & connectors
| battery_monitor | Built-in battery monitor; state of charge and measured values read out via VE.Can on a GX device |
| bluetooth | Not present on this module |
| relay | Potential free alarm contact, screw terminal, rated 3 A, 30 Vdc, 250 Vac |
| rj10 | RJ10 cable - power supply to Lynx Distributor |
| temperature_sensor | Terminal connector (included) |
| ve_can | RJ45 and RJ45 terminator |
Protection
| main_system_fuse | MEGA fuse holder for the main system fuse (fuse not included) |
Certifications
| standards | ['UNKNOWN - a Declaration of Conformity PDF covering Lynx DC distribution is published but was not fetched, so no standard is claimed'] |
Warranty & service
| summary | 5 years (standard) |
Документи
datasheet
{# Located but never retrieved: listed, but deliberately not linked, and it
backs no stored value. #}
Datasheet - Lynx Shunt VE.Can — знайдено, не отримано
manual
{# Located but never retrieved: listed, but deliberately not linked, and it
backs no stored value. #}
Lynx Shunt VE.Can (M8) Manual (PDF) — знайдено, не отримано
manual
{# Located but never retrieved: listed, but deliberately not linked, and it
backs no stored value. #}
Lynx Shunt VE.Can (M8) Manual - 2. Introduction — знайдено, не отримано
manual
{# Located but never retrieved: listed, but deliberately not linked, and it
backs no stored value. #}
Lynx Shunt VE.Can (M8) Manual - index — знайдено, не отримано
product-page
Lynx Shunt VE.Can | Victron Energy
Зафіксовані конфлікти
identity.manufacturer Review required
Victron Energy B.V. — stored value
Victron Energy — incoming package
Detected during import system-topology-2026-09-batch05
Додаткові задокументовані параметри
Записано дослівно з джерела; поля схеми для них поки немає.
| Fuse | M8 (Mega fuse installable on M6 bolts) |
| Potential free alarm contact | 3 A, 30 Vdc, 250 Vac |
| Power consumption | 60 mA @ 12 V, 33 mA @ 24 V, 20 mA @ 48 V |
| Power supply to Lynx Distributor | RJ10 cable |
| Temperature sensor | Terminal connector (included) |
| documented_relationship:monitoring_gateway | {"to_manufacturer": "Victron Energy", "to_model": "GX device (Cerbo GX and family)", "relationship_type": "monitoring_gateway", "source": "Lynx Shunt VE.Can (M8) Manual / product page", "source_url": "https://www.victronenergy.com/dc-distribution-systems/lynx-shunt-ve-can", "confidence": "officially-verified", "notes": "'The Lynx Shunt VE.Can is an intelligent 1000A shunt with location for a fuse (not included), the built-in battery monitor accurately monitors the state of charge of your battery.' It integrates with GX devices such as the Cerbo GX for data readout, communicating over VE.Can."} |
