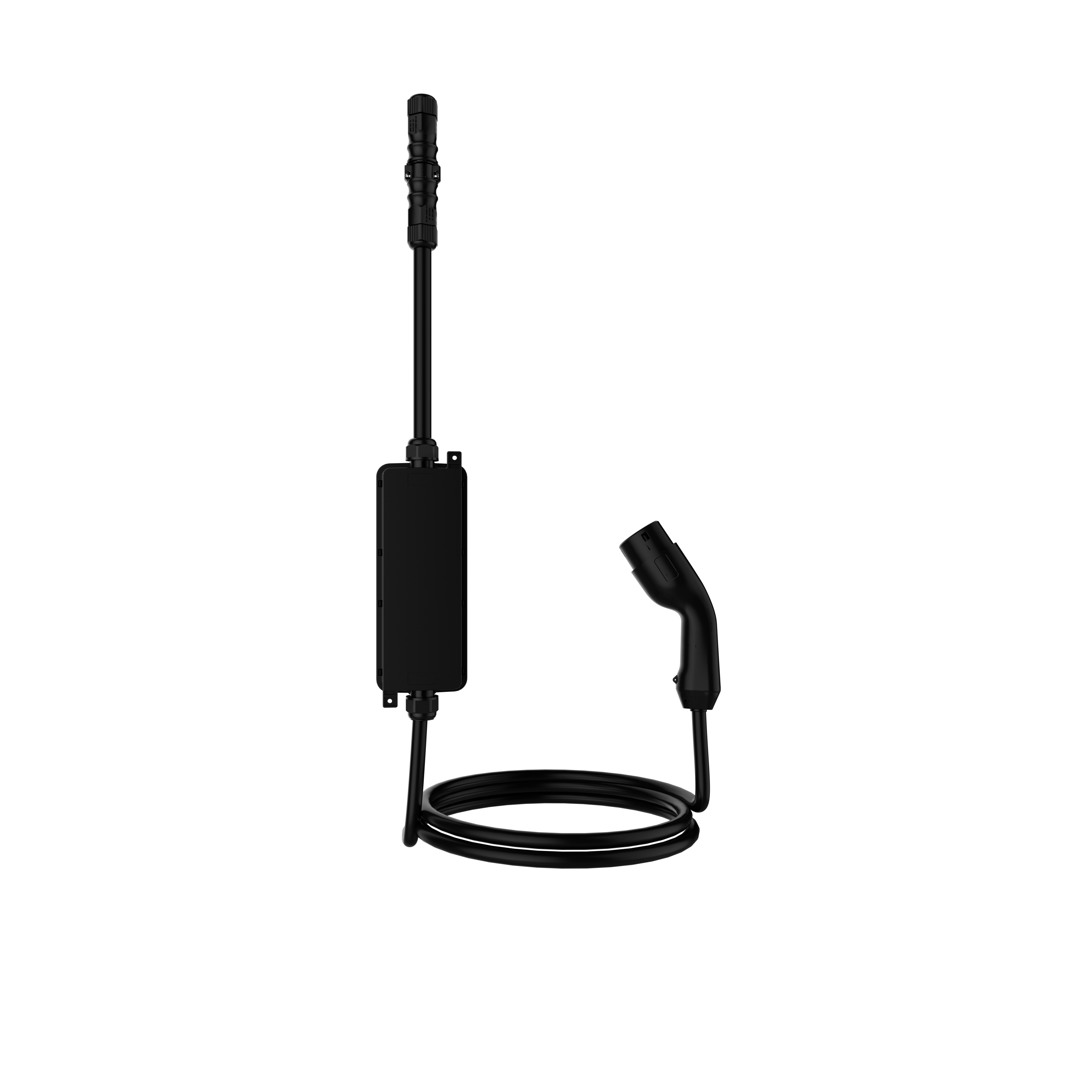

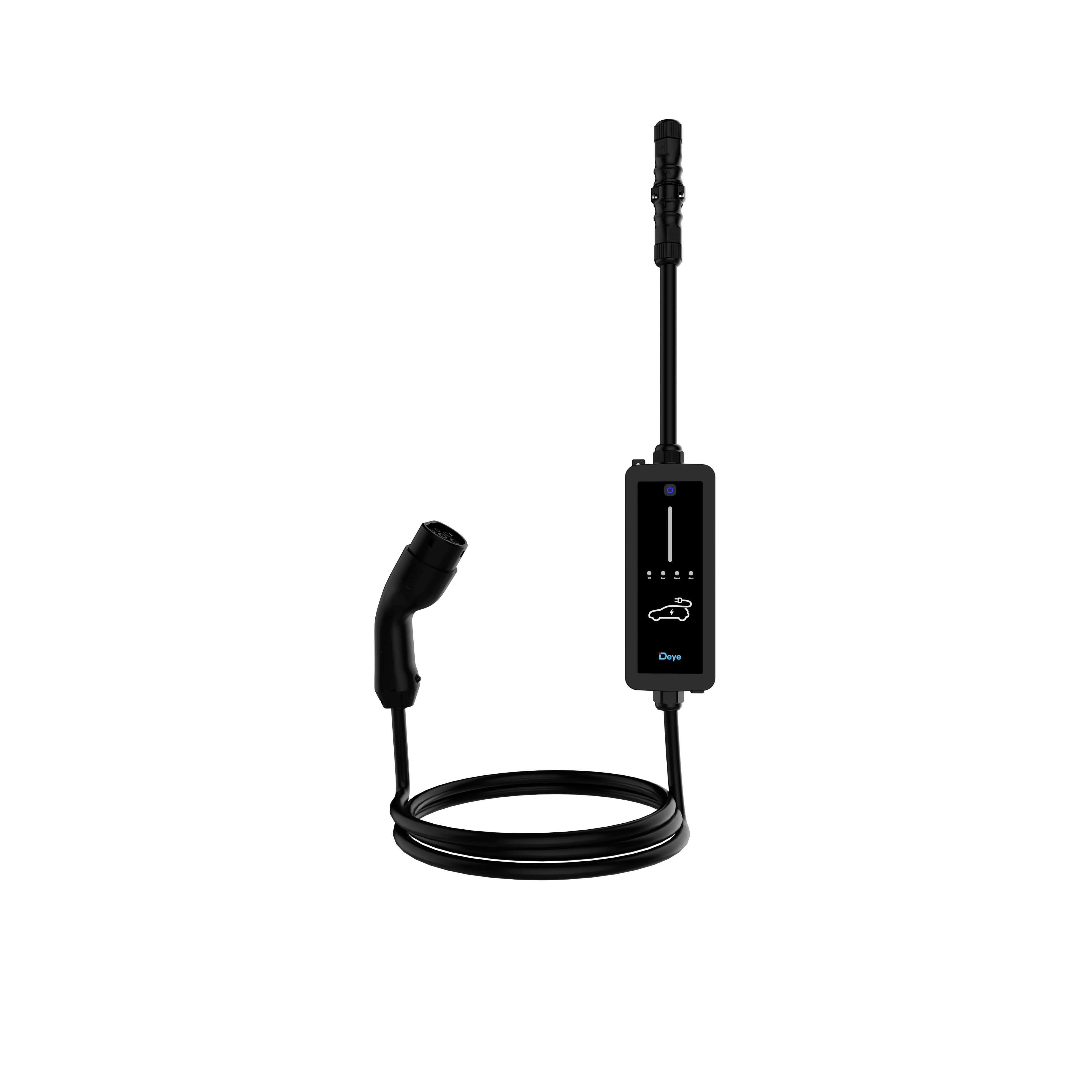

Deye SUN-EVSE11K01-EU-AC
Official manufacturer EU перевірено 22 вересня 2026 р.
UNKNOWN
UNKNOWN
UNKNOWN
Identity
| brand | Deye |
| category | ev_chargers |
| ean | — |
| manufacturer | Deye (Ningbo Deye Inverter Technology Co., Ltd.) суперечливе |
| market_version | EU (230/400 V, LoRa 863-870 MHz band via Smart TX) |
| model | SUN-EVSE11K01-EU-AC |
| mpn | — |
| product_family | Deye Smart EV Charger SUN-EVSE11/22K01-EU-AC |
| product_status | active |
| region | EU |
| sku | — |
Electrical
| adjustable_current_range_a | UNKNOWN as a published range. Manual documents 6 A as the minimum current used in solar-only mode (p.26); no min/max adjustable band is printed. |
| api_cloud | Deye Cloud - 'Real-time power monitoring and control via Deye Cloud' |
| api_local | — |
| cable_length_m |
4.2 m standard, 5 m optional (manual p.05). NOTE: the datasheet PDF extraction returned '3.7' for 'Gun Cable Length (m)' which duplicates the weight figure and is treated as an extraction artefact - the product page table and manual both give 4.2.
User Manual SUN-EVSE11K01-EU-AC / SUN-EVSE22K01-EU-AC — manual p.05 '4.2 m (standard) and 5 m (optional)'
|
| connector_type |
Type 2 (IEC 62196-2), tethered gun, 1 gun
User Manual SUN-EVSE11K01-EU-AC / SUN-EVSE22K01-EU-AC — manual p.05 - Type 2 (IEC 62196-2)
|
| dynamic_load_balancing | UNKNOWN as a named feature; the charger is fed setpoints by the paired Deye hybrid inverter over LoRa, and 'Free Work' mode uses inverter output and bypass circuit power (manual p.26) |
| home_assistant_integration | — |
| max_current_a |
16
Smart EV Charger product page (HTML technical specification table) — product page row 'Input Current (A)'
|
| max_power_kw |
11
Smart EV Charger product page (HTML technical specification table) — product page row 'Maximum Output Power (kW)'
|
| meter_integration | ['Deye Wireless CT 02 / SUN-SMART-CT02 (via the Deye Smart Transmitter, which supports 2 CTs and 1 EV charger)'] |
| mid_meter | UNKNOWN - no MID / eichrecht metering claim in any fetched Deye document |
| modbus_support | — |
| mqtt_support | — |
| ocpp_support | none documented - neither the datasheet, the product page nor the user manual mentions OCPP. Deye's EVSE is controlled by the Deye hybrid inverter over LoRa and by Deye Cloud. |
| official_product_url |
https://www.deyeinverter.com/product/ev-charger/ev-charger.html
Smart EV Charger product page (HTML technical specification table)
|
| phase_type | three-phase only (row 'Connection Mode | 3L+N+PE'; 'Input Voltage/Range (V) | 230/400') |
| rfid | UNKNOWN - not mentioned in the fetched datasheet or manual. Starting method is published as 'Plug and Play / Scheduled Charging'. |
| solar_surplus_charging | YES - 'Solar-Only' mode; manual p.26: 'Only when SOC rises to 99%, excess solar energy powers the charger'. Also 'Time of Charge' scheduling across four periods per 24 h. |
| supported_inverter_ems_integrations |
Deye hybrid inverters via LoRa, through the Deye Smart Transmitter (SUN-SMART-TX01 / TXU1). Manual p.6: 'Smart TX must be installed on the hybrid inverter' and 'Not all Deye hybrid inverters support Smart TX installation'. Deye names NO specific inverter model - so no inverter_evse_matrix row can be created from these documents.
User Manual SUN-EVSE11K01-EU-AC / SUN-EVSE22K01-EU-AC — manual p.06
|
Physical / mechanical
| depth_mm | 57.5 |
| enclosure_material | — |
| height_mm | 264 |
| housing_color | — |
| mounting_bolt_size | M4x80 anti-collision bolt x2 (package contents, manual p.07); expansion screw M4 x3, sleeve M6 x3 |
| mounting_type | ['wall', 'portable'] |
| note | Product page row 'Cabinet Size (WxHxD mm) | 104x264x57.5'; manual p.38 prints 104x264x58 |
| torque_specs | — |
| weight_kg | 3.7 |
| width_mm | 104 |
Installation
| clearance_bottom_mm | — |
| clearance_left_mm | — |
| clearance_right_mm | — |
| clearance_top_mm | — |
| indoor_outdoor | outdoor (IP66) |
| max_installation_altitude_m | 3000 |
| mounting_orientation | wall-mounted or portable (manual p.04) |
| ventilation_requirements | manual p.07: requires 'sufficient cooling space' without obstruction |
Environment
| cooling_method | — |
| ip_rating | IP 66 |
| max_altitude_m | 3000 |
| noise_level_db | <= 25 |
| operating_temperature_c | -40 to +55 |
| relative_humidity | 5%~95% no condensation |
Interfaces & connectors
| bluetooth | YES (BLE) |
| cellular | False |
| cloud_api | Deye Cloud |
| ethernet | False |
| local_api | — |
| lora | YES - primary link to the Deye hybrid inverter via the Deye Smart Transmitter (SUN-SMART-TX01, 863-870 MHz EU; ~200 m barrier-free) |
| modbus_rtu | — |
| modbus_tcp | — |
| mqtt | — |
| ocpp | none documented |
| protocol_notes | Deye product page: 'Deye Smart EV Charger can be directly connected to any AC port of the inverter and is controlled by the inverter via LoRa communication.' |
| rs485 | — |
| wifi | YES (row 'Communication Mode | LoRa/Wi-Fi/BLE') |
Controls & display
| display_type | — |
| leds | — |
| local_display | — |
| mobile_app | Deye Cloud |
Protection
| ground_fault_protection | YES (Earth Fault Protection) |
| over_current | YES (Over Load Protection) |
| over_temperature | YES (Over Temperature Protection); also Low Temperature Protection |
| over_voltage | YES |
| residual_current_monitoring | Type B leakage protection + DC 6 mA fault detection (row 'Leakage Current Protection | DC 6mA') |
| short_circuit | YES |
| surge_protection | TYPE II |
| under_voltage | YES |
Certifications
| emc | ['EN 300 220-2 V3.1.1:2017', 'EN 300 328 V2.2.2:2019', 'EN IEC 62311:2020', 'EN 301 489-1 V2.2.3:2019', 'EN 301 489-3 V2.3.2:2023', 'EN 301 489-17 V3.3.1:2024', 'EN IEC 61000-6-1:2019', 'EN IEC 61000-6-3:2021'] |
| grid_codes | [] |
| other | ['RED', 'RoHS'] |
| regional | ['CE'] |
| safety | ['EN IEC 61851-1:2019', 'IEC 61851-1:2017', 'EN IEC 61851-21-2:2021'] |
Warranty & service
| conditions | manual p.38 'Warranty 5 Years' |
| design_life_years | — |
| field_replaceable_parts | [] |
| mtbf | 100,000 h (product page row 'MTBF') |
| standard_years |
5
User Manual SUN-EVSE11K01-EU-AC / SUN-EVSE22K01-EU-AC — manual p.38
|
Packaging & logistics
| gross_weight_kg | — |
| package_width_mm | — |
Документи
Зафіксовані конфлікти
identity.manufacturer Review required
Deye (Ningbo Deye Inverter Technology Co., Ltd.) — stored value
Deye — incoming package
Detected during import v1-freeze-2026-09-batch05
identity.manufacturer Review required
Deye (Ningbo Deye Inverter Technology Co., Ltd.) — stored value
Deye — incoming package
Detected during import v1-freeze-2026-09-batch05
identity.manufacturer Review required
Deye (Ningbo Deye Inverter Technology Co., Ltd.) — stored value
Deye — incoming package
Detected during import builder-critical-2026-09-batch11
Додаткові задокументовані параметри
Записано дослівно з джерела; поля схеми для них поки немає.
| Connection Mode | 3L+N+PE (11K) / L+N+PE, 3L+N+PE (22K) |
| Deye datasheet 2026-07-10 | "Gun Cable Length (m) 3.7" |
| Deye product page | "Supports 7/11/22kW multi-power charging"; "Auto charging via time and solar-only mode" |
| MTBF | 100,000h |
| Number Of Charging Guns | 1 |
| Operating modes | Plug and Play; Time of Charge (four periods per 24 h); Solar-Only (SOC>95%, charging from surplus once SOC reaches 99%); Free Work (uses inverter output and bypass circuit power) |
| Starting Method | Plug and Play / Scheduled Charging |
