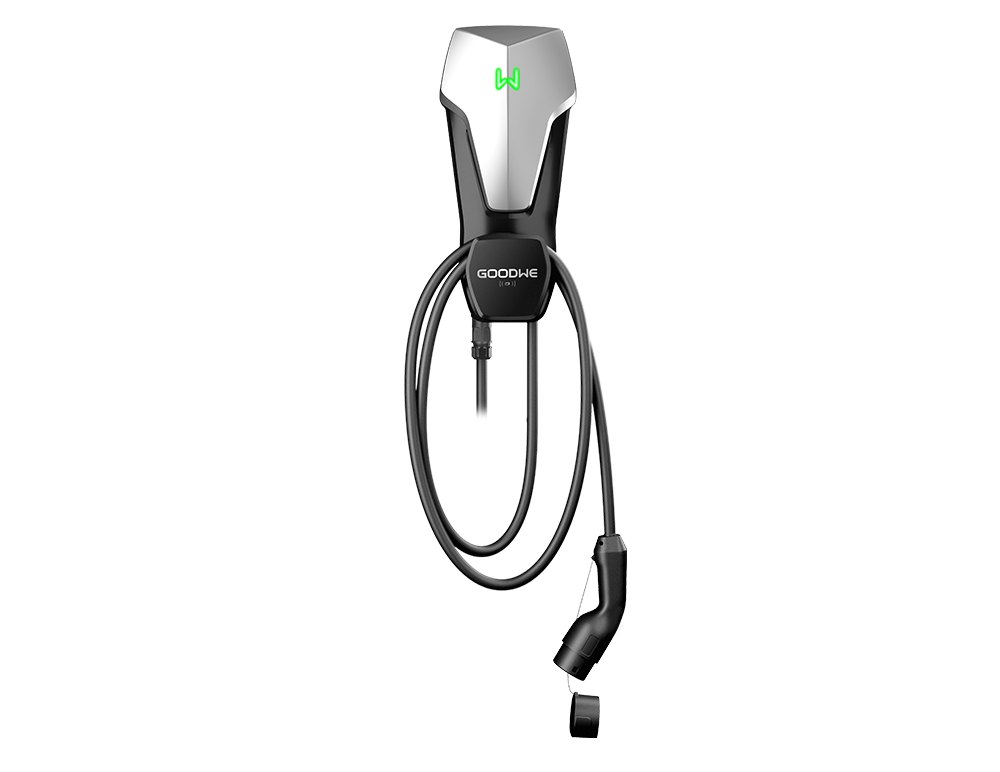

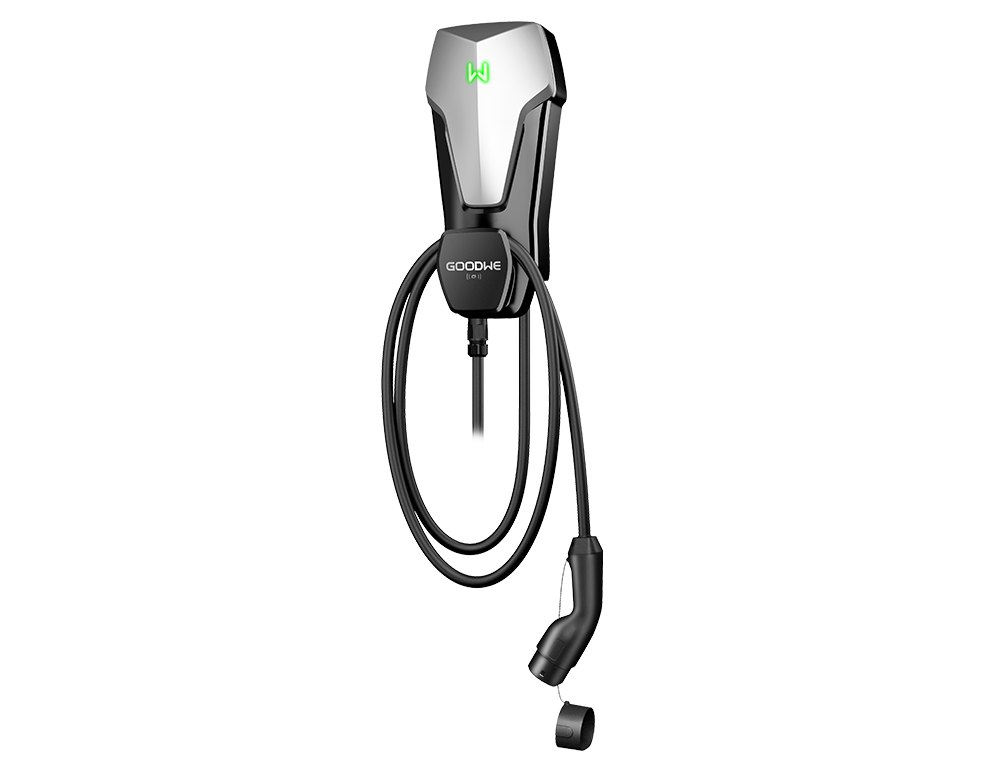

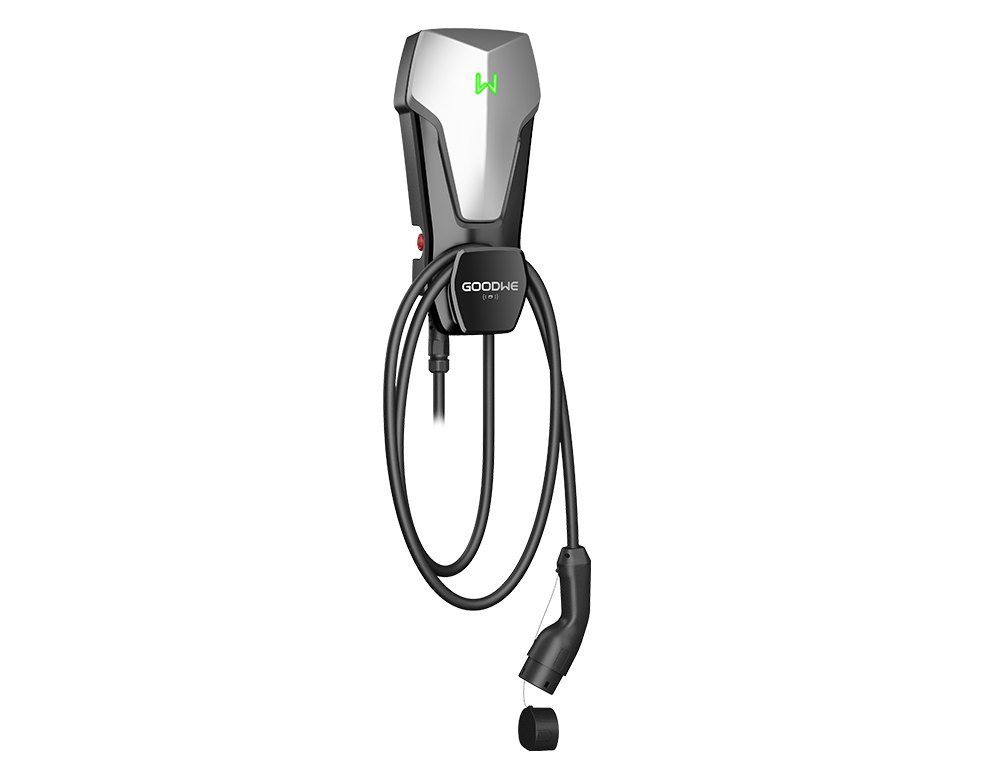

GoodWe GW11K-HCA-20
Manufacturer documented GLOBAL перевірено 20 вересня 2026 р.
Identity
| cable_or_socket | tethered cable, 6 m (7.5 m optional), IEC Type 2 |
| category | ev_chargers |
| ean | — |
| firmware | {'documented_version': 'UNKNOWN', 'constraints': 'Pairing with a GoodWe inverter requires a minimum inverter ARM version that differs per inverter series - see documented_relationships.'} |
| generation | G2 (-20) |
| manufacturer | GoodWe |
| market_version | EU / global EN documentation; three-phase, 400 V nominal input |
| model | GW11K-HCA-20 |
| mpn | GW11K-HCA-20 |
| product_family | HCA |
| product_status | active |
| region | GLOBAL |
| release_year | — |
| series | HCA G2 |
| sku | — |
Electrical
| ac_voltage_range | — |
| frequency_range_hz | — |
| nominal_ac_voltage | 400*3, 3L / N / PE |
| nominal_frequency_hz | 50 / 60 |
| nominal_input_current_a | 16 |
| nominal_output_current_a | 16 |
| nominal_output_voltage_v | 400 |
| phase_count | 3 |
| rated_ac_power_w | 11000 |
| standby_power_w | <6.5 |
Physical / mechanical
| ac_terminal | — |
| connector | 6m Cable (7.5m optional) IEC Type2 |
| connector_type | IEC Type2 |
| cooling | Natural Convection |
| depth_mm | 170 |
| dimensions_mm | 208 x 450 x 170 |
| display | WLAN + APP, LED |
| enclosure_material | — |
| height_mm | 450 |
| mounting | Wall / Floor (Optional Stand) |
| noise_db | <20 |
| weight_kg | 5.4 (With 6m Cable) 5.6 (With 7.5m Cable) |
| width_mm | 208 |
Installation
| cable_requirements | — |
| commissioning | Start Method: APP, RFID, AUTO Start |
| installation_angle | — |
| mounting_clearances | — |
| torque | — |
Environment
| ingress_protection | IP66 (footnote *2: 'Ingress Protection Rating: Charging Plug IEC type 2 is IP55.') |
| installation_location | Indoors or Outdoors |
| max_altitude_m | 2000 |
| operating_temperature_c | -30 ~ +50 (footnote *1: 'Charger is -30 ~ +55C, and Charging Plug is 50C.') |
| overvoltage_category | — |
| pollution_degree | — |
| protective_class | — |
| relative_humidity_pct | 5% ~ 95% (Non-Condensing) |
| storage_temperature_c | — |
Interfaces & connectors
| app | — |
| communication | ['Bluetooth', 'Wi-Fi', 'RS485 (x2)', 'LAN'] |
| dry_contact | — |
| meter_interface | — |
| monitoring_portal | SEMS+ (named on the product page: 'Manage PV and charging systems via SEMS+') |
| protocols | ['Modbus TCP'] |
| user_identification | RFID (Start Method: APP, RFID, AUTO Start; 'RFID Card x 2' shipped as an accessory) |
Protection
| emergency_power_off | Integrated |
| external_protection_required | Type A RCD is needed |
| ground_fault | Integrated |
| over_temperature | Integrated |
| overcurrent | Integrated |
| overvoltage | Integrated |
| residual_current | AC 30mA + DC 6mA |
| surge_protection_ac | Type III |
Certifications
| standards | ['IEC61851-1', 'IEC62311', 'IEC62955', 'AS / NZS 4268:2017', 'IEC61008-1'] |
Warranty & service
| conditions | No warranty term is printed on the HCA G2 datasheet or product page. |
| extension_options | — |
| standard_years | — |
Документи
other
{# Located but never retrieved: listed, but deliberately not linked, and it
backs no stored value. #}
GoodWe HCA G2 Series download index — знайдено, не отримано
rev UNKNOWN
user-manual
{# Located but never retrieved: listed, but deliberately not linked, and it
backs no stored value. #}
GoodWe HCA G2 Series User Manual — знайдено, не отримано
rev UNKNOWN
Додаткові задокументовані параметри
Записано дослівно з джерела; поля схеми для них поки немає.
| Communication Protocol | Modbus TCP |
| Datasheet footnote *1 | Operating Temperature Range (°C): Charger is -30 ~ +55°C, and Charging Plug is 50°C. |
| Datasheet footnote *2 | Ingress Protection Rating: Charging Plug IEC type 2 is IP55. |
| Datasheet footnote *3 | For Brazil: GW7K-HCA-20 is 220, L / N / PE, GW11K-HCA-20 and GW22K-HCA-20 is 380, 3L / N / PE. |
| GoodWe compatibility list v1 2026-08-15 | "HCA G2 Series (GW7K-HCA-20 | GW11K-HCA-20 | GW22K-HCA-20)" |
| HCA G2 datasheet V1.1 | "Nominal Output Current (A)" GW7K 32, GW11K 16, GW22K 32 |
| HCA Series user manual V1.3 | "Fast: charger uses electricity from power grid, PV, or batteries"; "PV priority: only the PV power is used to charge the EV"; "PV + Battery: PV power and battery are used to charge the EV" |
| HCA Series user manual V1.3, PV priority mode | "inverter's power limit function needs to be disabled, otherwise the charger cannot function properly" |
| Installation | Indoors or Outdoors |
| Noise Emission (dB) | <20 |
| Nominal Output Current (A) | 16 |
| Output Cable & Connector | 6m Cable (7.5m optional) IEC Type2 |
| Standby Power (W) | <6.5 |
| Start Method | APP, RFID, AUTO Start |
| Working Mode | Fast Charging / PV Priority / PV + BATT / Scheduled Charging / Dynamic Load Control |
| identity.region_as_printed | EU / global EN |
