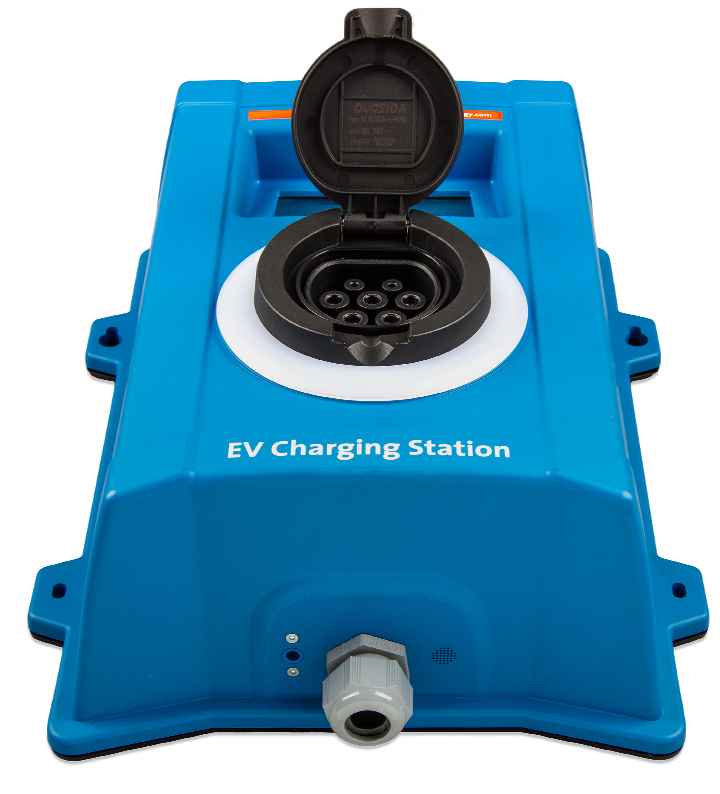

Victron Energy EV Charging Station
Official manufacturer 230/400VAC 50Hz (EU) перевірено 20 вересня 2026 р.
Identity
| category | ev_chargers |
| manufacturer | Victron Energy B.V. суперечливе |
| model | EV Charging Station |
| product_family | Victron EV Charging Station |
| product_status | active |
| product_status_evidence | Still listed as a separate current product at victronenergy.com/ev-charging/ev-charging-station, with a manual revision dated rev 18 - 03/2026. It is NOT marked as discontinued or superseded on any page fetched, and coexists with the NS variant. |
| region | 230/400VAC 50Hz (EU) |
| sku | — |
| sku_note | No order code is printed on the product page or in the fetched manual specification table. |
| variant_note | This is the LCD-touch-screen version. The 'NS' (no screen) version is a separate current product with a smaller enclosure. |
Electrical
| configurable_max_current | 6-32A |
| configurable_min_current | 6-32A |
| current_output_range | 6 - 32A |
| input_voltage_range | 170 - 265VAC 50Hz |
| means_to_disconnect | — |
| nominal_power | 22kW |
| phases | Three-phase and single-phase capable |
| rated_charge_current | 32A / phase |
| rated_power_single_phase | 7.3kW |
| rated_power_three_phase | 22kW AC |
| self_consumption | 15mA@230V |
Physical / mechanical
| dimensions_hxwxd | 377 x 307 x 148mm |
| display | Built-in LCD touch screen for monitoring and control directly from the charging station, plus a fully programmable RGB light ring around the charging port with 55 configurable light effects |
| enclosure_colour | Light Blue (RAL 5012) |
| protection_category | IP44 |
| weight | 3 kg |
Installation
| cable_length | — |
| connector_form | Socket; the fetched documents do not describe a tethered-cable variant |
| connector_type | IEC 62196 Type 2 |
| mounting | — |
| power_terminals | 6-10 mm² / AWG 10-8 |
Environment
| humidity | 95%, non-condensing |
| operating_temperature | -25°C to +50°C |
| storage_temperature | -40 °C to +80 °C |
Interfaces & connectors
| bluetooth | Yes - initial setup, configuration and monitoring from VictronConnect via Bluetooth |
| charging_modes | UNKNOWN for this record - the equivalent automatic / manual / scheduled mode description was fetched only from the NS manual |
| control_type | Touch Screen, Web page, GX device over Modbus TCP, VictronConnect via Bluetooth |
| data_communication | ModbusTCP over WiFi, Bluetooth |
| ethernet | UNKNOWN - no Ethernet row appears in the fetched specification table |
| light_ring | 55 configurable light effects available |
| load_balancing | — |
| modbus_tcp | Yes - 'ModbusTCP over WiFi'; control type includes 'GX device over Modbus TCP' |
| rfid | UNKNOWN - the NS manual's FAQ answers 'No' for the NS variant, but no equivalent statement for this model was fetched |
| wifi | 802.11 b/g/n (2.4Ghz only) - WiFi Access Point or WiFi LAN, hosting the integrated web interface |
Protection
| circuit_breaker | — |
| detections | — |
| rcd | External RCD is required |
Certifications
| standards | ['IEC 61851-1', 'IEC 61851-22'] |
Warranty & service
| summary | UNKNOWN - a warranty figure for this product was not captured verbatim from the fetched pages |
Документи
certificate
{# Located but never retrieved: listed, but deliberately not linked, and it
backs no stored value. #}
Certificate EN/IEC 61851-1 - EV Charging Station (NS) — знайдено, не отримано
datasheet
{# Located but never retrieved: listed, but deliberately not linked, and it
backs no stored value. #}
Datasheet - EV Charging Station — знайдено, не отримано
drawing
{# Located but never retrieved: listed, but deliberately not linked, and it
backs no stored value. #}
EV Charging Station enclosure dimensions — знайдено, не отримано
manual
{# Located but never retrieved: listed, but deliberately not linked, and it
backs no stored value. #}
Manual - EV Charging Station rev 18 - 03/2026 (PDF) — знайдено, не отримано
product-page
EV Charging Station | Victron Energy
Зафіксовані конфлікти
identity.manufacturer Review required
Victron Energy B.V. — stored value
Victron Energy — incoming package
Detected during import builder-critical-2026-09-batch11
certifications.certificate_document_scope Review required
The EV Charging Station (LCD) product page publishes its EN/IEC 61851-1 certificate under the filename 'Certificate-EN-IEC-61851-1-EV-Charging-Station-(NS).pdf', i.e. an NS-labelled certificate document served from the non-NS product page — EV Charging Station product page, Certificates section
The same certificate filename is the EN/IEC 61851-1 certificate referenced for the EV Charging Station NS — EV Charging Station NS product page
Додаткові задокументовані параметри
Записано дослівно з джерела; поля схеми для них поки немає.
| Control type | Touch Screen, Web page, GX device over Modbus TCP, VictronConnect via Bluetooth |
| Enclosure colour | Light Blue (RAL 5012) |
| Light Ring | 55 configurable light effects available |
| Victron EVCS description and features | "Note that this mode requires a GX device in your system and communication between GX device and EVCS enabled." |
| Victron EVCS technical specification | "External RCD is required"; control via "Touch Screen, Web page, GX device over Modbus TCP, VictronConnect via Bluetooth" |
| documented_relationship:configuration_app | {"to_manufacturer": "Victron Energy", "to_model": "VictronConnect app", "relationship_type": "configuration_app", "source": "Manual - EV Charging Station, Technical Specification", "source_url": "https://www.victronenergy.com/media/pg/EV_Charging_Station/en/technical-specification.html", "confidence": "officially-verified", "notes": "'Initial setup, configuration and monitoring is done from VictronConnect via Bluetooth and/or the integrated web interface via a WiFi Access Point or a WiFi LAN.'"} |
| documented_relationship:evse_gateway | {"to_manufacturer": "Victron Energy", "to_model": "GX device (Cerbo GX and family)", "relationship_type": "evse_gateway", "source": "Manual - EV Charging Station, Technical Specification, row 'Control type'", "source_url": "https://www.victronenergy.com/media/pg/EV_Charging_Station/en/technical-specification.html", "confidence": "officially-verified", "notes": "Control type includes 'GX device over Modbus TCP'. Note: the explicit statement that automatic/PV-surplus mode REQUIRES a GX device was verified in the NS manual, not in this model's fetched pages, so it is not asserted here for this model."} |
