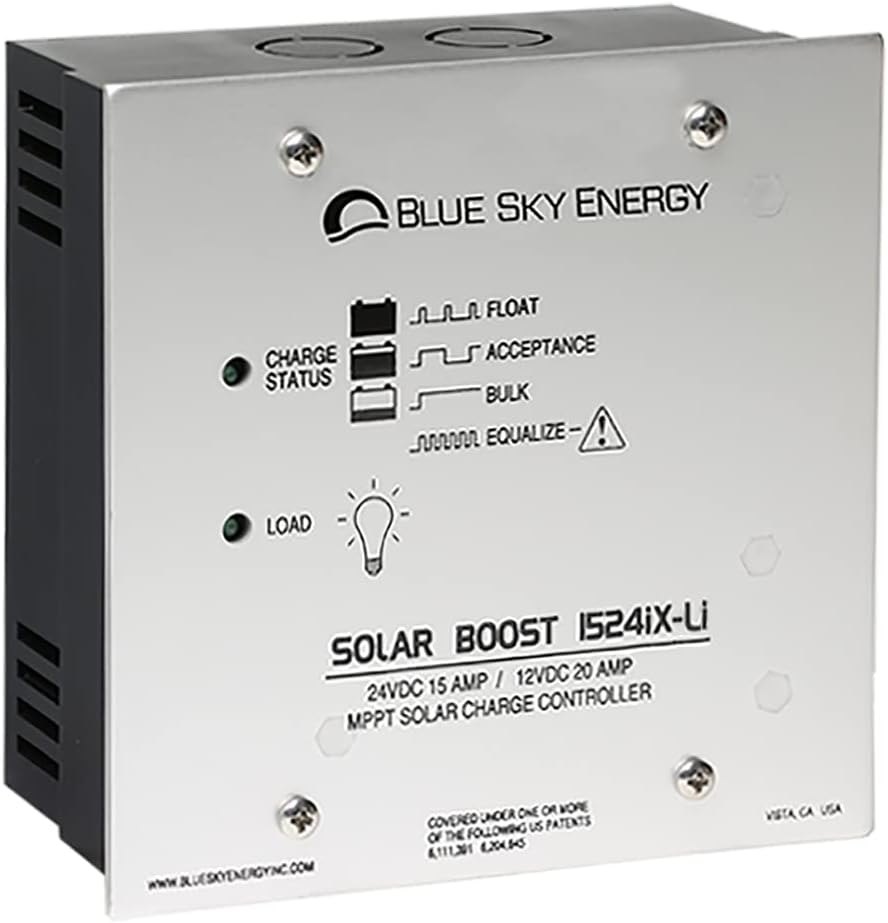

Blue Sky Energy SB1524iX

Official manufacturer GLOBAL перевірено 25 вересня 2026 р.

absorption_voltage_v	[14.2, 28.4] Blue Sky Energy SB1524iX product page
battery_type_supported	Lead acid Blue Sky Energy SB1524iX product page
battery_voltage_supported	['12V', '24V'] суперечливе Blue Sky Energy SB1524iX product page
charge_current_a	[20, 15, 15] Blue Sky Energy SB1524iX product page
charge_profile	Multi-stage Blue Sky Energy SB1524iX product page
dimensions_in	5.3 x 5.3 x 2.5 Blue Sky Energy SB1524iX product page
equalization_voltage_v	[15.2, 30.4] Blue Sky Energy SB1524iX product page
float_voltage_v	[13.2, 26.4] Blue Sky Energy SB1524iX product page
load_output_current_a	[20, 15] Blue Sky Energy SB1524iX product page
max_auxiliary_output_current_a	[20, 15] Blue Sky Energy SB1524iX product page
max_efficiency_percent	97 Blue Sky Energy SB1524iX product page
max_pv_power_w	[270, 200, 400] Blue Sky Energy SB1524iX product page
max_pv_voltage_v	57 Blue Sky Energy SB1524iX product page
network	IPN Network Blue Sky Energy SB1524iX product page
recommended_max_panel_voc_v	45.6 Blue Sky Energy SB1524iX product page
standby_power_w	0.2 Blue Sky Energy SB1524iX product page
weight_g	525 Blue Sky Energy SB1524iX product page

weight_kg

0.525

Blue Sky Energy SB1524iX product page

ip_rating	IP20 Blue Sky Energy SB1524iX product page
operating_temperature_max_c	50 Blue Sky Energy SB1524iX product page
operating_temperature_min_c	-40 Blue Sky Energy SB1524iX product page
temperature_compensation_mv_per_c_per_cell	-5.0 Blue Sky Energy SB1524iX product page

bluetooth

Optional via BT Connect adapter

Blue Sky Energy SB1524iX product page

datasheet SB1524iX-Li Data Sheet Rev. 2.0

installation_manual SB1524iX Manual Rev F

product_page Blue Sky Energy SB1524iX product page

electrical.battery_voltage_supported Review required

['12V', '24V'] — stored value

[12, 24] — 12/24V

Detected during import deep-enrich-2026-09-batch15

Записано дослівно з джерела; поля схеми для них поки немає.

builder_completeness	partial
region_notes	Blue Sky Energy is a brand of SunForge LLC; blueskyenergyinc.com now 302-redirects to sunforgellc.com, which hosts the first-party product pages and PDFs. Low-voltage DC charge controller with one worldwide specification (CE/FCC/RoHS, some models cETLus).
