ANMA System Building

Identity

brand	Deye (SOLARMAN/IGEN-branded hardware)
category	gateways
ean	—
manufacturer	Deye (Ningbo Deye Inverter Technology Co., Ltd.) суперечливе

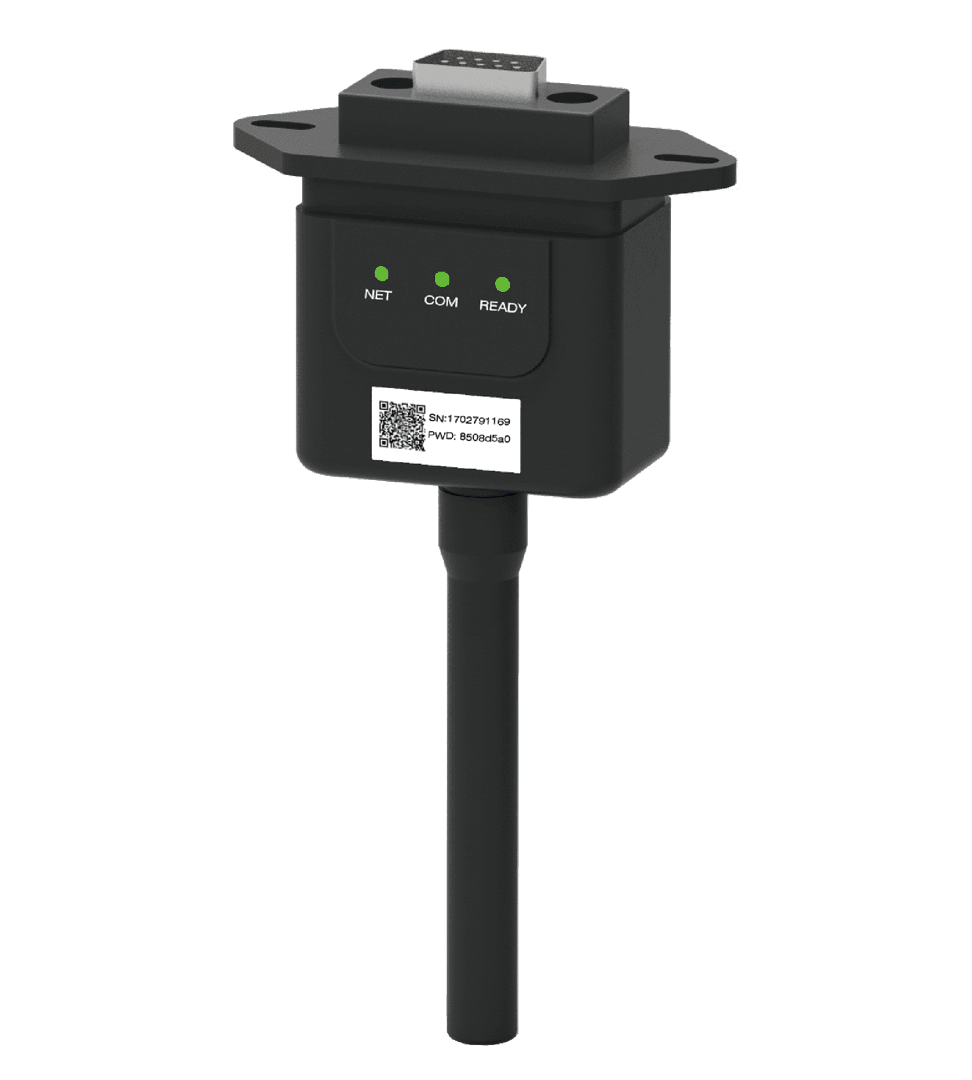

model	LSE-4WA5252
mpn	LSE-4WA5252
product_family	Deye Stick Logger
product_status	active
region	global
sku	—

Electrical

cloud_dependency	Deye Cloud / SOLARMAN account required for remote monitoring; local web page works without the cloud for configuration only
firmware_update	Local web page update; Remote update
home_assistant_integration	community-verified (unofficial HACS/custom integrations for Deye/SOLARMAN loggers). Deye publishes no Home Assistant support.
input_voltage	DC 5-12V Datasheet Stick Logger (2026-06-01)
local_api	UNKNOWN / not published. Configuration is via a local web page and AT+ commands only. Home Assistant: community integrations exist for Deye/SOLARMAN loggers (they poll the logger's Modbus-over-TCP service on port 8899 using the stick's serial number). Deye publishes no such interface and no local API. Graded community-verified; NEVER officially-verified.
modbus_tcp	UNKNOWN / not documented by Deye. Home Assistant: community integrations exist for Deye/SOLARMAN loggers (they poll the logger's Modbus-over-TCP service on port 8899 using the stick's serial number). Deye publishes no such interface and no local API. Graded community-verified; NEVER officially-verified.
physical_interface	stick with Deye's 4-pin logger socket; the electrical data interface is stated as RS232
protocol_to_cloud	Internet (Ethernet) to the SOLARMAN / Deye Cloud platform
protocol_to_inverter	RS232 serial, default 9600 bps (Default setting: 9600 bps (Adjustable from 1200 to 57600 bps)) Deye Stick Logger product page (HTML technical specification table) — table row 'Data Interface \| RS232'
registration_required	UNKNOWN - Deye does not state on the Stick Logger page whether logger registration is a warranty condition. Not asserted.
role	inverter data logger / cloud monitoring stick
serial_communication_rate	9600 bps Datasheet Stick Logger (2026-06-01)
supported_inverters	Deye inverters with the 4-pin logger port. Deye does not publish a per-model support list on the Stick Logger page - UNKNOWN which exact families each stick covers.
working_frequency	2.412 GHz - 2.472 GHz Datasheet Stick Logger (2026-06-01)

Physical / mechanical

depth_mm	—
enclosure_material	—
height_mm	—
mounting_type	['plug-in to inverter logger port']
weight_kg	—
width_mm	—

Installation

indoor_outdoor	outdoor-rated (IP65) when fitted to the inverter
note	'Plug & Play for effortless installation'; 'No external power required'

Environment

cooling_method	natural
ip_rating	IP65 Deye Stick Logger product page (HTML technical specification table) — product page feature bullet 'IP65-rated for reliable outdoor use'
operating_temperature_c	-30 to +70
relative_humidity	10%~90% relative humidity, non-condensing

Interfaces & connectors

antenna	/
bluetooth	—
cellular	—
cloud_api	SOLARMAN / Deye Cloud
ethernet	YES
host_interface	RS232 Datasheet Stick Logger (2026-06-01)
local_api	—
modbus_rtu	—
modbus_tcp	—
protocol_notes	Working voltage DC 5-12V; working power 1.5W; memory Default configuration: 4 MB of flash memory; one inverter connection per logger ('No. of Connections \| One'); data acquisition interval default 5 minutes.
rs232	YES (row 'Data Interface \| RS232') суперечливе
rs485	—
wifi	False

Controls & display

display_type	—
leds	external light indicator ('External light indicator, logger status at a glance')
local_display	False
mobile_app	SOLARMAN Smart / SOLARMAN Business; Deye Cloud
web_interface	local web page configuration

Certifications

emc	[]
grid_codes	[]
other	['UNKNOWN - the Stick Logger page publishes no certification list']
regional	['CE']
safety	[]

Warranty & service

conditions	not published on the Stick Logger page
standard_years	—

Документи

datasheet Datasheet Stick Logger (2026-06-01) rev 2026-06-01

datasheet Deye Stick Logger product page (HTML technical specification table)

Зафіксовані конфлікти

interfaces.rs232 Review required

YES (row 'Data Interface | RS232') — stored value

True — Data Interface | RS232

Detected during import wave6-2026-09-batch11

identity.manufacturer Review required

Deye (Ningbo Deye Inverter Technology Co., Ltd.) — stored value

Deye — incoming package
