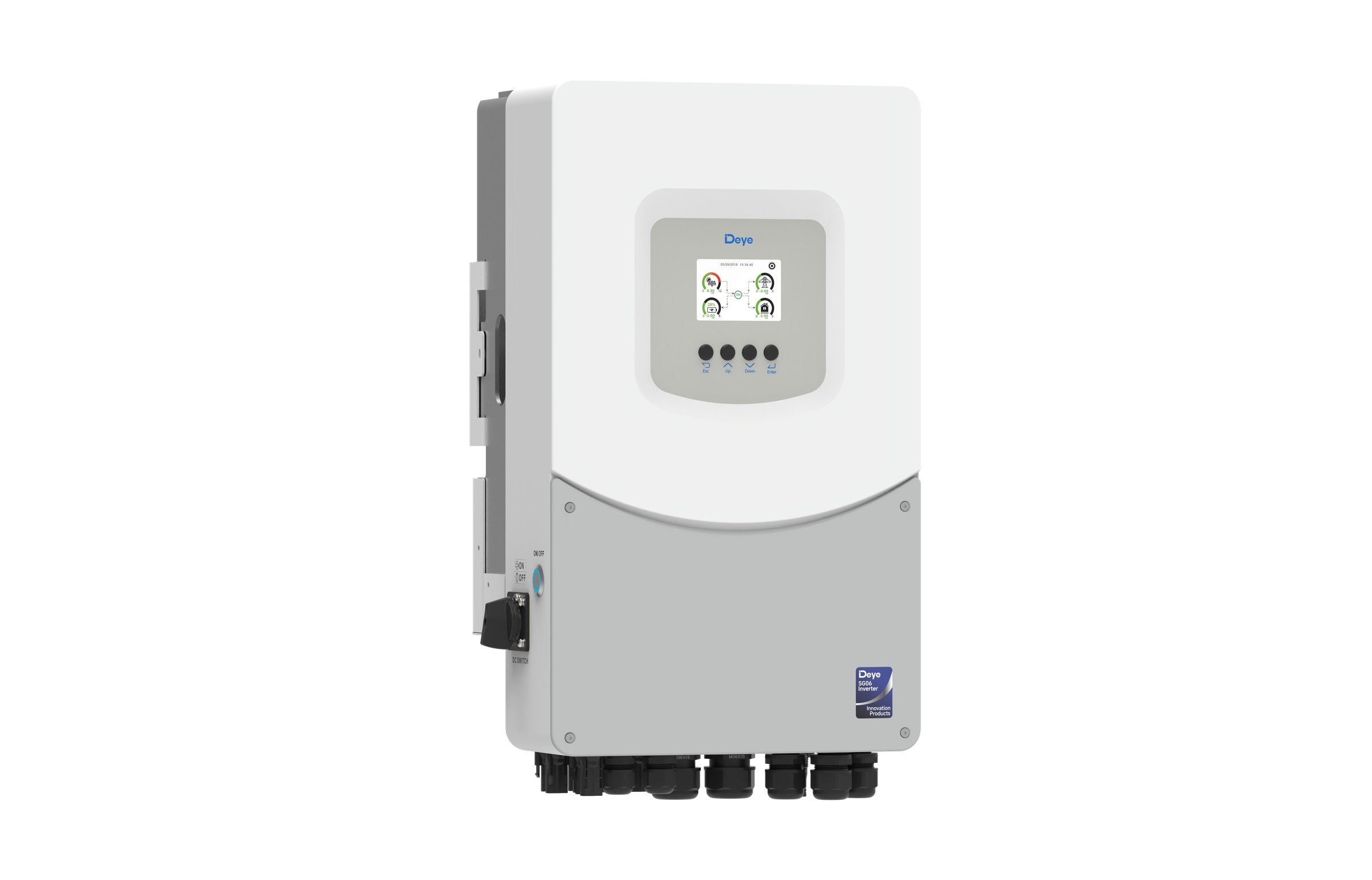

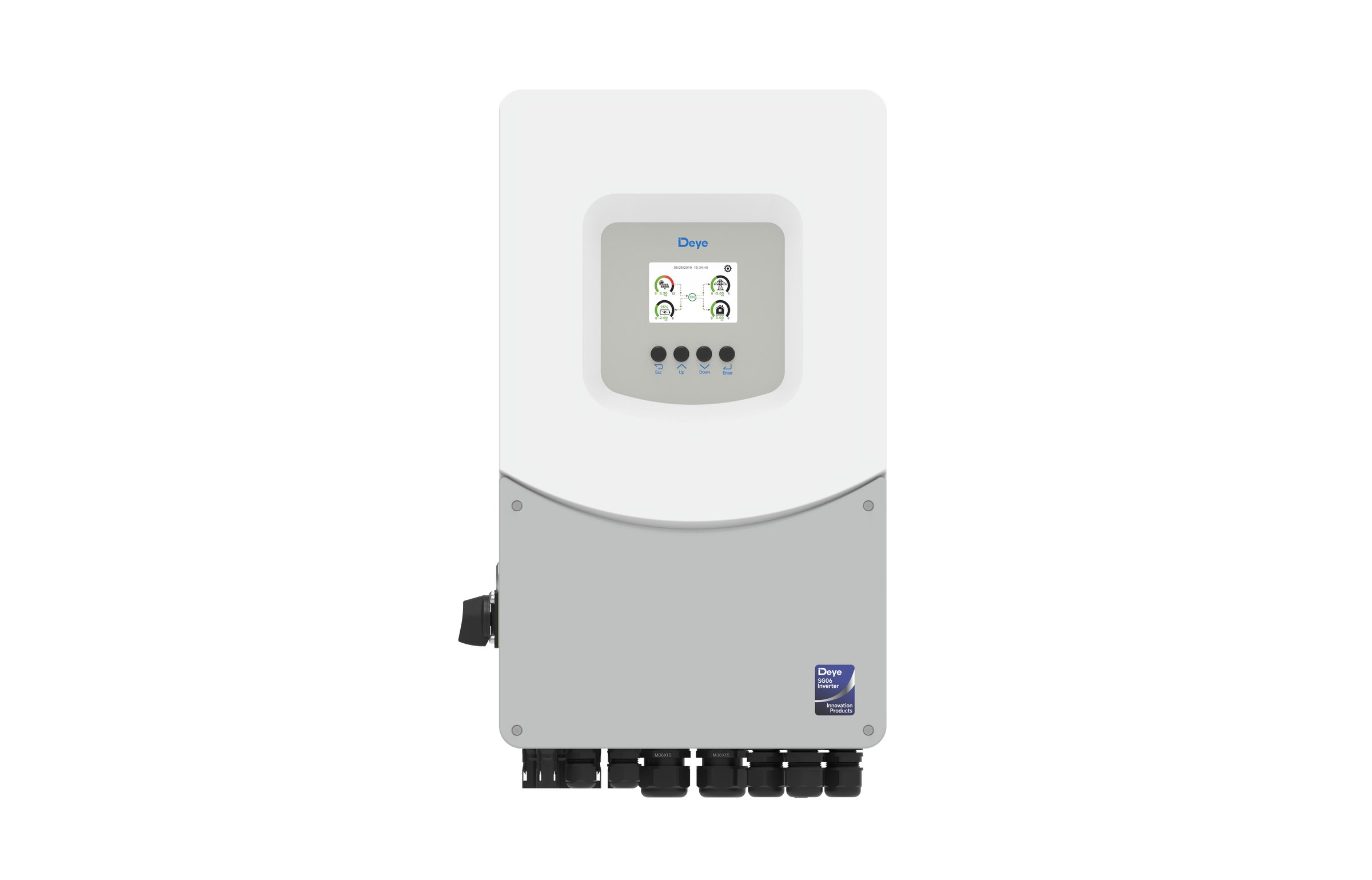

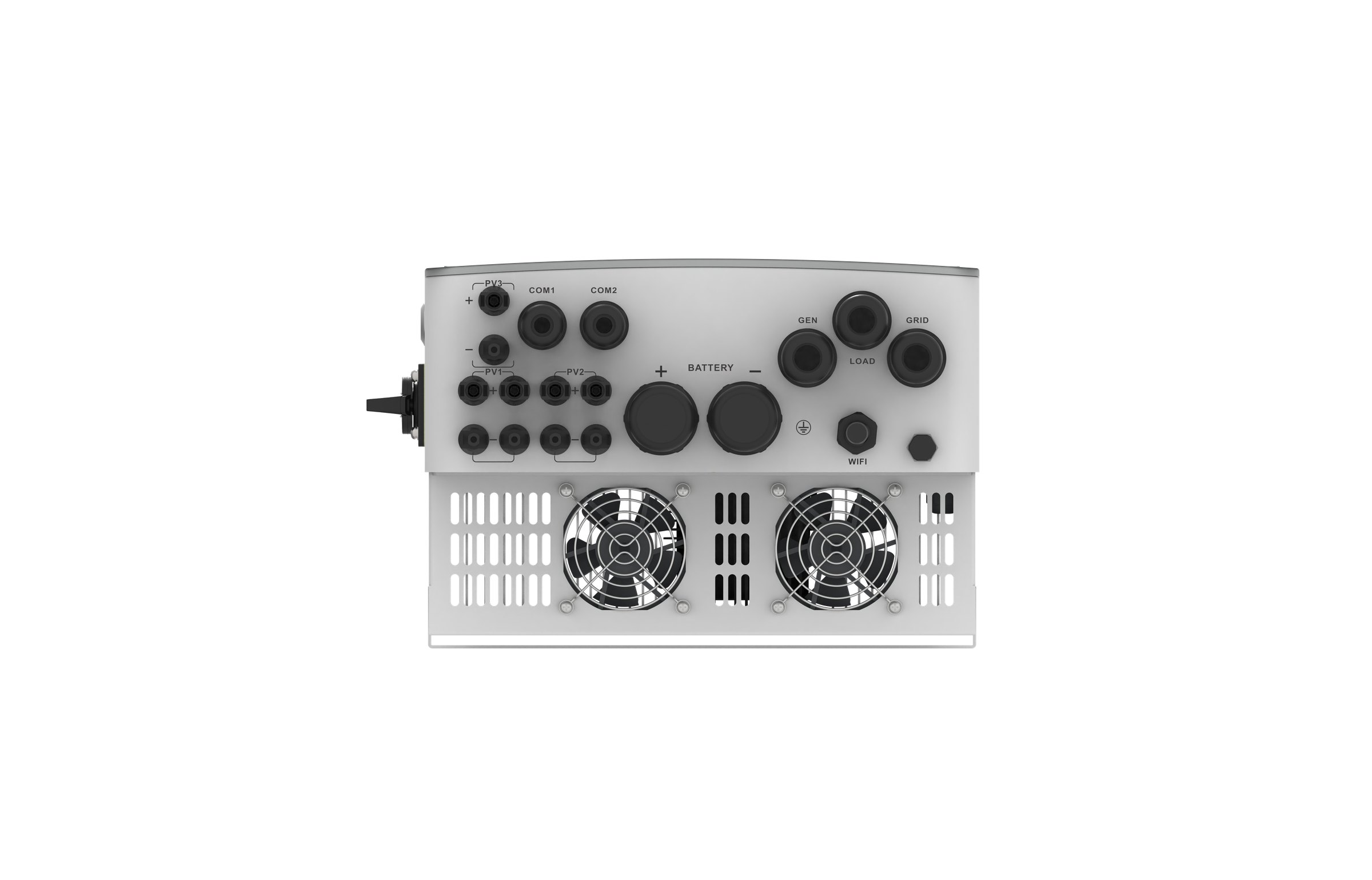

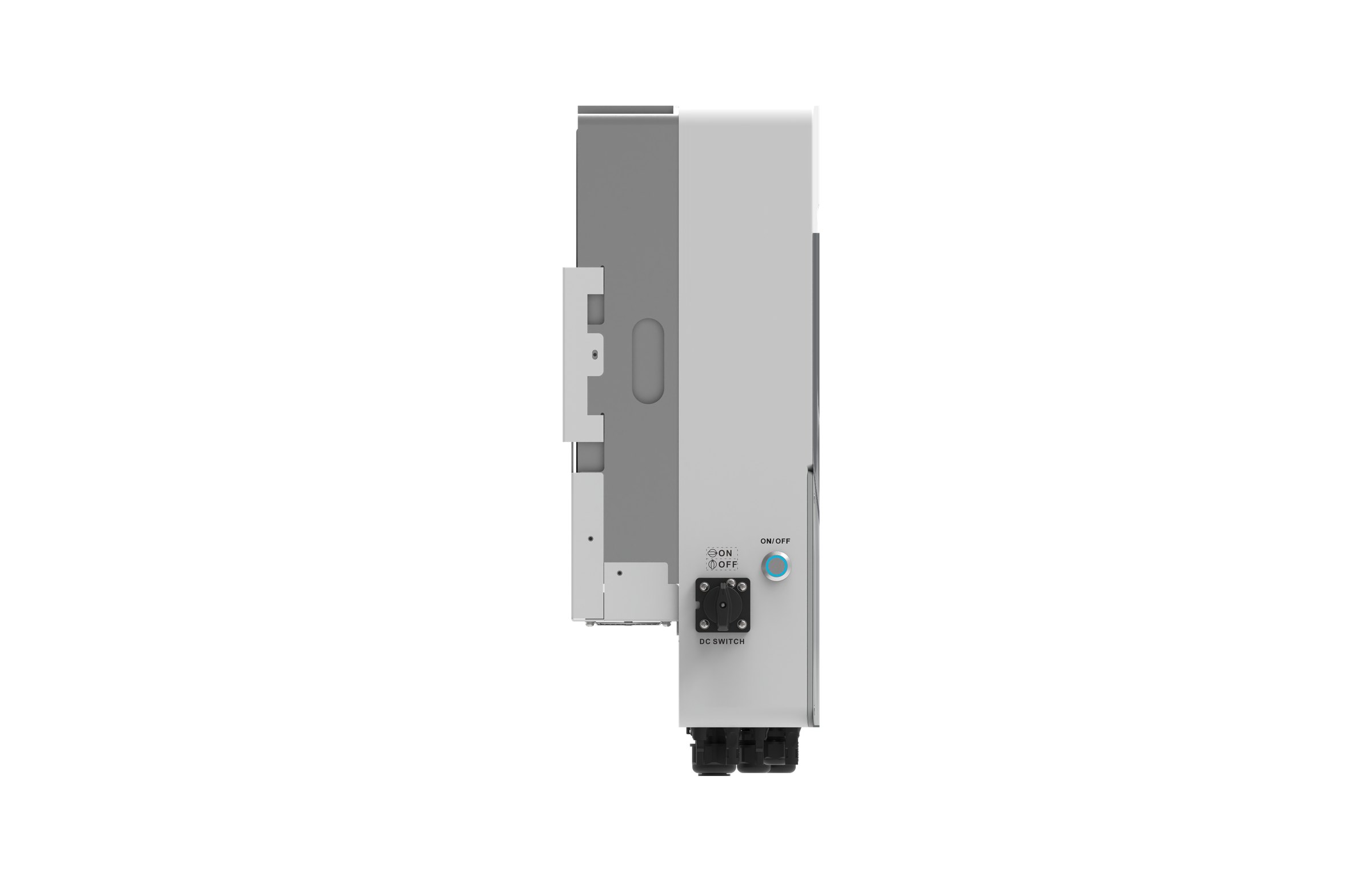

Deye SUN-10K-SG06LP1-EU-BM3
Official manufacturer EU перевірено 22 вересня 2026 р.
Невирішений конфлікт щодо безпеки
Два джерела подають різні значення для цього продукту, і ніхто цього не вирішив. Характеристики нижче показано так, як їх записано, але цей продукт не можна вважати перевіреним для інженерних цілей, доки конфлікт не закрито.
Два джерела подають різні значення для цього продукту, і ніхто цього не вирішив. Характеристики нижче показано так, як їх записано, але цей продукт не можна вважати перевіреним для інженерних цілей, доки конфлікт не закрито.
Identity
| category | inverters |
| ean | — |
| firmware | {'documented_version': 'UNKNOWN', 'constraints': 'UNKNOWN'} |
| generation | SG06 |
| manufacturer | Deye |
| market_version | EU (VDE-AR-N 4105, EN 50549, CEI 0-21, G99) |
| model | SUN-10K-SG06LP1-EU-BM3 |
| mpn | — |
| product_family | Deye SUN hybrid inverter |
| product_status | active |
| region | EU |
| release_year | — |
| series | SG06LP1 |
| sku | — |
Electrical
| ac_connection | L+N+PE |
| ac_voltage_range | 0.85Un-1.1Un |
| battery_capacity_range_kwh | — |
| battery_communication | CAN / RS485 (BMS 485/CAN); charging strategy self-adaption to BMS |
| battery_max_charge_current_a | 220 |
| battery_max_charge_power_w | — |
| battery_max_discharge_current_a | 220 |
| battery_max_discharge_power_w | — |
| battery_nominal_battery_voltage_v | — |
| battery_number_of_battery_inputs | 1 |
| battery_supported |
True
Datasheet SUN-7-12K-SG06LP1-EU-BM3 (20260506 EN)
|
| battery_type | Lead-acid or Lithium-ion |
| battery_voltage_max_v |
60
Datasheet SUN-7-12K-SG06LP1-EU-BM3 (20260506 EN)
|
| battery_voltage_min_v |
40
Datasheet SUN-7-12K-SG06LP1-EU-BM3 (20260506 EN)
|
| battery_voltage_range_v | 40-60 |
| eps_peak_power | 2 times of rated power, 10s |
| eps_phase | Single phase |
| eps_rated_power_va | — |
| eps_switchover_time_ms | — |
| eps_voltage | 230 Vac |
| european_efficiency_pct | 96.5 |
| external_transfer_switch_required | False |
| frequency_range_hz | 50/45-55, 60/55-65 |
| inrush_current | — |
| max_ac_active_power_w | 10000 |
| max_ac_current_a | 50/47.9 |
| max_ac_power_va |
11000
SUN-7/7.6/8/10/12K-SG06LP1-EU-BM3 product page
|
| max_apparent_power_va | 11000 |
| max_backfeed_current_a | — |
| max_charge_current_a |
250
Datasheet SUN-7-12K-SG06LP1-EU-BM3 (20260506 EN)
|
| max_dc_input_power_w | 16000 |
| max_dc_voltage_v | 500 |
| max_discharge_current_a |
250
Datasheet SUN-7-12K-SG06LP1-EU-BM3 (20260506 EN)
|
| max_efficiency_pct | 97.6 |
| max_input_current_per_mppt_a | 36+36+18 суперечливе |
| max_output_fault_current_a | — |
| max_pv_input_voltage_v |
500
SUN-7/7.6/8/10/12K-SG06LP1-EU-BM3 product page
|
| max_short_circuit_current_per_mppt_a | 54+54+27 суперечливе |
| mppt_efficiency_pct | >99 |
| mppt_voltage_max_v |
425
SUN-7/7.6/8/10/12K-SG06LP1-EU-BM3 product page
|
| mppt_voltage_min_v |
150
SUN-7/7.6/8/10/12K-SG06LP1-EU-BM3 product page
|
| mppt_voltage_range_v | 150-425 |
| night_self_consumption_w | — |
| nominal_ac_voltage | 220 V / 230 V, 0.85Un-1.1Un, L+N+PE |
| nominal_dc_voltage_v | 370 |
| nominal_frequency_hz | 50 |
| nominal_grid_voltage_v |
220/230 V, 0.85Un-1.1Un, L+N+PE
SUN-7/7.6/8/10/12K-SG06LP1-EU-BM3 product page
|
| number_of_mppt |
3
SUN-7/7.6/8/10/12K-SG06LP1-EU-BM3 product page
|
| number_of_pv_inputs |
5
SUN-7/7.6/8/10/12K-SG06LP1-EU-BM3 product page
|
| parallel_capability | Max. 16 pcs parallel for on-grid and off-grid operation |
| phase_count |
1
SUN-7/7.6/8/10/12K-SG06LP1-EU-BM3 product page
|
| power_factor_range | 0.8 leading to 0.8 lagging |
| rated_ac_current_a | 45.5/43.5 |
| rated_ac_power_w |
10000
SUN-7/7.6/8/10/12K-SG06LP1-EU-BM3 product page
|
| rated_mppt_voltage_range_v | — |
| rated_pv_input_voltage_v |
370
SUN-7/7.6/8/10/12K-SG06LP1-EU-BM3 product page
|
| startup_voltage_v |
125
SUN-7/7.6/8/10/12K-SG06LP1-EU-BM3 product page
|
| strings_per_mppt | 2+2+1 |
| strings_per_mppt_distribution |
[2, 2, 1]
SUN-7/7.6/8/10/12K-SG06LP1-EU-BM3 product page
|
| thd_pct | <3% (of nominal power) |
Physical / mechanical
| ac_terminal | — |
| cooling | Intelligent air cooling |
| dc_connector | — |
| depth_mm | 227 |
| dimensions_mm | 340 x 580 x 227 (excluding connectors and brackets) |
| display | Colorful touch LCD |
| enclosure_material | — |
| height_mm | 580 |
| mounting | Wall-mounted, vertical |
| noise_db | <45 |
| weight_kg | — |
| width_mm | 340 |
Installation
| cable_requirements | Battery 0 AWG / 50 mm2; AC (grid/load) 6 AWG / 10 mm2; PV 12 AWG / 2.5 mm2 |
| commissioning | — |
| installation_angle | — |
| mounting_clearances | approx. 50 cm to each side, approx. 50 cm above and below the unit, and 100 cm to the front |
| torque | Battery/DC terminals 5.2 N.m; AC and earth terminals 1.2 N.m |
Environment
| ingress_protection | IP 65 |
| max_altitude_m | 3000 |
| operating_temperature_c | -40 to +60 (derating above +45) |
| pollution_degree | — |
| protective_class | — |
| relative_humidity_pct | 0-100 |
| storage_temperature_c | — |
Interfaces & connectors
| app | Deye Cloud (iOS / Android) |
| communication | ['WiFi', 'RS485', 'CAN'] |
| dry_contact | Generator dry-contact relay (G-start / G-valve), no voltage output when activated |
| logger | Built-in data logger (WiFi; 4G optional) |
| meter_interface | RS485 meter port; CHNT DDSU666 / Eastron SDM230 |
| monitoring_portal | https://deyecloud.com |
| protocols | ['UNKNOWN'] |
Protection
| anti_islanding | Anti-islanding protection (integrated) |
| arc_fault | AFCI (optional) |
| dc_switch | Integrated DC switch (listed in the integrated protection list) |
| insulation_monitoring | Insulation impedance detection (integrated) |
| overvoltage_category | OVC II (DC), OVC III (AC) |
| rcmu | Residual current detection (integrated) |
| reverse_polarity | DC reverse polarity protection (integrated) |
| surge_protection_ac | TYPE II (AC) |
| surge_protection_dc | TYPE II (DC) |
Certifications
| standards | ['IEC 61727', 'IEC 62116', 'CEI 0-21', 'EN 50549', 'NRS 097', 'RD 140', 'UNE 217002', 'OVE-Richtlinie R25', 'G99', 'VDE-AR-N 4105', 'IEC/EN 61000-6-1/2/3/4', 'IEC/EN 62109-1', 'IEC/EN 62109-2'] |
Warranty & service
| conditions | "5 Years/10 Years" - the warranty period depends on the final installation site |
| extension_options | Up to 10 years |
| standard_years | 5 |
Документи
product-page
SUN-7/7.6/8/10/12K-SG06LP1-EU-CM3 product page
Зафіксовані конфлікти
electrical.max_short_circuit_current_per_mppt_a Review required
54+54+27 — stored value
[54, 54, 27] — Max. Input Short-Circuit Current (A), 10K column: 54+54+27
Detected during import v1-freeze-2026-09-batch06
electrical.max_input_current_per_mppt_a Review required
36+36+18 — stored value
[36, 36, 18] — Max. Operating PV Input Current (A), 10K column: 36+36+18
Detected during import v1-freeze-2026-09-batch06
Додаткові задокументовані параметри
Записано дослівно з джерела; поля схеми для них поки немає.
| Backup delay (ATS) setting | 3 ms |
| Backup load AC breaker | 100 A AC breaker for the backup load |
| Equipment protection (verbatim list) | DC reverse polarity protection, AC output overcurrent protection, thermal protection, AC output overvoltage protection, AC output short circuit protection, DC component monitoring, AFCI (optional), anti-islanding protection, DC switch, insulation impedance detection, residual current detection |
| Inverter topology | Non-Isolated (solar), Isolated (battery) |
| Max. Continuous AC Passthrough (grid to load) (A) | 70 |
| Max. PV access power (W) | 20000 |
| PV String Input Data, row 'Max. Input Short-Circuit Current (A)' (datasheet) | 54+54+27 |
| PV String Input Data, row 'Max. Operating PV Input Current (A)' (datasheet) | 36+36+18 |
| PV String Input Data, row 'Max. PV access power (W)' (datasheet) | 20000 |
| PV String Input Data, row 'No. of MPP Trackers/No. of Strings MPP Tracker' (datasheet) | 3/2+2+1 |
| Rated AC Input/Output Current (A) vs Max. AC Input/Output Current (A) | Rated 35.0/33.5 | 38/36.4 | 40/38.3 | 50/47.9 | 60/57.4 ; Max 31.9/30.5 | 34.6/33.1 | 36.4/34.8 | 45.5/43.5 | 54.6/52.2 |
| battery.communication | CAN / RS485 (BMS 485/CAN); charging strategy self-adaption to BMS |
| battery.max_charge_current_a | 220 |
| battery.max_charge_power_w | UNKNOWN |
| battery.max_discharge_current_a | 220 |
| battery.max_discharge_power_w | UNKNOWN |
| battery.nominal_battery_voltage_v | UNKNOWN |
| battery.number_of_battery_inputs | 1 |
| withheld:pv.mppt_topology_notation | "3/2+2+1 as printed" |
