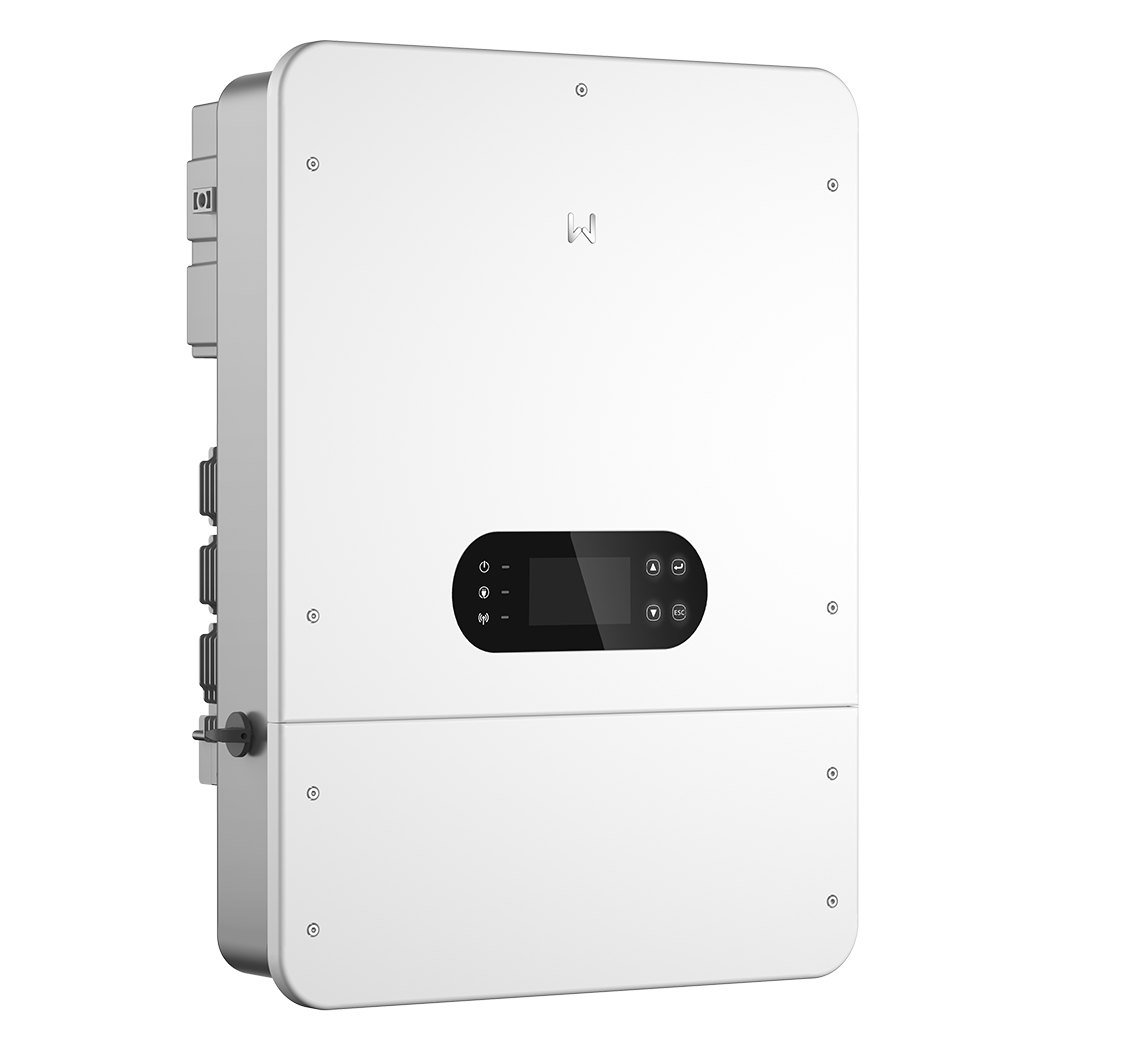

GoodWe GW10K-ET-L-G10
Official manufacturer GLOBAL перевірено 14 вересня 2026 р.
Identity
| category | inverters |
| ean | — |
| firmware | {'documented_version': 'UNKNOWN', 'constraints': 'UNKNOWN'} |
| generation | G10 |
| manufacturer | GoodWe |
| market_version | — |
| model | GW10K-ET-L-G10 |
| mpn | — |
| product_family | ET |
| product_status | active |
| region | GLOBAL |
| release_year | — |
| series | ET LV Series |
| sku | — |
Electrical
| ac_connection | 3L/N/PE |
| ac_voltage_range | 295~502 V |
| battery_capacity_range_kwh | — |
| battery_communication | CAN |
| battery_max_charge_current_a | 220 |
| battery_max_charge_power_w | 10000 |
| battery_max_discharge_current_a | 220 |
| battery_max_discharge_power_w | 11000 |
| battery_nominal_battery_voltage_v | 48 |
| battery_type | LFP/Lead-acid |
| battery_voltage_range_v | 40~60 |
| eps_peak_power | 11.0 kVA (20.0 kVA, 10s) |
| eps_phase | 3L/N/PE |
| eps_rated_power_va | 10000 |
| eps_switchover_time_ms | — |
| eps_voltage | 400/380, 3L/N/PE |
| european_efficiency_pct | 97.3 |
| external_transfer_switch_required | — |
| frequency_range_hz | 45~65 |
| inrush_current | — |
| max_ac_active_power_w | 11000 |
| max_ac_current_a | 15.9@230V / 16.7@220V |
| max_apparent_power_va | 11000 |
| max_backfeed_current_a | — |
| max_dc_input_power_w | 20000 |
| max_dc_voltage_v | 1000 |
| max_efficiency_pct | 97.8 |
| max_input_current_per_mppt_a | 20 |
| max_output_fault_current_a | — |
| max_short_circuit_current_per_mppt_a | 26 |
| mppt_efficiency_pct | 99.9 |
| mppt_voltage_range_v | 150~850 |
| night_self_consumption_w | <15 |
| nominal_ac_voltage | 400/380, 3L/N/PE |
| nominal_dc_voltage_v | 620 |
| nominal_frequency_hz | 50/60 |
| number_of_mppt | 3 |
| parallel_capability | — |
| phase_count | 3 |
| power_factor_range | ~1 (0.8 leading~0.8 lagging) |
| rated_ac_power_w | 10000 |
| rated_mppt_voltage_range_v | — |
| startup_voltage_v | 180 |
| strings_per_mppt | 1/1/1 |
| thd_pct | <3% |
Physical / mechanical
| ac_terminal | — |
| cooling | Smart Fan Cooling |
| dc_connector | — |
| depth_mm | 258 |
| dimensions_mm | 551 x 756 x 258 |
| display | LCD |
| enclosure_material | — |
| height_mm | 756 |
| mounting | Wall Mounted |
| noise_db | <45 |
| weight_kg | 45.3 |
| width_mm | 551 |
Installation
| cable_requirements | — |
| commissioning | — |
| installation_angle | — |
| mounting_clearances | — |
| torque | — |
Environment
| ingress_protection | IP66 |
| max_altitude_m | 4000 |
| operating_temperature_c | -35 to +60 |
| pollution_degree | — |
| protective_class | — |
| relative_humidity_pct | 0~95 |
| storage_temperature_c | — |
Interfaces & connectors
| app | — |
| communication | ['WIFI', 'LAN', 'Bluetooth', '4G', 'RS485', 'CAN'] |
| dry_contact | — |
| meter_interface | — |
| monitoring_portal | — |
| protocols | ['Modbus RTU (RS485)', 'Modbus TCP/IP', 'Sunspec Modbus RTU'] |
Protection
| anti_islanding | Integrated |
| arc_fault | AFCI: Optional |
| dc_switch | Integrated |
| insulation_monitoring | PV Insulation Resistance Detection: Integrated |
| overvoltage_category | — |
| rcmu | Residual Current Monitoring: Integrated |
| reverse_polarity | PV Reverse Polarity Protection: Integrated; Battery Reverse Polarity Protection: Optional |
| surge_protection_ac | Type II |
| surge_protection_dc | Type II |
Warranty & service
| conditions | — |
| extension_options | — |
| standard_years | — |
Документи
user-manual
{# Located but never retrieved: listed, but deliberately not linked, and it
backs no stored value. #}
GoodWe ET LV Series User Manual — знайдено, не отримано
rev UNKNOWN
Додаткові задокументовані параметри
Записано дослівно з джерела; поля схеми для них поки немає.
| Anti-corrosion Class | C4 |
| Battery Start-up Voltage (V) | 30 |
| GW_Battery Compatibility Overview-EN.pdf (V029.1, 20260910) - read 1 | ET LV: LG RESU LV Series (RESU 3.3 / 6.5 / 10 / 12 / 13 / 6.4 EX) marked compatible; RESU 6.4 EX requires ARM firmware 02 and above |
| GW_Battery Compatibility Overview-EN.pdf (V029.1, 20260910) - read 2 | ET LV: GoodWe SECU-A5.4L, Lynx Home U (LX U5.4-L, LX U5.4-20, LX U5.0-30), Lynx Home A (LX A5.0-10, LX A5.0-30) marked; LG RESU LV explicitly NOT marked |
| GW_Battery Compatibility Overview-EN.pdf (V029.1, 20260910) - read 3 | Low-voltage table columns: ES, EM, SBP, ES G2, SBP G2, ES uniq (8-12K), ES Uniq (3-6K), EO, ET LV, ES LD, EO G2. No compatibility marks at all in the 'ET LV' column |
| Generator Side | Nominal/Max Apparent Power 20 kVA; Nominal Voltage 400/380 V; Nominal Frequency 50/60 Hz; Frequency Range 45~55 / 55~65 Hz; Max. Current 30.3 A |
| IoT compatibility list V17, row 'ET LV' | Status 'Mass Production'; ARM Platform 745 |
| Max. Apparent Power from Grid (kVA) | 48.3 |
| Max. Battery to AC Efficiency (%) | 95.5 |
| Max. Current From Grid (A) | 70 |
| Max. MPPT Current (A) | 20/20/20 |
| Max. MPPT Short Circuit Current (A) | 26/26/26 |
| Max. Output Apparent Power with Grid (kVA) | 48.3 |
| Max. Output Current (Bypass) | 70 |
| Nominal Current to Grid (A) | 15.2@220V / 14.5@230V |
| Number of Battery Inputs | 1 |
| PV String Current Monitoring | Integrated |
| Rapid Shutdown | Optional |
| Remote Shutdown | Integrated |
| battery.communication | CAN |
| battery.max_charge_current_a | 220 |
| battery.max_charge_power_w | 10000 |
| battery.max_discharge_current_a | 220 |
| battery.max_discharge_power_w | 11000 |
| battery.nominal_battery_voltage_v | 48 |
| identity.region_as_printed | EU / global EN |
| withheld:pv.mppt_topology_notation | "3 MPP trackers / 1 string(s) per MPPT, as printed" |
