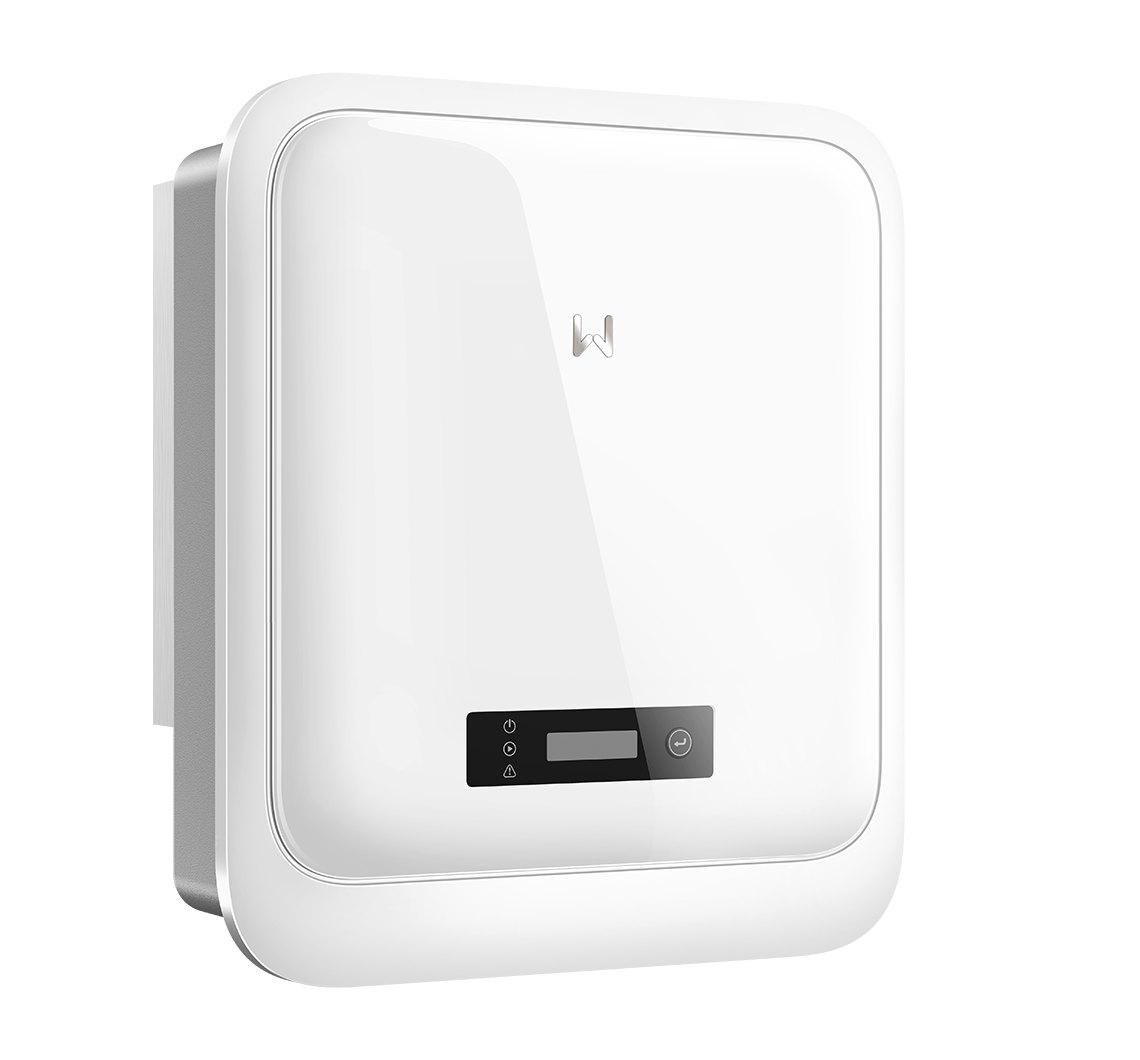

GoodWe GW10K-MS-30
Official manufacturer GLOBAL перевірено 14 вересня 2026 р.
Identity
| category | inverters |
| ean | — |
| firmware | {'documented_version': 'UNKNOWN', 'constraints': 'UNKNOWN'} |
| generation | G3 |
| manufacturer | GoodWe |
| market_version | — |
| model | GW10K-MS-30 |
| mpn | — |
| product_family | MS |
| product_status | — |
| region | GLOBAL |
| release_year | — |
| series | MS G3 Series |
| sku | — |
Electrical
| ac_connection | L/N/PE |
| ac_voltage_range | 160 ~ 270 V |
| european_efficiency_pct | 97.3 |
| frequency_range_hz | 45 ~ 55 / 55 ~ 65 |
| inrush_current | — |
| max_ac_active_power_w | 10000 |
| max_ac_current_a | 43.5 |
| max_apparent_power_va | 10000 |
| max_backfeed_current_a | — |
| max_dc_input_power_w | — |
| max_dc_voltage_v | 600 |
| max_efficiency_pct | 97.9 |
| max_input_current_per_mppt_a | 20 |
| max_output_fault_current_a | — |
| max_short_circuit_current_per_mppt_a | 25 |
| mppt_efficiency_pct | — |
| mppt_voltage_range_v | 40 ~ 560 |
| night_self_consumption_w | <1 |
| nominal_ac_voltage | 220 / 230 / 240 |
| nominal_dc_voltage_v | 360 |
| nominal_frequency_hz | 50 / 60 |
| number_of_mppt | 3 |
| phase_count | 1 |
| power_factor_range | ~1 (Adjustable from 0.8 leading to 0.8 lagging) |
| rated_ac_power_w | 10000 |
| rated_mppt_voltage_range_v | — |
| startup_voltage_v | 50 |
| strings_per_mppt | 1 |
| thd_pct | <3% |
Physical / mechanical
| ac_terminal | Plug and play connector (Max. 16mm2) |
| cooling | — |
| dc_connector | MC4 (2.5 ~ 4mm2) |
| depth_mm | 210 |
| dimensions_mm | 441 x 507 x 210 |
| display | LED, LCD (Optional), WLAN + APP |
| enclosure_material | — |
| height_mm | 507 |
| mounting | — |
| noise_db | <30 |
| weight_kg | 19 |
| width_mm | 441 |
Installation
| cable_requirements | — |
| commissioning | — |
| installation_angle | — |
| mounting_clearances | — |
| torque | — |
Environment
| ingress_protection | IP66 |
| max_altitude_m | 4000 |
| operating_temperature_c | -25 to +60 |
| pollution_degree | — |
| protective_class | — |
| relative_humidity_pct | 0 ~ 100 |
| storage_temperature_c | — |
Interfaces & connectors
| app | APP |
| communication | ['RS485', 'WiFi', 'LAN', 'Bluetooth', '4G (Optional)'] |
| dry_contact | — |
| meter_interface | — |
| monitoring_portal | — |
| protocols | ['Modbus RTU', 'Modbus TCP'] |
Protection
| anti_islanding | Integrated |
| arc_fault | AFCI: Optional |
| dc_switch | Integrated |
| insulation_monitoring | PV Insulation Resistance Detection: Integrated |
| overvoltage_category | — |
| rcmu | Residual Current Monitoring: Integrated |
| reverse_polarity | PV Reverse Polarity Protection: Integrated |
| surge_protection_ac | Type III (Type II Optional) |
| surge_protection_dc | Type III (Type II Optional) |
Warranty & service
| conditions | — |
| extension_options | — |
| standard_years | — |
Документи
user-manual
{# Located but never retrieved: listed, but deliberately not linked, and it
backs no stored value. #}
GoodWe MS G3 Series User Manual — знайдено, не отримано
rev UNKNOWN
Додаткові задокументовані параметри
Записано дослівно з джерела; поля схеми для них поки немає.
| IoT compatibility list V17, Table 1 (Communication Module), row 'MS G3 & MS G3.1' | Status 'Mass Production'; ARM Platform 425 |
| IoT compatibility list V17, Table 4 (HEMS), row 'MS G3' | Parallel operation combination & Quantity: In total <=4; Firmware Version Requirement: '(Temporary version) DSP:410-01021-11-master(11112); Official version (end of July): DSP12, ARM:14; EzManager: 03' |
| IoT compatibility list V17, Tables 2 and 3, row 'MS G3 & MS G3.1' | Status 'Phase Out'; ARM Platform 425 |
| Nominal Output Apparent Power (VA) | 10000 |
| PV String Current Monitoring | Integrated |
| Remote Shutdown | Optional |
| Topology | Non-isolated |
| identity.region_as_printed | EU / global EN |
| withheld:pv.mppt_topology_notation | "3 MPP trackers / 1 string(s) per MPPT, as printed" |
