ANMA System Building

Identity

category	inverters
ean	—
firmware	{'documented_version': 'UNKNOWN', 'constraints': 'Compatibility documents impose firmware floors rather than naming a shipped version: Lynx Home F batteries require ARM 19 and above, Lynx Home F PLUS+ and LG RESU FLEX require ARM 23 and above (Battery Compatibility Overview V029.1); the CT120 current transformer requires ARM 31 or above and the communication-module table carries footnotes citing ARM 12 / 20 / 25 / 30 and above (Compatibility list of GoodWe inverters and IoT products V17).'}
generation	ET PLUS+
manufacturer	GoodWe
market_version	EU/EMEA (VDE-AR-N 4105, EN 50549-1, G98/G99/G100, CEI 0-21)
model	GW10KN-ET Plus+
mpn	—
product_family	ET PLUS+ (16A) Series 5-10kW three-phase hybrid (GW5KN-ET, GW6.5KN-ET, GW8KN-ET, GW10KN-ET)
product_revision	—
product_status	active
region	EU
release_year	—
series	ET PLUS+ (16A)
sku	GW10KN-ET (the column label printed in the ET PLUS+ (16A) datasheet and the 'Applicable Models' list of the user manual; 'GW10KN-ET Plus+' is the series-qualified ANMA name, not a printed SKU)
variant	16 A DC-input variant, denoted by the 'N' in the model code

Electrical

ac_connection	3L / N / PE
ac_voltage_range	0 ~ 300 V (printed as 'Output Voltage Range (V): 0 ~ 300')
battery_capacity_range_kwh	—
battery_communication	RS485, CAN
battery_max_charge_current_a	25
battery_max_charge_power_w	10000
battery_max_discharge_current_a	25
battery_max_discharge_power_w	10000
battery_nominal_battery_voltage_v	500
battery_type	Li-Ion
battery_voltage_range_v	180 ~ 600
eps_peak_power	10000 VA continuous without grid, printed as '10000 (16500@60sec)' - i.e. 16500 VA for 60 s
eps_phase	three-phase; the product page states '100% unbalanced output to compensate load differences in self-consumption and backup modes'
eps_rated_power_va	10000
eps_switchover_time_ms	<10
eps_voltage	400 / 380 V, nominal output frequency 50 / 60 Hz
european_efficiency_pct	97.5
external_transfer_switch_required	—
frequency_range_hz	45 ~ 65
inrush_current	45@2us
max_ac_active_power_w	11000
max_ac_current_a	16.5
max_apparent_power_va	11000
max_backfeed_current_a	0
max_dc_input_power_w	15000
max_dc_voltage_v	1000
max_efficiency_pct	98.2
max_input_current_per_mppt_a	16
max_output_fault_current_a	45@2us
max_short_circuit_current_per_mppt_a	21.2
mppt_efficiency_pct	99.9
mppt_voltage_range_v	200 ~ 850
night_self_consumption_w	<15 (No Back-up Output)
nominal_ac_voltage	400 / 380, 3L / N / PE
nominal_dc_voltage_v	620
nominal_frequency_hz	50 / 60
number_of_mppt	2
parallel_capability	—
phase_count	3
power_factor_range	~1 (Adjustable from 0.8 leading to 0.8 lagging)
rated_ac_power_w	10000
rated_mppt_voltage_range_v	—
startup_voltage_v	180
strings_per_mppt	1
thd_pct	<3

Physical / mechanical

ac_terminal	Feed-Through Terminal Blocks UW10
cooling	Natural Convection
dc_connector	MC4 (4~6mm2)
depth_mm	180
dimensions_mm	415 x 516 x 180
display	LED, APP
enclosure_material	—
height_mm	516
mounting	Wall Mounted
noise_db	<30
weight_kg	24
width_mm	415

Installation

cable_requirements	PE: single-core outdoor copper cable, conductor cross-sectional area 4-6 mm2. DC: supplied MC4 connectors, 4-6 mm2. AC: Feed-Through Terminal Blocks UW10. Breakers for GW10KN-ET: ON-GRID breaker with BACK-UP loaded nominal current >=32 A and nominal voltage >=400 V; ON-GRID breaker with BACK-UP not loaded >=20 A / >=400 V; BACK-UP load breaker >=32 A / >=400 V; SPDT switch >=32 A / >=400 V; battery breaker >=40 A / >=600 V. RCD: ON-GRID 300 mA, BACK-UP 30 mA. Mounting plate fixed with expansion bolts of diameter 10 mm, depth 80 mm. Resistance between the neutral wire and the earth cable less than 10 ohm.
commissioning	Turn on the AC switch (grid), then the DC switch (battery), then optionally the DC switch (PV), then the DC switch of the inverter.
installation_angle	Install the inverter vertically or at a maximum back tilt of 15 degrees. Do not install the inverter upside down, forward tilt, back forward tilt, or horizontally.
mounting_clearances	—
torque	—

Environment

ingress_protection	IP66
max_altitude_m	4000
operating_temperature_c	-35 ~ +60
pollution_degree	III
protective_class	—
relative_humidity_pct	0 ~ 95%
storage_temperature_c	-40 ~ +85

Interfaces & connectors

app	SolarGo
communication	['RS485 (BMS)', 'CAN (BMS)', 'RS485 (Meter)', 'WiFi', 'LAN (optional)', '4G (optional)', 'Bluetooth 5.1']
dry_contact	Integrated dry contact for external loads (stated on the GoodWe EMEA ET PLUS+ (16A) product page)
meter_interface	RS485
monitoring_portal	SEMS Portal
protocols	—

Protection

anti_islanding	Integrated; method printed in the user manual as AFDPF + AQDPF
arc_fault	UNKNOWN - the ET PLUS+ (16A) datasheet protection table lists no AFCI/arc-fault row; the shared ET / ET PLUS+ / BT user manual references a DC arc-fault item in troubleshooting, which may belong to another model covered by that shared manual
dc_switch	Integrated
insulation_monitoring	PV Insulation Resistance Detection: Integrated
overvoltage_category	DC II / AC III
rcmu	Residual Current Monitoring: Integrated
reverse_polarity	PV Reverse Polarity Protection: Integrated
surge_protection_ac	Type III
surge_protection_dc	Type II

Certifications

standards

['VDE-AR-N 4105', 'VDE 0126-1-1', 'EN 50549-1', 'G98', 'G99', 'G100', 'CEI 0-21', 'IEC 62109-1&2', 'EN 61000-6-1', 'EN 61000-6-2', 'EN 61000-6-3', 'EN 61000-6-4', 'EN 61000-4-16', 'EN 61000-4-18', 'EN 61000-4-29', 'Radio Equipment Directive 2014/53/EU (RED)', 'Electromagnetic compatibility Directive 2014/30/EU (EMC)', 'Electrical Apparatus Low Voltage Directive 2014/35/EU (LVD)', 'Restrictions of Hazardous Substances Directive 2011/65/EU and (EU) 2015/863 (RoHS)', 'Waste Electrical and Electronic Equipment 2012/19/EU (WEEE)', 'Registration, Evaluation, Authorization and Restriction of Chemicals (EC) No 1907/2006 (REACH)', 'NC RfG grid code compliance certificate TC-GCC-DNVGL-SE-0124-07916-3 (DNV Renewables Certification), against DNVGL-SE-0124:2016-03, Commission Regulation (EU) 2016/631 (NC RfG), PTPiREE 2021-04 and PSE 2018-12']

Warranty & service

conditions	No warranty term is printed in the ET PLUS+ (16A) datasheet, the ET / ET PLUS+ / BT user manual, or the en.goodwe.com/warranty landing page as fetched on 2026-09-10; that page only lists downloadable region-specific warranty PDFs. The Battery Compatibility Overview states: 'Only batteries listed in this document are approved for connection to GoodWe storage inverters according to GoodWe Limited Warranty.'
extension_options	—
standard_years	—

Документи

certificate Equipment Certificate - NC RfG grid code compliance, certificate no. TC-GCC-DNVGL-SE-0124-07916-3 (covers ET PLUS+, ET PLUS+ (16A) and BT models) rev TC-GCC-DNVGL-SE-0124-07916-3

communication-manual {# Located but never retrieved: listed, but deliberately not linked, and it backs no stored value. #} SolarGo App User Manual (URL printed in the ET / ET PLUS+ / BT user manual) — знайдено, не отримано rev UNKNOWN

compatibility-list Compatibility list of GoodWe inverters and IoT products rev V17

compatibility-list GoodWe Battery Compatibility Overview rev GoodWe Battery Compatibility Overview-20260901-EN-V029.1

datasheet ET PLUS+ Series 5-10kW I Three Phase Hybrid Inverter (NON-16A / non-N datasheet - retained ONLY as evidence for the variant distinction; no value in this record is taken from it) rev GoodWe-Single page-20230830-EN-V2.1

datasheet ET PLUS+ Series16A - 5-10kW I Three Phase Hybrid Inverter rev GoodWe-Single page-20240306-EN-V2.1

product-page ET PLUS+ (16A) Series - GoodWe EMEA rev UNKNOWN

product-page ET PLUS+ Series - three-phase hybrid solar inverter (lists both the standard and the 16A/N models) rev UNKNOWN

quick-guide {# Located but never retrieved: listed, but deliberately not linked, and it backs no stored value. #} GM3000 Smart Meter Quick Installation Guide (URL printed in the ET / ET PLUS+ / BT user manual) — знайдено, не отримано rev UNKNOWN

user-manual User Manual - Hybrid Inverter ET Series / ET Plus Series / BT Series 5.0-10.0kW rev V1.9-2025-10-14

warranty GoodWe Warranty download index (inverter / battery / PVBM / EV charger warranty PDFs) rev UNKNOWN

Зафіксовані конфлікти

documented_relationships / accessories - GoodWe GM3000 smart meter Review required

GM3000 recommended for use with the inverter — User Manual - Hybrid Inverter ET Series / ET Plus Series / BT Series 5.0-10.0kW, V1.9-2025-10-14: 'When a GoodWe inverter is applied, GM3000 is recommended. The GM330 meter is optional.'

GM3000 cell is blank (not ticked) on the ET(5~10K) PLUS row of the smart meter table; GM1000, CT90, CT120, HK1000 and HK3000 are ticked — Compatibility list of GoodWe inverters and IoT products, V17, 2026-09-03

Додаткові задокументовані параметри

Записано дослівно з джерела; поля схеми для них поки немає.

Anti-islanding method	AFDPF + AQDPF
Back-up Nominal Output Current (A)	14.5
Battery Start-up Voltage (V) / Number of Battery Input	180 / 1
Communication module table, row ET(5~10K) PLUS	tick, tick2, tick3, tick4, tick5, tick6 - footnotes: 2 ARM 20 or above, only Tmobile/simpoint/1nce for Netherlands, monthly traffic >=250Mb; 3 ARM 20 or above, only Telstra/Optus, monthly traffic >=250Mb; 4 ARM 12 or above; 5 ARM 25 or above; 6 ARM 30 or above
Environmental Category / Decisive Voltage Class (DVC)	4K4H; Battery: C, PV: C, AC: C, Com: A
GoodWe EMEA product page image filename	IP66andC5protection.png
Max. AC Current From Utility Grid (A)	22.7
Max. Apparent Power from Utility Grid (VA)	15000
Max. Input Voltage (V) footnote	1000 (a footnote in the user manual mentions 950 V in the context of 1000 V systems)
Maximum Output Overcurrent Protection (A)	45
NC RfG certificate model range	GW5K-ET, GW6.5K-ET, GW8K-ET, GW10K-ET, GW5K-BT, GW6K-BT, GW8K-BT, GW10K-BT, GW5KN-ET, GW6.5KN-ET, GW8KN-ET, GW10KN-ET, GEH5.0-3U-10, GEH6.5-3U-10, GEH8.0-3U-10, GEH10-3U-10
Nominal Output Current (A)	14.5
Product page feature bullets (en.goodwe.com ET PLUS+ series)	Fanless & Quiet; 150% DC oversizing; 98.2% max. efficiency; Smart load control; <10ms UPS-level switching; In-built Type II SPD on DC side; IP66 ingress protection; 100% unbalanced output; Battery ready option; Peak shaving; Power export limit; Forced battery charging
battery.communication	RS485, CAN
battery.max_charge_current_a	25
battery.max_charge_power_w	10000
battery.max_discharge_current_a	25
battery.max_discharge_power_w	10000
battery.nominal_battery_voltage_v	500
documented_relationship:inverter_battery	{"to_manufacturer": "GoodWe", "to_model": "Lynx Home F G2 Series (LX F6.4-H-20, LX F9.6-H-20, LX F12.8-H-20, LX F16.0-H-20 and the rest of the -20 module range)", "relationship_type": "inverter_battery", "match_level": "series", "status": "not_listed", "source": "GoodWe Battery Compatibility Overview", "source_url": "https://en.goodwe.com/Ftp/EN/Downloads/User%20Manual/GW_Battery%20Compatibility%20Overview-EN.pdf", "source_page": "High-voltage Energy Storage Systems section, ET PLUS+ column", "confidence": "officially-verified", "required_accessories": "UNKNOWN", "required_firmware": "UNKNOWN", "region": "global EN document", "notes": "The extraction of the ET PLUS+ / ET PLUS+ (16A) column returned only the LX F*-H (Lynx Home F / F PLUS+) models and the LG RESU FLEX rows; the Lynx Home F G2 '-20' models did not appear as approved for this column. NOT_LISTED is neither an approval nor an
documented_relationship:inverter_gateway	{"to_manufacturer": "GoodWe", "to_model": "Communication module: WiFi kit / WiFi-LAN kit / 4G module (generic names, no part numbers printed)", "relationship_type": "inverter_gateway", "match_level": "brand", "status": "compatible", "source": "User Manual - Hybrid Inverter ET Series / ET Plus Series / BT Series 5.0-10.0kW V1.9", "source_url": "https://en.goodwe.com/Ftp/EN/Downloads/User%20Manual/GW_ET,%20ET%20PLUS+,%20BT_User%20Manual-EN.pdf", "source_page": "Communication chapter", "confidence": "manufacturer-documented", "required_accessories": "UNKNOWN", "required_firmware": "UNKNOWN", "region": "EU / global EN", "notes": "Quote: 'The communication module can be a WiFi kit, WiFi/LAN kit, or 4G module.' The manual prints no part numbers. The IoT compatibility list V17 ticks six communication modules on the ET(5~10K) PLUS row with firmware footnotes (ARM 12 / 20 / 25 / 30 and above), bu
documented_relationship:inverter_meter	{"to_manufacturer": "GoodWe", "to_model": "GM1000D / GMK110 / GMK110D / GM3000 / GM3000C / GM330 / GMK120 / GMK140 / GMK330 smart meters", "relationship_type": "inverter_meter", "match_level": "series", "status": "not_listed", "source": "Compatibility list of GoodWe inverters and IoT products", "source_url": "https://en.goodwe.com/Ftp/EN/Downloads/User%20Manual/GW_Compatibility-list-of-GoodWe-inverters-and-IoT-products-EN.pdf", "source_page": "Smart Meter table, row ET(5~10K) PLUS", "confidence": "officially-verified", "required_accessories": "UNKNOWN", "required_firmware": "UNKNOWN", "region": "global EN document", "notes": "These cells are blank on the ET(5~10K) PLUS row. Blank is neither an approval nor an exclusion. Note the conflict recorded in data_conflicts: the shared user manual nevertheless recommends GM3000 generically and calls GM330 optional."}
identity.variant_as_researched	16 A DC-input variant, denoted by the 'N' in the model code. Max. input current per MPPT 16 A and max. short-circuit current per MPPT 21.2 A, versus 12.5 A / 15.2 A on the non-N GW10K-ET. AC, battery and EPS ratings are identical between the two.
manufacturer_legal_entity_as_printed	GoodWe Technologies Co., Ltd.
withheld:pv.mppt_topology_notation	"2 MPP trackers / 1 string(s) per MPPT, as printed"

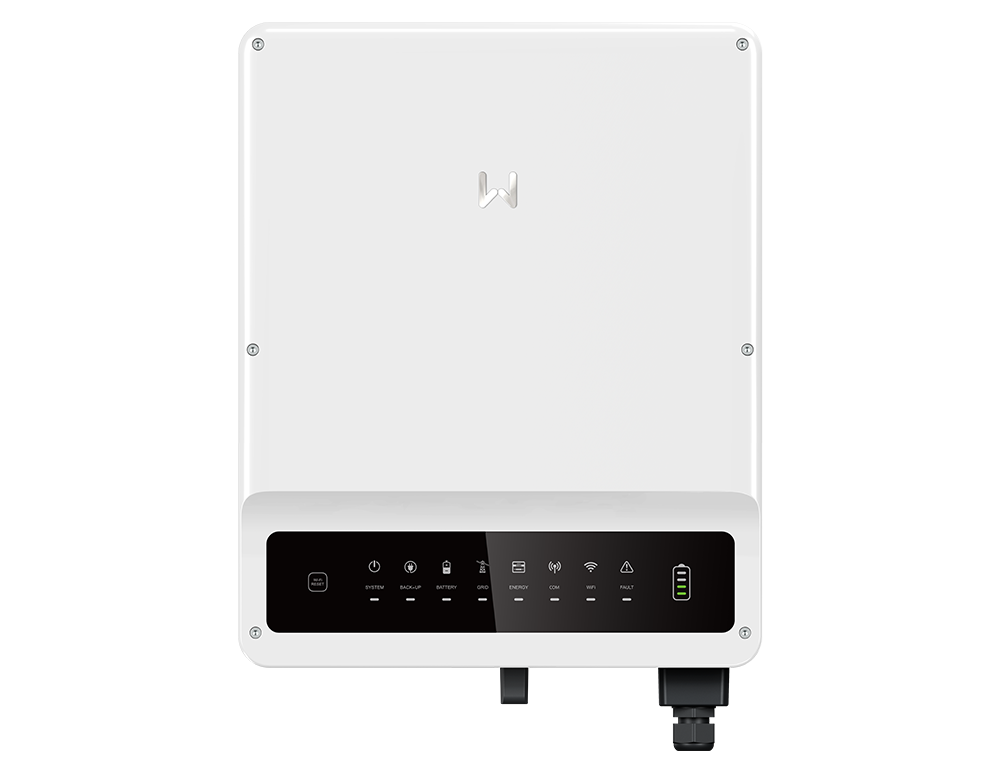

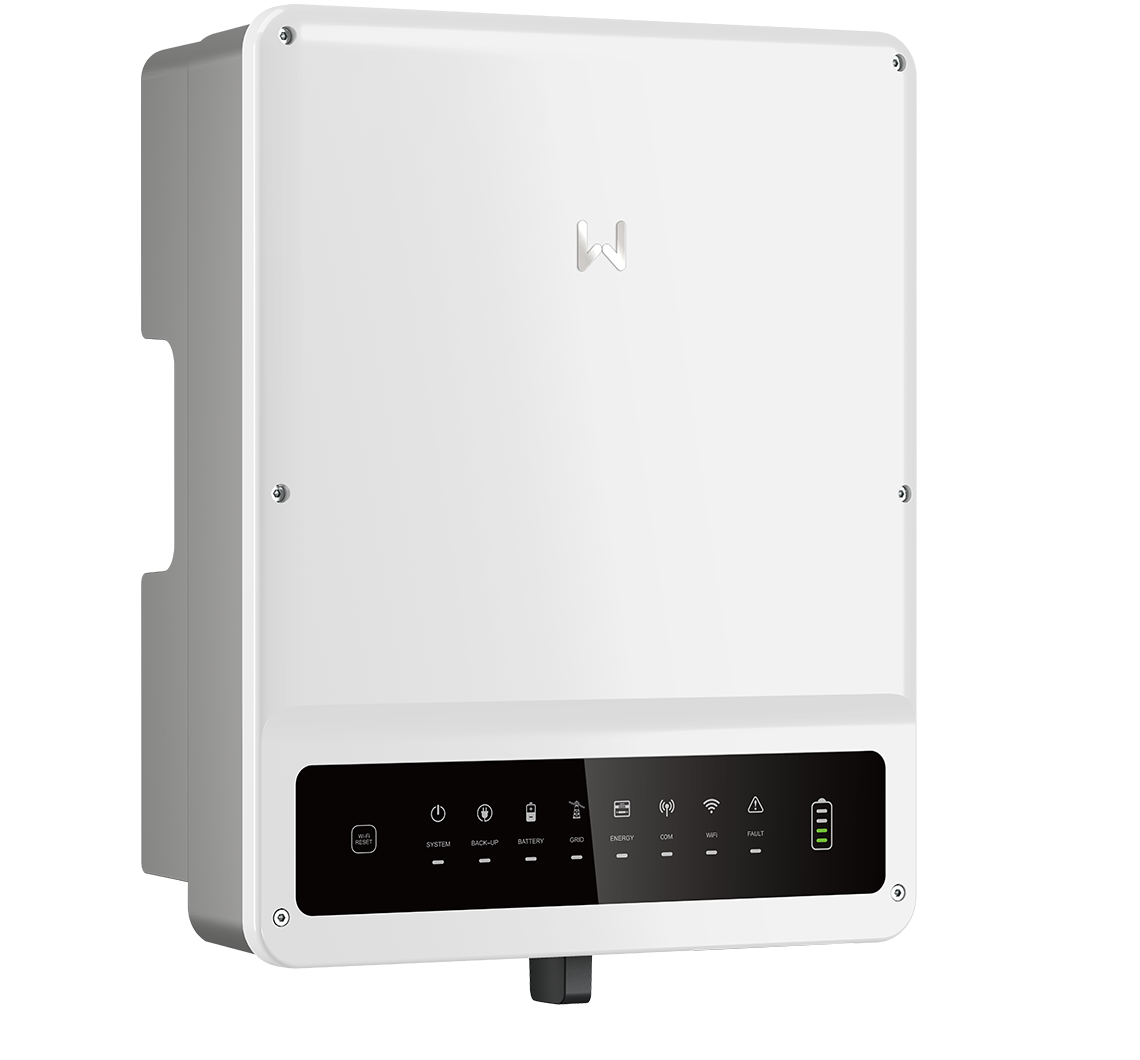

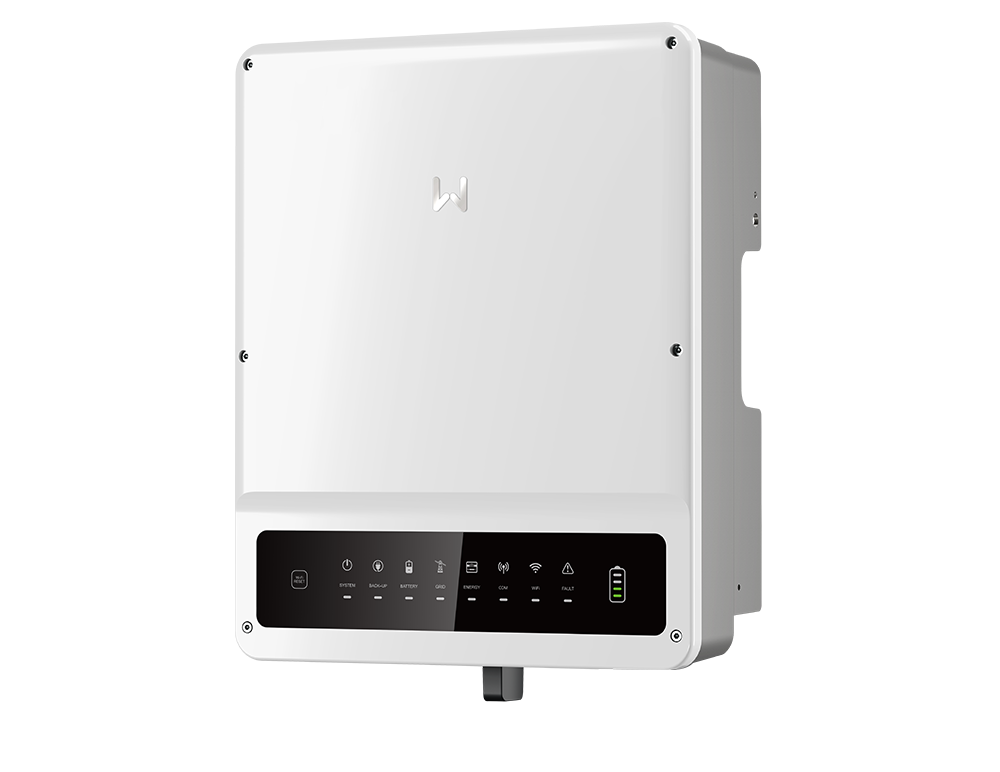

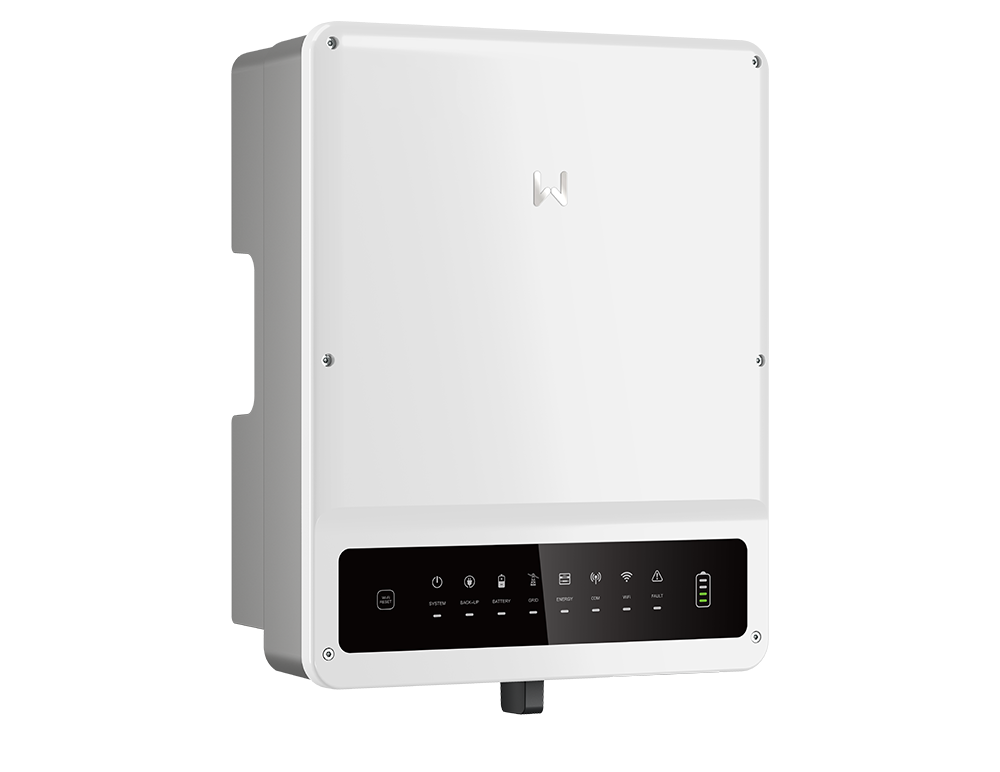

GoodWe GW10KN-ET Plus+
