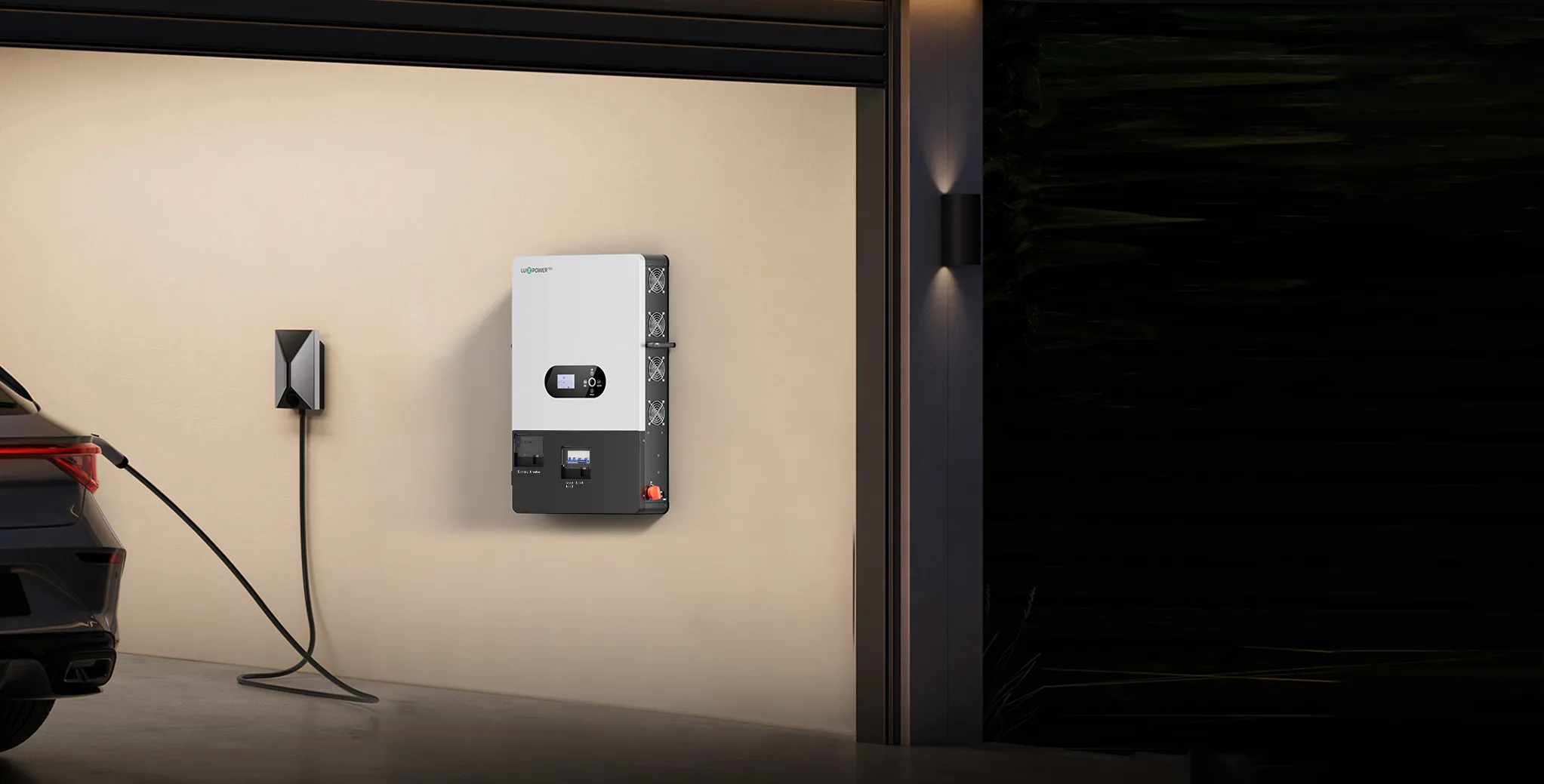

LuxPower (Luxpowertek) ECO HYBRID SNA 12K
Official manufacturer EU перевірено 22 вересня 2026 р.
Невирішений конфлікт щодо безпеки
Два джерела подають різні значення для цього продукту, і ніхто цього не вирішив. Характеристики нижче показано так, як їх записано, але цей продукт не можна вважати перевіреним для інженерних цілей, доки конфлікт не закрито.
Два джерела подають різні значення для цього продукту, і ніхто цього не вирішив. Характеристики нижче показано так, як їх записано, але цей продукт не можна вважати перевіреним для інженерних цілей, доки конфлікт не закрито.
UNKNOWN
UNKNOWN
Identity
| brand | LuxPower |
| category | inverters |
| ean | — |
| generation | SNA (ECO Hybrid) |
| manufacturer | LuxPower (Luxpowertek) |
| market_version | SNA-EU (230 V single-phase); the SNA US 12K is a separate split-phase 120/240 V product with its own manual |
| model | ECO HYBRID SNA 12K |
| mpn | — |
| product_family | LuxPower SNA-EU series (SNA-EU 12K / 12.6K / 13K / 14K) |
| product_revision | — |
| product_status | active |
| region | EU |
| release_year | — |
| sku | — |
Electrical
| ac_coupling_support | — |
| backup_eps_output_support | True |
| battery_support | True |
| battery_supported |
True
SNA-12K Datasheet
|
| battery_type | Lithium-ion / Lead-Acid |
| battery_voltage_class | LV |
| battery_voltage_max_v |
60
SNA-12K Datasheet
|
| battery_voltage_min_v | 38.4 суперечливе |
| communication_can | True |
| communication_ethernet | — |
| communication_rs485 | True |
| communication_wifi | True |
| ct_support | — |
| generator_input_support | True |
| grid_certifications | ['CE'] |
| grid_export_control | — |
| home_assistant_integration | — |
| max_ac_power_kw | — |
| max_battery_charge_current_a | 250 |
| max_battery_charge_power_kw | 12 |
| max_battery_discharge_current_a | 250 |
| max_charge_current_a |
250
SNA-12K Datasheet
|
| max_dc_voltage_v | 480 |
| max_discharge_current_a |
250
SNA-12K Datasheet
|
| max_input_current_per_mppt_a | 35 суперечливе |
| max_pv_input_power_w | 24000 |
| max_pv_input_voltage_v |
480
SNA-12K Datasheet
|
| max_short_circuit_current_per_mppt_a | 44 суперечливе |
| modbus_rtu | — |
| modbus_tcp | — |
| mppt_max_voltage_v | 385 |
| mppt_min_voltage_v | 120 |
| mppt_voltage_max_v |
385
SNA-12K Datasheet
|
| mppt_voltage_min_v |
120
SNA-12K Datasheet
|
| nominal_grid_voltage_v |
230
SNA-12K Datasheet
|
| num_mppt | 2 |
| officially_supported_battery_brands | — |
| phase_count |
1
SNA-12K Datasheet
|
| phase_type | single-phase |
| pv_inputs_per_mppt | — |
| rated_ac_current_a |
52
SNA-12K Datasheet
|
| rated_ac_power_kw | 12 |
| rated_ac_power_w |
12000
SNA-12K Datasheet
|
| smart_meter_support | — |
| startup_voltage_v |
100
SNA-12K Datasheet
|
| sunspec_support | — |
| topology | hybrid |
Physical / mechanical
| bracket_dimensions_mm | — |
| cable_entry_positions | — |
| cable_gland_sizes | — |
| depth_mm | 150 |
| dimension_note | '530*830*150mm (20.87*34.25*5.91inch)' - user manual p.59 and 2024 datasheet; the manual's dimension drawing on p.5 shows 530 wide, 870 overall height including mounting, 148 depth |
| enclosure_material | — |
| height_mm | 830 |
| housing_color | — |
| mounting_bolt_size | M8 expansion screws (6 supplied) plus M3 cross-head screws (8 supplied); M5 cross-head screws x4 for the wall-mount brackets (manual p.4) |
| mounting_hole_diameter_mm | — |
| mounting_hole_spacing_mm | wall-stud spacing 305 mm (12 in) to 406 mm (16 in) accommodated by the bracket (manual p.9) |
| mounting_plate_dimensions_mm | — |
| mounting_type | ['wall'] |
| screw_sizes | M8 x6, M3 x8, M5 x4 (manual p.4) |
| shipping_weight_kg | — |
| terminal_locations | front panel/underside: PV Terminal, PV Switch, BAT+ Breaker, LOAD Terminal, SMART LOAD Terminal, GRID Terminal, GEN Terminal, Battery CAN/RS485, parallel communication ports, dry contacts, WiFi/GPRS port, PE bar, EPS on/off switch, power on/off switch (manual p.3) |
| torque_specs |
battery terminals 11-12 N.m (2/0 AWG cable, M6/M8 cable hole, manual p.12); PE wire 2.0 N.m (10 AWG / 6 mm2, manual p.15); AC Grid / Gen / Load terminals 11-12 N.m (4 AWG / 21 mm2, manual p.16); Smart Load terminal 11-12 N.m (21 mm2, manual p.27)
Off-grid Inverter User Manual SNA-EU 12K / SNA-EU 14K, Version UM-SNA04001 — p.12 battery '11-12 N.m'; p.15 PE '2.0'; p.16 AC '11-12 N.m'
|
| weight_kg |
43.5
Off-grid Inverter User Manual SNA-EU 12K / SNA-EU 14K, Version UM-SNA04001 — p.59 spec table, 'Net Weight: 43.5kg'
|
| width_mm |
530
Off-grid Inverter User Manual SNA-EU 12K / SNA-EU 14K, Version UM-SNA04001 — p.59 spec table, 'Dimension (W*H*D): 530*830*150mm'
|
Installation
| clearance_bottom_mm | 500 |
| clearance_front_mm | — |
| clearance_left_mm | 500 |
| clearance_note | 'Please maintain the minimum clearances below for adequate heat dissipation' - 500 mm on all four sides (manual p.8) |
| clearance_right_mm | 500 |
| clearance_top_mm |
500
Off-grid Inverter User Manual SNA-EU 12K / SNA-EU 14K, Version UM-SNA04001 — p.8, minimum clearance 500 mm all round
|
| direct_sunlight_restriction | forbidden - 'Never install the inverter in a place with direct sunlight, rain or snow' (manual p.8-9) |
| indoor_outdoor | indoor only (IP20); 'Never install the inverter in a place with direct sunlight, rain or snow' (manual p.8-9) |
| max_installation_altitude_m | 2000 |
| mounting_orientation | 'The inverter should be installed upright on a vertical surface' (manual p.8) |
| orientation_allowed | ['vertical'] |
| orientation_forbidden | — |
| surface_requirements | 'installed on a vertical, solid mounting surface, such as wood studs, brick or concrete wall' (manual p.8) |
| two_person_lift_required | — |
Environment
| cooling_method | forced air ('Cooling Method: FAN' in the manual spec table; the 2024 datasheet calls it 'Smart cooling') |
| corrosion_class | — |
| fan_replaceable | — |
| ik_rating | — |
| ip_rating |
IP20
Off-grid Inverter User Manual SNA-EU 12K / SNA-EU 14K, Version UM-SNA04001 — p.59, 'Ingress Protection Rating: IP 20'
|
| max_altitude_m | 2000 |
| nema_rating | — |
| noise_level_db | <55 dB typical (manual p.59); the 2024-07 datasheet prints '<50dB' - see data_conflicts |
| operating_temperature_c |
0 to +45 (full load)
Off-grid Inverter User Manual SNA-EU 12K / SNA-EU 14K, Version UM-SNA04001 — p.59, 'Operating Temperature Range: 0C to 45C (full load)'
|
| pollution_degree | — |
| relative_humidity | 5% to 95% relative humidity (non-condensing) |
| storage_temperature_c | -15 to +60 |
Interfaces & connectors
| ac_terminal_type | terminal block, 4 AWG / 21 mm2, 11-12 N.m (manual p.16) |
| backup_eps_terminal | yes - LOAD terminal (EPS), rated 12000 W; separate EPS on/off switch |
| battery_terminal_type | bolted terminal, 2/0 AWG cable, M6/M8 cable hole, 11-12 N.m (manual p.12) |
| bluetooth | — |
| can | yes - Battery CAN port; pins carry CANH / CANL (manual p.14) |
| cellular | optional GPRS module (WiFi/GPRS port) |
| cloud_api | LuxPower monitoring portal / app (manual p.55) |
| ct_interface | 1000:1 CT supplied (manual p.4 packing list) |
| dry_contacts | yes - dry contacts on the front panel (manual p.3) |
| ethernet | — |
| generator_terminal | yes - GEN terminal; rated GEN input 15000 W, 230 V, 65 A |
| local_api | — |
| parallel_port | yes - parallel communication ports plus a parallel-communication terminating-resistor switch (manual p.3) |
| protocol_notes | Battery BMS port pin assignments (manual p.14): RS485B, RS485A, CANH, CANL, with an insulating barrier; pins 1-8 defined. |
| pv_connector_type | — |
| relay_outputs | — |
| rs485 | yes - Battery CAN/RS485 port; pins carry RS485A / RS485B (manual p.14) |
| smart_load_output |
yes - dedicated SMART LOAD terminal (manual p.3, p.27)
Off-grid Inverter User Manual SNA-EU 12K / SNA-EU 14K, Version UM-SNA04001 — p.3 port diagram, 'SMART LOAD Terminal'; p.27 wiring
|
| sunspec | — |
| usb | — |
| wifi | yes - Wi-Fi module supplied; WiFi/GPRS port on the unit (manual p.3, p.4) |
| zigbee | — |
Controls & display
| audible_alarm | — |
| buttons | function buttons: ENTER, UP, DOWN (manual p.3, p.44) |
| display_type | LCD with RGB backlight ('LCD+RGB' - 2024 datasheet) |
| leds | status indicator - green normal, yellow warning, red fault (manual p.42) |
| local_display | True |
| mobile_app | LuxPower monitoring app (Google Play / Apple App Store; manual p.55) |
| touchscreen | — |
| web_interface | yes - LuxPower monitoring portal (manual p.55) |
Protection
| afci | — |
| anti_islanding | yes - 'Grid Monitoring YES' (manual p.58-59) |
| insulation_monitoring | — |
| integrated_breakers_fuses | yes - BAT+ breaker on the unit; discharge circuit breaker used for output short-circuit protection (manual p.3, p.58-59) |
| integrated_dc_switch | yes - PV Switch on the unit (manual p.3); 'DC switch YES' (2024 datasheet) |
| over_current | yes - 'Over Current/Voltage Protection YES' (manual p.58-59) |
| over_temperature | — |
| over_voltage | yes - same row |
| overvoltage_category | — |
| protection_class | — |
| residual_current_monitoring | — |
| reverse_polarity | yes - battery reverse polarity protection and PV reverse polarity protection (2024 datasheet) |
| short_circuit | yes - 'Output Short Circuit Protection: Software protect when GridOff; Discharge Circuit Breaker protect when GridOn Bypass' (manual p.58-59); 'AC Short-circuit current protection YES' (2024 datasheet) |
| surge_protection | DC / AC surge protection Type III (2024 datasheet; manual states 'AC Surge Protection Type III') |
Certifications
| emc | [] |
| grid_codes | [] |
| note | The SNA 12K datasheet lists only 'CE'; no individual IEC/EN standard numbers are printed. |
| other | [] |
| regional | ['CE'] |
| safety | [] |
Warranty & service
| conditions | 'Warranty: 2 Years' - user manual spec table and 2024 datasheet |
| design_life_years | — |
| extended_options_years | — |
| field_replaceable_parts | — |
| service_intervals | — |
| standard_years |
2
Off-grid Inverter User Manual SNA-EU 12K / SNA-EU 14K, Version UM-SNA04001 — spec table, 'Warranty: 2 Years'
|
Документи
product-page
LuxpowerTek official product page - Off-grid Hybrid Inverter Single-phase SNA 12K/14K
rev UNKNOWN
user-manual
Off-grid Inverter User Manual SNA-EU 12K / SNA-EU 14K, Version UM-SNA04001
rev UM-SNA04001
Задокументована сумісність
Лише задокументовані пари. Якщо продукту тут немає, це означає, що не отримано документа, який називає цю пару, а не те, що вона несумісна.
inverter_battery
Deye AI-W5.1-B
COMPATIBLEmanufacturer-documented
Deye Approved Battery List DY-LV48-0109
Pytes V5 / V5-alpha (printed as V5° / V5°α)
COMPATIBLEofficially-verified
Pytes Inverter Compatibility List V.20230819, https://www.pytesess.com/ueditor/php/upload/file/20240705/1720170604646137.pdf (fetched 2026-09-01)
Pytes E-Box 48100R
COMPATIBLEofficially-verified
Pytes Inverter Compatibility List V.20230819, https://www.pytesess.com/ueditor/php/upload/file/20240705/1720170604646137.pdf (fetched 2026-09-01)
BSLBATT B-LFP48-200E (19-inch rack battery, 10.24 kWh)
COMPATIBLEmanufacturer-documented
BSLBATT B-LFP48 Rack Battery Pack User Manual V2.7 CAN/RS485 protocol tables, https://bslbatt.com/wp-content/uploads/2024/09/B-LFP48-User-Manual-V2.7-Rack-Battery-Pack.pdf (fetched 2026-09-01)
BSLBATT B-LFP48-100E (3U Server Rack Battery)
COMPATIBLEmanufacturer-documented
BSLBATT B-LFP48 Rack Battery Pack User Manual V2.7 CAN/RS485 protocol tables, https://bslbatt.com/wp-content/uploads/2024/09/B-LFP48-User-Manual-V2.7-Rack-Battery-Pack.pdf (fetched 2026-09-01)
EG4 LifePower4 48V (v2)
COMPATIBLEmanufacturer-documented
EG4 LifePower4 48V V2 & V3 Quick Start Guide protocol tables 11.1/11.2, https://eg4electronics.com/wp-content/uploads/2024/06/EG4-LifePower4-Quick-Start-Guide.pdf (fetched 2026-09-01)
EG4 WallMount Indoor 280Ah (14.3 kWh)
COMPATIBLEmanufacturer-documented
EG4 Indoor 280Ah Battery Quick Start Guide protocol tables (p.26-28), https://eg4electronics.com/wp-content/uploads/2024/04/EG4%C2%AE-Indoor-280Ah-Battery-Quick-Start-Guide.pdf (fetched 2026-09-01)
inverter_evse
go-e GmbH go-eCharger Gemini (11kW and 22kW variants)
COMPATIBLEinferred-from-electrical-parameters
go-e Gemini Datasheet (open local API/Modbus TCP/MQTT) + third-party EMS tools (evcc, openWB)
Зафіксовані конфлікти
electrical.max_short_circuit_current_per_mppt_a Review required
44 — stored value
[44, 44] — Max. PV short-circuit current input per MPPT (A): 44/44 — axis: MPPT
Detected during import v1-freeze-2026-09-batch09
electrical.max_input_current_per_mppt_a Review required
35 — stored value
[35, 35] — Max. PV input current per MPPT (A): 35/35 — axis: MPPT
Detected during import v1-freeze-2026-09-batch09
electrical.battery_voltage_min_v Review required
38.4 — stored value
[46.4, 38.4] — Battery voltage range (V): 46.4-60/38.4-60 — axis: rated battery voltage 48 V then 51.2 V, source order as printed
Detected during import v1-freeze-2026-09-batch09
efficiency_max_pct Review required
90.0% — SNA-12K Datasheet (2024-07), row read as 'Max Efficiency 90.0%'
UNKNOWN — SNA-EU manual/2026 datasheet - no comparable max-efficiency row was extracted
the 90.0% figure is implausibly low for a high-frequency transformerless hybrid and may be a mis-read row (e.g. a battery-mode or derating figure). Flagged rather than stored.
environment.noise_level_db Review required
<50 dB — SNA-12K Datasheet (2024-07)
<55 dB typical — SNA-EU 12K/14K user manual UM-SNA04001 p.59
document revision
mppt_max_voltage_v Review required
385 — existing record, from the SNA-12K Datasheet (2024-07): MPPT range 120-385V
440 — 2026-01 SNA-EU 12/13/14 kW datasheet: 'MPPT range: 120-440V'
hardware revision in the SNA-EU generation (the 2026 datasheet also covers 13K/14K siblings)
max_parallel_units Review required
3 — SNA-12K Datasheet (2024-07): 'Supports up to 3 units in parallel'
16 — LuxpowerTek official product page and the 2026-01 SNA-EU datasheet: 'supports up to 16 units in parallel'
firmware/hardware revision - parallel capability was raised from 3 to 16 units in the SNA-EU generation
physical.weight_kg Review required
40 — SNA-12K Datasheet (2024-07): 'Weight 40kg'
43.5 — SNA-EU 12K/14K user manual UM-SNA04001 p.59 and the 2026-01 SNA-EU datasheet: 'Net Weight 43.5kg'
hardware revision or a corrected figure in the newer SNA-EU documentation
efficiency_max_pct Review required
90.0% — SNA-12K Datasheet (2024-07), row read as 'Max Efficiency 90.0%'
UNKNOWN — SNA-EU manual/2026 datasheet - no comparable max-efficiency row was extracted
the 90.0% figure is implausibly low for a high-frequency transformerless hybrid and may be a mis-read row (e.g. a battery-mode or derating figure). Flagged rather than stored.
environment.noise_level_db Review required
<50 dB — SNA-12K Datasheet (2024-07)
<55 dB typical — SNA-EU 12K/14K user manual UM-SNA04001 p.59
document revision
max_parallel_units Review required
3 — SNA-12K Datasheet (2024-07): 'Supports up to 3 units in parallel'
16 — LuxpowerTek official product page and the 2026-01 SNA-EU datasheet: 'supports up to 16 units in parallel'
firmware/hardware revision - parallel capability was raised from 3 to 16 units in the SNA-EU generation
mppt_max_voltage_v Review required
385 — existing record, from the SNA-12K Datasheet (2024-07): MPPT range 120-385V
440 — 2026-01 SNA-EU 12/13/14 kW datasheet: 'MPPT range: 120-440V'
hardware revision in the SNA-EU generation (the 2026 datasheet also covers 13K/14K siblings)
physical.weight_kg Review required
40 — SNA-12K Datasheet (2024-07): 'Weight 40kg'
43.5 — SNA-EU 12K/14K user manual UM-SNA04001 p.59 and the 2026-01 SNA-EU datasheet: 'Net Weight 43.5kg'
hardware revision or a corrected figure in the newer SNA-EU documentation
Додаткові задокументовані параметри
Записано дослівно з джерела; поля схеми для них поки немає.
| AC pass-through current | 100A |
| Battery voltage range | 46.4V-60V (Li) / 38.4V-60V (Lead_Acid) |
| Maximum PV strings | 2 MPPTs with 4 strings |
| Rated GEN input power / voltage / current | 15000W / 230V / 65A |
| Recommended breakers | QF 1 In>=100A, QF 2 In>=63A |
| Wall stud spacing accommodated | 12 inches (305mm) to 16 inches (406mm) |
| withheld:pv.mppt_topology_notation | "'Number of independent MPPT inputs: 2'; no PV-string-count row is printed" |
