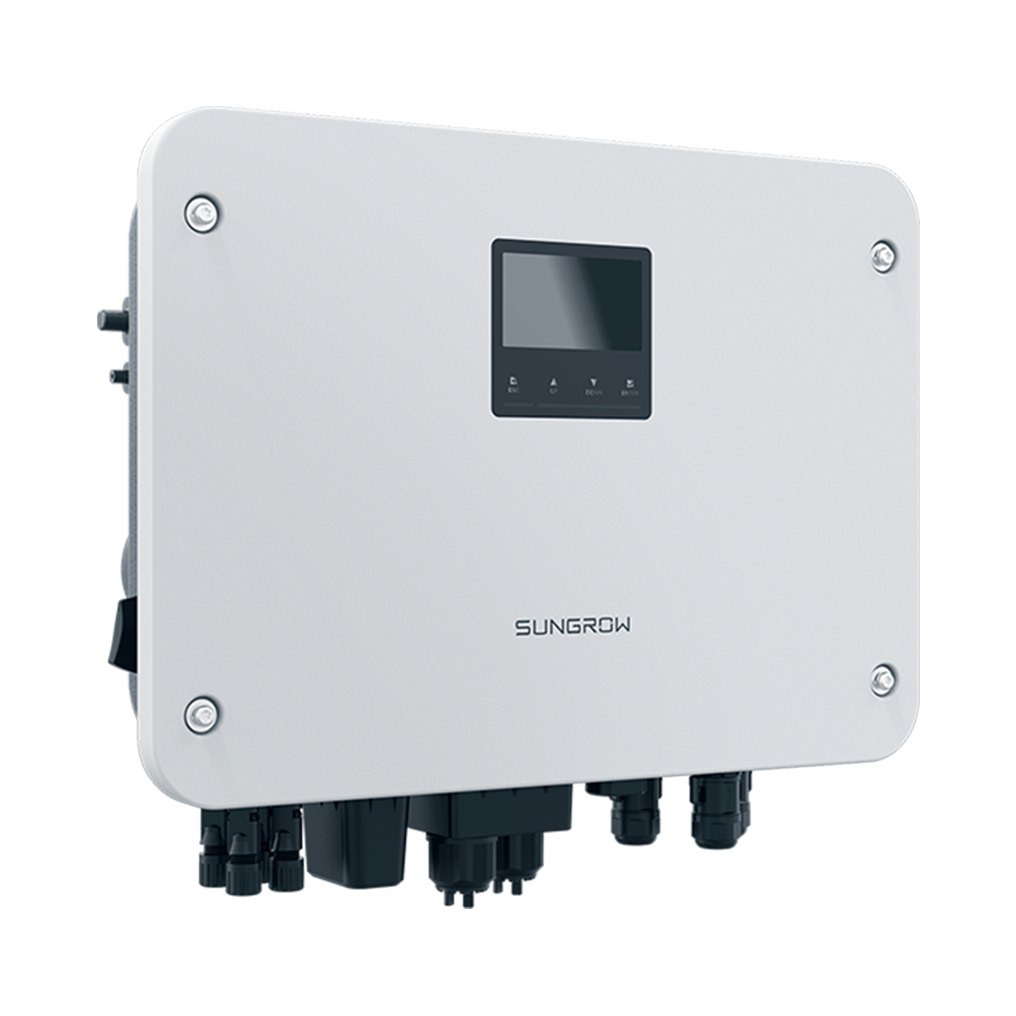

Sungrow MG10RL
Official manufacturer UNKNOWN перевірено 14 вересня 2026 р.
Невирішений конфлікт щодо безпеки
Два джерела подають різні значення для цього продукту, і ніхто цього не вирішив. Характеристики нижче показано так, як їх записано, але цей продукт не можна вважати перевіреним для інженерних цілей, доки конфлікт не закрито.
Два джерела подають різні значення для цього продукту, і ніхто цього не вирішив. Характеристики нижче показано так, як їх записано, але цей продукт не можна вважати перевіреним для інженерних цілей, доки конфлікт не закрито.
Identity
| category | inverters |
| ean | — |
| firmware | {'documented_version': 'UNKNOWN', 'constraints': 'UNKNOWN'} |
| generation | — |
| manufacturer | Sungrow |
| market_version | APAC / MEA (grid compliance list names NRS 097-2-1, MEA, PEA, DEWA) |
| model | MG10RL |
| mpn | — |
| product_family | MG Series residential hybrid inverter |
| product_status | active |
| region | — |
| release_year | — |
| series | MGRL |
| sku | — |
Electrical
| ac_connection | 1 / 1 (grid connection type / phase) |
| ac_voltage_range | 154 V – 276 V |
| battery_capacity_range_kwh | — |
| battery_communication | CAN |
| battery_max_charge_current_a | — |
| battery_max_charge_power_w | — |
| battery_max_discharge_current_a | — |
| battery_max_discharge_power_w | — |
| battery_nominal_battery_voltage_v | — |
| battery_type | Li-ion battery |
| battery_voltage_range_v | 40 V – 60 V |
| eps_peak_power | 2 times of rated power, 10 s |
| eps_phase | 1 |
| eps_rated_power_va | 10000 |
| eps_switchover_time_ms | 4 |
| eps_voltage | 220 V / 230 V / 240 V |
| european_efficiency_pct | 96.7 |
| external_transfer_switch_required | — |
| frequency_range_hz | — |
| inrush_current | — |
| max_ac_active_power_w | 10000 |
| max_ac_current_a | 45.5 |
| max_apparent_power_va | 10000 |
| max_backfeed_current_a | — |
| max_dc_input_power_w | 16000 |
| max_dc_voltage_v | 500 |
| max_efficiency_pct | 97.6 |
| max_input_current_per_mppt_a | 25 |
| max_output_fault_current_a | — |
| max_short_circuit_current_per_mppt_a | 25 |
| mppt_efficiency_pct | — |
| mppt_voltage_range_v | 40 V – 425 V |
| night_self_consumption_w | — |
| nominal_ac_voltage | 220 V / 230 V / 240 V |
| nominal_dc_voltage_v | 360 |
| nominal_frequency_hz | 50 Hz / 60 Hz |
| number_of_mppt | 3 |
| parallel_capability | — |
| phase_count | 1 |
| power_factor_range | > 0.99 at default value at rated power / 0.8 leading to 0.8 lagging |
| rated_ac_power_w | 10000 |
| rated_mppt_voltage_range_v | 230–425 V (MPP voltage range for nominal power) |
| startup_voltage_v | 50 |
| strings_per_mppt | 1 / 1 / 1 |
| thd_pct | < 3 % |
Physical / mechanical
| ac_terminal | — |
| cooling | Natural convection/Fan cooling |
| dc_connector | — |
| depth_mm | 250 |
| dimensions_mm | 552 mm * 448 mm * 250 mm |
| display | LCD digital touchable display & LED indicator |
| enclosure_material | — |
| height_mm | 448 |
| mounting | — |
| noise_db | ≤ 45 dB(A) |
| weight_kg | ≤ 25 kg |
| width_mm | 552 |
Installation
| cable_requirements | — |
| commissioning | — |
| installation_angle | — |
| mounting_clearances | — |
| torque | — |
Environment
| ingress_protection | IP65 |
| max_altitude_m | 2000 |
| operating_temperature_c | -25 ℃ to 60 ℃ |
| pollution_degree | — |
| protective_class | — |
| relative_humidity_pct | 0% – 95% |
| storage_temperature_c | — |
Interfaces & connectors
| app | iSolarCloud |
| communication | ['CAN', 'RS485', 'Ethernet (optional)', 'WLAN (optional)'] |
| dry_contact | — |
| meter_interface | — |
| monitoring_portal | iSolarCloud |
| protocols | [] |
Protection
| anti_islanding | — |
| arc_fault | AFCI Protection (product page); 'Optional' in the Version 3 datasheet |
| dc_switch | Yes |
| insulation_monitoring | — |
| overvoltage_category | — |
| rcmu | — |
| reverse_polarity | — |
| surge_protection_ac | Yes (AC/DC surge protection) |
| surge_protection_dc | Yes (AC/DC surge protection) |
Certifications
| standards | ['IEC 62109-1/-2', 'IEC/EN 61000-6-1/-3', 'IEC 62116', 'IEC 61727', 'NRS 097-2-1', 'MEA', 'PEA', 'DEWA'] |
Warranty & service
| conditions | — |
| extension_options | — |
| standard_years | — |
Документи
quick-guide
{# Located but never retrieved: listed, but deliberately not linked, and it
backs no stored value. #}
MG5/6/8/10/12RL Quick Installation Guide — знайдено, не отримано
rev UNKNOWN
user-manual
{# Located but never retrieved: listed, but deliberately not linked, and it
backs no stored value. #}
MG5/6/8/10/12RL User Manual — знайдено, не отримано
rev UNKNOWN
Зафіксовані конфлікти
battery.max_charge_current_a / battery.max_discharge_current_a Review required
120 A / 120 A — MG5RL/MG6RL/MG8RL/MG10RL+MGL060 datasheet, Version 3 APAC MEA
190 A / 190 A — MG8RL / MG10RL datasheet, Version 6 APAC MEA
electrical.max_input_current_per_mppt_a Review required
20 — MG5RL/MG6RL/MG8RL/MG10RL+MGL060 datasheet, Version 3 APAC MEA
25 — MG8RL / MG10RL datasheet, Version 6 APAC MEA
Додаткові задокументовані параметри
Записано дослівно з джерела; поля схеми для них поки немає.
| MG model-specific datasheet, row 'Max. DC short-circuit current' | read once as '25 A' and once as '50 A ( 25 A / 25 A )' |
| Max. PV input current (total, per-MPPT breakdown in brackets) | 75 A (25 A / 25 A / 25 A) |
| Max. PV input power (Version 3 datasheet) | 16000 Wp |
| Topology (Version 3 datasheet) | Non-isolated (MG5RL/MG6RL) / Isolated (MG8RL/MG10RL) |
| Whole-home backup bypass switch (MG8RL-MG10RL product page) | Whole-home backup with 40/63A bypass switch |
| battery.communication | CAN |
| battery.max_charge_current_a | UNKNOWN |
| battery.max_charge_power_w | UNKNOWN |
| battery.max_discharge_current_a | UNKNOWN |
| battery.max_discharge_power_w | UNKNOWN |
| battery.nominal_battery_voltage_v | UNKNOWN |
| identity.region_as_printed | APAC / MEA (both fetched datasheets are the 'APAC MEA' edition) |
| withheld:pv.mppt_topology_notation | "No. of independent MPP trackers 3 / No. of PV strings per MPPT 1 / 1 / 1" |
