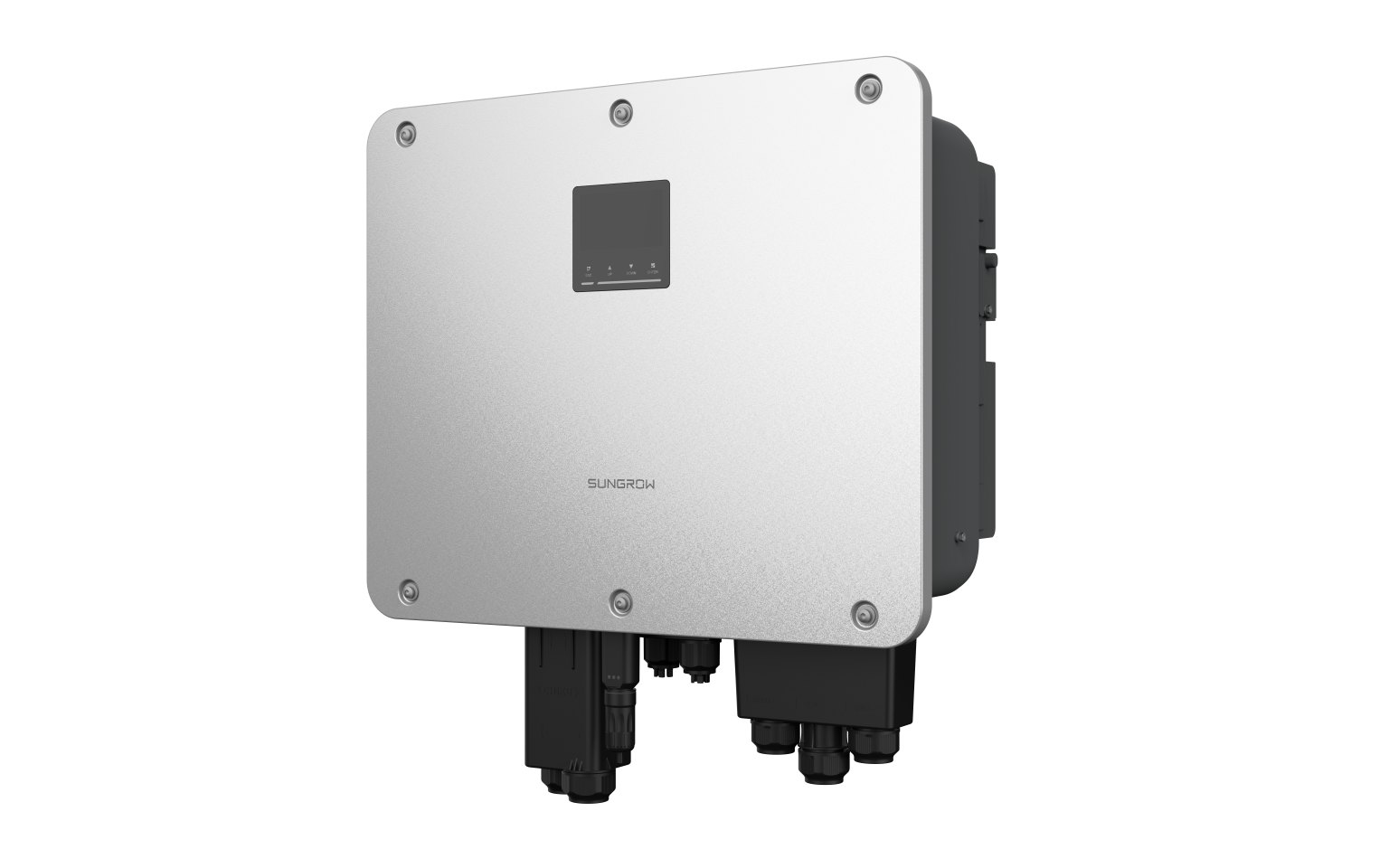

Sungrow MG12TL
Official manufacturer GLOBAL перевірено 22 вересня 2026 р.
Невирішений конфлікт щодо безпеки
Два джерела подають різні значення для цього продукту, і ніхто цього не вирішив. Характеристики нижче показано так, як їх записано, але цей продукт не можна вважати перевіреним для інженерних цілей, доки конфлікт не закрито.
Два джерела подають різні значення для цього продукту, і ніхто цього не вирішив. Характеристики нижче показано так, як їх записано, але цей продукт не можна вважати перевіреним для інженерних цілей, доки конфлікт не закрито.
Identity
| category | inverters |
| ean | — |
| firmware | {'documented_version': 'UNKNOWN', 'constraints': 'UNKNOWN'} |
| generation | — |
| manufacturer | Sungrow |
| market_version | — |
| model | MG12TL |
| mpn | — |
| product_family | MG Series three-phase hybrid inverter |
| product_status | active |
| region | GLOBAL |
| release_year | — |
| series | MGTL |
| sku | — |
Electrical
| ac_connection | — |
| ac_voltage_range | — |
| battery_capacity_range_kwh | — |
| battery_communication | — |
| battery_max_charge_current_a | — |
| battery_max_charge_power_w | — |
| battery_max_discharge_current_a | — |
| battery_max_discharge_power_w | — |
| battery_nominal_battery_voltage_v | — |
| battery_supported |
True
Sungrow MG10TL / MG12TL / MG15TL datasheet, Version 4 MEA APAC
|
| battery_type | — |
| battery_voltage_max_v |
60
Sungrow MG10TL / MG12TL / MG15TL datasheet, Version 4 MEA APAC
|
| battery_voltage_min_v |
40
Sungrow MG10TL / MG12TL / MG15TL datasheet, Version 4 MEA APAC
|
| battery_voltage_range_v | — |
| eps_peak_power | — |
| eps_phase | — |
| eps_rated_power_va | — |
| eps_switchover_time_ms | 0 |
| eps_voltage | — |
| european_efficiency_pct | — |
| external_transfer_switch_required | — |
| frequency_range_hz | — |
| inrush_current | — |
| max_ac_active_power_w | — |
| max_ac_current_a | — |
| max_apparent_power_va | — |
| max_backfeed_current_a | — |
| max_dc_input_power_w | — |
| max_dc_voltage_v | 1000 |
| max_efficiency_pct | 98 |
| max_input_current_per_mppt_a |
[20, 20, 20]
Sungrow MG10TL / MG12TL / MG15TL datasheet, Version 4 MEA APAC
|
| max_output_fault_current_a | — |
| max_pv_input_voltage_v |
1000
Sungrow MG10TL / MG12TL / MG15TL datasheet, Version 4 MEA APAC
|
| max_short_circuit_current_per_mppt_a | — |
| mppt_efficiency_pct | — |
| mppt_voltage_max_v |
950
Sungrow MG10TL / MG12TL / MG15TL datasheet, Version 4 MEA APAC
|
| mppt_voltage_min_v |
90
Sungrow MG10TL / MG12TL / MG15TL datasheet, Version 4 MEA APAC
|
| mppt_voltage_range_v | — |
| night_self_consumption_w | — |
| nominal_ac_voltage | 400 V |
| nominal_dc_voltage_v | — |
| nominal_frequency_hz | — |
| nominal_grid_voltage_v |
3/N/PE, 220/380 V; 230/400 V; 240/415 V
Sungrow MG10TL / MG12TL / MG15TL datasheet, Version 4 MEA APAC
|
| number_of_mppt |
3
Sungrow MG10TL / MG12TL / MG15TL datasheet, Version 4 MEA APAC
|
| number_of_pv_inputs |
3
Sungrow MG10TL / MG12TL / MG15TL datasheet, Version 4 MEA APAC
|
| official_datasheet_url |
https://info-support.sungrowpower.com/product-material/8c54a794-8e0f-4341-8de4-019e4ba8596e.pdf
Sungrow MG10TL / MG12TL / MG15TL datasheet, Version 4 MEA APAC
|
| official_manual_url |
https://info-support.sungrowpower.com/product-material/311788fc-d7f9-4366-8673-0672d658baa3.pdf
Sungrow MG10TL / MG12TL / MG15TL datasheet, Version 4 MEA APAC
|
| parallel_capability | — |
| phase_count |
3
Sungrow MG10TL / MG12TL / MG15TL datasheet, Version 4 MEA APAC
|
| power_factor_range | — |
| rated_ac_power_w | 12000 |
| rated_mppt_voltage_range_v | — |
| rated_pv_input_voltage_v |
650
Sungrow MG10TL / MG12TL / MG15TL datasheet, Version 4 MEA APAC
|
| startup_voltage_v |
100
Sungrow MG10TL / MG12TL / MG15TL datasheet, Version 4 MEA APAC
|
| strings_per_mppt | — |
| strings_per_mppt_distribution |
[1, 1, 1]
Sungrow MG10TL / MG12TL / MG15TL datasheet, Version 4 MEA APAC
|
| thd_pct | — |
Physical / mechanical
| ac_terminal | — |
| cooling | — |
| dc_connector | — |
| depth_mm | — |
| dimensions_mm | — |
| display | 4.3 Inch Touchscreen |
| enclosure_material | — |
| height_mm | — |
| mounting | — |
| noise_db | 35 dB(A) |
| weight_kg | — |
| width_mm | — |
Installation
| cable_requirements | — |
| commissioning | — |
| installation_angle | — |
| mounting_clearances | — |
| torque | — |
Environment
| ingress_protection | IP66 |
| max_altitude_m | — |
| operating_temperature_c | — |
| pollution_degree | — |
| protective_class | — |
| relative_humidity_pct | — |
| storage_temperature_c | — |
Interfaces & connectors
| app | iSolarCloud |
| communication | [] |
| dry_contact | — |
| meter_interface | — |
| monitoring_portal | iSolarCloud |
| protocols | [] |
Protection
| anti_islanding | — |
| arc_fault | AFCI 3.0R Arc-fault Detection |
| dc_switch | — |
| insulation_monitoring | — |
| overvoltage_category | — |
| rcmu | — |
| reverse_polarity | — |
| surge_protection_ac | — |
| surge_protection_dc | — |
Warranty & service
| conditions | — |
| extension_options | — |
| standard_years | — |
Документи
quick-installation-guide
Sungrow MG10/12/15TL Quick Installation Guide
Зафіксовані конфлікти
max_charge_current_a Resolved — regional/revision difference
220 —
265 —
rated_ac_power_w Resolved — regional/revision difference
10000 —
12000 —
max_charge_current_a Review required
220 —
265 —
rated_ac_power_w Review required
10000 —
12000 —
Додаткові задокументовані параметри
Записано дослівно з джерела; поля схеми для них поки немає.
| Charge / discharge current | up to 330A (MG10/12/15TL) |
| Corrosion class | C5 |
| PV oversizing | Up to 250% |
| PV string input current | Up to 20A |
| Rated AC Output Power (headline) | 10-25kW |
| Unbalanced load capability | 180% |
| battery.communication | UNKNOWN |
| battery.max_charge_current_a | UNKNOWN |
| battery.max_charge_power_w | UNKNOWN |
| battery.max_discharge_current_a | UNKNOWN |
| battery.max_discharge_power_w | UNKNOWN |
| battery.nominal_battery_voltage_v | UNKNOWN |
| identity.region_as_printed | GLOBAL (product page; Sungrow markets the MGTL series in Southeast Asia, Africa and Latin America) |
