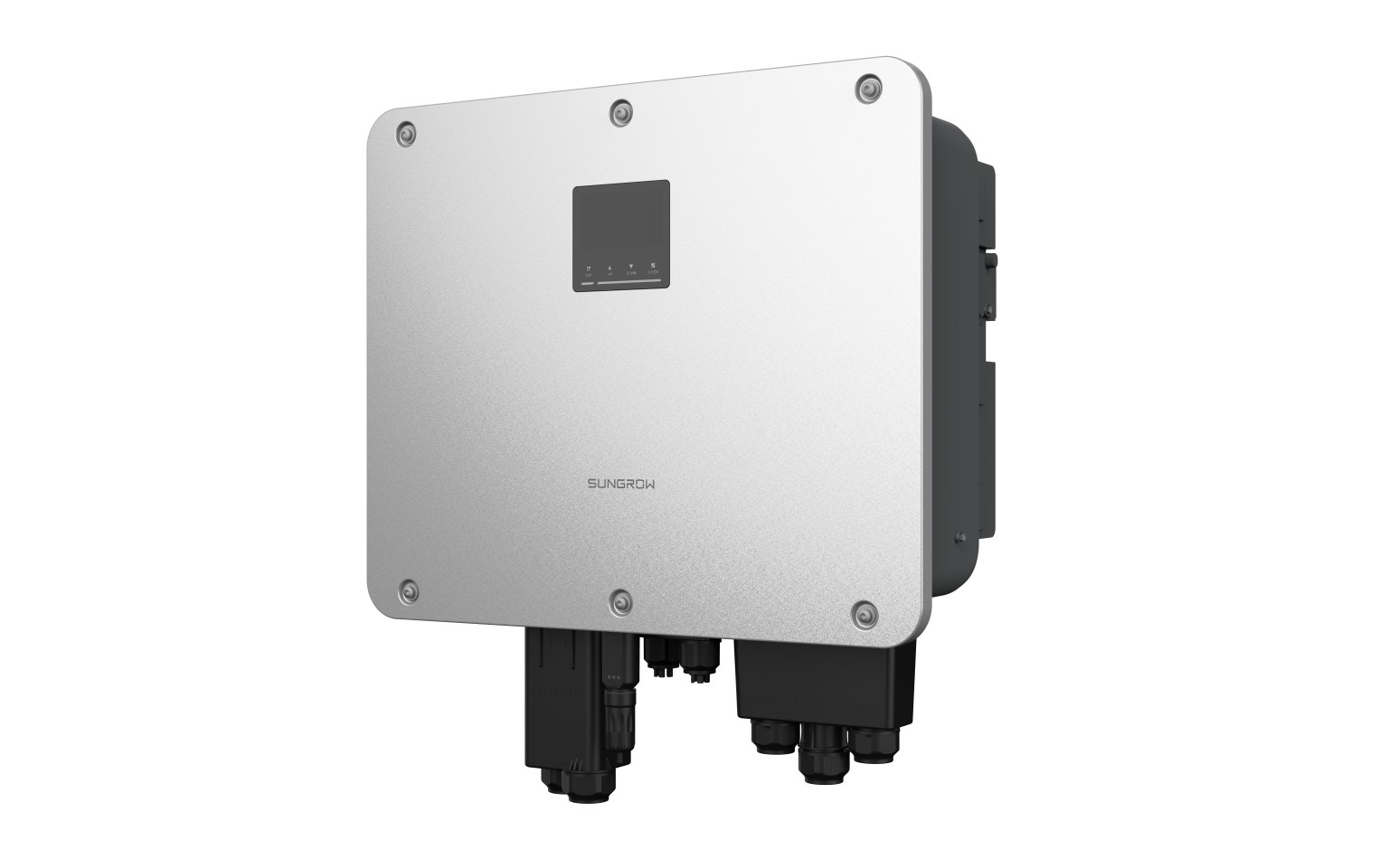

Sungrow MG20TL
Official manufacturer GLOBAL перевірено 22 вересня 2026 р.
Identity
| category | inverters |
| ean | — |
| firmware | {'documented_version': 'UNKNOWN', 'constraints': 'UNKNOWN'} |
| generation | — |
| manufacturer | Sungrow |
| market_version | — |
| model | MG20TL |
| mpn | — |
| product_family | MG Series three-phase hybrid inverter |
| product_status | active |
| region | GLOBAL |
| release_year | — |
| series | MGTL |
| sku | — |
Electrical
| ac_connection | — |
| ac_voltage_range | — |
| battery_capacity_range_kwh | — |
| battery_communication | — |
| battery_max_charge_current_a | 440 |
| battery_max_charge_power_w | — |
| battery_max_discharge_current_a | 440 |
| battery_max_discharge_power_w | — |
| battery_nominal_battery_voltage_v | — |
| battery_supported |
True
Sungrow MG20TL / MG25TL datasheet, Version 3 MEA APAC
|
| battery_type | — |
| battery_voltage_max_v |
60
Sungrow MG20TL / MG25TL datasheet, Version 3 MEA APAC
|
| battery_voltage_min_v |
40
Sungrow MG20TL / MG25TL datasheet, Version 3 MEA APAC
|
| battery_voltage_range_v | — |
| eps_peak_power | — |
| eps_phase | — |
| eps_rated_power_va | — |
| eps_switchover_time_ms | 0 |
| eps_voltage | — |
| european_efficiency_pct | — |
| external_transfer_switch_required | — |
| frequency_range_hz | — |
| inrush_current | — |
| max_ac_active_power_w | — |
| max_ac_current_a | — |
| max_ac_power_va |
22000
Sungrow MG20TL / MG25TL datasheet, Version 3 MEA APAC
|
| max_apparent_power_va | — |
| max_backfeed_current_a | — |
| max_charge_current_a |
440
Sungrow MG20TL / MG25TL datasheet, Version 3 MEA APAC
|
| max_dc_input_power_w | — |
| max_dc_voltage_v | 1000 |
| max_discharge_current_a |
440
Sungrow MG20TL / MG25TL datasheet, Version 3 MEA APAC
|
| max_efficiency_pct | 98 |
| max_input_current_per_mppt_a |
[40, 40, 20]
Sungrow MG20TL / MG25TL datasheet, Version 3 MEA APAC
|
| max_output_fault_current_a | — |
| max_pv_input_voltage_v |
1000
Sungrow MG20TL / MG25TL datasheet, Version 3 MEA APAC
|
| max_short_circuit_current_per_mppt_a | — |
| mppt_efficiency_pct | — |
| mppt_voltage_max_v |
950
Sungrow MG20TL / MG25TL datasheet, Version 3 MEA APAC
|
| mppt_voltage_min_v |
90
Sungrow MG20TL / MG25TL datasheet, Version 3 MEA APAC
|
| mppt_voltage_range_v | — |
| night_self_consumption_w | — |
| nominal_ac_voltage | 400 V |
| nominal_dc_voltage_v | — |
| nominal_frequency_hz | — |
| nominal_grid_voltage_v |
3/N/PE, 220/380 V; 230/400 V; 240/415 V
Sungrow MG20TL / MG25TL datasheet, Version 3 MEA APAC
|
| number_of_mppt |
3
Sungrow MG20TL / MG25TL datasheet, Version 3 MEA APAC
|
| number_of_pv_inputs |
5
Sungrow MG20TL / MG25TL datasheet, Version 3 MEA APAC
|
| official_datasheet_url |
https://info-support.sungrowpower.com/product-material/3a04a8dc-c20b-4f76-80f0-cb0935285f96.pdf
Sungrow MG20TL / MG25TL datasheet, Version 3 MEA APAC
|
| parallel_capability | — |
| phase_count |
3
Sungrow MG20TL / MG25TL datasheet, Version 3 MEA APAC
|
| power_factor_range | — |
| rated_ac_power_w |
20000
Sungrow MG20TL / MG25TL datasheet, Version 3 MEA APAC
|
| rated_mppt_voltage_range_v | — |
| rated_pv_input_voltage_v |
650
Sungrow MG20TL / MG25TL datasheet, Version 3 MEA APAC
|
| startup_voltage_v |
100
Sungrow MG20TL / MG25TL datasheet, Version 3 MEA APAC
|
| strings_per_mppt | — |
| strings_per_mppt_distribution |
[2, 2, 1]
Sungrow MG20TL / MG25TL datasheet, Version 3 MEA APAC
|
| thd_pct | — |
Physical / mechanical
| ac_terminal | — |
| cooling | — |
| dc_connector | — |
| depth_mm | — |
| dimensions_mm | — |
| display | 4.3 Inch Touchscreen |
| enclosure_material | — |
| height_mm | — |
| mounting | — |
| noise_db | 45dB |
| weight_kg | — |
| width_mm | — |
Installation
| cable_requirements | — |
| commissioning | — |
| installation_angle | — |
| mounting_clearances | — |
| torque | — |
Environment
| ingress_protection | IP66 |
| max_altitude_m | — |
| operating_temperature_c | — |
| pollution_degree | — |
| protective_class | — |
| relative_humidity_pct | — |
| storage_temperature_c | — |
Interfaces & connectors
| app | iSolarCloud |
| communication | [] |
| dry_contact | — |
| meter_interface | — |
| monitoring_portal | iSolarCloud |
| protocols | [] |
Protection
| anti_islanding | — |
| arc_fault | AFCI 3.0R Arc-fault Detection |
| dc_switch | — |
| insulation_monitoring | — |
| overvoltage_category | — |
| rcmu | — |
| reverse_polarity | — |
| surge_protection_ac | — |
| surge_protection_dc | — |
Warranty & service
| conditions | — |
| extension_options | — |
| standard_years | — |
Документи
Додаткові задокументовані параметри
Записано дослівно з джерела; поля схеми для них поки немає.
| Charge / discharge current | 440A rapid charge & discharge (MG20/25TL) |
| Corrosion class | C5 |
| PV oversizing | Up to 250% |
| PV string input current | Up to 20A |
| Rated AC Output Power (headline) | 10-25kW |
| Unbalanced load capability | 150% |
| battery.communication | UNKNOWN |
| battery.max_charge_current_a | 440 |
| battery.max_charge_power_w | UNKNOWN |
| battery.max_discharge_current_a | 440 |
| battery.max_discharge_power_w | UNKNOWN |
| battery.nominal_battery_voltage_v | UNKNOWN |
| identity.region_as_printed | GLOBAL (product page; Sungrow markets the MGTL series in Southeast Asia, Africa and Latin America) |
