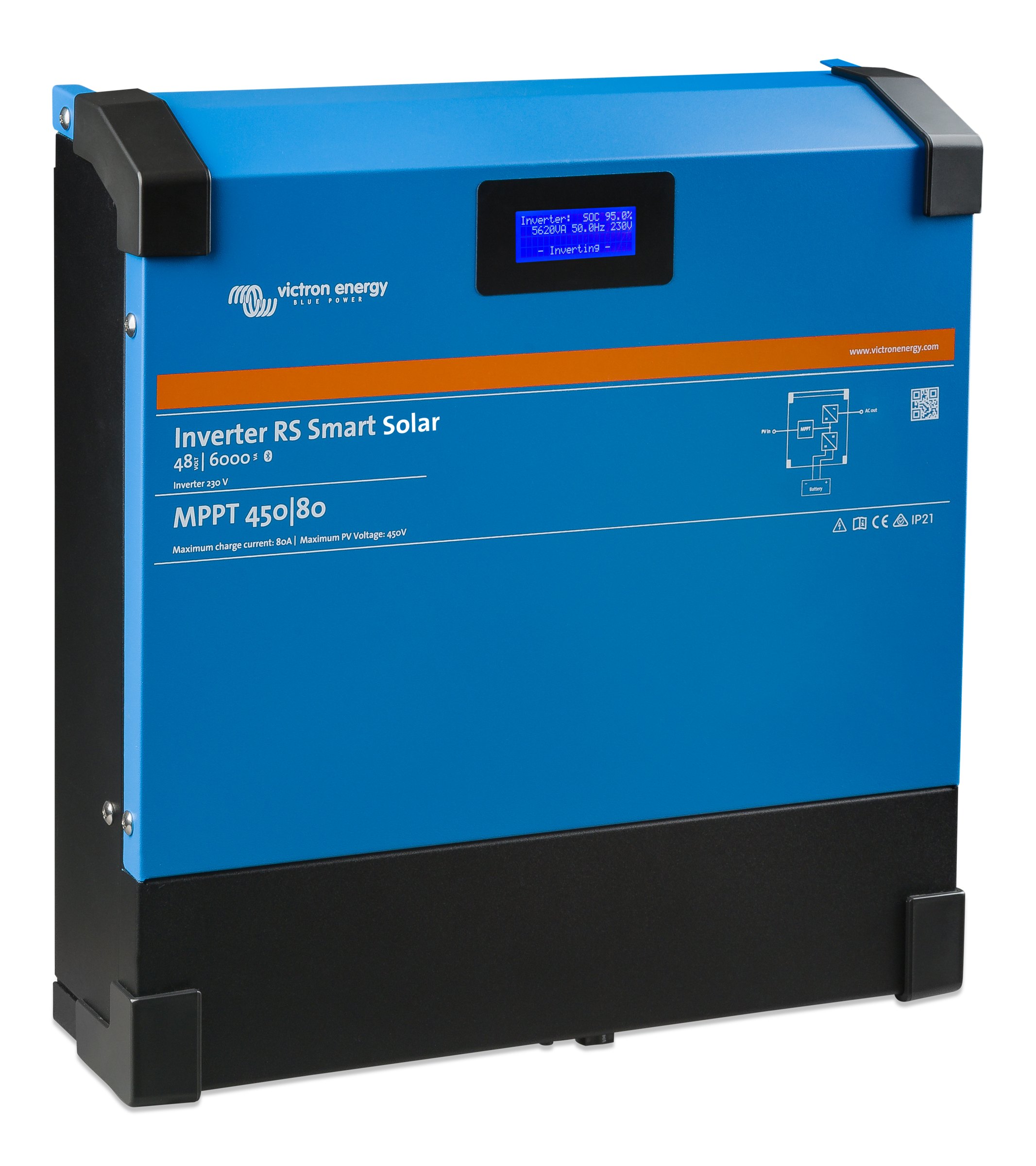

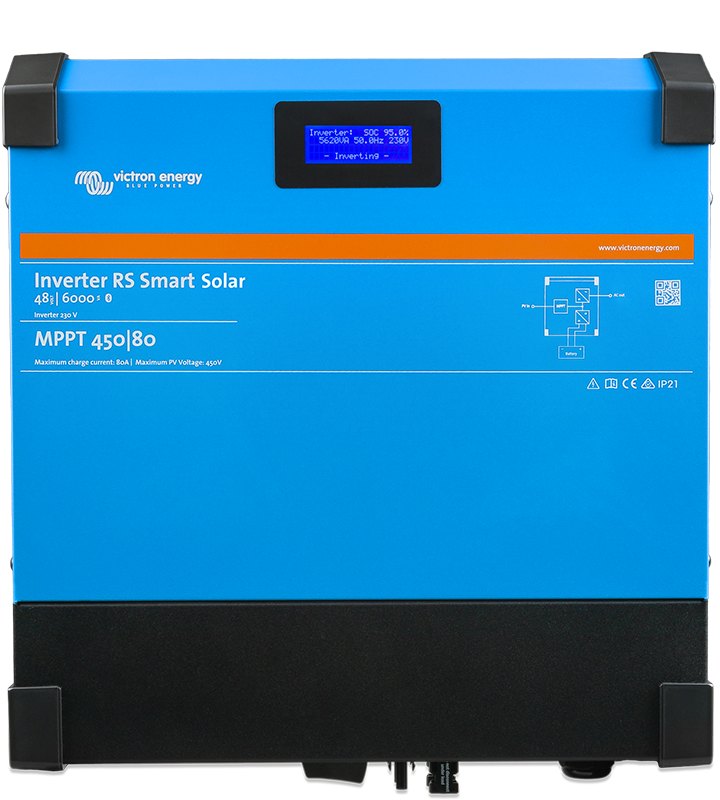

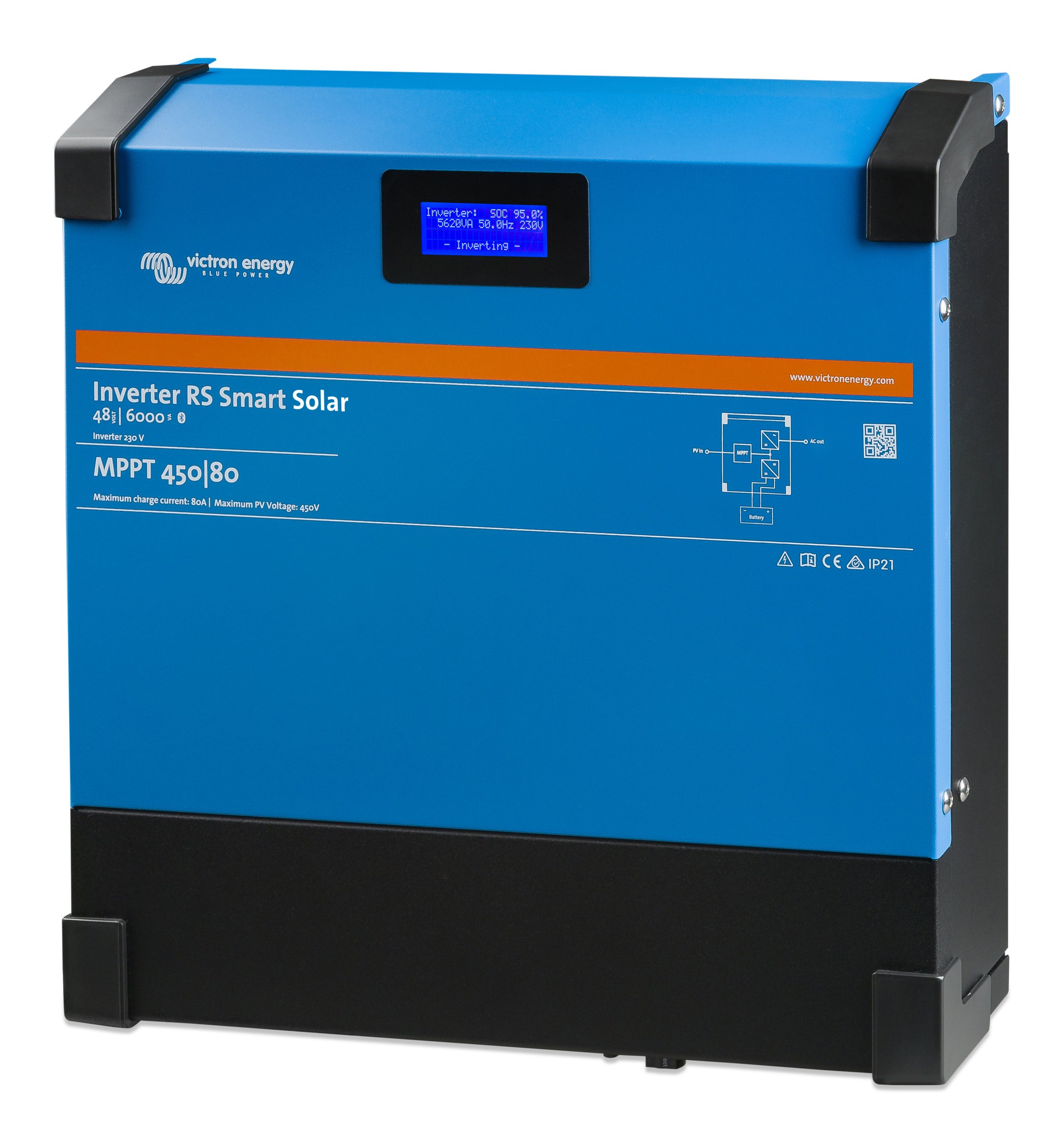

Victron Energy Inverter RS 48/6000 230V Smart Solar
Official manufacturer EU перевірено 14 вересня 2026 р.
Identity
| category | inverters |
| ean | — |
| firmware | {'documented_version': 'UNKNOWN', 'constraints': 'Not currently compatible with VE.Smart Networks (stated for the RS range).'} |
| generation | RS platform |
| manufacturer | Victron Energy |
| market_version | 230 V / 50 Hz (frequency adjustable to 60 Hz) |
| model | Inverter RS 48/6000 230V Smart Solar |
| mpn | PIN482601000 |
| product_family | RS |
| product_status | active |
| region | EU |
| release_year | — |
| series | Inverter RS Smart Solar |
| sku | PIN482601000 |
Electrical
| ac_connection | Screw terminals 10 mm2 |
| ac_voltage_range | 230 VAC +/- 2% |
| battery_absorption_voltage_v | 57,6 V (default, adjustable) |
| battery_capacity_range_kwh | — |
| battery_charge_voltage_programmable_range_v | 36 - 60 V |
| battery_communication | VE.Can / BMS-Can; remote input configurable to accept Victron smallBMS |
| battery_float_voltage_v | 55,2 V (default, adjustable) |
| battery_max_charge_current_a | — |
| battery_max_charge_power_w | — |
| battery_max_discharge_current_a | — |
| battery_max_discharge_power_w | — |
| battery_minimum_start_voltage_v | 41 |
| battery_nominal_battery_voltage_v | — |
| battery_over_voltage_disconnect_v | 65.5 |
| battery_terminals | M8 Bolts |
| battery_total_max_combined_charger_current_a | 100 |
| battery_type | Lead acid and Lithium-ion (low voltage, 48 V nominal system) |
| battery_voltage_range_v | 38 - 62 V |
| continuous_output_power_25c | 4800 - 5300 W (varies with battery voltage) |
| continuous_output_power_40c | 4500 |
| efficiency_note | 96,5% at 1 kW load |
| eps_peak_power | 9 kW for 3 seconds; 7 kW for 4 minutes |
| eps_phase | single phase |
| eps_rated_power_va | — |
| eps_switchover_time_ms | — |
| eps_voltage | 230 VAC +/- 2% |
| european_efficiency_pct | — |
| external_transfer_switch_required | — |
| frequency_range_hz | 50 Hz +/- 0,1% (adjustable to 60 Hz) |
| inrush_current | — |
| max_ac_active_power_w | — |
| max_ac_current_a | 25 |
| max_apparent_power_va | — |
| max_backfeed_current_a | — |
| max_dc_input_power_w | 6000 |
| max_dc_voltage_v | 450 |
| max_efficiency_pct | 96.5 |
| max_input_current_per_mppt_a | 12 |
| max_output_fault_current_a | 45 |
| max_pv_power_per_tracker_w | 3000 |
| max_short_circuit_current_per_mppt_a | 16 |
| mppt_efficiency_pct | — |
| mppt_voltage_range_v | 65 - 450 V |
| night_self_consumption_w | 20 |
| nominal_ac_voltage | 230 VAC |
| nominal_dc_voltage_v | — |
| nominal_frequency_hz | 50 |
| number_of_mppt | 2 |
| parallel_capability | 12 parallel units supported, 3 phase supports 4 units per phase |
| phase_count | 1 |
| power_factor_range | — |
| rated_ac_power_w | — |
| rated_mppt_voltage_range_v | — |
| startup_voltage_v | 120 |
| strings_per_mppt | 2 positive & 2 negative MC4 (one pair per tracker) |
| thd_pct | — |
Physical / mechanical
| ac_terminal | Screw terminals 10 mm2 |
| cooling | Fan assisted cooling |

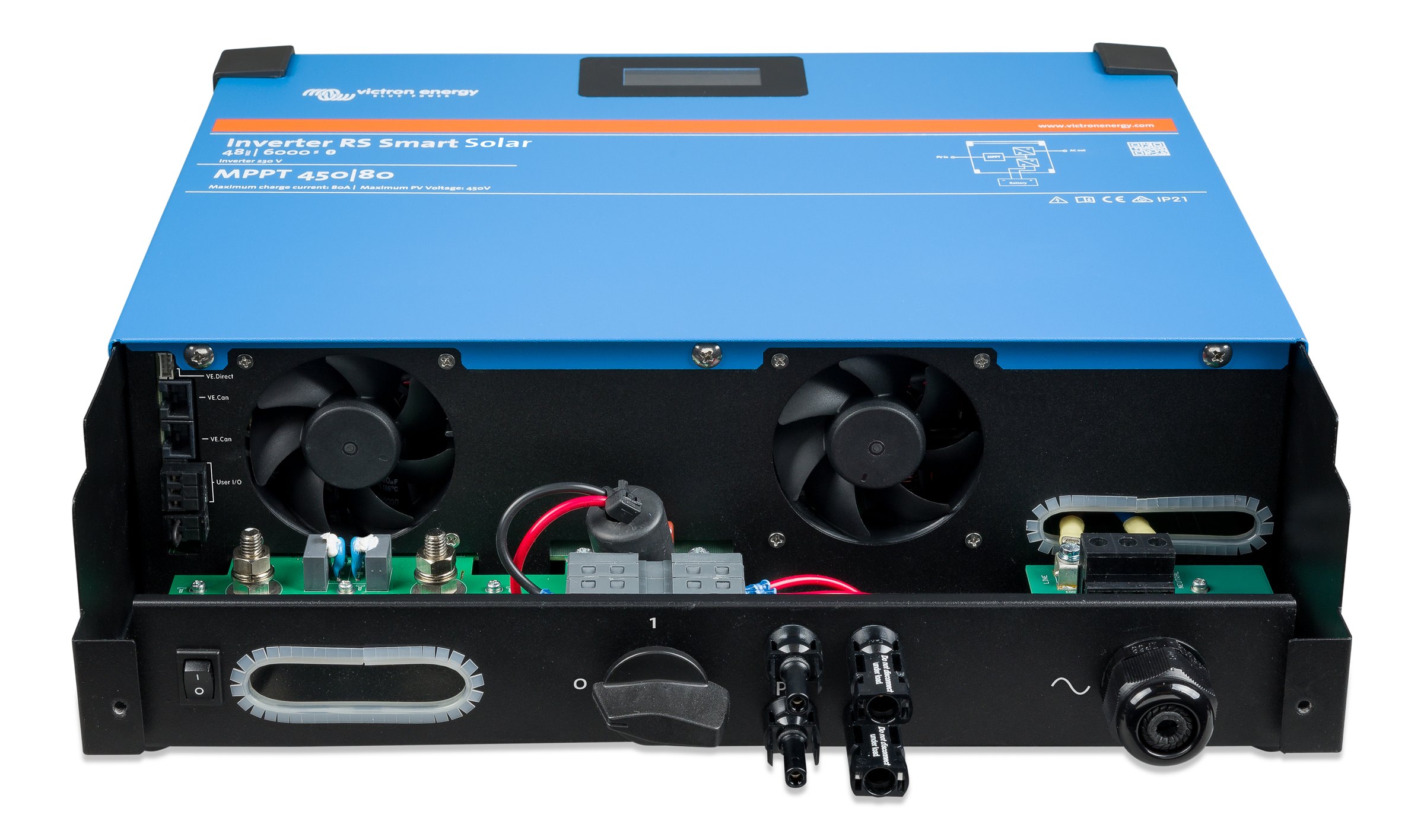

| dc_connector | Battery: M8 Bolts; PV: 2 positive & 2 negative MC4 |
| depth_mm | 125 |
| dimensions_mm | 425 x 440 x 125 (h x w x d) |
| display | — |
| enclosure_material | — |
| height_mm | 425 |
| mounting | Wall mount |
| noise_db | — |
| weight_kg | 11 |
| width_mm | 440 |
Installation
| cable_requirements | — |
| commissioning | VictronConnect app via Bluetooth |
| installation_angle | — |
| mounting_clearances | — |
| torque | — |
Environment
| ingress_protection | IP21 |
| max_altitude_m | — |
| operating_temperature_c | -40 to +65 |
| pollution_degree | — |
| protective_class | Protective Class: I |
| relative_humidity_pct | max 95% (non-condensing) |
| storage_temperature_c | — |
Interfaces & connectors
| app | VictronConnect (Bluetooth 2402 - 2480 MHz) |
| communication | ['VE.Direct', 'VE.Can', 'Bluetooth'] |
| dry_contact | — |
| meter_interface | — |
| monitoring_portal | VRM (via a GX device) |
| protocols | ['VE.Can', 'VE.Direct'] |
Protection
| anti_islanding | — |
| arc_fault | — |
| dc_switch | — |
| insulation_monitoring | — |
| overvoltage_category | — |
| rcmu | — |
| reverse_polarity | — |
| surge_protection_ac | — |
| surge_protection_dc | — |
Certifications
| standards | ['EN-IEC 60335-1', 'EN-IEC 60335-2-29', 'EN-IEC 62109-1', 'EN-IEC 62109-2', 'EN 55014-1', 'EN 55014-2', 'EN-IEC 61000-3-2', 'EN-IEC 61000-3-3', 'IEC 61000-6-1', 'IEC 61000-6-2', 'IEC 61000-6-3'] |
Warranty & service
| conditions | Quoted: '5 years standard warranty on power products except on our batteries'. Period is from the general Victron warranty page, not from this product's own datasheet. |
| extension_options | Upgradable to 10 years for an additional 10% of the initial investment cost (victronenergy.com/support/warranty-and-repairs) |
| standard_years | 5 |
Документи
certificate
{# Located but never retrieved: listed, but deliberately not linked, and it
backs no stored value. #}
Certificate Safety EN-IEC 62109-1 Inverter RS 48/6000 230V Smart Solar — знайдено, не отримано
rev UNKNOWN
certificate
{# Located but never retrieved: listed, but deliberately not linked, and it
backs no stored value. #}
Certificate Safety EN-IEC 62109-1/-2 AS-NZS Inverter RS 48/6000 230V Smart Solar — знайдено, не отримано
rev UNKNOWN
certificate
{# Located but never retrieved: listed, but deliberately not linked, and it
backs no stored value. #}
Certificate Safety IEC 60335-1 Inverter RS 48/6000 230V Smart Solar — знайдено, не отримано
rev UNKNOWN
certificate
{# Located but never retrieved: listed, but deliberately not linked, and it
backs no stored value. #}
ISO9001 certificate 2024 EN — знайдено, не отримано
rev UNKNOWN
declaration-of-conformity
{# Located but never retrieved: listed, but deliberately not linked, and it
backs no stored value. #}
Inverter RS 48/6000 230V Smart Solar EU DOC RED — знайдено, не отримано
rev UNKNOWN
user-manual
{# Located but never retrieved: listed, but deliberately not linked, and it
backs no stored value. #}
Inverter RS Smart Solar manual (PDF) — знайдено, не отримано
rev UNKNOWN
Додаткові задокументовані параметри
Записано дослівно з джерела; поля схеми для них поки немає.
| Inverter RS Smart Solar manual, 3.4 | 'Connecting PV arrays with a higher short circuit current is possible, up to an absolute maximum of 30A, as long as connected with correct polarity.' |
| Inverter RS Smart Solar manual, 3.4 Solar array configuration | 'The Inverter RS Solar single tracker model contains multiple PV input connectors. However these are internally connected to one single Maximum Power Point Tracker.' |
| Inverter RS Smart Solar product page | 'a high-voltage, 80-450VDC, 4kW MPPT solar charger' |
| MPPT startup voltage | 120 V |
| Model designation on product page | Inverter RS 48/6000 230V Smart Solar |
| Total maximum combined charger current (AC + PV) | 100 A |
| battery.absorption_voltage_v | 57,6 V (default, adjustable) |
| battery.charge_voltage_programmable_range_v | 36 - 60 V |
| battery.communication | VE.Can / BMS-Can; remote input configurable to accept Victron smallBMS |
| battery.float_voltage_v | 55,2 V (default, adjustable) |
| battery.max_charge_current_a | UNKNOWN |
| battery.max_charge_power_w | UNKNOWN |
| battery.max_discharge_current_a | UNKNOWN |
| battery.max_discharge_power_w | UNKNOWN |
| battery.minimum_start_voltage_v | 41 |
| battery.nominal_battery_voltage_v | UNKNOWN |
| battery.over_voltage_disconnect_v | 65.5 |
| battery.total_max_combined_charger_current_a | 100 |
