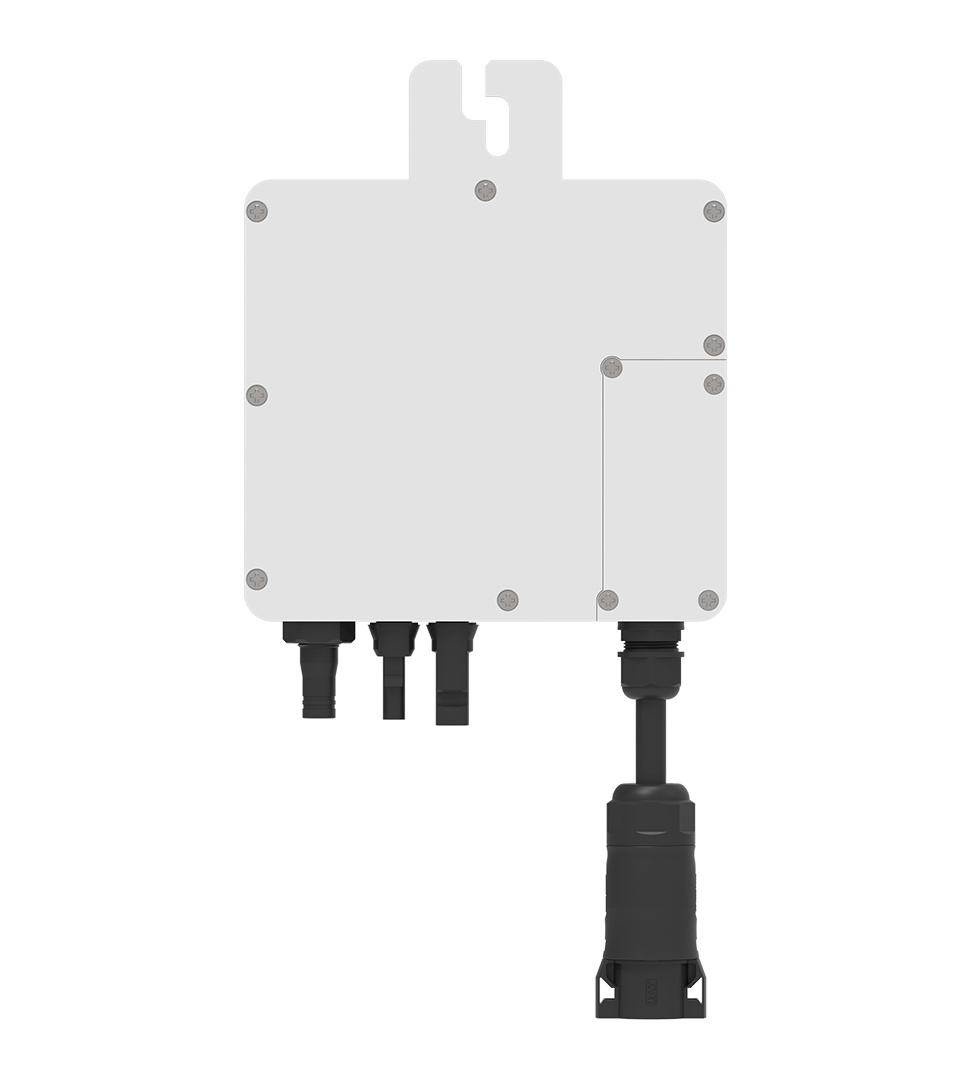

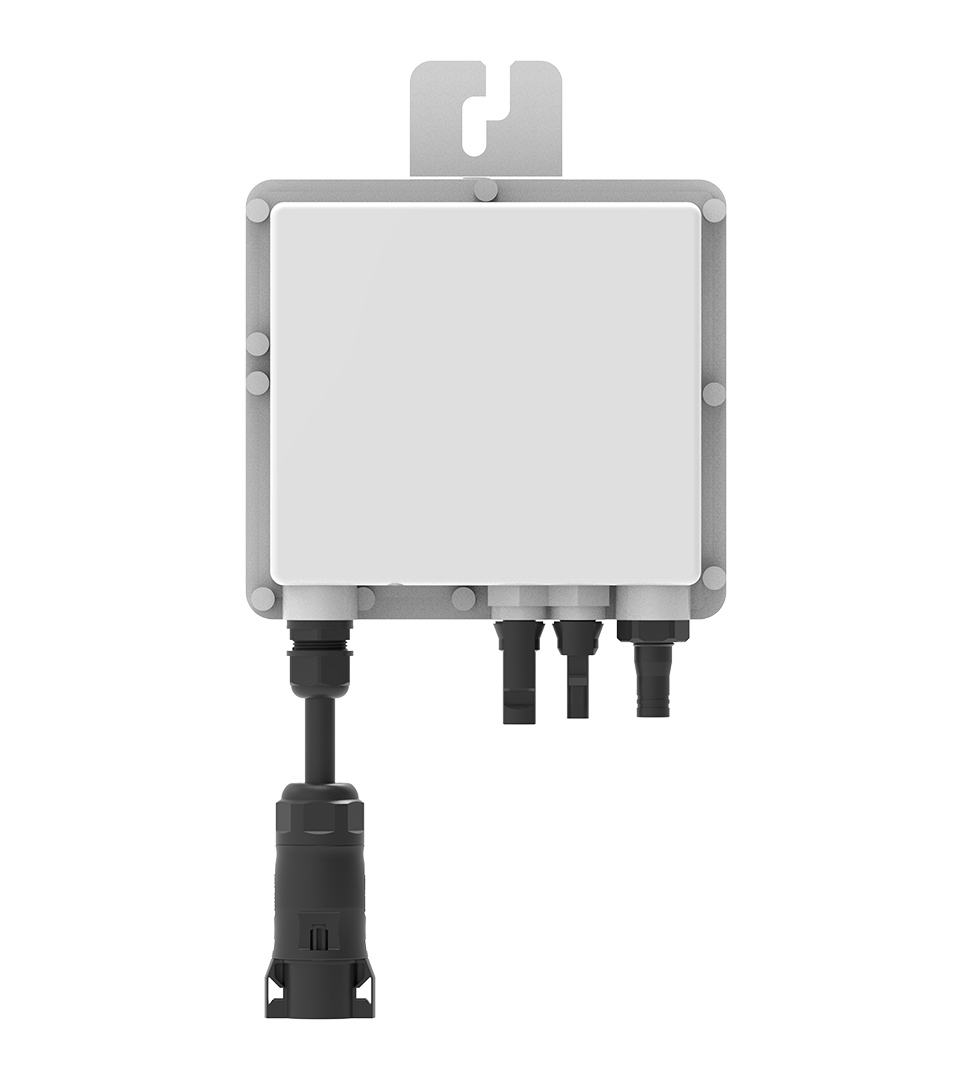

Deye SUN-M30/40/50G4-EU-Q0-I
Official manufacturer EU перевірено 22 вересня 2026 р.
UNKNOWN
UNKNOWN
UNKNOWN
Identity
| brand | Deye |
| category | microinverters |
| ean | — |
| generation | G4 |
| manufacturer | Deye (Ningbo Deye Inverter Technology Co., Ltd.) суперечливе |
| market_version | EU 220/230 V 50/60 Hz |
| model | SUN-M30/40/50G4-EU-Q0-I |
| mpn | 30240102202419 (datasheet document code) |
| product_family | SUN-M30/40/50G4-EU-Q0-I |
| product_status | active |
| region | EU |
| release_year | — |
| sku | — |
| variant_suffix_meaning | '-I' = variant with integrated bidirectional metering / backflow prevention (~INFERRED from Deye's own wording on the SUN-M130-220G4-EU-Q0-I page; Deye does not restate it on this page) |
Electrical
| ac_coupling_compatibility | UNKNOWN - no fetched Deye document pairs this microinverter with any hybrid inverter for AC coupling |
| ac_rated_power_w | 300 (M30) / 400 (M40) / 500 (M50) |
| grid_profiles | ['IEC 61727', 'IEC 62116', 'CEI 0-21', 'EN 50549', 'NRS 097', 'RD 140', 'UNE 217002', 'VDE-AR-N 4105', 'G98'] |
| input_to_mppt_mapping | 1 physical DC input -> 1 MPPT (1:1). Official row: 'No. of MPP Trackers/No. of String per MPP Tracker | 1/1', one PV module per unit. |
| max_dc_input_power_w | Deye row 'Max. PV Input Power(W)': 210-420 (M30, 1 Piece) / 210-560 (M40) / 210-700 (M50) - this row states the per-module power window, not a single wattage |
| max_dc_voltage_v | 60 |
| max_input_current_a |
15 (label 'Max. Operating PV Input Current(A)')
SUN-M30/40/50G4-EU-Q0-I product page (HTML technical specification table) — row 'Max. Operating PV Input Current(A)' = 15
|
| max_short_circuit_current_a |
22.5 (label 'Max. Input Short-Circuit Current (A)')
SUN-M30/40/50G4-EU-Q0-I product page (HTML technical specification table) — row 'Max. Input Short-Circuit Current (A)' = 22.5
|
| max_units_per_ac_branch | 17 (M30) / 13 (M40) / 10 (M50) |
| monitoring_protocol | built-in WiFi datalogger -> Deye Cloud / SOLARMAN (no external DTU required) |
| mppt_range_v | 25-55 |
| num_mppt |
1
SUN-M30/40/50G4-EU-Q0-I product page (HTML technical specification table) — row 'No. of MPP Trackers/No. of String per MPP Tracker' = 1/1
|
| official_product_url |
https://www.deyeinverter.com/product/microinverter-1/SUNM30-40-50G3EUQ0-300500W-Single-Phase-1-MPPT-Micro-Inverter.html
SUN-M30/40/50G4-EU-Q0-I product page (HTML technical specification table)
|
| physical_dc_inputs | 1 |
| supported_module_power_range_w | 210-420 (M30) / 210-560 (M40) / 210-700 (M50); 1 module per unit |
Physical / mechanical
| cable_entry_positions | — |
| depth_mm | 40 |
| enclosure_material | — |
| height_mm | 190 |
| housing_color | — |
| mounting_bolt_size | — |
| mounting_hole_spacing_mm | — |
| mounting_type | ['rooftop', 'module racking rail'] |
| note | 'Cabinet Size (W*H*D)[mm] 212*190*40 (Excluding connectors and brackets)' |
| torque_specs | AC terminal 1.0 N.m (G4 microinverter manual) |
| weight_kg | 2.7 |
| width_mm |
212
SUN-M30/40/50G4-EU-Q0-I product page (HTML technical specification table) — row 'Cabinet Size (W*H*D)[mm]' = 212*190*40
|
Installation
| clearance_bottom_mm | 13 (manual: 'Allow a minimum of 1.3 cm between the roof and the bottom of the Microinverter to allow proper air flow') |
| direct_sunlight_restriction | manual: 'Do not place the inverters (including DC and AC connectors) where exposed to the sun, rain or snow' |
| indoor_outdoor | outdoor (IP67) |
| max_installation_altitude_m | 2000 |
| mounting_orientation | under the PV module on the racking; not specified as orientation-restricted |
| surface_requirements | 'Mount one Microinverter at each of these locations using hardware recommended by your module racking vendor' - Deye publishes no bracket part number |
| two_person_lift_required | False |
Environment
| cooling_method | natural cooling (fanless) |
| corrosion_class | — |
| fan_replaceable | — |
| ik_rating | — |
| ip_rating | IP 67 |
| max_altitude_m | 2000 |
| nema_rating | — |
| noise_level_db | <= 25 |
| operating_temperature_c | -40 to +65 (>45 derating) |
| pollution_degree | — |
| relative_humidity | 0-100% |
| salt_mist_resistance | — |
| storage_temperature_c | — |
| uv_resistance | — |
Interfaces & connectors
| ac_terminal_type | pre-fitted TC-ER AC lead; Bus AC connector or T-connector system (see accessories) |
| bluetooth | — |
| can | — |
| cellular | False |
| cloud_api | Deye Cloud / SOLARMAN (pro.solarmanpv.com, home.solarmanpv.com) |
| ethernet | False |
| local_api | — |
| modbus_rtu | — |
| modbus_tcp | — |
| mqtt | — |
| protocol_notes | Grid connection form L/N/PE - single phase only. Deye publishes NO three-phase microinverter. |
| pv_connector_type | — |
| rs232 | — |
| rs485 | — |
| sunspec | — |
| usb | False |
| wifi | built-in WiFi module, 2.400-2.4835 GHz, 20 dBm +/-2 dBm (row 'Communication Interface | Wi-Fi') |
| zigbee | — |
Controls & display
| audible_alarm | — |
| buttons | — |
| display_type | — |
| leds | status LED (GFDI fault indicated by 4x red flashes per manual) |
| local_display | False |
| mobile_app | SOLARMAN Smart (owner) / SOLARMAN Business (installer); Deye Cloud |
| touchscreen | False |
| web_interface | built-in logger local web page http://10.10.100.254 (default admin/admin) |
Protection
| afci | — |
| anti_islanding | YES (row 'Anti-islanding Protection') |
| ground_fault_protection | — |
| insulation_monitoring | YES (row 'Insulation Impedance Detection') |
| over_current | YES (row 'AC Output Overcurrent Protection') |
| over_temperature | YES (row 'Thermal Protection') |
| over_voltage | YES (row 'AC Output Overvoltage Protection') |
| overvoltage_category | OVC II(DC), OVC III(AC) |
| protection_class | — |
| rapid_shutdown | — |
| reverse_polarity | YES (row 'DC Reverse Polarity Protection') |
| short_circuit | YES (row 'AC Output Short Circuit Protection') |
| surge_protection | TYPE II (AC) |
Certifications
| emc | ['IEC/EN 61000-6-1', 'IEC/EN 61000-6-2', 'IEC/EN 61000-6-3', 'IEC/EN 61000-6-4'] |
| grid_codes | ['IEC 61727', 'IEC 62116', 'CEI 0-21', 'EN 50549', 'NRS 097', 'RD 140', 'UNE 217002', 'VDE-AR-N 4105', 'G98'] |
| other | ['RED 2014/53/EU', 'RoHS 2011/65/EU'] |
| regional | ['CE'] |
| safety | ['IEC/EN 62109-1', 'IEC/EN 62109-2'] |
Warranty & service
| conditions | product page row 'Warranty [year] | 15 Years' |
| design_life_years | — |
| field_replaceable_parts | [] |
| standard_years | 15 |
Документи
certificate
{# Located but never retrieved: listed, but deliberately not linked, and it
backs no stored value. #}
EU Declaration of Conformity SUN-M30-50G4-EU-Q0 — знайдено, не отримано
rev UNKNOWN
datasheet
{# Located but never retrieved: listed, but deliberately not linked, and it
backs no stored value. #}
Datasheet SUN-M30/40/50G4-EU-Q0-I — знайдено, не отримано
rev 20250520
installation-manual
{# Located but never retrieved: listed, but deliberately not linked, and it
backs no stored value. #}
Installation / User Manual SUN-M30-50G4-EU-Q0 230V Ver1.5 — знайдено, не отримано
rev Ver1.5
product-index
Deye microinverter product index (lists each family page and its href)
rev accessed 2026-09-14
Зафіксовані конфлікти
identity.manufacturer Review required
Deye (Ningbo Deye Inverter Technology Co., Ltd.) — stored value
Deye — incoming package
Detected during import v1-freeze-2026-09-batch13
identity.manufacturer Review required
Deye (Ningbo Deye Inverter Technology Co., Ltd.) — stored value
Deye — incoming package
Detected during import v1-freeze-2026-09-batch13
identity.manufacturer Review required
Deye (Ningbo Deye Inverter Technology Co., Ltd.) — stored value
Deye — incoming package
Detected during import builder-critical-2026-09-batch06
identity.manufacturer Review required
Deye (Ningbo Deye Inverter Technology Co., Ltd.) — stored value
Deye — incoming package
Detected during import microinverter-verification-2026-09-batch02
Додаткові задокументовані параметри
Записано дослівно з джерела; поля схеми для них поки немає.
| DC Injection Current | <0.5%In |
| Inverter Topology | Isolated |
| Max. Efficiency / Euro Efficiency / MPPT Efficiency | 96.5% / 96.0% / >99% |
| Max. unit per branch | 17 / 13 / 10 |
| PV String Input Data, ordered value sequence as extracted | 1, 1, 15, 22.5, 210-420(1 Piece), 300, 300, 1.4/1.4, 1.4/1.4, 210-560(1 Piece), 400, 400, 1.9/1.8, 1.9/1.8, 210-700(1 Piece), 500, 500, 2.3/2.2, 2.3/2.2, 17, 13, 10 |
| Power Factor Adjustment Range | 0.9 leading to 0.9 lagging |
| Product page | Max. Efficiency 96.5%, Euro Efficiency 96.0%, weight 1.85 kg, 15 years warranty |
| Product page feature bullets | '1 MPP tracker with module-level monitoring'; 'Rapid shutdown function'; '<100ms AC fast discharge, compliant with DIN VDE V 0126-95'; 'Complete NS protection with self-check function' |
| Rated PV Input voltage(V) | 42.5 |
| Total Current Harmonic Distortion THDi | <3% |
