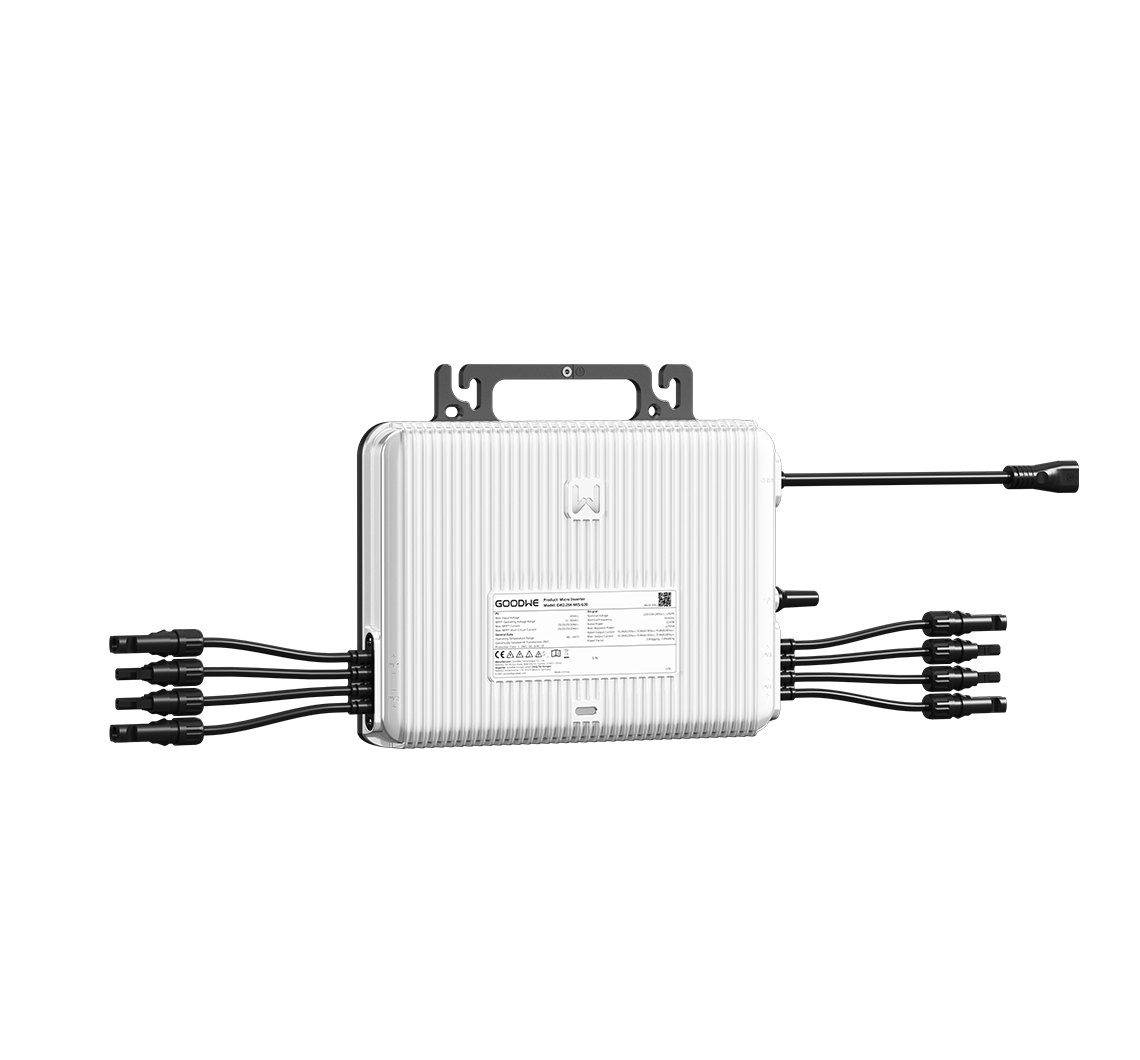

GoodWe GW1.8K-MIS-G20
Official manufacturer GLOBAL перевірено 20 вересня 2026 р.
Identity
| category | microinverters |
| ean | — |
| firmware | {'documented_version': 'UNKNOWN', 'constraints': 'UNKNOWN'} |
| generation | G2 |
| manufacturer | GoodWe |
| market_version | — |
| model | GW1.8K-MIS-G20 |
| mpn | — |
| product_family | MIS |
| product_status | — |
| region | GLOBAL |
| release_year | — |
| series | MIS G2 Series (4-in-1) |
| sku | — |
Electrical
| ac_connection | L/N/PE |
| ac_voltage_range | 176 ~ 286 V |
| european_efficiency_pct | 95.0 |
| frequency_range_hz | 45 ~ 55 / 55 ~ 65 |
| inrush_current | — |
| max_ac_active_power_w | 1800 |
| max_ac_current_a | 8.2 / 7.8 / 7.5 @ 220 / 230 / 240 V |
| max_apparent_power_va | 1800 |
| max_backfeed_current_a | — |
| max_dc_input_power_w | — |
| max_dc_voltage_v | 60 |
| max_efficiency_pct | 96.0 |
| max_input_current_per_mppt_a | 20 |
| max_output_fault_current_a | — |
| max_short_circuit_current_per_mppt_a | 26 |
| mppt_efficiency_pct | 99.8 |
| mppt_voltage_range_v | 12 ~ 60 |
| night_self_consumption_w | — |
| nominal_ac_voltage | 220 / 230 / 240, L/N/PE |
| nominal_dc_voltage_v | 42 |
| nominal_frequency_hz | 50 / 60 |
| number_of_mppt | 4 |
| phase_count | 1 |
| power_factor_range | 0.8 leading to 0.8 lagging |
| rated_ac_power_w | 1800 |
| rated_mppt_voltage_range_v | — |
| startup_voltage_v | 15 |
| strings_per_mppt | 1 |
| thd_pct | <3% |
Physical / mechanical
| ac_terminal | — |
| cooling | Natural Convection |
| dc_connector | — |
| depth_mm | 37.5 |
| dimensions_mm | 318 x 226 x 37.5 |
| display | — |
| enclosure_material | — |
| height_mm | 226 |
| mounting | Wall Mounted |
| noise_db | <=20 |
| weight_kg | <=5.1 |
| width_mm | 318 |
Installation
| cable_requirements | — |
| commissioning | — |
| installation_angle | — |
| mounting_clearances | — |
| torque | — |
Environment
| ingress_protection | IP67 |
| max_altitude_m | 2000 |
| operating_temperature_c | -40 to +65 (derating above +50) |
| pollution_degree | — |
| protective_class | — |
| relative_humidity_pct | 0 ~ 100 |
| storage_temperature_c | — |
Interfaces & connectors
| app | APP |
| communication | ['WiFi', 'Bluetooth'] |
| dry_contact | — |
| meter_interface | — |
| monitoring_portal | SEMS + app |
| protocols | ['Modbus'] |
Protection
| anti_islanding | Integrated |
| arc_fault | — |
| dc_switch | — |
| insulation_monitoring | PV Insulation Resistance Detection: Integrated |
| overvoltage_category | — |
| rcmu | — |
| reverse_polarity | PV Reverse Polarity Protection: Integrated |
| surge_protection_ac | Type III |
| surge_protection_dc | — |
Warranty & service
| conditions | — |
| extension_options | — |
| standard_years | 15 |
Документи
user-manual
{# Located but never retrieved: listed, but deliberately not linked, and it
backs no stored value. #}
GoodWe MIS G2 Series User Manual — знайдено, не отримано
rev UNKNOWN
Додаткові задокументовані параметри
Записано дослівно з джерела; поля схеми для них поки немає.
| Anti-corrosion Class | C4M |
| Dimensions / Weight / Noise | 318 x 226 x 37.5 mm; <=5.1 kg; <=20 dB |
| Footnote *1 on 'Max. Input Voltage (V)' | When the input voltage exceed 65V, the inverter will enter the standby mode, and the voltage returns to 63V to enter the normal operation state |
| Footnote *3 on 'Max. Short Circuit Current per MPPT (A)' | The Brazilian version is 20/20/20/20A |
| IoT compatibility list V17, row 'MIA1.6K/1.8K/2k' | Status 'Mass Production'; ARM Platform ESP32; Communication Module: WIFI BOX (*1 ARM 01 or above); Smart Meter: CT90 (*1); Data Logger: Ezlogger3000R (*1 ARM 01 or above) |
| Max. Efficiency / European Efficiency / MPPT Efficiency | 96.0% / 95.0% / 99.8% |
| Max. Input Current per MPPT (A) | 20/20/20/20 |
| Max. Short Circuit Current per MPPT (A) | 26/26/26/26 |
| Max. Units Per 6mm2 Branch*4 | 4 |
| Nominal Input Voltage (V) | 42 |
| PV String Current Monitoring | Integrated |
| Rapid Shutdown | Integrated |
| Units per AC branch | 3 units with 4mm2 cable; 4 units with 6mm2 cable |
| en.goodwe.com MIS G2 product page marketing copy | 12V ultra-low startup voltage; full power output up to 50 degC; less than 20dB; Wi-Fi Mesh connecting up to 25 units; IP67 & C4M-certified protection; 15-year standard warranty |
| identity.region_as_printed | EU / global EN |
| withheld:topology.max_units_per_ac_branch_detail | "Datasheet publishes two branch limits by cable cross-section: 3 units per 4 mm2 branch and 4 units per 6 mm2 branch (this record carries the conservative 4 mm2 figure). Footnote *4: 'Limits may vary. Refer to local requirements to define the number of microinverters per branch in your area.'" |
| withheld:topology.mppt_independence_detail | "Datasheet prints 'Number of MPP Trackers 4' and 'Number of Strings per MPPT 1' - four trackers, one string each, so every physical PV input has its own MPPT." |
