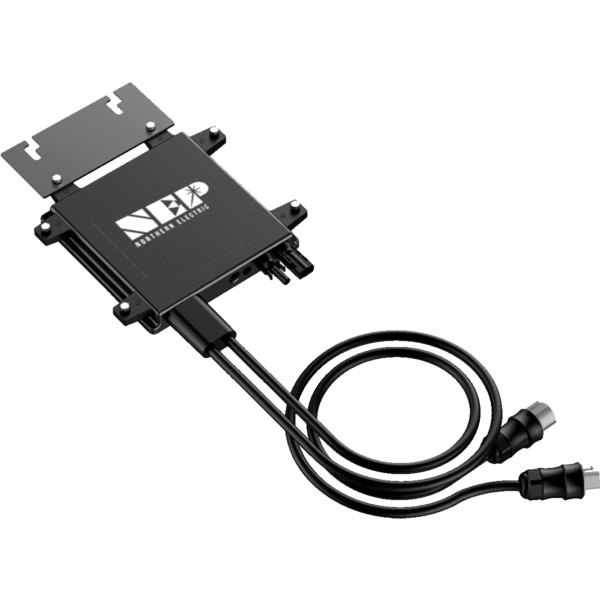

NEP (Northern Electric Power) BDM 300
Official manufacturer GLOBAL перевірено 20 вересня 2026 р.
Identity
| category | microinverters |
| ean | — |
| firmware | {'documented_version': 'UNKNOWN', 'constraints': 'UNKNOWN'} |
| generation | — |
| manufacturer | NEP (Northern Electric Power) |
| market_version | — |
| model | BDM 300 |
| mpn | — |
| product_family | — |
| product_status | active |
| region | GLOBAL |
| release_year | — |
| series | — |
| sku | — |
Electrical
| ac_voltage_range | — |
| cec_efficiency_pct | — |
| european_efficiency_pct | — |
| frequency_range_hz | — |
| max_ac_current_a | — |
| max_apparent_power_va | — |
| max_dc_input_power_w | — |
| max_dc_voltage_v | 60 |
| max_efficiency_pct | — |
| max_input_current_per_mppt_a | — |
| max_short_circuit_current_per_mppt_a | — |
| mppt_voltage_range_v | 22-55 Vdc |
| nominal_ac_voltage | 240 / 208 / 230 Vac (three selectable grid configurations, as printed) |
| nominal_frequency_hz | — |
| number_of_mppt | — |
| number_of_pv_inputs | — |
| phase_count | — |
| rated_ac_power_w | 250 |
| units_per_branch | — |
Physical / mechanical
| ac_terminal | — |
| cooling | — |
| dc_connector | — |
| depth_mm | — |
| dimensions_mm | — |
| display | — |
| enclosure_material | — |
| height_mm | — |
| mounting | — |
| noise_db | — |
| weight_kg | — |
| width_mm | — |
Installation
| cable_requirements | — |
| commissioning | — |
| installation_angle | — |
| mounting_clearances | — |
| torque | — |
Environment
| ingress_protection | NEMA-6 / IP-66 / IP-67 |
| max_altitude_m | — |
| operating_temperature_c | -40 to +85 |
| pollution_degree | — |
| protective_class | — |
| relative_humidity_pct | — |
| storage_temperature_c | — |
Interfaces & connectors
| app | — |
| communication | [] суперечливе |
| dry_contact | — |
| meter_interface | — |
| monitoring_portal | — |
| protocols | [] |
Protection
| anti_islanding | — |
| arc_fault | — |
| dc_switch | — |
| insulation_monitoring | — |
| overvoltage_category | — |
| rcmu | — |
| reverse_polarity | — |
| surge_protection_ac | — |
| surge_protection_dc | — |
Warranty & service
| conditions | — |
| extension_options | — |
| standard_years | — |
Документи
product-page
BDM 300 | NEP microinverters
Зафіксовані конфлікти
recommended_module_power_max_w Review required
None — value currently stored in ANMA
450 W — https://northernep.com/products/microinverters/bdm-300/
max_module_power_per_input_w Review required
None — value currently stored in ANMA
450 — https://northernep.com/downloads/technical-sheet/BDM-300-Microinverter.pdf
document-revision
interfaces.communication Review required
[] — stored value
['Powerline Communications'] — incoming package
Detected during import wave8-saturation-2026-09-batch03
Додаткові задокументовані параметри
Записано дослівно з джерела; поля схеми для них поки немає.
| ISC PV (Absolute Maximum) | 18 A |
| Isc PV (absolute maximum) (Adc) | 18 |
| MPPT Tracking Accuracy | >99.5% |
| Max DC Input Current | 14 A |
| Max DC Input Current (Adc) | 14 |
| Maximum Output Fault Current (Aac) | 2.2A peak (technical sheet) / '2.4 Arms for 3 cycles' (Datasheet 102623) |
| Maximum Output Overcurrent Protection (Aac) | 6.3 |
| Peak AC Output Power (W) | 300 |
| Product page marketing text | the thinnest microinverter in the world; Dimensions 7.09" x 7.32" x 0.98"; Weight 3.3 lbs |
| Rated Output Current | 1.04 A (3φ: 1.20 A) |
| Rated Output Current (Aac) | 1.04 / 1.2 / 1.09 |
| Recommended Max PV Power | 400 W |
| Recommended Max PV Power (BDM-300 Datasheet 102623) | 400 W |
| Weighted Average Efficiency (CEC) | 95.5% |
| Weighted Averaged Efficiency (CEC) | 95.50% |
| category index card title | BDM 300 |
| withheld:ac.nominal_ac_current_a_detail | "1.04 A @ 240 Vac / 1.20 A @ 208 Vac / 1.09 A @ 230 Vac - the value carried is the 240 V column" |
| withheld:dc.max_module_power_per_input_w | 450 |
| withheld:recommended_module_power_max_w | 400 |
| withheld:topology.max_units_per_ac_branch_detail | "15 units on a 20 A branch single-phase; 13 units per phase on 208 V three-phase" |
| withheld:topology.mppt_independence_detail | "Single-module microinverter: the DC input rows carry no 'x N' multiplier (unlike its BDM-550/650/800 and BDM-2000T siblings, which print 'x 2' and 'x 4'), so there is one PV input and therefore one tracker. The count itself is NOT printed - see verification_notes." |
