Canadian Solar CS6.2-54TM-520

Official manufacturer AU перевірено 22 вересня 2026 р.

Невирішений конфлікт щодо безпеки
Два джерела подають різні значення для цього продукту, і ніхто цього не вирішив. Характеристики нижче показано так, як їх записано, але цей продукт не можна вважати перевіреним для інженерних цілей, доки конфлікт не закрито.

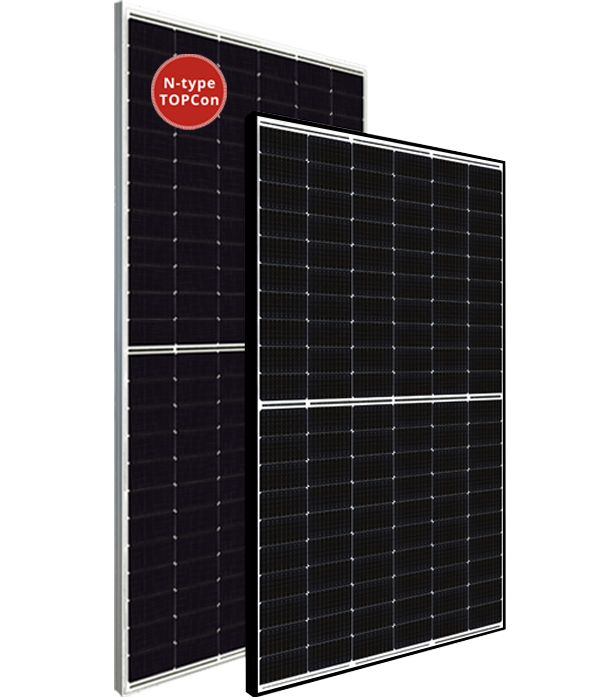

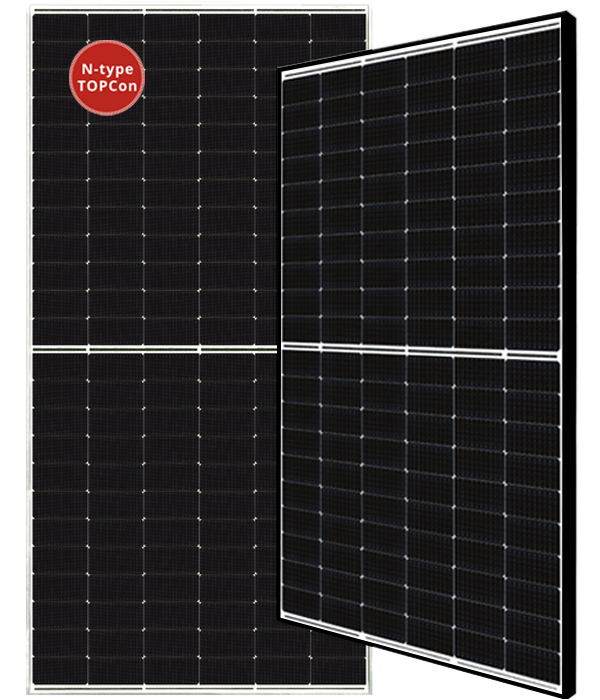

Canadian Solar CS6.2-54TM-520 — PRODUCT PHOTO · Canadian Solar

Identity

category	pv_modules
generation	N-type TOPCon Technology (182 Pro TOP(Bi)HiKu6)
manufacturer	Canadian Solar
market_version	AU datasheet v1.0 суперечливе
model	CS6.2-54TM-520
mpn	—
product_family	TOPHiKu6 CS6.2-54TM 490-520 W
product_status	active
region	AU
release_year	2024
series	TOPHiKu6
sku	—

Electrical

application_class	—
bifacial	False
bifaciality_factor_pct	—
cable_cross_section_mm2	4.0 TOPHiKu6 (TOPCon) CS6.2-54TM Datasheet (AU)
cable_length_negative_mm	200 TOPHiKu6 (TOPCon) CS6.2-54TM Datasheet (AU)
cable_length_positive_mm	300 TOPHiKu6 (TOPCon) CS6.2-54TM Datasheet (AU)
cell_count	108 TOPHiKu6 (TOPCon) CS6.2-54TM Datasheet (AU)
cell_technology	N-type TOPCon cells, 108 [2 x (9 x 6)] half-cut (TOPHiKu6) суперечливе
cell_type	TOPCon TOPHiKu6 (TOPCon) CS6.2-54TM Datasheet (AU)
connector_type	Tlian T6; Staubli PV-KST4-EVO2/XY, PV-KBT4-EVO2/XY or PV-KST4-EVO2A/XY, PV-KBT4-EVO2A/XY суперечливе TOPHiKu6 (TOPCon) CS6.2-54TM Datasheet (AU) — 'Tlian: T6; Staubli: PV-KST4-EVO2/XY, PV-KBT4-EVO2/XY or PV-KST4-EVO2A/XY, PV-KBT4-EVO2A/XY'
dimensions_mm	1961x1134x30
electrical_extra	{'power_tolerance': '0 ~ +10 W', 'power_bins_w': [490, 495, 500, 505, 510, 515, 520], 'application_class': 'Class II', 'fire_performance': 'TYPE 1 (UL 61730 1500 V) or TYPE 2 (UL 61730 1000 V) or CLASS C (IEC 61730)'}
extra	{'power_bins_w': [490, 495, 500, 505, 510, 515, 520], 'power_bin_table': [{'pmax_w': 490, 'model': 'CS6.2-54TM-490', 'voc_v': 39.2, 'vmp_v': 33.0, 'isc_a': 15.86, 'imp_a': 14.85, 'efficiency_pct': 22.0}, {'pmax_w': 495, 'model': 'CS6.2-54TM-495', 'voc_v': 39.4, 'vmp_v': 33.2, 'isc_a': 15.91, 'imp_a': 14.91, 'efficiency_pct': 22.3}, {'pmax_w': 500, 'model': 'CS6.2-54TM-500', 'voc_v': 39.6, 'vmp_v': 33.4, 'isc_a': 16.0, 'imp_a': 14.98, 'efficiency_pct': 22.5}, {'pmax_w': 505, 'model': 'CS6.2-54TM-505', 'voc_v': 39.8, 'vmp_v': 33.6, 'isc_a': 16.05, 'imp_a': 15.04, 'efficiency_pct': 22.7}, {'pmax_w': 510, 'model': 'CS6.2-54TM-510', 'voc_v': 40.0, 'vmp_v': 33.8, 'isc_a': 16.1, 'imp_a': 15.1, 'efficiency_pct': 22.9}, {'pmax_w': 515, 'model': 'CS6.2-54TM-515', 'voc_v': 40.2, 'vmp_v': 34.0, 'isc_a': 16.15, 'imp_a': 15.16, 'efficiency_pct': 23.2}, {'pmax_w': 520, 'model': 'CS6.2-54TM-520', 'voc_v': 40.4, 'vmp_v': 34.2, 'isc_a': 16.2, 'imp_a': 15.22, 'efficiency_pct': 23.4}], 'nmot_bin_table': [{'pmax_w': 371, 'bin': 490, 'voc_v': 37.1, 'vmp_v': 31.2, 'isc_a': 12.79, 'imp_a': 11.88}, {'pmax_w': 374, 'bin': 495, 'voc_v': 37.3, 'vmp_v': 31.4, 'isc_a': 12.83, 'imp_a': 11.93}, {'pmax_w': 378, 'bin': 500, 'voc_v': 37.5, 'vmp_v': 31.6, 'isc_a': 12.9, 'imp_a': 11.98}, {'pmax_w': 382, 'bin': 505, 'voc_v': 37.7, 'vmp_v': 31.8, 'isc_a': 12.94, 'imp_a': 12.03}, {'pmax_w': 386, 'bin': 510, 'voc_v': 37.9, 'vmp_v': 32.0, 'isc_a': 12.98, 'imp_a': 12.07}, {'pmax_w': 390, 'bin': 515, 'voc_v': 38.1, 'vmp_v': 32.1, 'isc_a': 13.02, 'imp_a': 12.12}, {'pmax_w': 393, 'bin': 520, 'voc_v': 38.3, 'vmp_v': 32.3, 'isc_a': 13.06, 'imp_a': 12.17}], 'cell_count': '108 [2 x (9 x 6) ]', 'cell_layout': '108 half-cut cells, 2 x (9 x 6)', 'fire_type': 'TYPE 1 (UL 61730 1500V) or TYPE 2 (UL 61730 1000V) or CLASS C (IEC 61730)', 'bifacial_gain_note': 'Monofacial glass-backsheet module; no bifaciality printed.'}
imp_a	15.22 TOPHiKu6 (TOPCon) CS6.2-54TM Datasheet (AU)
isc_a	16.2 TOPHiKu6 (TOPCon) CS6.2-54TM Datasheet (AU)
junction_box_ip_rating	IP68 TOPHiKu6 (TOPCon) CS6.2-54TM Datasheet (AU)
max_reverse_current_a	—
max_series_fuse_rating_a	30 TOPHiKu6 (TOPCon) CS6.2-54TM Datasheet (AU)
max_system_voltage_label	1500V (IEC/UL)
max_system_voltage_v	1500 TOPHiKu6 (TOPCon) CS6.2-54TM Datasheet (AU)
mechanical_load_front_pa	5400 TOPHiKu6 (TOPCon) CS6.2-54TM Datasheet (AU)
mechanical_load_rear_pa	2400 TOPHiKu6 (TOPCon) CS6.2-54TM Datasheet (AU)
module_efficiency_pct	23.4
module_type	glass-backsheet TOPHiKu6 (TOPCon) CS6.2-54TM Datasheet (AU)
nmot	{'pmax_w': 393, 'voc_v': 38.3, 'vmp_v': 32.3, 'isc_a': 13.06, 'imp_a': 12.17, 'conditions': 'NMOT: irradiance of 800 W/m2, spectrum AM 1.5, ambient temperature 20 degC, wind speed 1 m/s', 'note': 'Values are the 520 W bin of datasheet V1.0_AU. Datasheet V1.2_EN prints Isc 13.05 A for the same bin - see data_conflicts.'}
nmot_c	41 TOPHiKu6 (TOPCon) CS6.2-54TM Datasheet (AU)
nmot_label	41 +/- 3 degC
official_manual_url	https://static.csisolar.com/wp-content/uploads/sites/2/2026/07/31124740/CS_Installation-Manual_PV-Modules_EU-v3.3-EN.pdf Canadian Solar Installation Manual of Photovoltaic Module, EN-Rev IM/GN-EU/3.3 (July 2026)
official_product_url	https://www.csisolar.com/182-pro-topbihiku6/ Canadian Solar Installation Manual of Photovoltaic Module, EN-Rev IM/GN-EU/3.3 (July 2026)
pmax_w	520
power_tolerance	0 ~ + 10 W
protection_class	Class II
rated_power_w	520 TOPHiKu6 (TOPCon) CS6.2-54TM Datasheet (AU)
stc_conditions	Under Standard Test Conditions (STC) of irradiance of 1000 W/m2, spectrum AM 1.5 and cell temperature of 25 degC
temp_coeff_isc	0.05 %/degC
temp_coeff_isc_pct_per_c	0.05
temp_coeff_pmax	-0.29 %/degC
temp_coeff_pmax_pct_per_c	-0.29
temp_coeff_voc	-0.25 %/degC
temp_coeff_voc_pct_per_c	-0.25
vmp_v	34.2 TOPHiKu6 (TOPCon) CS6.2-54TM Datasheet (AU)
voc_v	40.4 TOPHiKu6 (TOPCon) CS6.2-54TM Datasheet (AU) — STC table, CS6.2-54TM-520 row
warranty_performance_years	15 TOPHiKu6 (TOPCon) CS6.2-54TM Datasheet (AU)
warranty_product_years	30 TOPHiKu6 (TOPCon) CS6.2-54TM Datasheet (AU)

Physical / mechanical

backsheet	—
bypass_diodes	3
cable_cross_section_mm2	4 mm2 (IEC), 12 AWG (UL) суперечливе
cable_length_mm	300 mm (+) / 200 mm (-) суперечливе
connector_type	Tlian: T6; Staubli: PV-KST4-EVO2/XY, PV-KBT4-EVO2/XY or PV-KST4-EVO2A/XY, PV-KBT4-EVO2A/XY
depth_mm	30
dimensions_mm	1961 x 1134 x 30
enclosure_material	Anodized aluminium alloy
frame	Anodized aluminium alloy
frame_colour	—
glass	3.2 mm tempered glass with anti-reflective coating
glass_construction	single glass
glass_thickness_mm	3.2
height_mm	30
junction_box	IP68 суперечливе
junction_box_diodes	3
length_mm	1961 TOPHiKu6 (TOPCon) CS6.2-54TM Datasheet (AU)
mounting_type	['rooftop', 'ground']
weight_kg	23.3 TOPHiKu6 (TOPCon) CS6.2-54TM Datasheet (AU)
width_mm	1134 TOPHiKu6 (TOPCon) CS6.2-54TM Datasheet (AU)

Installation

clamp_requirements	—
grounding	—
max_installation_altitude_m	—
mounting_methods	—

Environment

ammonia	IEC 62716 listed in certifications
fire_rating	TYPE 1 (UL 61730 1500V) or TYPE 2 (UL 61730 1000V) or CLASS C (IEC 61730)
hail	Tested up to ice ball of 45 mm diameter according to IEC 61215 standard
hail_rating	tested up to ice ball of 45 mm diameter per IEC 61215 (velocity not stated)
max_static_load_front_pa	5400
max_static_load_rear_pa	2400
operating_temperature_c	-40 to +85
operating_temperature_max_c	85 TOPHiKu6 (TOPCon) CS6.2-54TM Datasheet (AU)
operating_temperature_min_c	-40 TOPHiKu6 (TOPCon) CS6.2-54TM Datasheet (AU)
pid	—
salt_mist	IEC 61701 listed in certifications
snow_load	Heavy snow load up to 5400 Pa
temperature_coefficient_isc_percent_c	0.05 TOPHiKu6 (TOPCon) CS6.2-54TM Datasheet (AU)
temperature_coefficient_pmax_percent_c	-0.29 TOPHiKu6 (TOPCon) CS6.2-54TM Datasheet (AU)
temperature_coefficient_voc_percent_c	-0.25 TOPHiKu6 (TOPCon) CS6.2-54TM Datasheet (AU)
wind_load	wind load up to 2400 Pa

Certifications

other	['ISO 9001:2015', 'ISO 14001:2015', 'ISO 45001:2018', 'IEC 62941:2019']
safety	[]
standards	['IEC 61215', 'IEC 61730', 'CE', 'MCS', 'UKCA', 'CGC', 'UL 61730', 'IEC 61701', 'IEC 62716', 'IEC 60068-2-68', 'UNI 9177 Reaction to Fire: Class 1', 'ISO 9001:2015', 'ISO 14001:2015', 'ISO 45001:2018', 'IEC62941:2019']

Warranty & service

annual_degradation_pct	0.4
conditions	The extraction returned 'Enhanced Product Warranty 30 Years' and 'Linear Power Performance Warranty 15 Years', which is the reverse of Canadian Solar's usual labelling. Term lengths are therefore recorded UNKNOWN and the verbatim labels preserved in raw_discovered.
end_of_warranty_output_pct	—
first_year_degradation_pct	1.0
performance_years	15
product_years	30
retained_power_at_year	—
retained_power_end_pct	—
standard_years	—

Packaging & logistics

units_per_40hq_container	864
units_per_pallet	36

Документи

datasheet CS-Datasheet-TOPHiKu6 (TOPCon)_Black-frame_CS6.2-54TM v1.2_EN rev V1.2_EN (Black-frame)

datasheet CS-Datasheet-TOPHiKu6 (TOPCon)_CS6.2-54TM v1.2_EN rev V1.2_EN

datasheet TOPHiKu6 (TOPCon) CS6.2-54TM Datasheet (AU) rev v1.0_AU

installation_manual Canadian Solar Installation Manual of Photovoltaic Module, EN-Rev IM/GN-EU/3.3 (July 2026)

product_page Canadian Solar series product page covering CS6.2-54TM-520

Зафіксовані конфлікти

nmot.isc_a Resolved — kept current value

13.06 — V1.0_AU NMOT table, 520 W bin

13.05 — V1.2_EN NMOT table, 520 W bin

electrical.temp_coeff_isc Review required

0.05 %/degC — CS6.2-54TM datasheet V1.0_AU

0.045 %/degC — CS6.2-54TM datasheet V1.2_EN (March 2025)

physical.height_mm Resolved — accepted incoming value

1961 — stored value

30 — row 'Dimensions' (single row, all power classes): 1961 x 1134 x 30 mm (third figure is the frame thickness)

Detected during import pv-builder-2026-09-batch03

electrical.connector_type Review required

Tlian T6; Staubli PV-KST4-EVO2/XY, PV-KBT4-EVO2/XY or PV-KST4-EVO2A/XY, PV-KBT4-EVO2A/XY — stored value

Tlian: T6; Staeubli: PV-KST4-EVO2/XY, PV-KBT4-EVO2/XY or PV-KST4-EVO2A/XY, PV-KBT4-EVO2A/XY — row 'Connector' (single row, all power classes): Tlian: T6; Staeubli: PV-KST4-EVO2/XY, PV-KBT4-EVO2/XY or PV-KST4-EVO2A/XY, PV-KBT4-EVO2A/XY

Detected during import pv-builder-2026-09-batch03

physical.cable_cross_section_mm2 Review required

4 mm2 (IEC), 12 AWG (UL) — stored value

4.0 — incoming package

Detected during import pv-top5-full-portfolio-2026-09-03

physical.cable_length_mm Review required

300 mm (+) / 200 mm (-) — stored value

300 mm (11.8 in) (+) / 200 mm (7.9 in) (-) — incoming package

Detected during import pv-top5-full-portfolio-2026-09-03

physical.junction_box Review required

IP68 — stored value

IP68, 3 bypass diodes — incoming package

Detected during import pv-top5-full-portfolio-2026-09-03

electrical.cell_technology Review required

N-type TOPCon cells, 108 [2 x (9 x 6)] half-cut (TOPHiKu6) — stored value

TOPCon cells, 108 [2 x (9 x 6) ] half-cut (TOPHiKu6, N-type TOPCon Technology) — incoming package

Detected during import pv-top5-full-portfolio-2026-09-03

identity.market_version Review required

AU datasheet v1.0 — stored value

PV Module Product Datasheet V1.0_AU — incoming package

Detected during import pv-top5-full-portfolio-2026-09-03

identity.product_family Resolved — kept current value

TOPHiKu6 CS6.2-54TM 490-520 W — stored value

TOPHiKu6 CS6.2-54TM-490|495|500|505|510|515|520 — incoming package

Detected during import pv-top5-full-portfolio-2026-09-03

electrical_extra.power_bins_w Review required

490-520 W (7 bins) — V1.0_AU

495-520 W (6 bins) — V1.2_EN

465-525 W (13 bins) — Black-frame V1.1C26_AU (Dec 2024)

warranty.performance_years Review required

15 — CS6.2-54TM datasheet V1.0_AU and V1.2_EN (standard frame)

30 — CS6.2-54TM Black-frame datasheet V1.2_EN

physical.cable_cross_section_mm2 Review required

4 mm2 (IEC), 12 AWG (UL) — stored value

4.0 — incoming package

Detected during import pv-top5-full-portfolio-2026-09-03

physical.cable_length_mm Review required

300 mm (+) / 200 mm (-) — stored value

300 mm (11.8 in) (+) / 200 mm (7.9 in) (-) — incoming package

Detected during import pv-top5-full-portfolio-2026-09-03

physical.junction_box Review required

IP68 — stored value

IP68, 3 bypass diodes — incoming package

Detected during import pv-top5-full-portfolio-2026-09-03

electrical.cell_technology Review required

N-type TOPCon cells, 108 [2 x (9 x 6)] half-cut (TOPHiKu6) — stored value

TOPCon cells, 108 [2 x (9 x 6) ] half-cut (TOPHiKu6, N-type TOPCon Technology) — incoming package

Detected during import pv-top5-full-portfolio-2026-09-03

identity.market_version Review required

AU datasheet v1.0 — stored value

PV Module Product Datasheet V1.0_AU — incoming package

Detected during import pv-top5-full-portfolio-2026-09-03

identity.product_family Review required

TOPHiKu6 CS6.2-54TM 490-520 W — stored value

TOPHiKu6 CS6.2-54TM-490|495|500|505|510|515|520 — incoming package

Detected during import pv-top5-full-portfolio-2026-09-03

Додаткові задокументовані параметри

Записано дослівно з джерела; поля схеми для них поки немає.

Application Classification	Class II
Cable length (portrait) / (landscape)	300 mm (11.8 in) (+) / 200 mm (7.9 in) (-)
Enhanced Product Warranty / Linear Power Performance Warranty	'30 Years' and '15 Years' (labels as returned by the extraction; assignment to product vs performance unresolved)
manufacturer_legal_entity_as_printed	CSI Solar Co., Ltd.
