JA Solar JAM54D40-460/LB
Manufacturer documented GLOBAL перевірено 21 вересня 2026 р.

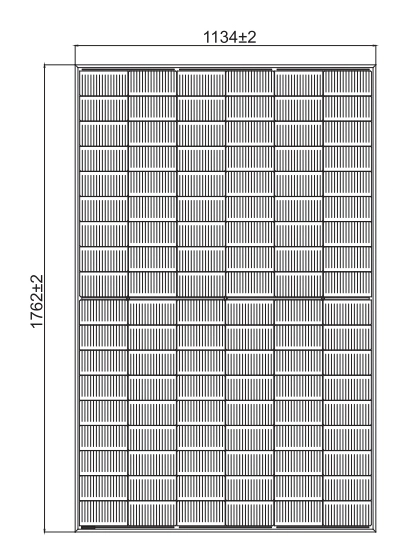

Dimension drawing on the JAM54D40/LB product page; drawing is annotated 1762±2 (length) x 1134±2 (width) mm, matching the JAM54D40 format. Opened directly and inspected.

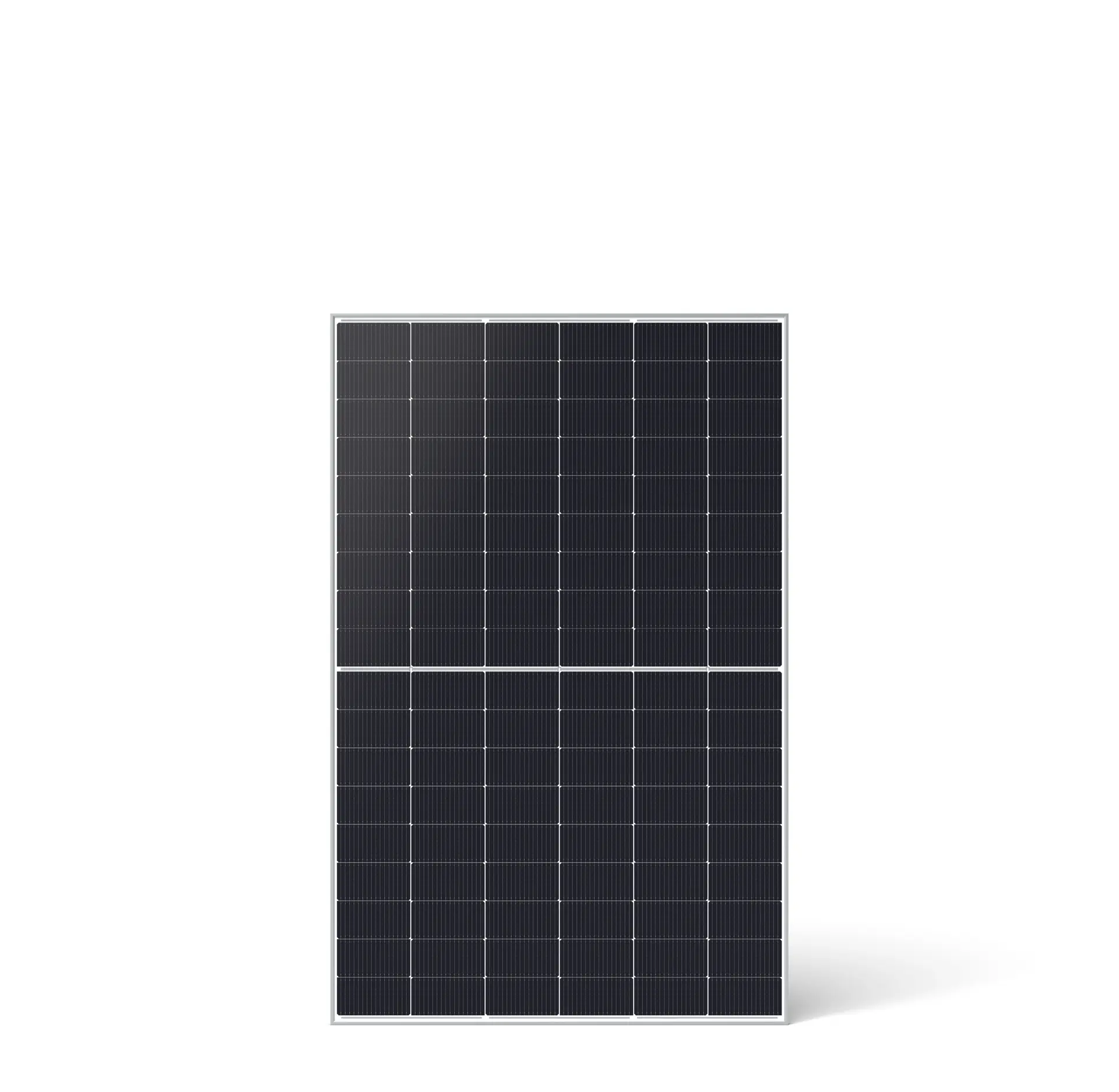

JA Solar Europe official JAM54D40/LB product page; file name encodes the model (JAM_54_D40_LB). Opened directly and inspected: 108 half-cell silver-frame module.
Identity
| category | pv_modules |
| generation | DeepBlue 4.0 Pro (Bycium+ n-type) |
| manufacturer | JA Solar |
| market_version | 1500 V |
| model | JAM54D40-460/LB |
| mpn | — |
| product_family | DeepBlue 4.0 Pro JAM54D40-435-460/LB |
| product_status | active |
| region | GLOBAL |
| release_year | — |
| series | DeepBlue 4.0 Pro |
| sku | — |
Electrical
| annual_degradation_percent |
0.42
DeepBlue 4.0 Pro JAM54D40-435-460/LB - ENF Panel Directory specification page (JA Solar Technology Co., Ltd.)
|
| application_class | — |
| bifacial | True |
| bifaciality_factor_pct | — |
| cell_count |
108
DeepBlue 4.0 Pro JAM54D40-435-460/LB - ENF Panel Directory specification page (JA Solar Technology Co., Ltd.)
|
| cell_technology | N-type TOPCon monocrystalline, 108 half-cut cells (DeepBlue 4.0 Pro) суперечливе |
| connector_type |
MC4
DeepBlue 4.0 Pro JAM54D40-435-460/LB - ENF Panel Directory specification page (JA Solar Technology Co., Ltd.)
|
| dimensions_mm | 1762x1134x30 |
| extra | {'power_bins_w': [435, 440, 445, 450, 455, 460], 'power_bin_table': [{'pmax_w': 435, 'model': 'JAM54D40-435/LB', 'voc_v': 38.7, 'vmp_v': 32.29, 'isc_a': 14.23, 'imp_a': 13.47, 'efficiency_pct': 21.8}, {'pmax_w': 440, 'model': 'JAM54D40-440/LB', 'voc_v': 38.9, 'vmp_v': 32.47, 'isc_a': 14.31, 'imp_a': 13.55, 'efficiency_pct': 22.0}, {'pmax_w': 445, 'model': 'JAM54D40-445/LB', 'voc_v': 39.1, 'vmp_v': 32.65, 'isc_a': 14.4, 'imp_a': 13.63, 'efficiency_pct': 22.3}, {'pmax_w': 450, 'model': 'JAM54D40-450/LB', 'voc_v': 39.3, 'vmp_v': 32.82, 'isc_a': 14.48, 'imp_a': 13.71, 'efficiency_pct': 22.5}, {'pmax_w': 455, 'model': 'JAM54D40-455/LB', 'voc_v': 39.5, 'vmp_v': 33.0, 'isc_a': 14.56, 'imp_a': 13.79, 'efficiency_pct': 22.8}, {'pmax_w': 460, 'model': 'JAM54D40-460/LB', 'voc_v': 39.7, 'vmp_v': 33.17, 'isc_a': 14.64, 'imp_a': 13.87, 'efficiency_pct': 23.0}], 'cell_count': '108 (6x18)', 'cell_layout': '108 half-cut cells, 6x18 (jasolar.eu technical data table)', 'fire_type': 'UNKNOWN', 'bifacial_gain_note': 'UNKNOWN'} |
| imp_a |
13.87
DeepBlue 4.0 Pro JAM54D40-435-460/LB - ENF Panel Directory specification page (JA Solar Technology Co., Ltd.)
|
| isc_a |
14.64
DeepBlue 4.0 Pro JAM54D40-435-460/LB - ENF Panel Directory specification page (JA Solar Technology Co., Ltd.)
|
| junction_box_ip_rating |
IP68
DeepBlue 4.0 Pro JAM54D40-435-460/LB - ENF Panel Directory specification page (JA Solar Technology Co., Ltd.)
|
| max_reverse_current_a | — |
| max_series_fuse_rating_a |
30
DeepBlue 4.0 Pro JAM54D40-435-460/LB - ENF Panel Directory specification page (JA Solar Technology Co., Ltd.)
|
| max_system_voltage_label | 1500 V |
| max_system_voltage_v |
1500
DeepBlue 4.0 Pro JAM54D40-435-460/LB - ENF Panel Directory specification page (JA Solar Technology Co., Ltd.)
|
| module_efficiency_pct | 23.0 |
| module_efficiency_percent |
23
DeepBlue 4.0 Pro JAM54D40-435-460/LB - ENF Panel Directory specification page (JA Solar Technology Co., Ltd.)
|
| module_type |
bifacial
DeepBlue 4.0 Pro JAM54D40-435-460/LB - ENF Panel Directory specification page (JA Solar Technology Co., Ltd.)
|
| nmot | {'pmax_w': 'UNKNOWN', 'voc_v': 'UNKNOWN', 'vmp_v': 'UNKNOWN', 'isc_a': 'UNKNOWN', 'imp_a': 'UNKNOWN', 'conditions': 'NOCT 45±2 degC', 'note': 'Only the NOCT cell temperature was published on the fetched page; no NMOT electrical row was shown.'} |
| nmot_c | 45±2 |
| noct_c |
45.0
DeepBlue 4.0 Pro JAM54D40-435-460/LB - ENF Panel Directory specification page (JA Solar Technology Co., Ltd.)
|
| pmax_w | 460 |
| power_tolerance | 0 ~ +3 % |
| protection_class | — |
| rated_power_w |
460
DeepBlue 4.0 Pro JAM54D40-435-460/LB - ENF Panel Directory specification page (JA Solar Technology Co., Ltd.)
|
| stc_conditions | — |
| temp_coeff_isc | 0.045 %/degC |
| temp_coeff_isc_pct_per_c | 0.045 |
| temp_coeff_pmax | -0.29 %/degC |
| temp_coeff_pmax_pct_per_c | -0.29 |
| temp_coeff_voc | -0.25 %/degC |
| temp_coeff_voc_pct_per_c | -0.25 |
| vmp_v |
33.17
DeepBlue 4.0 Pro JAM54D40-435-460/LB - ENF Panel Directory specification page (JA Solar Technology Co., Ltd.)
|
| voc_v |
39.7
DeepBlue 4.0 Pro JAM54D40-435-460/LB - ENF Panel Directory specification page (JA Solar Technology Co., Ltd.)
|
| warranty_performance_years |
30
DeepBlue 4.0 Pro JAM54D40-435-460/LB - ENF Panel Directory specification page (JA Solar Technology Co., Ltd.)
|
| warranty_product_years |
12
DeepBlue 4.0 Pro JAM54D40-435-460/LB - ENF Panel Directory specification page (JA Solar Technology Co., Ltd.)
|
Physical / mechanical
| backsheet | — |
| bypass_diodes | 3 |
| cable_cross_section_mm2 | 4.0 |
| cable_length_mm | Portrait: 300 mm(+)/400 mm(-); Landscape: 1200 mm(+)/1200 mm(-) |
| connector_type | QC 4.10-351 / MC4-EVO2A (jasolar.eu); ENF entry lists 'MC4' |
| depth_mm | 30 |
| dimensions_mm | 1762±2 x 1134±2 x 30±1 |
| frame | — |
| frame_colour | — |
| glass | Front glass / back glass 1.6 mm / 1.6 mm |
| glass_construction | dual glass |
| glass_thickness_mm | 1.6 |
| height_mm |
30
DeepBlue 4.0 Pro JAM54D40-435-460/LB - ENF Panel Directory specification page (JA Solar Technology Co., Ltd.)
|
| junction_box | IP68, 3 diodes |
| length_mm |
1762
DeepBlue 4.0 Pro JAM54D40-435-460/LB - ENF Panel Directory specification page (JA Solar Technology Co., Ltd.)
|
| weight_kg | 22.0 |
| width_mm |
1134
DeepBlue 4.0 Pro JAM54D40-435-460/LB - ENF Panel Directory specification page (JA Solar Technology Co., Ltd.)
|
Installation
| bolt_torque | M8 12-16 N.m, M6 8-12 N.m for through-hole mounting (manual p.8) |
| cable_min_bend_radius_mm | 38.4 |
| clamp_requirements | Clamp A and Clamp B width no less than 50 mm; thickness no less than 3 mm; aluminium alloy 6063-T5; M8 bolt; recommended bolt torque 18-24 N.m (manual p.7) |
| clamp_zone_range_mm | clamp mounting with rails parallel to the long frame: 72/66-cell 450 mm <= S <= 550 mm; 78-cell 500 mm <= S <= 600 mm (manual p.9) |
| design_load_note | load tables give front/back Pa per module type and mounting configuration; safety factor 1.5 (manual p.9, Figure 3) |
| grounding | grounding hole of 4.2 mm diameter on the edge side closer to the middle of the back frame; recommended torque 2.3 N.m (or 2.0-2.2 N.m for the alternate method) (manual pp.13-14) |
| installation_temperature_range_c | recommended -40 to +40 ambient; limits -40 to +85 (manual p.5) |
| max_installation_altitude_m | — |
| minimum_ground_clearance_mm | 1000 |
| minimum_tilt_deg | 10 |
| mounting_methods | clamps or hooks, or bolted to the support structure through the frame's back-flange mounting holes (JA Solar bifacial double-glass installation manual pp.7-8) |
| orientation_allowed | ['portrait', 'landscape'] |
Environment
| ammonia | — |
| fire_rating | — |
| hail | — |
| max_static_load_front_pa | — |
| max_static_load_rear_pa | — |
| operating_temperature_c | -40 to 85 |
| operating_temperature_max_c |
85
DeepBlue 4.0 Pro JAM54D40-435-460/LB - ENF Panel Directory specification page (JA Solar Technology Co., Ltd.)
|
| operating_temperature_min_c |
-40
DeepBlue 4.0 Pro JAM54D40-435-460/LB - ENF Panel Directory specification page (JA Solar Technology Co., Ltd.)
|
| pid | — |
| salt_mist | — |
| salt_mist_resistance | may be installed 50-500 m from the sea with corrosion protection (manual p.5) |
| snow_load | — |
| temperature_coefficient_isc_percent_c |
0.045
DeepBlue 4.0 Pro JAM54D40-435-460/LB - ENF Panel Directory specification page (JA Solar Technology Co., Ltd.)
|
| temperature_coefficient_pmax_percent_c |
-0.29
DeepBlue 4.0 Pro JAM54D40-435-460/LB - ENF Panel Directory specification page (JA Solar Technology Co., Ltd.)
|
| temperature_coefficient_voc_percent_c |
-0.25
DeepBlue 4.0 Pro JAM54D40-435-460/LB - ENF Panel Directory specification page (JA Solar Technology Co., Ltd.)
|
| wind_load | — |
Interfaces & connectors
| pv_connector_ip_rating | IP68 (manual p.12) |
Protection
| over_current | an appropriately rated over-current protection device must be used when reverse current could exceed the module maximum fuse rating of 30 A (manual p.11) |
Warranty & service
| annual_degradation_pct | 0.4 |
| first_year_degradation_pct | 1.0 |
| performance_years | 30 |
| product_years | 12 |
| retained_power_at_year | 30 |
| retained_power_end_pct | 87.4 |
Документи
datasheet
DeepBlue 4.0 Pro JAM54D40-435-460/LB - ENF Panel Directory specification page (JA Solar Technology Co., Ltd.)
rev UNKNOWN
datasheet
{# Located but never retrieved: listed, but deliberately not linked, and it
backs no stored value. #}
JAM54D40 LB BF 15Y datasheet (JA Solar Europe) — знайдено, не отримано
rev UNKNOWN
datasheet
{# Located but never retrieved: listed, but deliberately not linked, and it
backs no stored value. #}
JAM54D40 LB BF 25Y datasheet (JA Solar Europe) — знайдено, не отримано
rev UNKNOWN
datasheet
{# Located but never retrieved: listed, but deliberately not linked, and it
backs no stored value. #}
Manufacturer datasheet PDF mirrored on the ENF CDN — знайдено, не отримано
rev UNKNOWN
Зафіксовані конфлікти
physical.connector_type Resolved — accepted incoming value
MC4 — ENF Panel Directory entry
QC 4.10-351 / MC4-EVO2A — JA Solar Europe product page
physical.weight_kg Resolved — accepted incoming value
22 — stored value
22.0 — row 'Weight' (single row, all power classes incl. column '460W'): 22 kg
Detected during import pv-builder-2026-09-batch05
electrical.cell_technology Review required
N-type TOPCon monocrystalline, 108 half-cut cells (DeepBlue 4.0 Pro) — stored value
Monocrystalline, N-type (108 half-cut cells). ENF entry states 'Bifacial, N-type monocrystalline'; jasolar.eu tags the family 'N-Type TOPCon'. 'Bycium+' is JA Solar's marketing name for the n-type cell (white paper), not printed on the fetched spec table. — incoming package
Detected during import pv-top5-full-portfolio-2026-09-03
warranty.product_years Review required
12 — ENF Panel Directory entry for JAM54D40-435-460/LB
15 — JA Solar Europe product page 'JAM54D40 LB BF 15Y'
25 — JA Solar Europe product page 'JAM54D40 LB BF 25Y'
electrical.cell_technology Review required
N-type TOPCon monocrystalline, 108 half-cut cells (DeepBlue 4.0 Pro) — stored value
Monocrystalline, N-type (108 half-cut cells). ENF entry states 'Bifacial, N-type monocrystalline'; jasolar.eu tags the family 'N-Type TOPCon'. 'Bycium+' is JA Solar's marketing name for the n-type cell (white paper), not printed on the fetched spec table. — incoming package
Detected during import pv-top5-full-portfolio-2026-09-03
Додаткові задокументовані параметри
Записано дослівно з джерела; поля схеми для них поки немає.
| Legal entity | JA Solar Technology Co., Ltd. |
| Packaging details | 36pcs/Pallet, 936pcs/40HQ Container |
| Total Degradation Rate | 0.42 % |
| identity.variant_as_researched | /LB (double-glass bifacial, 1.6 mm/1.6 mm). Marketed on jasolar.eu as 'JAM54D40 LB BF 15Y' and 'JAM54D40 LB BF 25Y'; the 'BF' token appears only in the JA Solar Europe web catalogue name, not in the printed model code. |
