Identity

category	pv_modules
generation	RSF XL-G11S.3 (G11 platform, Q.ANTUM, steel frame)
manufacturer	Qcells
market_version	UL / North America, 1500 V
model	Q.PEAK DUO RSF XL-G11S.3 / BFG 600
mpn	—
product_family	Q.PEAK DUO RSF XL-G11S SERIES, 585 - 600 Wp \| 156 Cells (North America)
product_status	active
region	—
release_year	—
series	Q.PEAK DUO RSF XL-G11S / BFG
sku	—
variant	RSF = steel frame (Zn-Al-Mg coating)

Electrical

application_class	—
bifacial	True
bifaciality_factor_label	Bifaciality of PMPP and ISC: 72 % +/- 5 %
bifaciality_factor_pct	72
bifaciality_percent_max	77 Q.PEAK DUO RSF XL-G11S.3 / BFG, 585 - 600 Wp \| 156 Cells
bifaciality_percent_min	67 Q.PEAK DUO RSF XL-G11S.3 / BFG, 585 - 600 Wp \| 156 Cells
cable_length_negative_mm	150 Q.PEAK DUO RSF XL-G11S.3 / BFG, 585 - 600 Wp \| 156 Cells
cable_length_positive_mm	400 Q.PEAK DUO RSF XL-G11S.3 / BFG, 585 - 600 Wp \| 156 Cells
cell_count	156 Q.PEAK DUO RSF XL-G11S.3 / BFG, 585 - 600 Wp \| 156 Cells
cell_technology	6 x 26 monocrystalline Q.ANTUM solar half cells
cell_type	p-type PERC Q.PEAK DUO RSF XL-G11S.3 / BFG, 585 - 600 Wp \| 156 Cells
connector_type	Stäubli MC4 / Stäubli MC4-Evo2 Q.PEAK DUO RSF XL-G11S.3 / BFG, 585 - 600 Wp \| 156 Cells
extra	{'power_bins_w': [585, 590, 595, 600], 'power_bin_table': [{'pmax_w': 585, 'model': 'Q.PEAK DUO RSF XL-G11S.3 / BFG 585', 'voc_v': 53.57, 'vmp_v': 44.75, 'isc_a': 13.72, 'imp_a': 13.07, 'efficiency_pct': '>= 21.0'}, {'pmax_w': 590, 'model': 'Q.PEAK DUO RSF XL-G11S.3 / BFG 590', 'voc_v': 53.6, 'vmp_v': 44.96, 'isc_a': 13.74, 'imp_a': 13.12, 'efficiency_pct': '>= 21.3'}, {'pmax_w': 595, 'model': 'Q.PEAK DUO RSF XL-G11S.3 / BFG 595', 'voc_v': 53.63, 'vmp_v': 45.18, 'isc_a': 13.77, 'imp_a': 13.17, 'efficiency_pct': '>= 21.3'}, {'pmax_w': 600, 'model': 'Q.PEAK DUO RSF XL-G11S.3 / BFG 600', 'voc_v': 53.66, 'vmp_v': 45.39, 'isc_a': 13.8, 'imp_a': 13.22, 'efficiency_pct': '>= 21.5'}], 'bstc_bin_table': [{'stc_pmax_w': 585, 'bstc_pmax_w': 639.9, 'bstc_isc_a': 15.01, 'bstc_voc_v': 53.76, 'bstc_imp_a': 14.3, 'bstc_vmp_v': 44.74, 'bstc_efficiency_pct': '>= 21.1'}, {'stc_pmax_w': 590, 'bstc_pmax_w': 645.4, 'bstc_isc_a': 15.04, 'bstc_voc_v': 53.79, 'bstc_imp_a': 14.36, 'bstc_vmp_v': 44.95, 'bstc_efficiency_pct': '>= 21.1'}, {'stc_pmax_w': 595, 'bstc_pmax_w': 650.8, 'bstc_isc_a': 15.07, 'bstc_voc_v': 53.82, 'bstc_imp_a': 14.41, 'bstc_vmp_v': 45.17, 'bstc_efficiency_pct': '>= 21.3'}, {'stc_pmax_w': 600, 'bstc_pmax_w': 656.3, 'bstc_isc_a': 15.1, 'bstc_voc_v': 53.85, 'bstc_imp_a': 14.46, 'bstc_vmp_v': 45.38, 'bstc_efficiency_pct': '>= 21.5'}], 'nmot_bin_table': [{'pmax_w': 585, 'nmot_pmax_w': 440.5, 'nmot_isc_a': 11.05, 'nmot_voc_v': 50.67, 'nmot_imp_a': 10.3, 'nmot_vmp_v': 42.79}, {'pmax_w': 590, 'nmot_pmax_w': 444.2, 'nmot_isc_a': 11.07, 'nmot_voc_v': 50.69, 'nmot_imp_a': 10.34, 'nmot_vmp_v': 42.97}, {'pmax_w': 595, 'nmot_pmax_w': 448.0, 'nmot_isc_a': 11.09, 'nmot_voc_v': 50.72, 'nmot_imp_a': 10.38, 'nmot_vmp_v': 43.15}, {'pmax_w': 600, 'nmot_pmax_w': 451.8, 'nmot_isc_a': 11.11, 'nmot_voc_v': 50.75, 'nmot_imp_a': 10.42, 'nmot_vmp_v': 43.34}], 'cell_count': '156 (6 x 26)', 'cell_layout': '6 x 26 monocrystalline Q.ANTUM solar half cells', 'fire_type': "extracted as 'ANSI / UL 61730 TYPE 294' - see raw_discovered", 'bifacial_gain_note': 'Bifaciality of PMPP and ISC: 72 % +/- 5 %.'}
imp_a	13.22 Q.PEAK DUO RSF XL-G11S.3 / BFG, 585 - 600 Wp \| 156 Cells
isc_a	13.8 Q.PEAK DUO RSF XL-G11S.3 / BFG, 585 - 600 Wp \| 156 Cells
junction_box_ip_rating	IP68 Q.PEAK DUO RSF XL-G11S.3 / BFG, 585 - 600 Wp \| 156 Cells
max_reverse_current_a	—
max_series_fuse_rating_a	25 Q.PEAK DUO RSF XL-G11S.3 / BFG, 585 - 600 Wp \| 156 Cells
max_system_voltage_label	1500 V
max_system_voltage_v	1500 Q.PEAK DUO RSF XL-G11S.3 / BFG, 585 - 600 Wp \| 156 Cells
mechanical_load_front_pa	2600 Q.PEAK DUO RSF XL-G11S.3 / BFG, 585 - 600 Wp \| 156 Cells
mechanical_load_rear_pa	3000 Q.PEAK DUO RSF XL-G11S.3 / BFG, 585 - 600 Wp \| 156 Cells
module_efficiency_pct	21.5
module_efficiency_percent	≥ 21.5 Q.PEAK DUO RSF XL-G11S.3 / BFG, 585 - 600 Wp \| 156 Cells
module_efficiency_printed	>= 21.5
module_type	bifacial Q.PEAK DUO RSF XL-G11S.3 / BFG, 585 - 600 Wp \| 156 Cells
nmot	{'pmax_w': 451.8, 'voc_v': 50.75, 'vmp_v': 43.34, 'isc_a': 11.11, 'imp_a': 10.42, 'conditions': 'NMOT, 108 +/- 5.4 degF (42 +/- 3 degC)', 'note': 'Values are for the 600 W bin only.'}
nmot_c	42 Q.PEAK DUO RSF XL-G11S.3 / BFG, 585 - 600 Wp \| 156 Cells
nmot_c_label	108 +/- 5.4 degF (42 +/- 3 degC)
official_product_url	https://us.qcells.com/q-peak-duo-rsf-xl-g11-bfg/ Q.PEAK DUO RSF XL-G11S.3/BFG product page (Qcells North America)
pmax_w	600
power_tolerance	—
protection_class	Class II
rated_power_w	600 Q.PEAK DUO RSF XL-G11S.3 / BFG, 585 - 600 Wp \| 156 Cells
stc_conditions	STC (1000 W/m2, 25 +/- 2 degC)
temp_coeff_isc	0.04 %/K
temp_coeff_pmax	-0.34 %/K
temp_coeff_voc	-0.27 %/K
vmp_v	45.39 Q.PEAK DUO RSF XL-G11S.3 / BFG, 585 - 600 Wp \| 156 Cells
voc_v	53.66 Q.PEAK DUO RSF XL-G11S.3 / BFG, 585 - 600 Wp \| 156 Cells
warranty_performance_years	30 Q.PEAK DUO RSF XL-G11S.3 / BFG, 585 - 600 Wp \| 156 Cells

Physical / mechanical

backsheet	n/a - 2.0 mm semi-tempered glass rear cover
bypass_diodes	printed as 'with bypass diodes'; count not stated
cable_cross_section_mm2	4.0
cable_length_mm	(+) >= 15.7 in (400 mm), (-) >= 5.9 in (150 mm)
connector_type	Staubli MC4; Staubli MC4-Evo2; IP68
depth_mm	35
dimensions_in	96.9 in x 44.6 in x 1.38 in
dimensions_mm	2462 x 1134 x 35
frame	Steel (Zn-Al-Mg coating)
frame_colour	—
glass	0.08 in (2.0 mm) thermally pre-stressed glass with anti-reflection technology (front); 0.08 in (2.0 mm) semi-tempered glass (rear)
glass_construction	dual glass
glass_thickness_mm	2.0
height_mm	35 Q.PEAK DUO RSF XL-G11S.3 / BFG, 585 - 600 Wp \| 156 Cells
junction_box	2.09-3.98 x 1.26-2.36 x 0.59-0.71 in (53-101 mm x 32-60 mm x 15-18 mm), protection class IP68, with bypass diodes
length_mm	2462 Q.PEAK DUO RSF XL-G11S.3 / BFG, 585 - 600 Wp \| 156 Cells
weight_kg	36.4 Q.PEAK DUO RSF XL-G11S.3 / BFG, 585 - 600 Wp \| 156 Cells
weight_lbs	80.2
width_mm	1134 Q.PEAK DUO RSF XL-G11S.3 / BFG, 585 - 600 Wp \| 156 Cells

Installation

clamp_requirements	—
grounding	—
max_installation_altitude_m	—
mounting_methods	Designed for tracker-mounted utility and commercial installations; notch-tab alignment for rapid install (product page)

Environment

ammonia	—
fire_rating	ANSI / UL 61730, TYPE designation extracted as 'TYPE 294' (trailing character is probably a footnote marker - NOT verified)
hail	—
max_pull_load_test_design	63 lbs/ft2 (3000 Pa) test / 42 lbs/ft2 (2000 Pa) design
max_push_load_test_design	54 lbs/ft2 (2600 Pa) test / 36 lbs/ft2 (1700 Pa) design
max_static_load_front_pa	2600
max_static_load_rear_pa	3000
operating_temperature_c	-40 degF up to +185 degF (-40 degC up to +85 degC)
operating_temperature_max_c	85 Q.PEAK DUO RSF XL-G11S.3 / BFG, 585 - 600 Wp \| 156 Cells
operating_temperature_min_c	-40 Q.PEAK DUO RSF XL-G11S.3 / BFG, 585 - 600 Wp \| 156 Cells
pid	—
salt_mist	—
snow_load	—
temperature_coefficient_isc_percent_c	0.04 Q.PEAK DUO RSF XL-G11S.3 / BFG, 585 - 600 Wp \| 156 Cells
temperature_coefficient_pmax_percent_c	-0.34 Q.PEAK DUO RSF XL-G11S.3 / BFG, 585 - 600 Wp \| 156 Cells
temperature_coefficient_voc_percent_c	-0.27 Q.PEAK DUO RSF XL-G11S.3 / BFG, 585 - 600 Wp \| 156 Cells
wind_load	—

Certifications

standards

['UL 61730', 'CE-compliant', 'IEC 61215:2016', 'IEC 61730:2016', 'U.S. Patent No. 9,893,215 (solar cells)']

Warranty & service

annual_degradation_pct	0.45
first_year_degradation_pct	2.0
first_year_retained_pct	98.0
performance_years	30
product_years	—
retained_power_at_10_years_pct	93.95
retained_power_at_year	30
retained_power_end_pct	84.95
warranty_text	At least 98 % of nominal power during first year. Thereafter max. 0.45 % degradation per year. At least 93.95 % of nominal power up to 10 years. At least 84.95 % of nominal power up to 30 years.

Документи

datasheet Q.PEAK DUO RSF XL-G11S.3 / BFG, 585 - 600 Wp | 156 Cells rev Q.PEAK_DUO_RSF_XL-G11S-BFG_series_585-600_2024-02_Rev04_NA_PRELIMINARY

installation-manual {# Located but never retrieved: listed, but deliberately not linked, and it backs no stored value. #} Q.PEAK DUO RSF XL-G11S.3/BFG installation manual — знайдено, не отримано rev UNKNOWN

other {# Located but never retrieved: listed, but deliberately not linked, and it backs no stored value. #} Q.PEAK DUO RSF XL-G11S.3/BFG brochure — знайдено, не отримано rev UNKNOWN

other Q.PEAK DUO RSF XL-G11S.3/BFG product page (Qcells North America) rev UNKNOWN

Зафіксовані конфлікти

electrical.module_efficiency_pct Review required

21.5 — Qcells NA datasheet Rev04 2024-02 (600 W bin)

21.7 — us.qcells.com product page

identity.product_family power range Review required

585 - 600 Wp — Qcells NA datasheet Rev04 2024-02 PRELIMINARY

585Wp - 605Wp — us.qcells.com Q.PEAK DUO RSF XL-G11S.3/BFG product page

Додаткові задокументовані параметри

Записано дослівно з джерела; поля схеми для них поки немає.

Bifaciality of PMPP and ISC	72 % +/- 5 %
Datasheet file/revision code	Q.PEAK_DUO_RSF_XL-G11S-BFG_series_585-600_2024-02_Rev04_NA_PRELIMINARY
Fire Rating (as extracted)	ANSI / UL 61730 TYPE 294
Frame	Steel (Zn-Al-Mg coating)
identity.variant_as_researched	RSF = steel frame (Zn-Al-Mg coating), bifacial glass-glass, tracker-mounted utility / commercial
image_enrichment_pass	2026-09-11

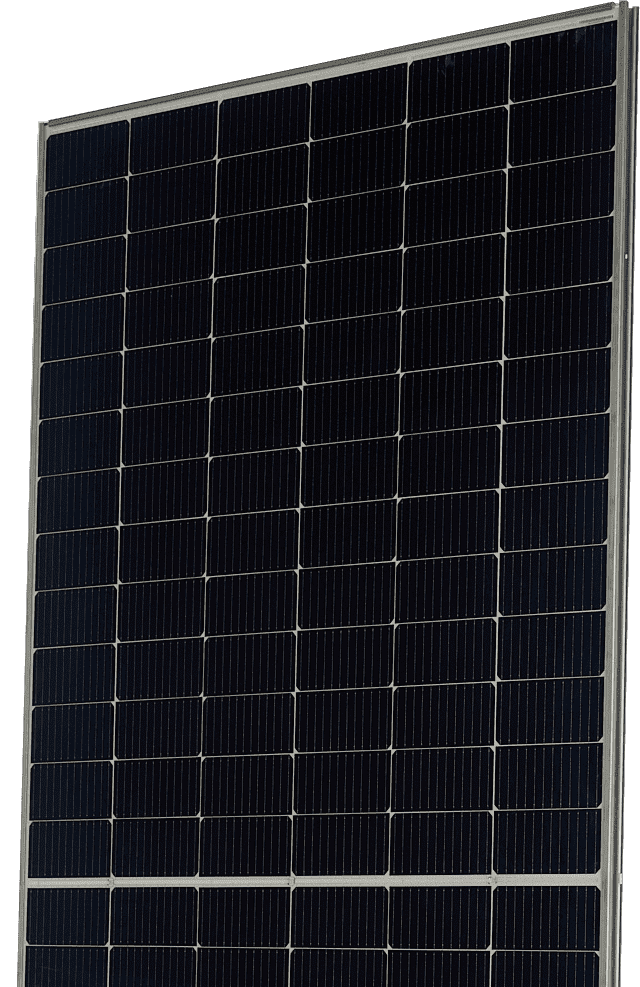

Qcells Q.PEAK DUO RSF XL-G11S.3 / BFG 600
