Identity

category	pv_modules
generation	Alpha Pure-R
manufacturer	REC Group
market_version	IEC 1000 V / UL 1000 V
model	REC430AA Pure-R
mpn	REC430AA Pure-R
product_family	REC Alpha Pure-R 400-430 W
product_status	active
region	GLOBAL
release_year	—
series	REC Alpha
sku	—

Electrical

application_class	—
bifacial	—
bifaciality_factor_pct	—
cable_length_negative_mm	1400 Datasheet - REC Alpha Pure-R (English, IEC)
cable_length_positive_mm	1400 Datasheet - REC Alpha Pure-R (English, IEC)
cell_count	80 Datasheet - REC Alpha Pure-R (English, IEC)
cell_technology	80 half-cut bifacial REC heterojunction cells, with lead-free, gapless technology
cell_type	HJT Datasheet - REC Alpha Pure-R (English, IEC)
connector_type	Stäubli MC4 PV-KBT4/KST4 Datasheet - REC Alpha Pure-R (English, IEC)
extra	{'power_bins_w': [400, 410, 420, 430], 'power_bin_table': [{'pmax_w': 400, 'model': 'REC400AA Pure-R', 'voc_v': 58.9, 'vmp_v': 48.8, 'isc_a': 8.8, 'imp_a': 8.2, 'efficiency_pct': 20.7, 'power_density_w_m2': 207}, {'pmax_w': 410, 'model': 'REC410AA Pure-R', 'voc_v': 59.2, 'vmp_v': 49.4, 'isc_a': 8.84, 'imp_a': 8.3, 'efficiency_pct': 21.2, 'power_density_w_m2': 212}, {'pmax_w': 420, 'model': 'REC420AA Pure-R', 'voc_v': 59.4, 'vmp_v': 50.0, 'isc_a': 8.88, 'imp_a': 8.4, 'efficiency_pct': 21.8, 'power_density_w_m2': 218}, {'pmax_w': 430, 'model': 'REC430AA Pure-R', 'voc_v': 59.7, 'vmp_v': 50.5, 'isc_a': 8.91, 'imp_a': 8.52, 'efficiency_pct': 22.3, 'power_density_w_m2': 223}], 'power_bin_table_nmot': [{'pmax_w': 400, 'nmot_pmax_w': 305, 'vmp_v': 46.0, 'imp_a': 6.64, 'voc_v': 55.5, 'isc_a': 7.11}, {'pmax_w': 410, 'nmot_pmax_w': 312, 'vmp_v': 46.6, 'imp_a': 6.7, 'voc_v': 55.8, 'isc_a': 7.14}, {'pmax_w': 420, 'nmot_pmax_w': 320, 'vmp_v': 47.1, 'imp_a': 6.8, 'voc_v': 56.0, 'isc_a': 7.17}, {'pmax_w': 430, 'nmot_pmax_w': 327, 'vmp_v': 47.6, 'imp_a': 6.88, 'voc_v': 56.3, 'isc_a': 7.2}], 'cell_count': '80 (half-cut)', 'cell_layout': 'UNKNOWN', 'power_density_w_m2': 223, 'fire_type': 'UL 61730 Fire Type 2 / IEC 61730 Fire Class C (as per UL790)', 'bifacial_gain_note': 'Datasheet describes the CELLS as bifacial heterojunction cells but the panel is built with an opaque black polymer backsheet and no module bifaciality factor is printed, so module-level bifaciality is recorded as UNKNOWN rather than guessed.'}
first_year_degradation_percent	2.0 Datasheet - REC Alpha Pure-R (English, IEC)
imp_a	8.52 Datasheet - REC Alpha Pure-R (English, IEC)
isc_a	8.91 Datasheet - REC Alpha Pure-R (English, IEC)
junction_box_ip_rating	IP68 Datasheet - REC Alpha Pure-R (English, IEC)
max_reverse_current_a	25
max_series_fuse_rating_a	25 Datasheet - REC Alpha Pure-R (English, IEC)
max_system_voltage_label	1000 V
max_system_voltage_v	1000 Datasheet - REC Alpha Pure-R (English, IEC)
mechanical_load_front_pa	7000 Datasheet - REC Alpha Pure-R (English, IEC)
mechanical_load_rear_pa	4000 Datasheet - REC Alpha Pure-R (English, IEC)
module_efficiency_pct	22.3
nmot	{'pmax_w': 327, 'voc_v': 56.3, 'vmp_v': 47.6, 'isc_a': 7.2, 'imp_a': 6.88, 'conditions': 'NMOT: air mass AM 1.5, irradiance 800 W/m2, ambient temperature 20 degC, windspeed 1 m/s', 'note': 'Values for the 430 W bin only.'}
nmot_c	44.0
official_manual_url	https://www.recgroup.com/sites/default/files/2025-01/IM_RECAlpha_IEC_EN.pdf REC Alpha Pure Panels Installation Manual REV 18 (IEC, EN)
official_product_url	https://www.recgroup.com/en/rec-alpha-pure-r REC Alpha Pure-R product page (recgroup.com)
pmax_w	430
power_tolerance	0/+10 W (Watt Class Sorting)
protection_class	—
rated_power_w	430 Datasheet - REC Alpha Pure-R (English, IEC)
stc_conditions	STC: air mass AM 1.5, irradiance 1000 W/m2, temperature 25 degC
temp_coeff_isc	0.04 %/degC
temp_coeff_pmax	-0.24 %/degC
temp_coeff_voc	-0.24 %/degC
vmp_v	50.5 Datasheet - REC Alpha Pure-R (English, IEC)
voc_v	59.7 Datasheet - REC Alpha Pure-R (English, IEC)
warranty_performance_years	25 Datasheet - REC Alpha Pure-R (English, IEC)
warranty_product_years	25 Datasheet - REC Alpha Pure-R (English, IEC)

Physical / mechanical

area_m2	1.93
backsheet	Highly resistant polymer (Black)
bypass_diodes	4
cable_cross_section_mm2	4.0
cable_length_mm	1400 + 1400
connector_type	Staubli MC4 PV-KBT4/KST4 (4 mm2) in accordance with IEC 62852:2014, IP68 only when connected
depth_mm	30
dimensions_mm	1730 x 1118 x 30
frame	Anodized aluminum (Black)
frame_colour	Black
glass	3.2 mm solar glass with anti-reflective surface treatment in accordance with EN12150
glass_construction	single glass
glass_thickness_mm	3.2
height_mm	30 Datasheet - REC Alpha Pure-R (English, IEC)
junction_box	4-part, 4 bypass diodes, lead-free IP68 rated, in accordance with IEC 62790:2020
length_mm	1730 Datasheet - REC Alpha Pure-R (English, IEC)
weight_kg	21.5 Datasheet - REC Alpha Pure-R (English, IEC)
width_mm	1118 Datasheet - REC Alpha Pure-R (English, IEC)

Installation

clamp_requirements	—
grounding	—
max_installation_altitude_m	—
mounting_methods	—

Environment

ammonia	IEC 62716 Ammonia Resistance
fire_rating	IEC 61730 Fire Class C (as per UL790); UL 61730 Fire Type 2; ISO 11925-2 Ignitability (EN 13501-1 Class E)
hail	35 mm @ 27.2 m/s
max_static_load_front_6point_pa	8000
max_static_load_front_pa	7000
max_static_load_rear_6point_pa	6000
max_static_load_rear_pa	4000
operating_temperature_c	Min environmental temperature -40 degC; module operating temperature [T98] 80 degC
operating_temperature_max_c	80 Datasheet - REC Alpha Pure-R (English, IEC)
operating_temperature_min_c	-40 Datasheet - REC Alpha Pure-R (English, IEC)
pid	—
salt_mist	IEC 61701 Salt Mist (SM6)
snow_load	Front (4-point) +7000 Pa / 714 kg/m2
temperature_coefficient_isc_percent_c	0.04 Datasheet - REC Alpha Pure-R (English, IEC)
temperature_coefficient_pmax_percent_c	-0.24 Datasheet - REC Alpha Pure-R (English, IEC)
temperature_coefficient_voc_percent_c	-0.24 Datasheet - REC Alpha Pure-R (English, IEC)
wind_load	Rear (4-point) -4000 Pa / 408 kg/m2

Certifications

standards

['ISO 14001', 'ISO 9001', 'IEC 45001', 'IEC 62941', 'IEC 61215:2021', 'IEC 61730:2023', 'UL 61730', 'IEC 61730 Fire Class C (as per UL790)', 'ISO 11925-2 Ignitability (EN 13501-1 Class E)', 'IEC 62716 Ammonia Resistance', 'IEC 61701 Salt Mist (SM6)', 'IEC 61215:2021 Hailstone (35 mm)', 'UL 61730 Fire Type 2', 'IEC 62321 Lead-free acc. to RoHS EU 863/2015', 'IEC TS 63126 Level 1']

Warranty & service

annual_degradation_pct	0.25
conditional_terms	[{'condition': 'Standard warranty (panel NOT installed by an REC Certified Solar Professional)', 'product_years': 20, 'power_years': 25, 'labor_years': 0}, {'condition': 'REC ProTrust - installed by an REC Certified Solar Professional, all system sizes < 25 kW', 'product_years': 25, 'power_years': 25, 'labor_years': 25}, {'condition': 'REC ProTrust - installed by an REC Certified Solar Professional, 25 - 500 kW', 'product_years': 25, 'power_years': 25, 'labor_years': 10}]
first_year_degradation_pct	—
notes	Printed: Power in Year 1 98%; Annual Degradation 0.25%; >92% Power in Year 25. Condition printed on the datasheet: 'REC ProTrust Warranty applies only for i) REC panels installed by an REC Certified Solar Professional, and ii) panels have been registered by the installer with REC.' BOTH warranty lengths recorded: 20 y product standard / 25 y product with certified installation.
performance_years	25
product_years	20
product_years_certified_installer	25
retained_power_at_year	25
retained_power_end_pct	92

Документи

application_note Information sheet - REC Alpha Pure-R Series

datasheet Datasheet - REC Alpha Pure-R (English US, UL) rev REF: PM-DS-12-06-REV-/D UL EN 6.2025

datasheet Datasheet - REC Alpha Pure-R (English, ANZ / CEC, IEC) rev IEC AU CEC 10.2025 V4.2 REF: PM-DS-12-06/04.04.05.01

datasheet Datasheet - REC Alpha Pure-R (English, IEC) rev REF: PM-DS-12-06-REV-/D IEC EN 5.2025

installation_manual REC Alpha Pure Panels Installation Manual REV 18 (IEC, EN)

other REC Alpha Pure-R product page (recgroup.com) rev UNKNOWN

Зафіксовані конфлікти

electrical.nmot_c Resolved — accepted incoming value

44 — stored value

44.0 — row 'Nominal Module Operating Temperature (NMOT)' (single row, all power classes): 44 ± 2 °C — sheet prints NMOT, not NOCT

Detected during import pv-builder-2026-09-batch08

Додаткові задокументовані параметри

Записано дослівно з джерела; поля схеми для них поки немає.

Front / Rear (6-Point) load	+8000 Pa / -6000 Pa
IEC 62321 Lead-free acc. to RoHS EU 863/2015	certified
Labor Warranty (yrs)	0 (standard) / 25 (<25 kW certified) / 10 (25-500 kW certified)
Max Hail Rating	35 mm @ 27.2 m/s
Module Current (compatible with MLPE)	9 A
Module Operating Temperature [T98]	80 degC
Nominal Module Operating Temperature	44 +/- 2 degC
Power in Year 1	98%
Product Warranty (yrs)	20 (standard) / 25 (REC ProTrust, certified installer)
builder_completeness	partial

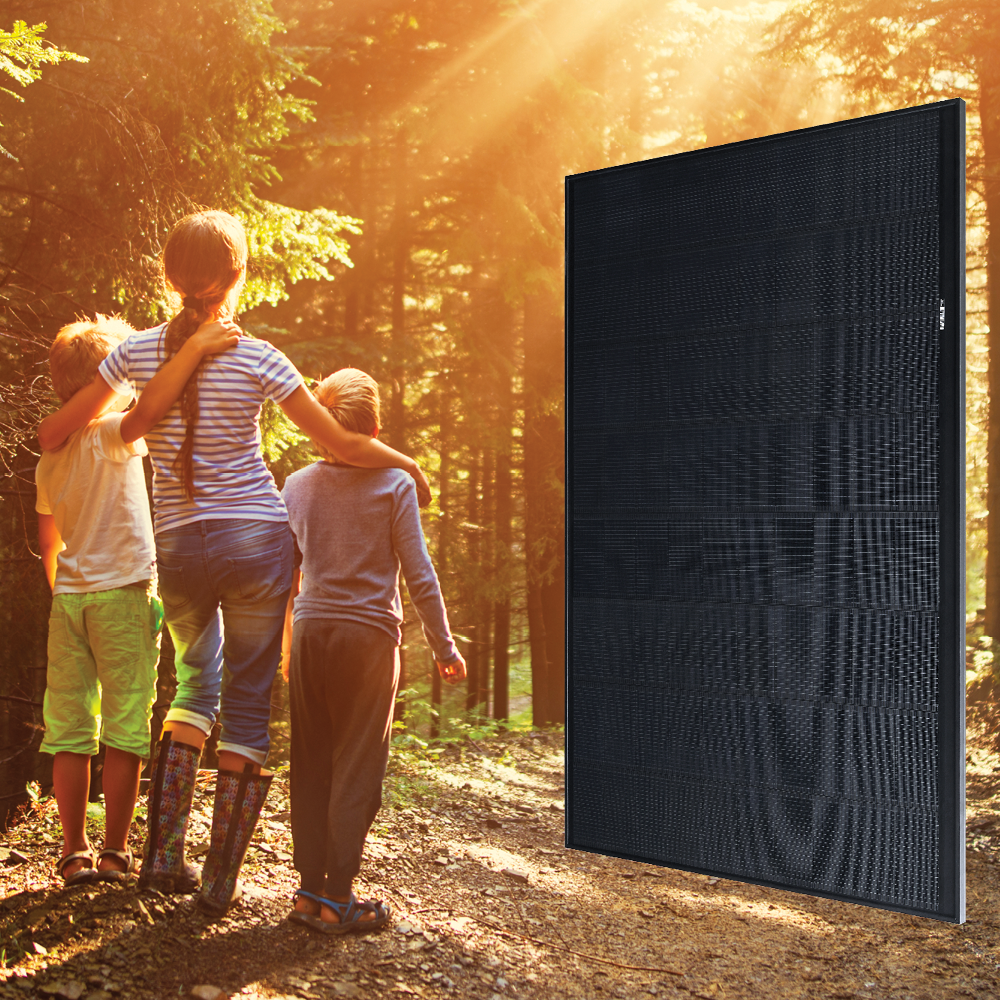

REC Group REC430AA Pure-R
