Identity

category	pv_modules
generation	210R N-type i-TOPCon (Vertex S+)
manufacturer	Trina Solar
market_version	IEC 1500 V
model	TSM-435NEG9RC.27
product_family	Vertex S+ TSM-NEG9RC.27 410-435 W
product_status	active
region	EU/global
release_year	2023
series	Vertex S+

Electrical

application_class	—
bifacial	True
bifaciality	{'bifaciality_factor_pct': '80 +-5', 'albedo_assumption': 'UNKNOWN'}
bifaciality_factor_pct	80
bifaciality_percent_max	85 Vertex S+ TSM-NEG9RC.27 410-435 W Datasheet
bifaciality_percent_min	75 Vertex S+ TSM-NEG9RC.27 410-435 W Datasheet
cell_count	144 Vertex S+ TSM-NEG9RC.27 410-435 W Datasheet
cell_technology	N-type i-TOPCon monocrystalline, 144 cells, bifacial transparent dual-glass (Vertex S+ NEG9RC.27) суперечливе
cell_type	monocrystalline Vertex S+ TSM-NEG9RC.27 410-435 W Datasheet
connector_type	MC4-EVO2 / TS4
dimensions_mm	1762x1134x30
electrical_extra	{'power_tolerance': '0~+5 W', 'power_bins_w': [410, 415, 420, 425, 430, 435]}
extra	{'power_bins_w': [410, 415, 420, 425, 430, 435], 'power_bin_table': [{'pmax_w': 415, 'model': 'TSM-415 NEG9RC.27', 'voc_v': 50.1, 'vmp_v': 42.1, 'isc_a': 10.65, 'imp_a': 9.86, 'efficiency_pct': 20.8}, {'pmax_w': 420, 'model': 'TSM-420 NEG9RC.27', 'voc_v': 50.5, 'vmp_v': 42.5, 'isc_a': 10.68, 'imp_a': 9.89, 'efficiency_pct': 21.0}, {'pmax_w': 425, 'model': 'TSM-425 NEG9RC.27', 'voc_v': 50.9, 'vmp_v': 42.9, 'isc_a': 10.71, 'imp_a': 9.92, 'efficiency_pct': 21.3}, {'pmax_w': 430, 'model': 'TSM-430 NEG9RC.27', 'voc_v': 51.4, 'vmp_v': 43.2, 'isc_a': 10.76, 'imp_a': 9.96, 'efficiency_pct': 21.5}, {'pmax_w': 435, 'model': 'TSM-435 NEG9RC.27', 'voc_v': 51.8, 'vmp_v': 43.6, 'isc_a': 10.79, 'imp_a': 9.99, 'efficiency_pct': 21.8}], 'cell_count': '144 cells', 'cell_layout': 'UNKNOWN', 'fire_type': 'UNKNOWN', 'bifacial_gain_note': 'Power Bifaciality: 80+/-5%. The datasheet also prints a rear-irradiance gain table; its rows could not be attributed reliably and are recorded in raw_discovered. The 410 W column of the STC table could not be transcribed and is deliberately absent from power_bin_table (not interpolated).'}
imp_a	10.59 суперечливе
isc_a	10.68 суперечливе
junction_box_ip_rating	IP68 Vertex S+ TSM-NEG9RC.27 410-435 W Datasheet
max_reverse_current_a	—
max_series_fuse_rating_a	25 Vertex S+ TSM-NEG9RC.27 410-435 W Datasheet
max_system_voltage_label	1500V DC (IEC)
max_system_voltage_v	1500 Vertex S+ TSM-NEG9RC.27 410-435 W Datasheet
mechanical_load_front_pa	5400 Vertex S+ TSM-NEG9RC.27 410-435 W Datasheet
mechanical_load_rear_pa	4000 Vertex S+ TSM-NEG9RC.27 410-435 W Datasheet
module_efficiency_pct	21.8
module_type	bifacial Vertex S+ TSM-NEG9RC.27 410-435 W Datasheet
nmot	{'pmax_w': 'UNKNOWN', 'voc_v': 'UNKNOWN', 'vmp_v': 'UNKNOWN', 'isc_a': 'UNKNOWN', 'imp_a': 'UNKNOWN', 'conditions': 'NOCT: Irradiance at 800W/m2, Ambient Temperature 20 degC, Wind Speed 1m/s', 'note': 'The NOCT table is printed in the datasheet but two independent extractions of the PDF returned mutually inconsistent column orders that could not be resolved by the Pmax = Vmpp x Impp check, so no NOCT value is asserted. The candidate figures are recorded in raw_discovered as unverified.'}
nmot_c	43
noct_c	43.0 Vertex S+ TSM-NEG9RC.27 410-435 W Datasheet
official_datasheet_url	https://www-cdn.trinasolar.com/wwwstorage/sites/3/DT-M-0069-F-Datasheet_VertexS_NEG9RC.27_EN_2024_B.pdf Trinasolar TSM-435NEG9RC.27 product page
official_product_url	https://www.trinasolar.com/en-glb/NEG9RC.27/ Trinasolar TSM-435NEG9RC.27 product page
pmax_w	435
power_tolerance	0 ~ +5W
protection_class	—
rated_power_w	435 Vertex S+ TSM-NEG9RC.27 410-435 W Datasheet
stc_conditions	Irradiance 1000W/m2, Cell Temperature 25 degC, Air Mass AM1.5
temp_coeff_isc	0.04 %/degC
temp_coeff_isc_pct_per_c	0.04
temp_coeff_pmax	-0.3 %/degC
temp_coeff_pmax_pct_per_c	-0.3
temp_coeff_voc	-0.24 %/degC
temp_coeff_voc_pct_per_c	-0.24
vmp_v	41.0 суперечливе
voc_v	50.9 суперечливе Vertex S+ TSM-NEG9RC.27 410-435 W Datasheet — STC table, 435 W column
warranty_performance_years	30 Vertex S+ TSM-NEG9RC.27 410-435 W Datasheet
warranty_product_years	15 Vertex S+ TSM-NEG9RC.27 410-435 W Datasheet

Physical / mechanical

backsheet	None (transparent dual glass)
bypass_diodes	—
cable_cross_section_mm2	4.0
cable_length_mm	—
connector_type	MC4 EVO2 / TS4
depth_mm	30
dimensions_mm	1762x1134x30
encapsulant	EVA/POE
enclosure_material	30 mm (1.18 in) Anodized Aluminium Alloy, Black
frame	30 mm Anodized Aluminium Alloy
frame_colour	Black
glass	front 1.6 mm high-transmission AR-coated heat strengthened glass; back 1.6 mm high-transmission heat strengthened glass суперечливе
glass_construction	dual glass (transparent backglass, bifacial) суперечливе
glass_thickness_mm	1.6
height_mm	30
junction_box	IP 68 rated
junction_box_diodes	—
length_mm	1762 Vertex S+ TSM-NEG9RC.27 410-435 W Datasheet
mounting_type	['rooftop', 'ground']
weight_kg	21.1 Vertex S+ TSM-NEG9RC.27 410-435 W Datasheet
width_mm	1134 Vertex S+ TSM-NEG9RC.27 410-435 W Datasheet

Installation

bolt_torque	M8 bolt, two flat washers, one spring washer and one nut, tightened to 16-20 N.m (manual p.15)
cable_min_bend_radius_mm	43
clamp_requirements	Clamp must overlap the module frame by at least 8 mm (0.32 in) but not more than 12 mm (0.47 in); recommended clamp length >= 50 mm and thickness >= 4 mm (manual pp.17-21) Trina Solar Vertex Series Modules User Manual — manual pp.17-21
clamp_zone_range_mm	DE09 series A = 250-350 mm for certain load configurations (manual p.18); DE09R washer OD 19-20 mm (p.16)
design_load_note	Mechanical loads = design loads x 1.5 safety coefficient (manual p.15)
frame_features	installation hole, grounding hole, drain hole (manual p.13)
grounding	Star washer penetrating the anodized frame coating, torque 3-7 N.m; grounding wire 4-16 mm2 (12-6 AWG) solid bare copper; resistance < 1 ohm (manual p.23)
installation_temperature_range_c	-20 to +50 ambient, limits -40 to +85 (manual p.3)
max_installation_altitude_m	—
minimum_clearance_to_surface_mm	155
minimum_tilt_deg	10 Trina Solar Vertex Series Modules User Manual — manual p.3, 'mounting tilt angle should not be less than 10 degrees'
mounting_hole	4 x phi 9 x 14 mm mounting holes in the frame (manual p.15)
mounting_methods	Screw (M8 bolt) mounting or clamp mounting - Trina Vertex Series User Manual pp.15-21
orientation_allowed	['portrait', 'landscape']

Environment

ammonia	IEC62716 certified
fire_rating	—
hail	—
hail_rating	—
max_static_load_front_pa	5400
max_static_load_rear_pa	4000
operating_temperature_c	-40 to +85
operating_temperature_max_c	85 Vertex S+ TSM-NEG9RC.27 410-435 W Datasheet
operating_temperature_min_c	-40 Vertex S+ TSM-NEG9RC.27 410-435 W Datasheet
pid	—
salt_mist	IEC61701 certified
salt_mist_resistance	IEC 61701 tested; suitable for offshore/corrosive environments; 50-500 m from the sea requires stainless steel or aluminium mounting materials (manual p.3)
snow_load	5400 Pa positive load
storage_temperature_c	-40 to +50, RH < 85% (manual p.9)
temperature_coefficient_isc_percent_c	0.04 Vertex S+ TSM-NEG9RC.27 410-435 W Datasheet
temperature_coefficient_pmax_percent_c	-0.3 Vertex S+ TSM-NEG9RC.27 410-435 W Datasheet
temperature_coefficient_voc_percent_c	-0.24 Vertex S+ TSM-NEG9RC.27 410-435 W Datasheet
wind_load	4000 Pa negative load

Certifications

other	['IEC61701', 'IEC62716', 'ISO 9001', 'ISO 14001', 'ISO 14064', 'ISO 45001', 'EU-28 WEEE compliant']
safety	['IEC61215', 'IEC61730', 'UL61730']
standards	['IEC61215', 'IEC61730', 'IEC61701', 'IEC62716', 'ISO 9001', 'ISO 14001', 'ISO 45001']

Warranty & service

annual_degradation_pct	0.4
conditions	Datasheet: '15 year Product Workmanship Warranty', '30 year Power Warranty', '1% first year degradation', '0.4% annual'. The fetched extract reported a '99.0% at year 25' figure that is inconsistent with a 1%/0.4% linear curve; year-25/30 guaranteed output therefore recorded as UNKNOWN.
end_of_warranty_output_pct	—
first_year_degradation_pct	1.0
performance_years	30
product_years	15
retained_power_at_year	30
retained_power_end_pct	—
standard_years	15

Packaging & logistics

units_per_40ft_container	936
units_per_pallet	36

Документи

datasheet {# Located but never retrieved: listed, but deliberately not linked, and it backs no stored value. #} 240910 Datasheet_VertexS_NEG9RC.27_EN_2024_A_web — знайдено, не отримано rev 2024_A

datasheet {# Located but never retrieved: listed, but deliberately not linked, and it backs no stored value. #} DT-M-0069-F Datasheet_VertexS_NEG9RC.27_EN_2024_B (up to 450 W) — знайдено, не отримано rev DT-M-0069 F / 2024_B

datasheet Vertex S+ TSM-NEG9RC.27 410-435 W Datasheet rev DT-M-0069 A / TSM_EN_2023_A

installation-manual Trina Solar Vertex Series Modules User Manual rev UM-M-0002G

product_page Trinasolar TSM-435NEG9RC.27 product page

Зафіксовані конфлікти

electrical.isc_a Review required

10.68 — stored value

10.64 — column '435W' row 'Short Circuit Current-ISC (A)': 10.64

Detected during import pv-builder-2026-09-batch10

electrical.voc_v Review required

50.9 — stored value

51.8 — column '435W' row 'Open Circuit Voltage-VOC (V)': 51.8

Detected during import pv-builder-2026-09-batch10

electrical.isc_a Review required

10.68 — stored value

10.79 — incoming package

Detected during import pv-top5-full-portfolio-2026-09-03

electrical.voc_v Review required

50.9 — stored value

51.8 — incoming package

Detected during import pv-top5-full-portfolio-2026-09-03

rated_power_w Review required

435 — Datasheet DT-M-0069 A (2023_A), top bin

450 — Trina global product page NEG9RC.27 (current revision DT-M-0069 F)

electrical.isc_a Review required

10.68 — stored value

10.79 — incoming package

Detected during import pv-top5-full-portfolio-2026-09-03

electrical.voc_v Review required

50.9 — stored value

51.8 — incoming package

Detected during import pv-top5-full-portfolio-2026-09-03

physical.height_mm Resolved — accepted incoming value

1762 — stored value

30 — row 'Dimensions' (single row, all power classes): 1762×1134×30 mm (frame thickness 30 mm)

Detected during import pv-builder-2026-09-batch10

electrical.connector_type Resolved — accepted incoming value

MC4 EVO2 / TS4 — stored value

MC4-EVO2 / TS4 — row 'Connector' (single row, all power classes): 'MC4-EVO2 / TS4'

Detected during import pv-builder-2026-09-batch10

electrical.imp_a Review required

10.59 — stored value

9.99 — column '435W' row 'Maximum Power Current-IMPP (A)': 9.99

Detected during import pv-builder-2026-09-batch10

electrical.vmp_v Review required

41.0 — stored value

43.6 — column '435W' row 'Maximum Power Voltage-VMPP (V)': 43.6

Detected during import pv-builder-2026-09-batch10

physical.glass_construction Review required

dual glass (transparent backglass, bifacial) — stored value

dual glass — incoming package

Detected during import pv-top5-full-portfolio-2026-09-03

physical.glass Review required

front 1.6 mm high-transmission AR-coated heat strengthened glass; back 1.6 mm high-transmission heat strengthened glass — stored value

Front: 1.6 mm High Transmission AR Coated Heat Strengthened Glass; Back: 1.6 mm High Transmission Heat Strengthened Glass (transparent) — incoming package

Detected during import pv-top5-full-portfolio-2026-09-03

electrical.cell_technology Review required

N-type i-TOPCon monocrystalline, 144 cells, bifacial transparent dual-glass (Vertex S+ NEG9RC.27) — stored value

144 monocrystalline N-type i-TOPCon cells, bifacial transparent dual-glass (Vertex S+ Clear Black) — incoming package

Detected during import pv-top5-full-portfolio-2026-09-03

electrical.imp_a Review required

10.59 — stored value

9.99 — incoming package

Detected during import pv-top5-full-portfolio-2026-09-03

electrical.vmp_v Review required

41.0 — stored value

43.6 — incoming package

Detected during import pv-top5-full-portfolio-2026-09-03

identity.product_family Resolved — kept current value

Vertex S+ TSM-NEG9RC.27 410-435 W — stored value

Vertex S+ TSM-NEG9RC.27 410-435 W (Clear Black, bifacial transparent dual glass) — incoming package

Detected during import pv-top5-full-portfolio-2026-09-03

physical.glass_construction Review required

dual glass (transparent backglass, bifacial) — stored value

dual glass — incoming package

Detected during import pv-top5-full-portfolio-2026-09-03

physical.glass Review required

front 1.6 mm high-transmission AR-coated heat strengthened glass; back 1.6 mm high-transmission heat strengthened glass — stored value

Front: 1.6 mm High Transmission AR Coated Heat Strengthened Glass; Back: 1.6 mm High Transmission Heat Strengthened Glass (transparent) — incoming package

Detected during import pv-top5-full-portfolio-2026-09-03

electrical.cell_technology Review required

N-type i-TOPCon monocrystalline, 144 cells, bifacial transparent dual-glass (Vertex S+ NEG9RC.27) — stored value

144 monocrystalline N-type i-TOPCon cells, bifacial transparent dual-glass (Vertex S+ Clear Black) — incoming package

Detected during import pv-top5-full-portfolio-2026-09-03

electrical.imp_a Review required

10.59 — stored value

9.99 — incoming package

Detected during import pv-top5-full-portfolio-2026-09-03

electrical.vmp_v Review required

41.0 — stored value

43.6 — incoming package

Detected during import pv-top5-full-portfolio-2026-09-03

identity.product_family Review required

Vertex S+ TSM-NEG9RC.27 410-435 W — stored value

Vertex S+ TSM-NEG9RC.27 410-435 W (Clear Black, bifacial transparent dual glass) — incoming package

Detected during import pv-top5-full-portfolio-2026-09-03

Додаткові задокументовані параметри

Записано дослівно з джерела; поля схеми для них поки немає.

Back Glass	1.6 mm, High Transmission, Heat Strengthened Glass
Cable bending radius (manual)	Do not bend the cables less than 43 mm (1.69 inch) radius
ELECTRICAL DATA (NOCT), candidate 435 W column	PMAX 332 Wp, VMPP 40.7 V, IMPP 8.11 A, VOC 48.7 V, ISC 8.53 A
Modules per box / per 40' container	36 pieces / 936 pieces
Power Bifaciality	80+/-5%
Rear-irradiance / bifacial gain table (fragments)	448, 454, 459, 464, 470 Wp; 11.34, 11.37, 11.40, 11.44 A; 10.65, 10.68, 10.71, 10.76 A
identity.region_as_researched	GLOBAL
identity.variant_as_researched	Clear Black / transparent dual-glass bifacial

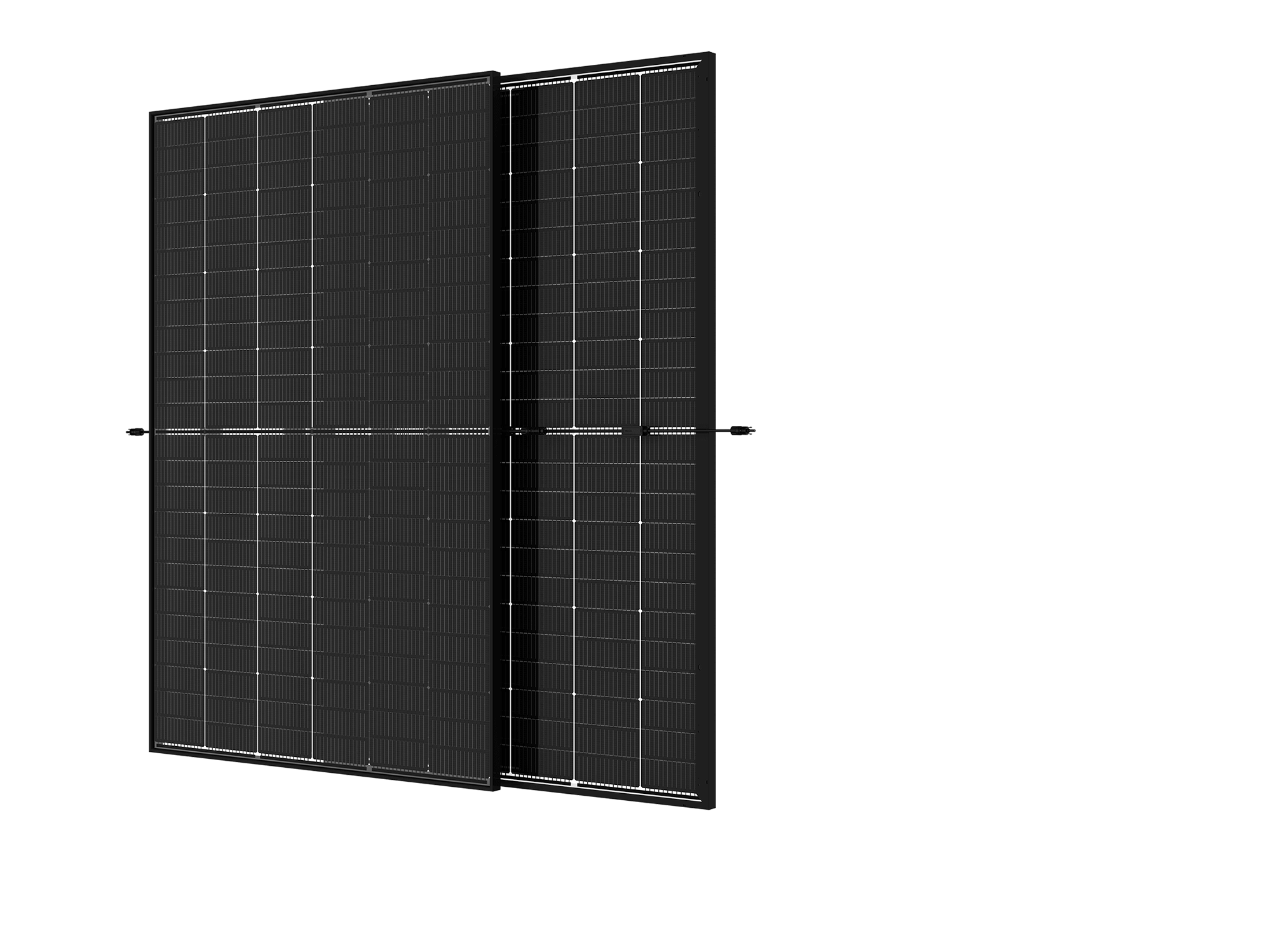

Trina Solar TSM-435NEG9RC.27
