Trina Solar TSM-460NEG9R.28
Official manufacturer EU/global перевірено 22 вересня 2026 р.
Невирішений конфлікт щодо безпеки
Два джерела подають різні значення для цього продукту, і ніхто цього не вирішив. Характеристики нижче показано так, як їх записано, але цей продукт не можна вважати перевіреним для інженерних цілей, доки конфлікт не закрито.
Два джерела подають різні значення для цього продукту, і ніхто цього не вирішив. Характеристики нижче показано так, як їх записано, але цей продукт не можна вважати перевіреним для інженерних цілей, доки конфлікт не закрито.

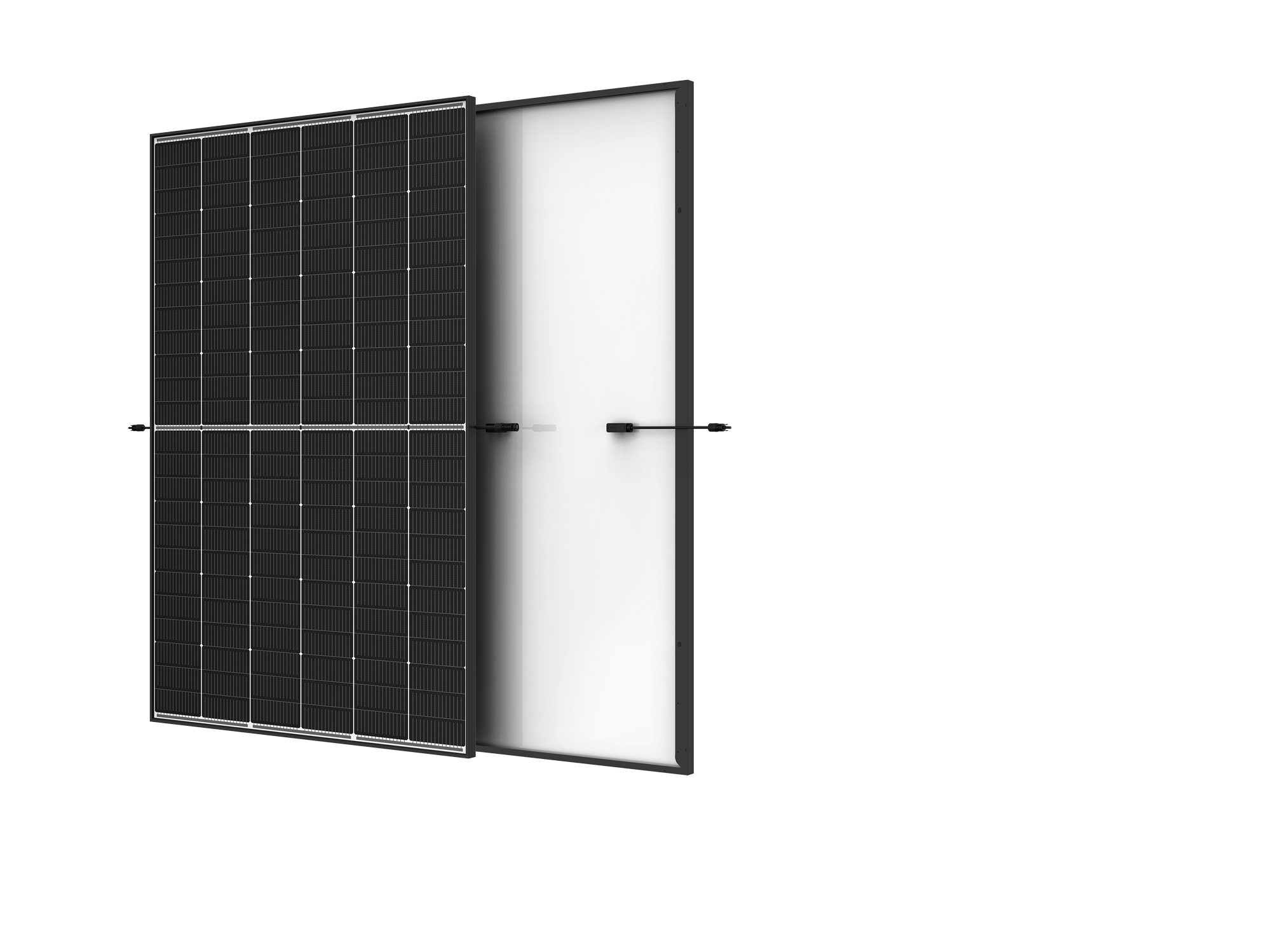

Trina Solar global Vertex S+ NEG9R.28 (460 W) product page; file name encodes 460W-NEGF9R-28. Opened directly and inspected: front + rear view of a 108 half-cell black-frame module.
Identity
| category | pv_modules |
| generation | 210R N-type i-TOPCon (Vertex S+) |
| manufacturer | Trina Solar |
| market_version | IEC 1500 V |
| model | TSM-460NEG9R.28 |
| product_family | Vertex S+ TSM-NEG9R.28 |
| product_status | active |
| region | EU/global |
| release_year | — |
| series | Vertex S+ |
Electrical
| application_class | — |
| bifacial | False |
| bifaciality_factor_pct | — |
| cell_count |
144
Vertex S+ NEG9R.28 Datasheet (EN 2024 C)
|
| cell_technology | N-type i-TOPCon monocrystalline, 144 cells (Vertex S+) суперечливе |
| cell_type |
n-type i-TOPCon
Vertex S+ NEG9R.28 Datasheet (EN 2024 C)
|
| connector_type | TS4 Plus / TS4 / MC4-EVO2 |
| dimensions_mm | 1762x1134x30 |
| electrical_extra | {'power_tolerance': '0/+5 W', 'cell_count': 144} |
| extra | {'power_bins_w': [430, 435, 440, 445, 450, 455, 460], 'power_bin_table': [{'pmax_w': 430, 'model': 'TSM-430NEG9R.28', 'voc_v': 51.4, 'vmp_v': 43.2, 'isc_a': 10.59, 'imp_a': 9.96, 'efficiency_pct': 21.5}, {'pmax_w': 435, 'model': 'TSM-435NEG9R.28', 'voc_v': 51.8, 'vmp_v': 43.6, 'isc_a': 10.64, 'imp_a': 9.99, 'efficiency_pct': 21.8}, {'pmax_w': 440, 'model': 'TSM-440NEG9R.28', 'voc_v': 52.2, 'vmp_v': 44.0, 'isc_a': 10.67, 'imp_a': 10.01, 'efficiency_pct': 22.0}, {'pmax_w': 445, 'model': 'TSM-445NEG9R.28', 'voc_v': 52.6, 'vmp_v': 44.3, 'isc_a': 10.71, 'imp_a': 10.05, 'efficiency_pct': 22.3}, {'pmax_w': 450, 'model': 'TSM-450NEG9R.28', 'voc_v': 52.9, 'vmp_v': 44.6, 'isc_a': 10.74, 'imp_a': 10.09, 'efficiency_pct': 22.5}, {'pmax_w': 455, 'model': 'TSM-455NEG9R.28', 'voc_v': 53.4, 'vmp_v': 45.0, 'isc_a': 10.77, 'imp_a': 10.11, 'efficiency_pct': 22.8}, {'pmax_w': 460, 'model': 'TSM-460NEG9R.28', 'voc_v': 53.8, 'vmp_v': 45.4, 'isc_a': 10.81, 'imp_a': 10.14, 'efficiency_pct': 23.0}], 'cell_count': '144 cells', 'cell_layout': 'UNKNOWN', 'fire_type': 'UNKNOWN', 'bifacial_gain_note': 'Monofacial dual-glass construction; no bifaciality figure printed.'} |
| imp_a |
10.14
Vertex S+ NEG9R.28 Datasheet (EN 2024 C)
|
| isc_a |
10.81
Vertex S+ NEG9R.28 Datasheet (EN 2024 C)
|
| junction_box_ip_rating |
IP68
Vertex S+ NEG9R.28 Datasheet (EN 2024 C)
|
| max_reverse_current_a | — |
| max_series_fuse_rating_a |
25
Vertex S+ NEG9R.28 Datasheet (EN 2024 C)
|
| max_system_voltage_label | 1500V DC (IEC) |
| max_system_voltage_v |
1500
Vertex S+ NEG9R.28 Datasheet (EN 2024 C)
|
| mechanical_load_front_pa |
5400
Vertex S+ NEG9R.28 Datasheet (EN 2024 C)
|
| mechanical_load_rear_pa |
4000
Vertex S+ NEG9R.28 Datasheet (EN 2024 C)
|
| module_efficiency_pct | 23.0 |
| module_type |
dual-glass
Vertex S+ NEG9R.28 Datasheet (EN 2024 C)
|
| nmot | {'pmax_w': 352, 'voc_v': 51.0, 'vmp_v': 42.7, 'isc_a': 8.71, 'imp_a': 8.25, 'conditions': 'NOCT: Irradiance at 800W/m2, Ambient Temperature 20 degC, Wind Speed 1m/s', 'note': "NOCT figures for the 460 W bin taken from the EU 2026_A revision of the same NEG9R.28 datasheet (document 1); the 2024_D global revision's NOCT table could not be transcribed reliably. The 455 W NOCT row of the EU 2026_A revision matches the NEG9R.25 2025_A datasheet exactly, which cross-validates the series."} |
| nmot_c | 43 |
| noct_c |
43.0
Vertex S+ NEG9R.28 Datasheet (EN 2024 C)
|
| official_datasheet_url |
https://www-cdn.trinasolar.com/wwwstorage/sites/3/DT-M-0043-I-Datasheet_Vertex-S_NEG9R.28_EN_2024_D.pdf
Trinasolar TSM-460NEG9R.28 product page
|
| official_product_url |
https://www.trinasolar.com/en-glb/NEG9R.28/
Trinasolar TSM-460NEG9R.28 product page
|
| pmax_w | 460 |
| power_tolerance | 0~+5W |
| protection_class | — |
| rated_power_w |
460
Vertex S+ NEG9R.28 Datasheet (EN 2024 C)
|
| stc_conditions | Irradiance 1000W/m2, Cell Temperature 25 degC, Air Mass AM1.5 |
| temp_coeff_isc | 0.04 %/degC |
| temp_coeff_isc_pct_per_c | 0.04 |
| temp_coeff_pmax | -0.29 %/degC |
| temp_coeff_pmax_pct_per_c | -0.29 |
| temp_coeff_voc | -0.24 %/degC |
| temp_coeff_voc_pct_per_c | -0.24 |
| vmp_v |
45.4
Vertex S+ NEG9R.28 Datasheet (EN 2024 C)
|
| voc_v |
53.8
Vertex S+ NEG9R.28 Datasheet (EN 2024 C)
|
| warranty_performance_years |
30
Vertex S+ NEG9R.28 Datasheet (EN 2024 C)
|
| warranty_product_years |
25
Vertex S+ NEG9R.28 Datasheet (EN 2024 C)
|
Physical / mechanical
| backsheet | None (dual glass) |
| bypass_diodes | — |
| cable_cross_section_mm2 | 4.0 |
| cable_length_mm | — |
| connector_type | MC4 EVO2 / TS4 Plus / TS4 |
| depth_mm | 30 |
| dimensions_mm | 1762x1134x30 |
| enclosure_material | 30 mm Anodized Aluminium Alloy, Black |
| frame | 30 mm Anodized Aluminium Alloy |
| frame_colour | Black |
| glass | front 1.6 mm AR coated heat strengthened glass; back 1.6 mm heat strengthened glass суперечливе |
| glass_construction | dual glass |
| glass_thickness_mm | 1.6 |
| height_mm | 30 |
| junction_box | IP 68 rated |
| junction_box_diodes | — |
| length_mm |
1762
Vertex S+ NEG9R.28 Datasheet (EN 2024 C)
|
| weight_kg |
21.0
Vertex S+ NEG9R.28 Datasheet (EN 2024 C)
|
| width_mm |
1134
Vertex S+ NEG9R.28 Datasheet (EN 2024 C)
|
Installation
| bolt_torque | M8 bolt + 2 flat washers + spring washer + nut, 16-20 N.m (manual p.15) |
| cable_min_bend_radius_mm | 43 |
| clamp_requirements | clamp overlap on the frame 8-12 mm; clamp length >= 50 mm, thickness >= 4 mm (manual pp.17-21) |
| clamp_zone_range_mm | DE09 series A = 250-350 mm; DE18M/DE19 series A = 350-450 mm (manual p.18) |
| design_load_note | Mechanical loads = design loads x 1.5 safety coefficient (manual p.15) |
| grounding | star washer penetrating the anodized frame coating, torque 3-7 N.m; grounding wire 4-16 mm2 solid bare copper; resistance < 1 ohm (manual p.23) |
| installation_temperature_range_c | -20 to +50 ambient, limits -40 to +85 (manual p.3) |
| max_installation_altitude_m | — |
| minimum_clearance_to_surface_mm | 155 |
| minimum_tilt_deg | 10 |
| mounting_hole | 4 x phi 9 x 14 mm mounting holes in the frame (manual p.15) |
| mounting_methods | Screw (M8 bolt) mounting or clamp mounting (Trina Vertex Series User Manual pp.15-21) |
| orientation_allowed | ['portrait', 'landscape'] |
Environment
| ammonia | IEC62716 certified |
| fire_rating | — |
| hail | — |
| max_static_load_front_pa | 5400 |
| max_static_load_rear_pa | 4000 |
| operating_temperature_c | -40 to +85 |
| operating_temperature_max_c |
85
Vertex S+ NEG9R.28 Datasheet (EN 2024 C)
|
| operating_temperature_min_c |
-40
Vertex S+ NEG9R.28 Datasheet (EN 2024 C)
|
| pid | — |
| salt_mist | IEC61701 certified |
| salt_mist_resistance | IEC 61701 tested; installable near offshore/corrosive environments; 50-500 m from the sea requires stainless steel or aluminium mounting materials (manual p.3) |
| snow_load | 5400 Pa (front) |
| storage_temperature_c | -40 to +50, RH < 85% (manual p.9) |
| temperature_coefficient_isc_percent_c |
0.04
Vertex S+ NEG9R.28 Datasheet (EN 2024 C)
|
| temperature_coefficient_pmax_percent_c |
-0.29
Vertex S+ NEG9R.28 Datasheet (EN 2024 C)
|
| temperature_coefficient_voc_percent_c |
-0.24
Vertex S+ NEG9R.28 Datasheet (EN 2024 C)
|
| wind_load | 4000 Pa (back) |
Certifications
| other | ['IEC61701', 'IEC62716', 'ISO 9001', 'ISO 14001', 'ISO45001', 'ISO14067', 'ISO14064-3', 'EU-28 WEEE compliant'] |
| safety | ['IEC61215', 'IEC61730'] |
| standards | ['IEC61215', 'IEC61730', 'IEC61701', 'IEC62716', 'ISO 9001', 'ISO 14001', 'ISO 14064', 'ISO 45001', 'ISO 14067', 'ISO 14025'] |
Warranty & service
| annual_degradation_pct | 0.4 |
| conditions | '25 year Product Workmanship Warranty', '30 year Power Warranty'; year-25 output 87.4% |
| end_of_warranty_output_pct | 87.4 |
| first_year_degradation_pct | 1.0 |
| performance_years | 30 |
| product_years | 15 |
| retained_power_at_year | 30 |
| retained_power_end_pct | 87.4 |
| standard_years | 25 |
Packaging & logistics
| units_per_40ft_container | 936 |
| units_per_pallet | 36 |
Документи
datasheet
{# Located but never retrieved: listed, but deliberately not linked, and it
backs no stored value. #}
DT-M-0043-APAC-EN Datasheet 210R NEG9R.28 440-470 EN 2025 D — знайдено, не отримано
rev 2025_D
datasheet
TSM-460NEG9R.28 — datasheet
installation-manual
{# Located but never retrieved: listed, but deliberately not linked, and it
backs no stored value. #}
UM-M-0002 O Trina Solar Vertex Series User Manual — знайдено, не отримано
rev UM-M-0002 O
product_page
Trinasolar TSM-460NEG9R.28 product page
warranty
{# Located but never retrieved: listed, but deliberately not linked, and it
backs no stored value. #}
PS-M-0135-G-EN-AC Global Limited Warranty for Trina Solar Brand Crystalline Modules — знайдено, не отримано
rev AC
Задокументована сумісність
Лише задокументовані пари. Якщо продукту тут немає, це означає, що не отримано документа, який називає цю пару, а не те, що вона несумісна.
pv_microinverter
Enphase IQ8M
COMPATIBLEinferred-from-electrical-parameters
Enphase IQ8 Series Microinverters datasheet IQ8SE-DS-0001-01-EN-US-2022-03-17, fetched https://enphase.com/sites/default/files/2021-10/IQ8-Series-DS-US.pdf ; Trina Vertex S+ NEG9R.28 datasheet TSM_EN_2024_C
Зафіксовані конфлікти
environment.operating_temperature_c Review required
-40 to +85 — Datasheet 2024_D
-40 to +70 — EU datasheet 2026_A
physical.height_mm Resolved — accepted incoming value
1762 — stored value
30 — row 'Dimensions' (single row, all power classes): 1762×1134×30 mm (frame thickness 30 mm)
Detected during import pv-builder-2026-09-batch10
electrical.connector_type Resolved — accepted incoming value
TS4 Plus / TS4 / MC4 EVO2 — stored value
TS4 Plus / TS4 / MC4-EVO2 — row 'Connector' (single row, all power classes): 'TS4 Plus / TS4 / MC4-EVO2'
Detected during import pv-builder-2026-09-batch10
physical.glass Review required
front 1.6 mm AR coated heat strengthened glass; back 1.6 mm heat strengthened glass — stored value
Front: 1.6 mm High Transmission AR Coated Heat Strengthened Glass; Back: 1.6 mm Heat Strengthened Glass — incoming package
Detected during import pv-top5-full-portfolio-2026-09-03
electrical.cell_technology Review required
N-type i-TOPCon monocrystalline, 144 cells (Vertex S+) — stored value
144 N-type i-TOPCon monocrystalline cells (Vertex S+, 210R platform) — incoming package
Detected during import pv-top5-full-portfolio-2026-09-03
identity.product_family Resolved — kept current value
Vertex S+ TSM-NEG9R.28 — stored value
Vertex S+ TSM-NEG9R.28 430-460 W — incoming package
Detected during import pv-top5-full-portfolio-2026-09-03
electrical_extra.power_bins_w Review required
430-460 W — Global datasheet 2024_D
450-475 W — EU datasheet 2026_A
440-470 W — APAC datasheet 2025_D (title only, not fetched)
warranty.product_years Review required
15 — Datasheet DT-M-0043 I (2024_D), WARRANTY block
25 — Trina global product page NEG9R.28
25 — EU datasheet 2026_A
physical.glass Review required
front 1.6 mm AR coated heat strengthened glass; back 1.6 mm heat strengthened glass — stored value
Front: 1.6 mm High Transmission AR Coated Heat Strengthened Glass; Back: 1.6 mm Heat Strengthened Glass — incoming package
Detected during import pv-top5-full-portfolio-2026-09-03
electrical.cell_technology Review required
N-type i-TOPCon monocrystalline, 144 cells (Vertex S+) — stored value
144 N-type i-TOPCon monocrystalline cells (Vertex S+, 210R platform) — incoming package
Detected during import pv-top5-full-portfolio-2026-09-03
identity.product_family Review required
Vertex S+ TSM-NEG9R.28 — stored value
Vertex S+ TSM-NEG9R.28 430-460 W — incoming package
Detected during import pv-top5-full-portfolio-2026-09-03
Додаткові задокументовані параметри
Записано дослівно з джерела; поля схеми для них поки немає.
| Annual Power Attenuation | 0.4% |
| Back Glass | 1.6 mm, Heat Strengthened Glass |
| Front Glass | 1.6 mm, High Transmission, AR Coated Heat Strengthened Glass |
| Guaranteed Power year 30 | 87.4% |
| identity.region_as_researched | GLOBAL |
| identity.variant_as_researched | Black frame, monofacial dual glass |
