Manufacturer documented GLOBAL перевірено 20 вересня 2026 р.

Identity

category smart_meters
ean —
firmware {'documented_version': 'UNKNOWN', 'constraints': 'UNKNOWN'}
generation —
manufacturer GoodWe
market_version global EN documentation; residential single-phase meter with one 120 A CT

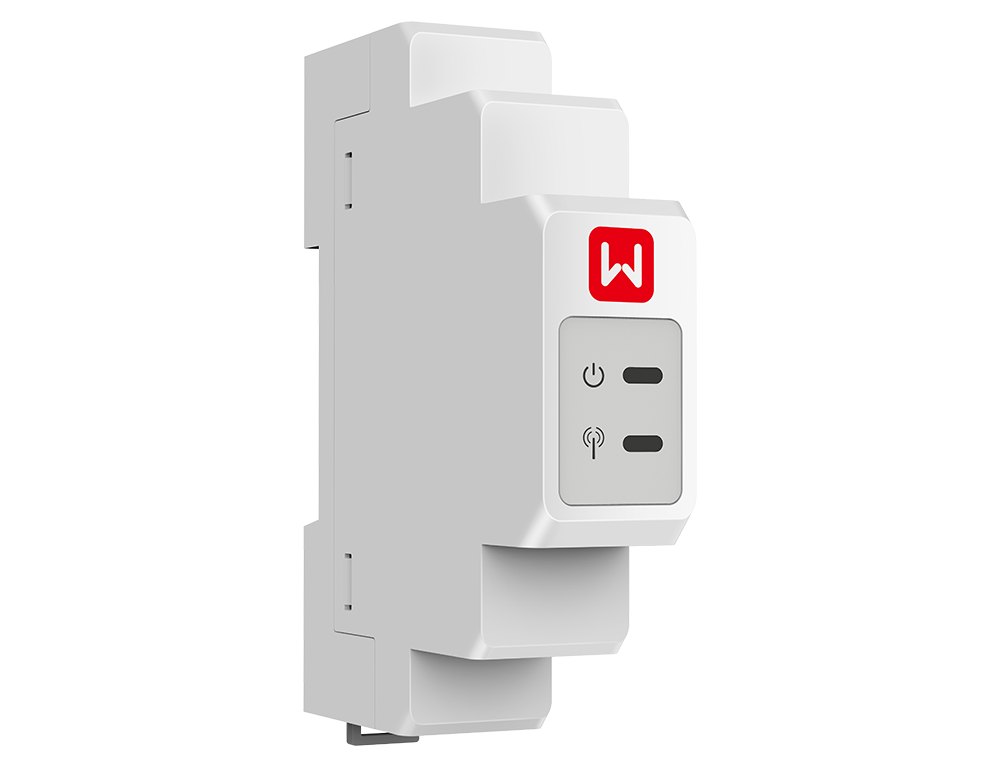

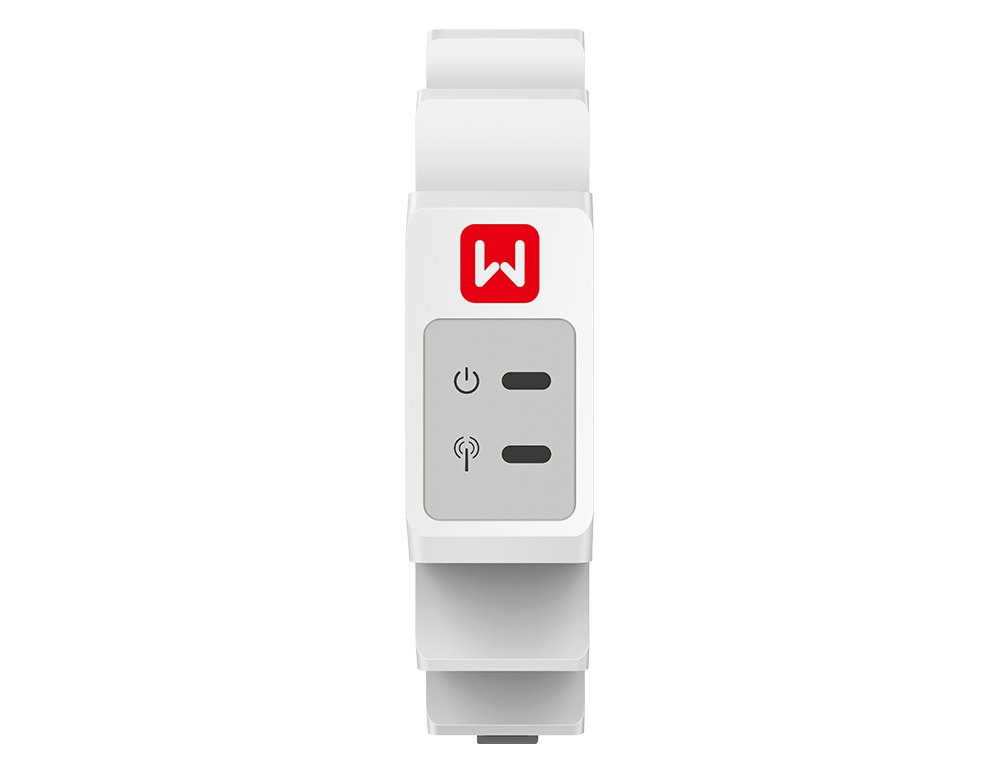

model GMK110
mpn GMK110
product_family GoodWe Smart Meter
product_status active
region GLOBAL
release_year —
series GMK110
sku —

Electrical

active_energy_accuracy_class 1
current_transformer 120A: 40mA
nominal_frequency_hz 50 / 60
number_of_current_transformers 1
operating_voltage_vac 85 ~ 288
phase_count 1
power_consumption_w <=5
reactive_energy_accuracy_class 2
supported_grid_types 1P2W
voltage_current_accuracy_class 1

Physical / mechanical

depth_mm 67
dimensions_mm 19 x 85 x 67
display 2 LED
enclosure_material —
height_mm 85
housing 1 module
mounting DIN rail
weight_g 50
width_mm 19

Installation

cable_requirements —
commissioning —
installation_angle —
mounting_clearances —
torque —

Environment

ingress_protection IP20
max_altitude_m 3000
operating_temperature_c -30 ~ +60
overvoltage_category —
pollution_degree —
protective_class —
relative_humidity_pct 0 ~ 95%
storage_temperature_c -30 ~ +70

Interfaces & connectors

app —
communication ['RS485']
communication_distance_m 1000
dry_contact —
meter_interface —
monitoring_portal —
protocols []

Warranty & service

conditions No warranty term is printed on the GMK110 datasheet or product page.
extension_options —
standard_years —

Документи

compatibility-list Compatibility list of GoodWe inverters and IoT products rev Version 17
datasheet GoodWe GMK110 Single-phase Smart Meter Datasheet rev GoodWe-Single page-20251219-EN-V2.1
other {# Located but never retrieved: listed, but deliberately not linked, and it backs no stored value. #} GoodWe GMK110 download index — знайдено, не отримано rev UNKNOWN
product-page GoodWe Single-phase Smart Meter (GMK110) product page rev UNKNOWN
user-manual {# Located but never retrieved: listed, but deliberately not linked, and it backs no stored value. #} GoodWe GMK110 User Manual — знайдено, не отримано rev UNKNOWN

Додаткові задокументовані параметри

Записано дослівно з джерела; поля схеми для них поки немає.

Communication Distance (m)1000
Current Transformer Ratio120A: 40mA
Datasheet footnoteAll pictures shown are for reference only. Actual appearance may vary.
Datasheet footnote *Supports input voltage up to 1.1Un.
Housing1 module
Operating Voltage (Vac)85 ~ 288
User Interface2 LED
identity.region_as_printedglobal EN
