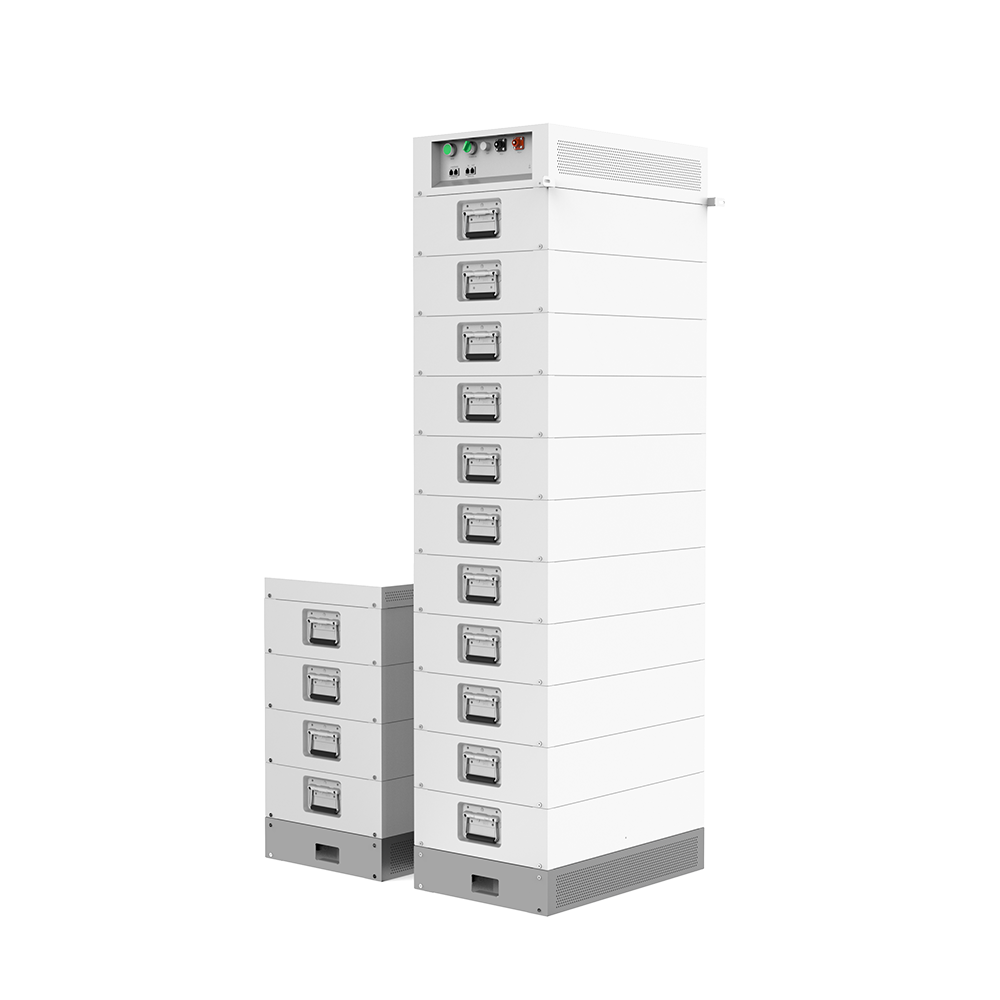

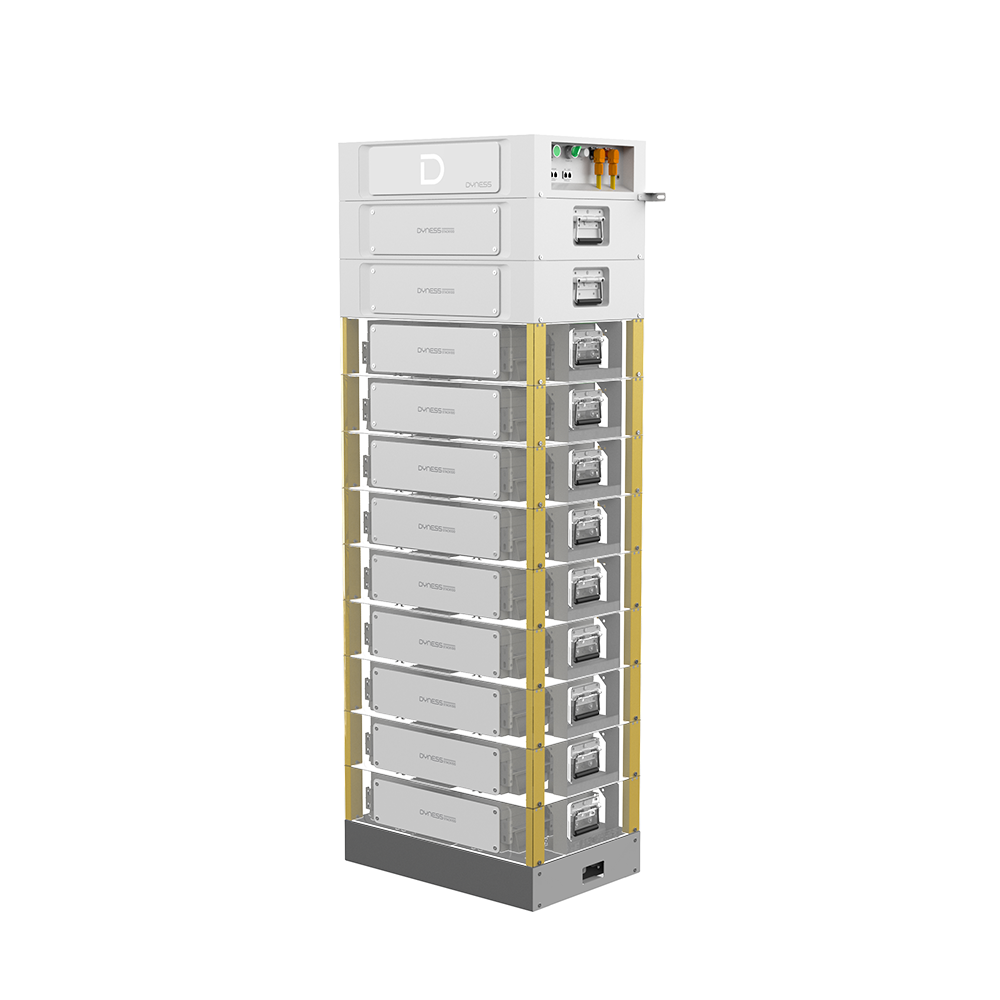

Dyness STACK100
Official manufacturer Global verified Sept. 2, 2026
Unresolved safety-relevant conflict
Two sources give different figures for a value on this product and nobody has resolved it. The specifications below are shown as recorded, but this product must not be treated as verified for engineering purposes until the conflict is closed.
Two sources give different figures for a value on this product and nobody has resolved it. The specifications below are shown as recorded, but this product must not be treated as verified for engineering purposes until the conflict is closed.
Identity
| category | batteries |
| ean | UNKNOWN |
| generation | UNKNOWN |
| hardware_revision | UNKNOWN |
| legacy_name | UNKNOWN |
| manufacturer | Dyness (Dyness Digital Energy Technology Co., Ltd.) |
| market_version | UNKNOWN |
| model | STACK100 |
| mpn | UNKNOWN |
| product_family | STACK |
| product_status | active |
| product_status_evidence | Listed under C&I Energy Storage Systems > Stacked ESS on the official Dyness product index (fetched 2026-09-02); datasheet dated 2026-05-20. |
| region | Global |
| release_year | UNKNOWN |
| sku | UNKNOWN |
| subcategory | stacked_hv_battery_system |
| variant_note | STACK100 is a SYSTEM name, not a single module. One cluster = a BDU/base plus 3-15 battery modules of 51.2V/100Ah (5.12 kWh each), giving 15.36-76.8 kWh per cluster. Up to 12 clusters in parallel. nominal_energy_kwh is therefore left UNKNOWN at system level; see module_* fields and system_energy_min/max_kwh. |
Electrical
| ac_frequency | UNKNOWN |
| ac_output_voltage | UNKNOWN |
| battery_voltage_max_v | UNKNOWN |
| battery_voltage_min_v | UNKNOWN |
| cell_chemistry | LiFePO4 |
| cell_type | prismatic (not stated; module rated 51.2V/100Ah) |
| continuous_charge_current_a | 50 |
| continuous_charge_power_kw | UNKNOWN |
| continuous_discharge_current_a | 50 |
| continuous_discharge_power_kw | UNKNOWN |
| cycle_life | ≥8000 cycles / 10 Years |
| depth_of_discharge_pct | 95 |
| max_ac_current_a | UNKNOWN |
| max_ac_power_w | 0 |
| max_charge_current_a | 100 |
| max_charge_power_kw | UNKNOWN |
| max_discharge_current_a | 100 |
| max_discharge_power_kw | UNKNOWN |
| nominal_capacity_ah | 100 |
| nominal_energy_kwh | UNKNOWN |
| nominal_voltage_v | UNKNOWN |
| num_mppt | 0 |
| operating_voltage_max_v | 876 |
| operating_voltage_min_v | 134 |
| peak_charge_current_a | UNKNOWN |
| peak_charge_power_kw | UNKNOWN |
| peak_discharge_current_a | 125 |
| peak_discharge_power_kw | UNKNOWN |
| phase_count | UNKNOWN |
| rated_ac_power_w | 0 |
| round_trip_efficiency_pct | UNKNOWN |
| system_energy_max_kwh | 76.8 |
| system_energy_min_kwh | 15.36 |
| usable_energy_kwh | UNKNOWN |
Physical / mechanical
| cooling_method | Forced wind cooling (forced air) |
| depth_mm | 390 |
| height_mm | 1700 |
| ip_rating | IP20 |
| mounting_type | floor-standing stack |
| rack_units | UNKNOWN |
| weight_kg | 47 |
| width_mm | 591 |
Installation
| clearance_requirements | UNKNOWN |
| commissioning_notes | UNKNOWN |
| installation_notes | Cable-free stacking. Max. single cluster dimension 591*390*1700mm. Dyness USA states 'one cluster installation in 30min' and a recommended stack height of 11 layers. |
| mounting_notes | Stack type installation. |
Environment
| charge_temperature_max_c | 55 |
| charge_temperature_min_c | 0 |
| discharge_temperature_max_c | 55 |
| discharge_temperature_min_c | -20 |
| indoor_outdoor | indoor (IP20) |
| max_altitude_m | UNKNOWN |
| noise_db | UNKNOWN |
| operating_humidity | UNKNOWN |
| operating_temperature_max_c | 55 |
| operating_temperature_min_c | -20 |
| storage_temperature_max_c | UNKNOWN |
| storage_temperature_min_c | UNKNOWN |
Interfaces & connectors
| bluetooth | UNKNOWN |
| can | True |
| cellular_4g | UNKNOWN |
| cloud_api | UNKNOWN |
| communication_ports | CAN / RS485 |
| dry_contact | UNKNOWN |
| ethernet | UNKNOWN |
| local_api | UNKNOWN |
| modbus_rtu | UNKNOWN |
| modbus_tcp | UNKNOWN |
| mqtt | UNKNOWN |
| protocol_notes | Built-in WiFi module with APP OTA function (Dyness brochure). |
| rs232 | UNKNOWN |
| rs485 | True |
| usb | UNKNOWN |
| wifi | True |
Protection
| explosion_venting | UNKNOWN |
| fire_suppression | Aerosol fire extinguisher |
| insulation_monitoring | UNKNOWN |
| notes | UNKNOWN |
| overcurrent_protection | UNKNOWN |
| short_circuit_protection | UNKNOWN |
Certifications
| corrosion_grade | UNKNOWN |
| grid_codes | UNKNOWN |
| safety_certifications | IEC62619, IEC63056 |
| standards | CE-EMC / CE-RED / IEC62619 / IEC63056 / IEC62477 / IEC62040 |
| transport_certifications | UN38.3 |
Warranty & service
| conditions | UNKNOWN |
| summary | 10 years (stated alongside cycle life) |
| years | 10 |
Documents
datasheet
{# Located but never retrieved: listed, but deliberately not linked, and it
backs no stored value. #}
Dyness STACK100 Datasheet EN 20260520 — located, not retrieved
rev UNKNOWN
Recorded conflicts
electrical.operating_voltage_max_v Review required
876 — Dyness Commercial Product Brochure-EN (KP Solar Group mirror)
864 — Dyness USA official store, STACK100 product page
electrical.cycle_life Review required
≥8000 cycles / 10 Years — dyness.com official STACK100 product page
Unlimited cycles / 10 Years — Dyness Commercial Product Brochure-EN (KP Solar Group mirror)
Additional documented parameters
Recorded verbatim from the source; no schema field exists for these yet.
| Fire response (Dyness USA) | Intelligent fire extinguishing system, detects and extinguishes fire in 5s |
| Flexible Expansion (Dyness USA) | Up to 12 clusters in parallel, 15kWh--921kWh capacity |
| Installation time (Dyness USA) | one cluster installation in 30min |
| Module Voltage/Capacity | 51.2V/100Ah |
| Module mixing (Dyness USA) | Free mixing of modules within three years |
| Module nominal energy (derived from 51.2V x 100Ah) | 5.12 kWh |
| Recommended stack height (Dyness USA) | 11 layers |
| System Modules | 3-15 units |
| manufacturer_legal_entity_as_printed | Dyness Digital Energy Technology Co., Ltd. |
