Victron Energy MultiPlus-II 48/3000/35-32
Official manufacturer 230V / EU verified Sept. 2, 2026
Identity
| category | inverters |
| manufacturer | Victron Energy B.V. |
| market_version | 230 VAC 50 Hz |
| model | MultiPlus-II 48/3000/35-32 |
| product_family | MultiPlus-II 230V |
| product_status | active |
| region | 230V / EU |
| release_year | UNKNOWN |
| sku | UNKNOWN |
Electrical
| ac_output_frequency | 50 Hz ± 0,1 % |
| ac_output_voltage | 230 VAC ± 2 % |
| charge_voltage_absorption_v | 57.6 |
| charge_voltage_float_v | 55.2 |
| charge_voltage_storage_v | 52.8 |
| cont_output_power_at_25c_va | 3000 |
| cont_output_power_at_25c_w | 2400 |
| cont_output_power_at_40c_w | 2200 |
| cont_output_power_at_65c_w | 1700 |
| dc_input_voltage_range | 38 - 66 V |
| maximum_ac_input_current_a | 32 |
| maximum_charge_current_a | 35 |
| maximum_efficiency_pct | 95 |
| peak_power_duration | UNKNOWN |
| peak_power_w | 5500 |
| power_assist | Yes |
| power_control | Yes |
| system_dc_voltage_v | 48 |
| transfer_switch_a | 32 |
| zero_load_power_in_aes_mode_w | UNKNOWN |
| zero_load_power_w | 11 |
Physical / mechanical
| depth_mm | 141 |
| enclosure_material | Steel, blue RAL 5012 |
| height_mm | 499 |
| mounting_type | ['wall-mount'] |

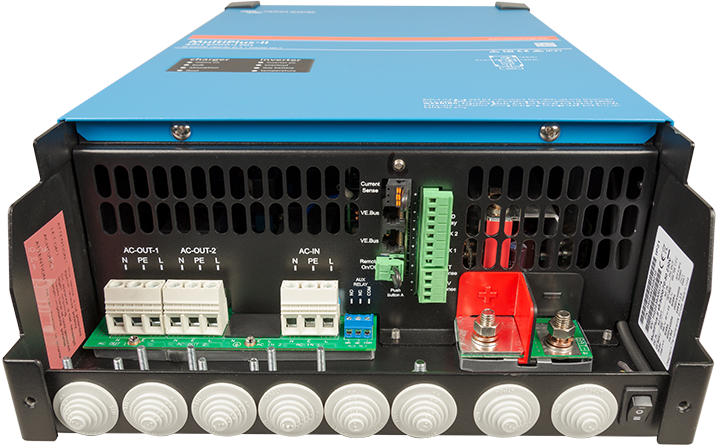

| terminal_locations | Battery-connection: M8 bolts. 230 V AC-connection: Screw terminals 13 mm2 (6 AWG) |
| torque_specs | Battery terminal M8 nut: 12 Nm; AC terminal M8 bolts: 12 Nm |
| weight_kg | 19 |
| width_mm | 268 |
Installation
| minimum_clearance | at least 10cm for ventilation purposes under, above and beside the units |
| recommended_dc_cable_cross_section | 0-5 m: 35 mm2; 5-10 m: 70 mm2 |
| remote_on_off | Yes |
Environment
| altitude | UNKNOWN |
| cooling | UNKNOWN |
| humidity | max 95 % non-condensing |
| ip_rating | IP22 |
| operating_temperature_range | -40 to +65 °C |
Interfaces & connectors
| bluetooth | UNKNOWN |
| ethernet | UNKNOWN |
| general_purpose_com_port | Yes, 2x |
| modbus | UNKNOWN |
| relay | Programmable relay: Yes — AC rating: 230V / 4 A, DC rating: 4 A up to 35VDC and 1 A up to 60VDC |
| ve_bus | For parallel and three phase operation, remote monitoring and system integration |
| ve_can | UNKNOWN |
| ve_direct | UNKNOWN |
Protection
| list | ['Output short circuit', 'Overload', 'Battery voltage too high', 'Battery voltage too low', 'Temperature too high', '230 VAC on inverter output', 'Input voltage ripple too high'] |
Certifications
| standards | ['EN-IEC 60335-1', 'EN-IEC 60335-2-29', 'EN-IEC 62109-1', 'EN-IEC 62109-2', 'EN 55014-1', 'EN 55014-2', 'EN-IEC 61000-3-2', 'EN-IEC 61000-3-3', 'IEC 61000-6-1', 'IEC 61000-6-2', 'IEC 61000-6-3'] |
Warranty & service
| summary | UNKNOWN |
Documents
Additional documented parameters
Recorded verbatim from the source; no schema field exists for these yet.
| Anti-islanding | Please consult the certificates on our website. |
| General purpose com. port | Yes, 2x |
| Material & Colour | Steel, blue RAL 5012 |
| PowerControl & PowerAssist | Yes |
| Remote on-off | Yes |
