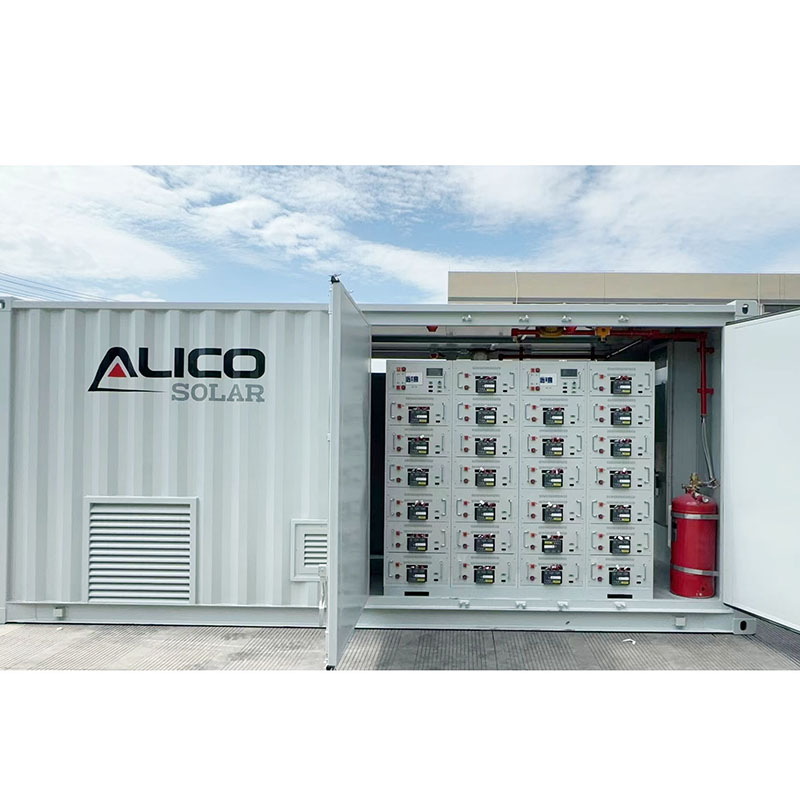

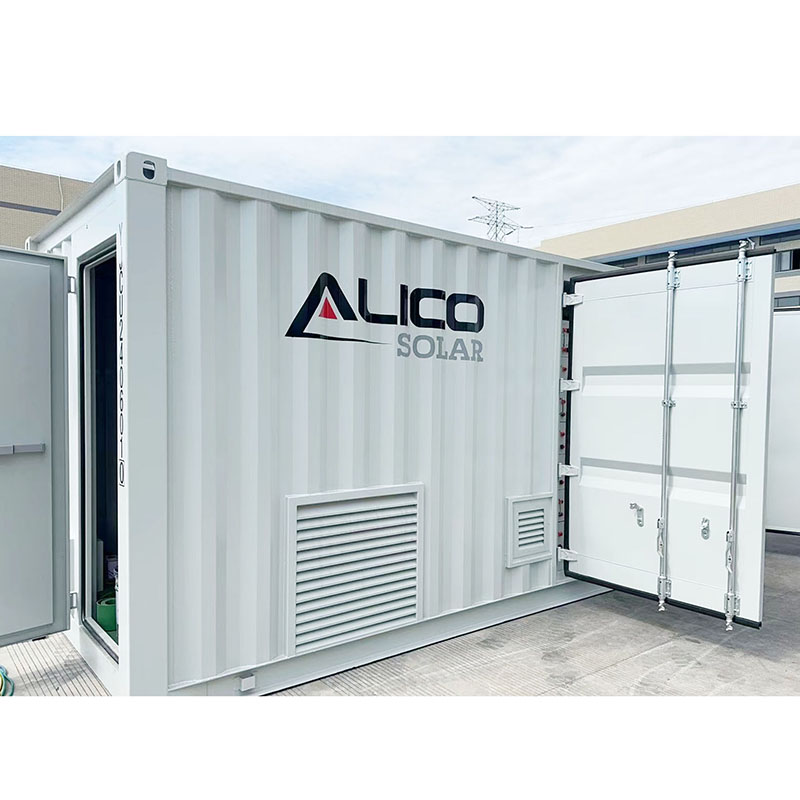

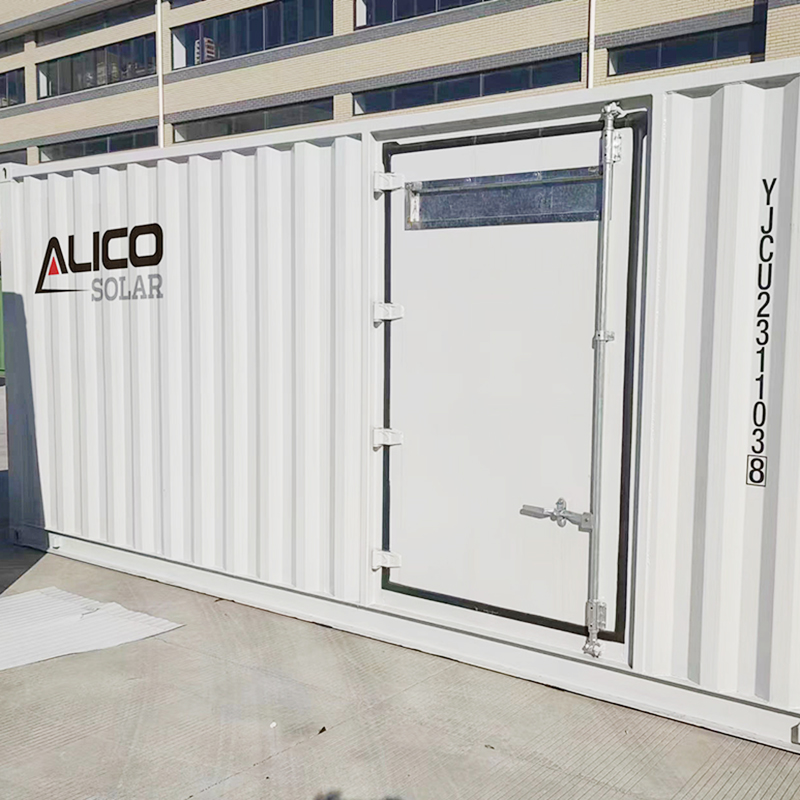

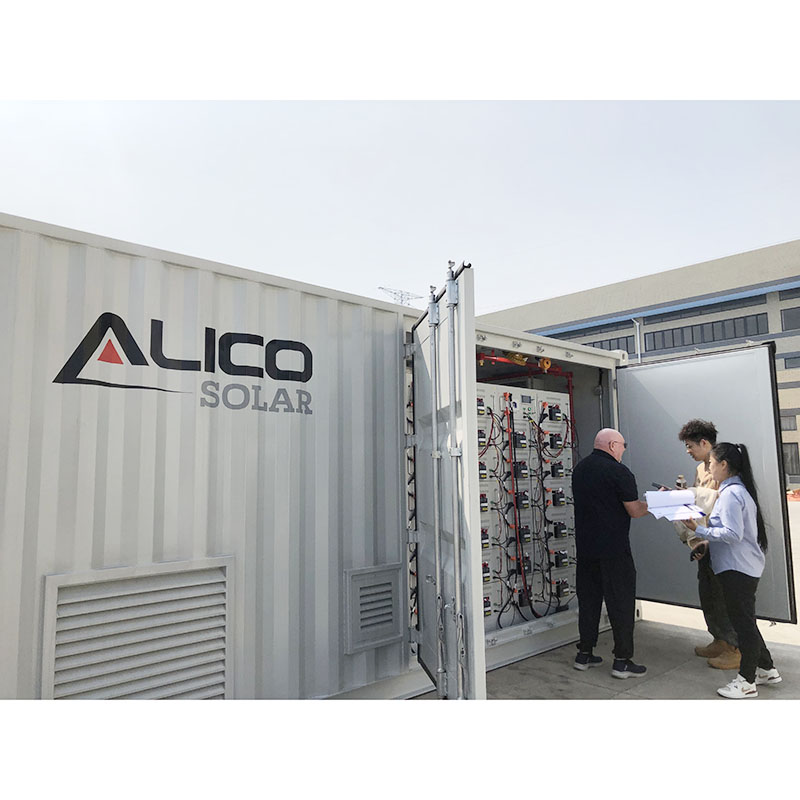

AlicoSolar Complete ESS Cabinet 30kW-1MWh
Unknown GLOBAL
Identity
| aliases | ['ASM-30M01', 'ASM-100M01', 'ASM-150S01', 'ASM-150S02', 'ASM-500K03', 'ASM-500K04'] |
| brand | AlicoSolar |
| category | batteries |
| manufacturer | AlicoSolar |
| manufacturer_key | alicosolar |
| model | Complete ESS Cabinet 30kW-1MWh |
| model_key | complete-ess-cabinet-30kw-1mwh |
| product_status | active |
| region | GLOBAL |
Electrical
| ac_output_capacity | {'ASM-30M01': '30KVA/30KW', 'ASM-100M01': '100KVA/100KW', 'ASM-150S01': '150KVA/150KW', 'ASM-150S02': '150KVA/150KW', 'ASM-500K03': '500KVA/500KW', 'ASM-500K04': '500KVA/500KW'} |
| ac_output_rating | 400Vac 50/60Hz (3P+N) |
| battery_bus | {'ASM-30M01': '150-512V', 'ASM-100M01': '768V', 'ASM-150S01': '774V', 'ASM-500K03': '768V', 'ASM-500K04': '768V'} |
| battery_capacity | {'ASM-30M01': '72/215kWh', 'ASM-100M01': '248kWh', 'ASM-150S01': '510kWh', 'ASM-150S02': '510kWh', 'ASM-500K03': '1505kWh', 'ASM-500K04': '1720kWh'} |
| battery_options | {'types': ['Gel', 'OPZV', 'Lithium'], 'capacity_range_kWh': '72-1720'} |
| chemistry | Lithium-ion / varied |
| inverter_efficiency_pct | {'ASM-30M01': 97, 'ASM-100M01': 98.1, 'ASM-150S01': 96.2, 'ASM-150S02': 96.2, 'ASM-500K03': 96.4, 'ASM-500K04': 96.4} |
| lv_hv | High Voltage (150-768V bus) |
| models | ['ASM-30M01', 'ASM-100M01', 'ASM-150S01', 'ASM-150S02', 'ASM-500K03', 'ASM-500K04'] |
| overload | <110% 10min; <120% 1min; 300% instantaneous |
| pv_input | {'max_voc_v': 1000, 'vmppt_range_vdc': '520-850', 'pv_channels': {'ASM-30M01': '6 (3MPPs)', 'ASM-100M01': '10 (5MPPs)', 'ASM-150S01': '20 (4MPPs)', 'ASM-500K03': '40 (10MPPs)'}, 'mppt_current': {'ASM-30M01': '32A x3', 'ASM-100M01': '32A x5', 'ASM-150S01': '100A x5', 'ASM-500K03': '100A x5'}} |
| short_description | Integrated hybrid solar inverter w/ solar+wind; modular MPPT; on/off-grid; ATS; diesel gen management |
| thd_pct | <3% at 100% load |
| transformer_type | Transformer-free (30M01/100M01) / Isolated transformer-based (150S/500K) |
| unbalance | 100% unbalance between phases |
Physical / mechanical
| dimensions_mm | {'ASM-30M01': '600x600x1920', 'ASM-100M01': '1200x1100x2250', 'ASM-150S01': '2991x2438x2591 (10ft)', 'ASM-500K03': '6058x2438x2591 (20ft)'} |
| noise_dB | <65 |
| weight_kg | {'ASM-30M01': 861, 'ASM-100M01': 3709, 'ASM-150S01': 10540, 'ASM-500K03': 24467} |
Environment
| cooling | {'ASM-30M01': 'Fans', 'ASM-100M01': 'Air Conditioner', 'ASM-150S01': 'Liquid', 'ASM-500K03': 'Liquid'} |
| derating_note | 15% capacity decrease per 5C from 45-55C; 4% per 100m above 2000m |
| ip_rating | IP55 |
| operating_altitude_m | 2000 |
| operating_temperature_c | -20 to 55 |
| storage_temperature_c | -25 to 55 |
Interfaces & connectors
| communication | ['RS485', 'CAN', 'LAN', 'REPO'] |
| hmi | 7 Inch Touch Screen (LCD) + LED |
| iot_monitoring | 4G/5G |
| protocols | ['Modbus TCP', 'Modbus RTU'] |
Protection
| ats | Optional (ASM-30M01) / Integrated (others) |
| diesel_generator_management | True |
| switchgear | AC input/output switchgears + battery breaker |
Certifications
| standards | ['CE/TUV'] |
Documents
product-page
Complete ESS Cabinet 30kW-1MWh source
product-page
Complete ESS Cabinet 30kW-1MWh source
Additional documented parameters
Recorded verbatim from the source; no schema field exists for these yet.
| source.category | battery_ess |
