AlicoSolar POWERBOX LV LiFePO4 (4400/6100)
Unknown
GLOBAL

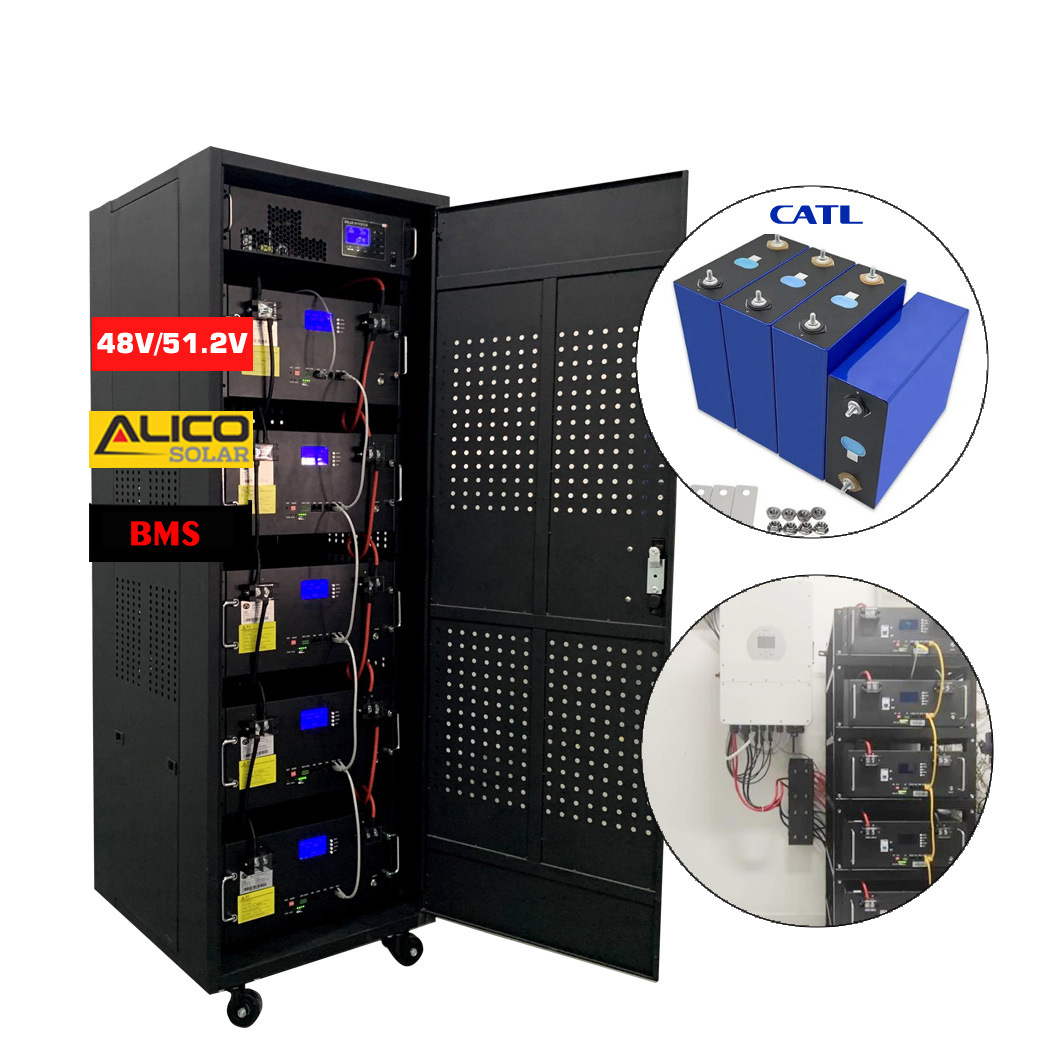

PRODUCT PHOTO · AlicoSolar
PRODUCT PHOTO · AlicoSolar
Identity
| aliases |
['POWERBOX-4400LV', 'POWERBOX-6100LV']
|
| brand |
AlicoSolar
|
| category |
batteries
|
| manufacturer |
AlicoSolar
|
| manufacturer_key |
alicosolar
|
| model |
POWERBOX LV LiFePO4 (4400/6100)
|
| model_key |
powerbox-lv-lifepo4-4400-6100
|
| product_status |
active
|
| region |
GLOBAL
|
Electrical
| bms |
Self-developed BMS with complex protection
|
| chemistry |
LiFePO4
|
| continuous_charging_current_a |
80
|
| continuous_discharging_current_a |
100
|
| cycle_life_at_80DoD_25C |
>6000
|
| depth_of_discharge_pct |
80
|
| lv_hv |
Low Voltage (51.2V)
|
| models |
['POWERBOX-4400LV', 'POWERBOX-6100LV']
|
| nominal_capacity_kWh |
4.4 (LV4400) / 6.1 (LV6100)
|
| nominal_capacity_wh |
[4400, 6100]
|
| nominal_voltage_v |
51.2
|
| operating_voltage_range_v |
44.8-58.4
|
| short_description |
LFP high-capacity li-ion. On/off-grid. Modular plug-and-play expandability.
|
Physical / mechanical
| dimensions_mm |
393x540x161 (LV4400) / 393x540x198 (LV6100)
|
| installation_type |
Ground Mounted / Wall-Hanging
|
| ip_rating |
IP20
|
| weight_kg |
46 (LV4400) / 60 (LV6100)
|
Environment
| humidity_pct |
5-95%
|
| operating_altitude_m |
<3000
|
| operating_temperature_c |
0 to 45
|
| storage_temperature_c |
-20 to 45
|
Interfaces & connectors
| communication_modes |
['WiFi', 'Bluetooth']
|
| communication_ports |
['RS232', 'RS485', 'CAN']
|
Protection
| operating_life_years |
10
|
| warranty_years |
10
|
Certifications
| standards |
['CE', 'IEC62619 (Cell & Pack)', 'UL1973', 'CEC', 'UN38.3']
|
Additional documented parameters
Recorded verbatim from the source; no schema field exists for these yet.
| source.category | battery_ess |
