Identity

category	batteries
ean	UNKNOWN
generation	SMILE5 / BAT-10.1P
manufacturer	AlphaESS
market_version	SMILE-BAT-10.1P (AUS)

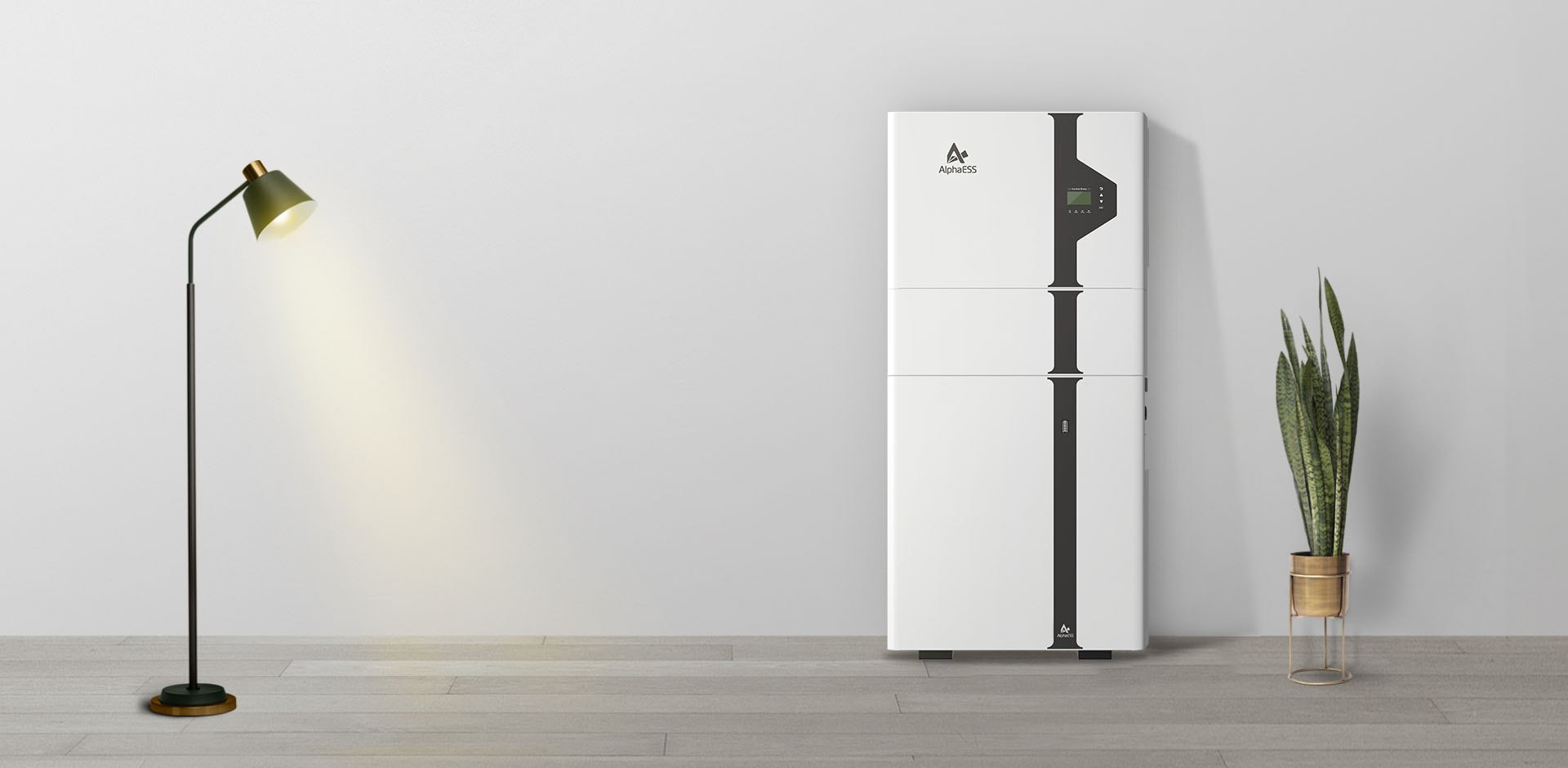

model	SMILE5 (SMILE-BAT-10.1P)
mpn	SMILE-BAT-10.1P
product_family	AlphaESS SMILE5 residential ESS (battery module options 2.9 / 5.7 / 10.1 / 13.3 kWh)
product_revision	SMILE-BAT-10.1P (a later SMILE-G3-BAT-10.1P generation exists)
product_status	UNKNOWN
product_status_detail	UNKNOWN (superseded on the AlphaESS site by SMILE-G3 / StaX / M-series products, but the SMILE5 product page is still live)
region	AU (the fetched datasheet and manual are the AUS releases)
release_year	UNKNOWN
sku	UNKNOWN

Electrical

chemistry	LFP (LiFePO4)
communication_can	yes - datasheet 'Communication: CAN and RS-485 compatible'
communication_rs485	yes - datasheet 'Communication: CAN and RS-485 compatible'
firmware_requirements	UNKNOWN
max_continuous_charge_current_a	100
max_continuous_discharge_current_a	100
max_continuous_power_kw	5
max_parallel_units	6
max_series_units	N/A
min_series_units_hv	N/A
nominal_energy_kwh	10.1
nominal_voltage_v	48
officially_supported_inverter_brands	N/A (SMILE5 is an integrated all-in-one battery+hybrid-inverter appliance, similar to Powerwall)
officially_supported_inverter_models	N/A
peak_current_a	UNKNOWN
supported_inverter_protocols	['Ethernet', 'Wi-Fi (app/DR controllable)']
usable_energy_kwh	9.1 SMILE-BAT-10.1P Datasheet (EN, AUS) — datasheet spec table, 'Usable Capacity: 9.1 kWh'
voltage_class	LV
voltage_range_v	45 ~ 54 (datasheet 'Operating Voltage Range: 45 ~ 54 V') SMILE-BAT-10.1P Datasheet (EN, AUS) — datasheet spec table, 'Operating Voltage Range: 45 ~ 54 V'

Physical / mechanical

depth_mm	236
enclosure_material	430 stainless steel (SUS 430), material thickness 1.5 mm (installation manual p.11) Installation Manual Battery Module SMILE-BAT-10.1P (AU) V01 — installation manual p.11, 'The externals enclosure's material is 430 steel (SUS 430). The material thickness is 1.5 mm.'
height_mm	693
mounting_bolt_size	supplied fasteners: 6x M8x60, 6x M5x10, 6x M4x10, plus M6 gaskets and 2x battery brackets (installation manual p.9 parts list)
mounting_type	['floor', 'wall']
shipping_weight_kg	UNKNOWN
terminal_locations	DC power terminals (red positive / black negative) and a communication cable to the inverter BAT port (installation manual p.17)
torque_specs	UNKNOWN
weight_kg	95 SMILE-BAT-10.1P Datasheet (EN, AUS) — datasheet, 'System Weight: 95 kg'
width_mm	610 SMILE-BAT-10.1P Datasheet (EN, AUS) — datasheet, 'Dimension (W x D x H): 610 x 236 x 693 mm'

Installation

clearance_notes	at least 600 mm from any hot source, any exit and any window; not less than 1 m clearance to a fire exit; 900 mm from 240 V connections (installation manual p.12)
indoor_outdoor	indoor or outdoor - IP65 rated (datasheet 'IP Protection: IP65 (Outdoor)'; installation manual p.13)
installation_temperature_range_c	-10 to +50 ('do not install the system in any environment of temperature below -10 C or over 50 C', manual p.8)
max_installation_altitude_m	3000
max_mounting_height_m	2.2 Installation Manual Battery Module SMILE-BAT-10.1P (AU) V01 — installation manual p.12, 'mounted with the highest point no greater than 2.2 m above floor'
mounting_orientation	UNKNOWN (upright; brackets supplied)
ventilation_requirements	natural ventilation required (installation manual p.11)

Environment

cooling_method	natural ventilation / natural convection
ip_rating	IP65 (Outdoor) SMILE-BAT-10.1P Datasheet (EN, AUS) — datasheet, 'IP Protection: IP65 (Outdoor)'
max_altitude_m	3000
operating_temperature_c	-10 to +50
relative_humidity	0 ~ 95% (datasheet); the installation manual instead prohibits operation where 'humidity is over 85%' (manual p.8)
storage_temperature_c	-20 to +45 ('Store within the recommended limit of -20 C to 45 C', manual V02 p.30)

Interfaces & connectors

can	yes (datasheet 'CAN and RS-485 compatible')
protocol_notes	DIP switch configuration is used to address modules in a parallel stack (installation manual p.17). Battery communicates to the SMILE5 inverter BAT port.
rs485	yes (datasheet 'CAN and RS-485 compatible')

Protection

short_circuit

320 A / 4.5 ms (datasheet 'Short Circuit current: 320 A / 4.5 ms')

Certifications

emc	[]
other	[]
regional	[]
safety	['IEC 62619 (Cell)', 'IEC 62619 (Pack)']
transport	['UN38.3']

Warranty & service

conditions	'5 Year Product Warranty, 10 Year Performance Warranty' (datasheet); standard warranty applies when the system is 'operated strictly in accordance with user manual' (manual p.23)
cycle_life	8000 (datasheet 'Cycle Life: 8000') SMILE-BAT-10.1P Datasheet (EN, AUS) — datasheet, 'Cycle Life: 8000'
design_life_years	UNKNOWN
performance_warranty_years	10
standard_years	5

Packaging & logistics

transport_restrictions

UN38.3

Documents

datasheet SMILE-BAT-10.1P Datasheet (EN, AUS) rev V06

installation-manual Installation Manual Battery Module SMILE-BAT-10.1P (AU) V01 rev V01

installation-manual Installation Manual Battery Module SMILE-BAT-10.1P (AU) V02 rev V02

product-page AlphaESS SMILE5 - official product page rev UNKNOWN

Recorded conflicts

environment.relative_humidity Review required

0 ~ 95% — AlphaESS SMILE-BAT-10.1P datasheet V06 (fetched 2026-09-02)

must not exceed 85% — AlphaESS SMILE-BAT-10.1P (AU) installation manual p.8 (fetched 2026-09-02)

Datasheet publishes the pack's tolerated humidity range; the installation manual publishes an installation-site limit. Both retained.
