Dyness PowerBrick Pro
Official manufacturer global (EN documentation); also sold via Dyness USA verified Sept. 2, 2026
Identity
| category | batteries |
| ean | UNKNOWN |
| generation | UNKNOWN |
| hardware_revision | UNKNOWN |
| legacy_name | UNKNOWN |
| manufacturer | Dyness (Jiangsu Dyness Digital Energy Technology Co., Ltd.) |
| market_version | UNKNOWN |
| model | PowerBrick Pro |
| mpn | UNKNOWN |
| product_family | PowerBrick |
| product_status | UNKNOWN |
| product_status_detail | current |
| product_status_evidence | Live official product page https://www.dyness.com/powerbrick-pro-low-voltage-storage-batteries-for-household-use and a live listing on the official Dyness USA store https://dyness.us/products/dyness-powerbrick-pro-low-voltage-storage-batteries-for-household-use (accessed 2026-09-02) |
| region | global (EN documentation); also sold via Dyness USA |
| release_year | UNKNOWN |
| sku | UNKNOWN |
| subcategory | low-voltage residential lithium battery module (48V class) |
| variant_note | IP65 variant of PowerBrick with the same 51.2V / 280Ah / 14.336 kWh electrical rating; differs from base PowerBrick in ingress protection (IP65 vs IP20), weight (115 vs 114 kg) and height (850 vs 857 mm). |
Electrical
| cell_chemistry | LiFePO4 |
| cell_type | 280Ah LFP cell (Dyness USA page: "280Ah LFP cells") |
| continuous_charge_current_a | UNKNOWN |
| continuous_discharge_current_a | UNKNOWN |
| continuous_power_kw | UNKNOWN |
| cycle_life | 8000 |
| depth_of_discharge_pct | 95 |
| max_charge_current_a | 200 |
| max_charge_power_kw | UNKNOWN |
| max_discharge_current_a | 200 |
| max_discharge_power_kw | UNKNOWN |
| max_parallel_units | 50 |
| max_series_units | UNKNOWN |
| nominal_capacity_ah | 280 |
| nominal_energy_kwh | 14.336 |
| nominal_voltage_v | 51.2 |
| operating_voltage_max_v | 57.6 |
| operating_voltage_min_v | 44.8 |
| parallel_supported | True |
| peak_charge_current_a | UNKNOWN |
| peak_discharge_current_a | UNKNOWN |
| peak_power_kw | UNKNOWN |
| round_trip_efficiency_pct | UNKNOWN |
| series_supported | UNKNOWN |
| system_energy_max_kwh | 716.8 |
| system_energy_min_kwh | 14.336 |
| usable_energy_kwh | UNKNOWN |
Physical / mechanical
| cooling_method | UNKNOWN |
| depth_mm | 235 |
| height_mm | 850 |
| installation_notes | UNKNOWN |
| ip_rating | IP65 |
| mounting_type | floor-standing (ENF directory lists Mounting Options: Floor) |
| rack_units | UNKNOWN |
| weight_kg | 115 |
| width_mm | 435 |
Installation
| indoor_outdoor | indoor/outdoor capable (IP65) |
| notes | Official page: "Maximum Capacity Range 14.3kWh to 716.8kWh (50 units parallel)" |
| parallel_hub_required | UNKNOWN |
Environment
| indoor_outdoor | indoor or outdoor (IP65) |
| max_altitude_m | UNKNOWN |
| operating_humidity | UNKNOWN |
| operating_temperature_charge_max_c | 55 |
| operating_temperature_charge_min_c | 0 |
| operating_temperature_discharge_max_c | 55 |
| operating_temperature_discharge_min_c | -20 |
| operating_temperature_max_c | 55 |
| operating_temperature_min_c | -20 |
| storage_temperature_max_c | UNKNOWN |
| storage_temperature_min_c | UNKNOWN |
Interfaces & connectors
| bluetooth | UNKNOWN |
| can | True |

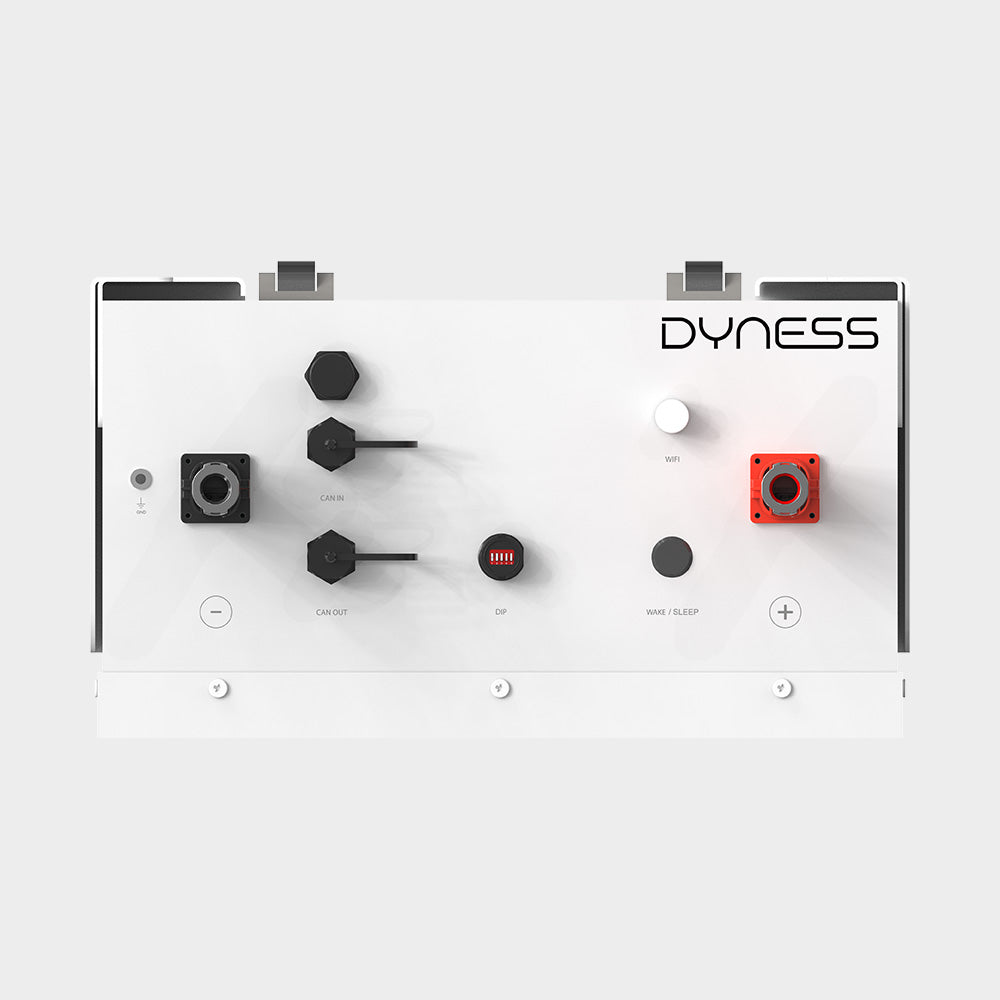

| communication_ports | CAN, RS485, WiFi |
| dry_contact | UNKNOWN |
| ethernet | UNKNOWN |
| modbus_rtu | UNKNOWN |
| modbus_tcp | UNKNOWN |
| protocol_notes | UNKNOWN - the PowerBrick Pro user manual (which carries the DIP-switch protocol table) is hosted only on dyness.com under a robots-disallowed path and could not be fetched. |
| rs232 | UNKNOWN |
| rs485 | True |
| usb | UNKNOWN |
| wifi | True |
Protection
| fire_suppression | UNKNOWN |
| notes | UNKNOWN |
Certifications
| safety_certifications | UNKNOWN |
| standards | UNKNOWN |
| transport_certifications | UNKNOWN |
Warranty & service
| conditions | UNKNOWN |
| summary | 10 years per dyness.com ("≥8000 cycles / 10 Years") and the ENF directory ("Product Warranty 10 Years"). The Dyness USA store states 7 years - see data_conflicts. |
| years | 10 |
Documents
datasheet
{# Located but never retrieved: listed, but deliberately not linked, and it
backs no stored value. #}
PowerBrick Pro Datasheet EN 2025-06-24 (official, on dyness.com) — located, not retrieved
rev 20250624
user_manual
{# Located but never retrieved: listed, but deliberately not linked, and it
backs no stored value. #}
PowerBrick Pro USER MANUAL 51.2V/280Ah Battery Module (official, on dyness.com) — located, not retrieved
rev V0
Recorded conflicts
physical.depth_mm Review required
435*235*850mm (W*D*H) — Dyness official PowerBrick Pro product page
235x435x850 mm (L/W/H) — ENF Solar directory
warranty.years Review required
10 Years — Dyness official PowerBrick Pro product page ("≥8000 cycles / 10 Years")
7 years — Dyness USA official store product page
Additional documented parameters
Recorded verbatim from the source; no schema field exists for these yet.
| Battery cells (Dyness USA) | 280Ah LFP cells |
| Cycles (Dyness USA) | 8000+ cycles |
| Maximum Capacity Range | 14.3kWh to 716.8kWh (50 units parallel) |
| Operating Temperature | -20°C to 55°C (optional) |
| identity.product_status | current |
| manufacturer_legal_entity_as_printed | Jiangsu Dyness Digital Energy Technology Co., Ltd. |
