ANMA System Building

Identity

category	batteries
ean	UNKNOWN
generation	UNKNOWN
manufacturer	EG4
market_version	US (UL 1973 / UL 9540A)

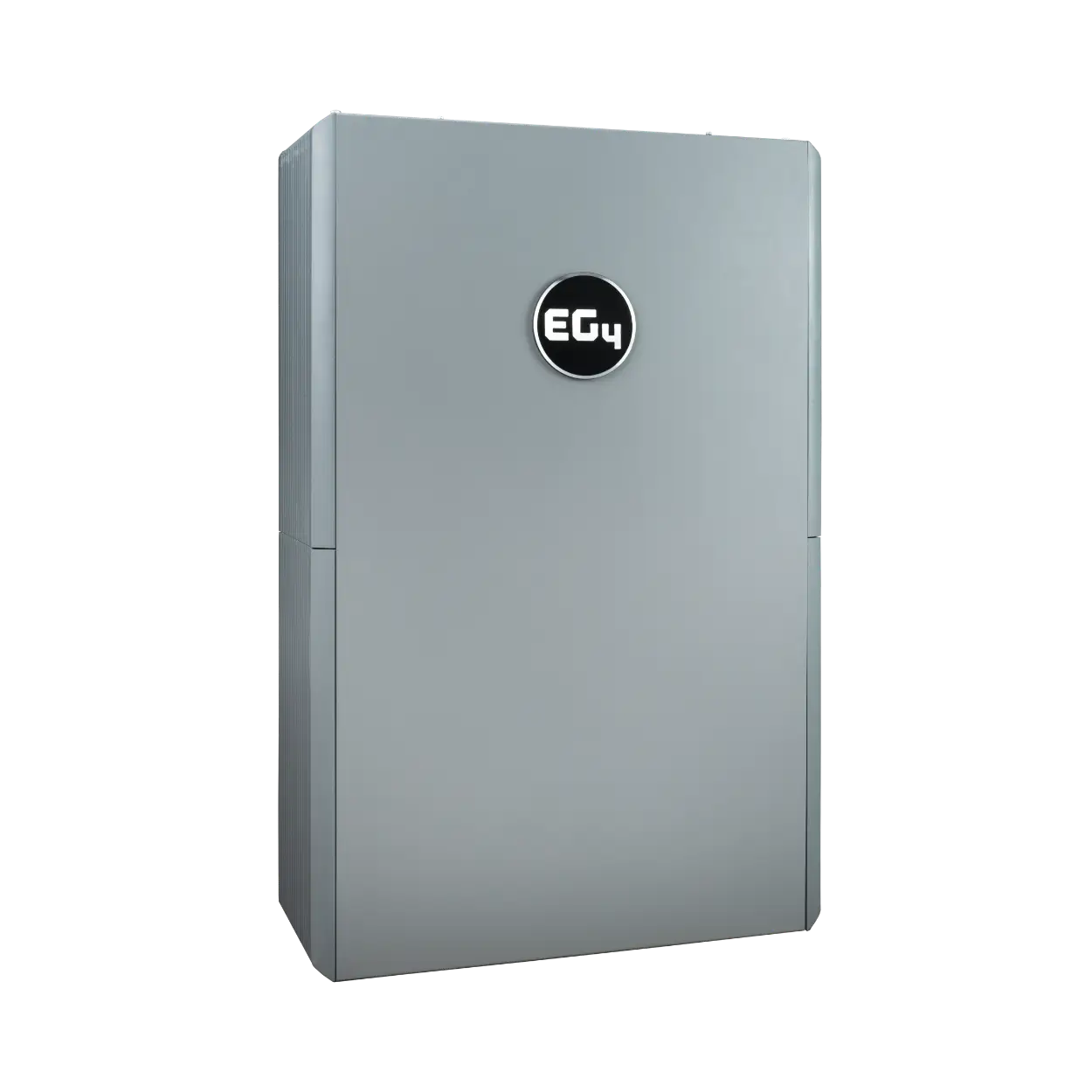

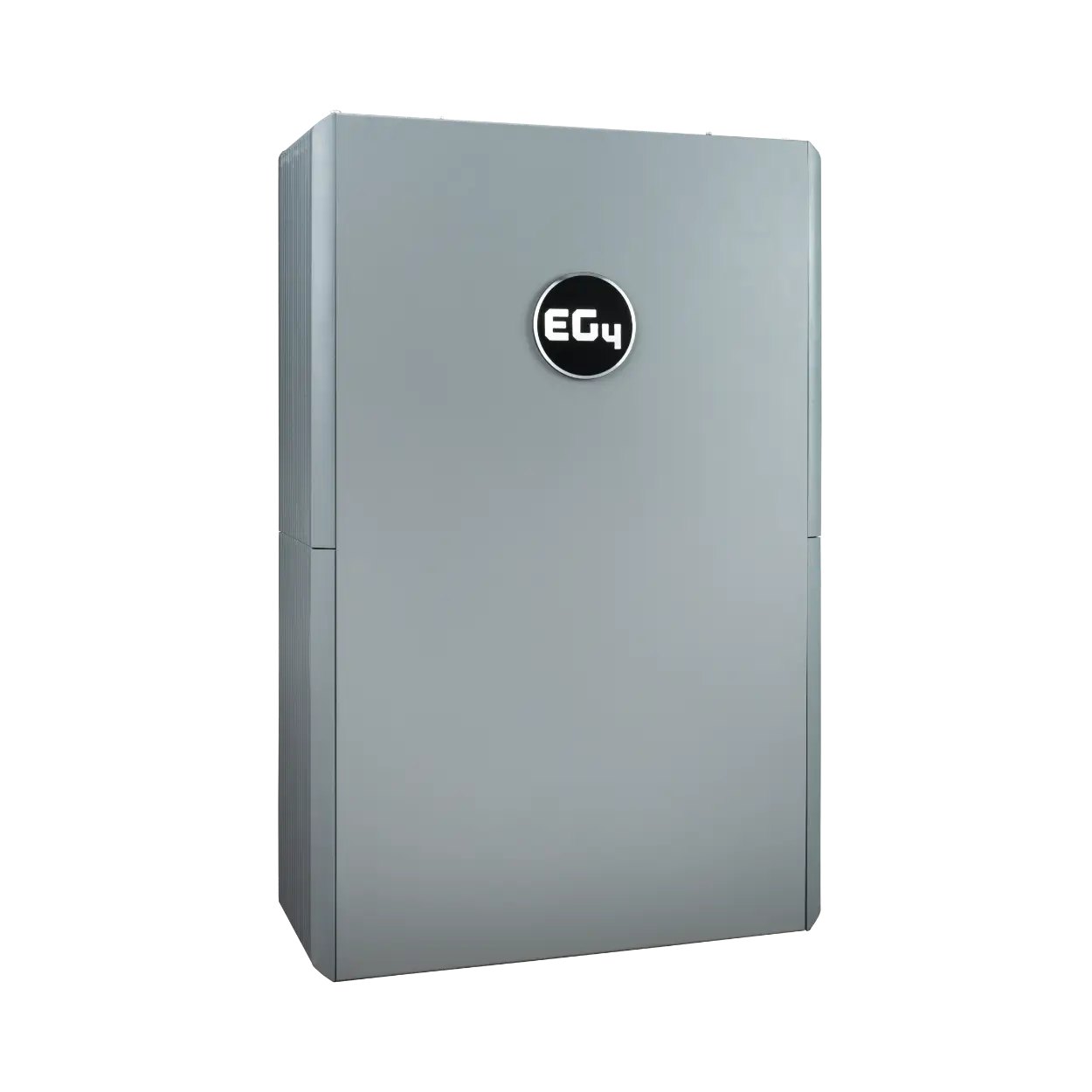

model	PowerPro WallMount 14.3kWh All Weather
mpn	WP-16/280-1AWLL (spec sheet VER 1.2.1 also prints 'WP-16/280-1-AWLL'); product page also lists 'WM-48-280-1-AW'
product_family	EG4 WallMount All Weather / PowerPro WallMount
product_revision	UNKNOWN
product_status	active
region	NA (US)
release_year	UNKNOWN
sku	EG4LL48V100AODWMBV2

Electrical

chemistry	LFP
communication_can	True
communication_rs485	True
firmware_requirements	Default BMS caps charge current at 100A; 140A/200A rates require optional firmware update from eg4electronics.com/downloads
max_continuous_charge_current_a	100 (default; 140/200A available via firmware update)
max_continuous_discharge_current_a	200
max_continuous_power_kw	10.2
max_parallel_units	UNKNOWN
max_series_units	N/A (LV parallel stack)
min_series_units_hv	N/A
nominal_energy_kwh	14.3
nominal_voltage_v	48
officially_supported_inverter_brands	['EG4', 'Schneider', 'Sol-Ark', 'Victron', 'Growatt', 'Megarevo', 'Luxpower', 'Deye']
officially_supported_inverter_models	UNKNOWN (brand-level only)
peak_current_a	>600 (short-circuit protection threshold)
supported_inverter_protocols	['CAN', 'RS485 (selectable protocol)']
usable_energy_kwh	11.44
voltage_class	LV
voltage_range_v	44.8-56.0

Physical / mechanical

cable_gland_sizes	conduit-box cable glands for 1 in, 1.5 in and 2.5 in knockouts, qty 16 (optional conduit box kit, manual p.6)
depth_mm	232
enclosure_material	UNKNOWN (sealed IP65 enclosure; material not stated)
height_mm	916
mounting_bolt_size	M8x70 concrete expansion bolts, qty 6 supplied (manual 1.0.2 p.6); 4 side screws fix the battery to the bracket (p.12)
mounting_plate_dimensions_mm	UNKNOWN (bracket must be set at min. 28.0625 in / 713 mm from the ground, manual p.12)
mounting_type	['wall', 'floor']
shipping_weight_kg	UNKNOWN
terminal_locations	side view, 'Figure 2: Battery diagram (side view)' (manual 1.0.2 p.8)
torque_specs	UNKNOWN (no terminal torque printed in manual 1.0.2)
weight_kg	140 EG4 14.3kWh PowerPro WallMount All Weather Battery - Spec Sheet — spec sheet VER 1.2.1, 'Weight 308.6 lbs. (140 kg)'
width_mm	566 EG4 14.3kWh PowerPro WallMount All Weather Battery - Spec Sheet — spec sheet VER 1.2.1, 'Dimensions 36.1 x 22.3 x 9.1 in. (916 x 566 x 232 mm)'

Installation

clearance_bottom_mm	UNKNOWN
clearance_front_mm	not required - '12-inch clearance on each side of the battery (back and front sides excluded)' (manual p.7)
clearance_left_mm	305
clearance_right_mm	305
clearance_top_mm	UNKNOWN
indoor_outdoor	outdoor rated, IP65 all-weather, with integrated self-heating for low ambient temperatures (manual p.5)
max_installation_altitude_m	UNKNOWN
mounting_orientation	upright only - 'Always mount the battery in an upright position' (manual 1.0.2 p.9)
orientation_allowed	['upright / vertical']
orientation_forbidden	['horizontal', 'inverted', 'sideways']
surface_requirements	'ensure bolts are mounted into both studs or other supportive material. The battery is 300lb, please ensure full mounting support' (manual p.12); concrete/brick uses the supplied expansion bolts
two_person_lift_required	UNKNOWN (140 kg unit)

Environment

charge_temperature_c	0 to +50 (spec sheet VER 1.2.1); manual 1.0.2 p.39 prints 'Charging Range 32 to 113 F (0 C to 45 C)' EG4 14.3kWh PowerPro WallMount All Weather Battery - Spec Sheet — spec sheet VER 1.2.1, 'Charging 32 F to 122 F (0 C to 50 C)'
cooling_method	passive / ambient air circulation; no active cooling documented
discharge_temperature_c	-20 to +55 (spec sheet VER 1.2.1); manual 1.0.2 p.39 prints 'Discharging Range -4 F to 122 F (-20 C to 50 C)'
heating_method	integrated self-heating: battery heater 56 V, 224 W; heat ON at internal battery temperature <=0 C (32 F), heat OFF at >=5 C (41 F) (manual 1.0.2 p.40) EG4 14.3kWh PowerPro WallMount All Weather Battery - User Manual — manual 1.0.2 p.40, 'Battery Heater Specifications: Voltage 56V, Power Consumption 224W; Internal Battery Temperature <=32 F (0 C) / >=41 F (5 C) Heat On/Heat Off'
ip_rating	IP65
operating_temperature_c	charge 0 to +50; discharge -20 to +55 (spec sheet VER 1.2.1)
relative_humidity	UNKNOWN
storage_temperature_c	0 to +45 (spec sheet VER 1.2.1); manual 1.0.2 p.39-41 prints '-4 F to 122 F (-20 C to 50 C)'

Interfaces & connectors

battery_terminal_type	250 A outdoor-rated connectors, 'Amphenol SurLok or equivalent'; 2/0 AWG (70 mm2) power cables (manual p.5-6, p.18)
can	yes - Battery-Comm RJ45 Pin 4 CAN_H, Pin 5 CAN_L (manual p.8)
dry_contacts	Battery-Comm port Pin 3 & Pin 6 = E-Stop NO (emergency stop, normally open); supports a remote Rapid Shutdown Initiator (RSD) or ESS e-stop (manual p.5, p.8, p.23) EG4 14.3kWh PowerPro WallMount All Weather Battery - User Manual — manual 1.0.2 p.8, 'Pin 3 & Pin 6 - E-Stop NO'
protocol_notes	Closed-loop CAN or RS485; the battery menu lets the installer 'select the corresponding RS485 program or CAN program' for supported non-EG4 inverters (manual p.24, p.26-27). DIP switch sets battery ID, available ID codes 1-64, master battery = address 1 (manual p.24, Figure 12). BMS Tools PC software connects over USB to the RS485 port at 9600 baud (manual p.27-31).
rs232	not supported
rs485	yes - Pin 1 & Pin 8 RS485_B, Pin 2 & Pin 7 RS485_A; also used for firmware update (manual p.5, p.8)

Controls & display

buttons	4 function buttons: Up, Down, Return, Enter (manual Figure 13, p.25); any key wakes the screen
display_type	built-in HD LCD touch screen showing voltage, current, temperature and SOC (manual p.25)
leds	ALM (alarm), RUN, SOC1, SOC2, SOC3/4 (manual p.35-36)
local_display	True
mobile_app	EG4 Connect (named on the official product page)
pc_software	BMS Tools, from eg4electronics.com/downloads (manual p.27)
touchscreen	manual p.25 calls it a 'built-in HD LCD touch screen' but also documents 4 function buttons (Up, Down, Return, Enter) as the navigation method
web_interface	UNKNOWN

Protection

cell_balancing	120 mA passive balancing, engaged when cell voltage difference >40 mV (manual p.33, p.39)
emergency_stop	E-stop circuit supporting a remote Rapid Shutdown Initiator (RSD) or ESS (manual p.5)
fire_suppression	two onboard fire-extinguishing modules (manual p.5)
integrated_breakers_fuses	UNKNOWN
over_current	Over-charge current 1 >205 A (10 s); over-charge current 2 >225 A (3 s); over-discharge current 1 >205 A (10 s, 60 s recovery); over-discharge current 2 >300 A (3 s, 60 s recovery) (manual p.39)
over_temperature	charge blocked <-5 C or >70 C (1 s delay); discharge blocked <-20 C or >75 C (1 s delay); PCB over-temperature shutdown (manual p.33-34, p.39)
over_voltage	Cell OV 3.8 V (1 s delay, recovery 3.45 V); Module OV 60.0 V (1 s delay, recovery 55.2 V) (manual p.39)
short_circuit	>600 A, <0.1 ms (manual p.39) EG4 14.3kWh PowerPro WallMount All Weather Battery - User Manual — manual 1.0.2 p.39, 'Short Circuit >600A <0.1 mS'
under_voltage	Cell UV 2.3 V (1 s delay, recovery 3.1 V); Module UV 44.8 V (1 s delay, recovery 48 V) (manual p.39)

Certifications

emc	[]
grid_codes	[]
other	['UL 9540 listing applies to the integrated battery + conduit box + inverter system (manual p.19)']
regional	[]
safety	['UL 1973 (cell and module level)', 'UL 9540A (passed)']

Warranty & service

conditions	'EG4 10 Year Limited Warranty'; 'warranty must be registered within the first year of purchase to remain valid'; 'All BMS and cell exchanges are covered throughout the warranty period'; 'warranty is prorated 1/9th per year after the first year at the current retail pricing' (manual p.37)
cycle_life	>8000 cycles @ 0.5C, 80% DOD; lifetime production 82.6 MWh (manual p.40, spec sheet VER 1.2.1) EG4 14.3kWh PowerPro WallMount All Weather Battery - Spec Sheet — spec sheet VER 1.2.1, '>8000 Cycles @ 0.5C 80% DOD', 'Lifetime Production 82.6MWh'
design_life_years	>15 (manual p.40)
extended_options_years	[]
field_replaceable_parts	['BMS', 'cells (covered by warranty exchange)']
standard_years	10

Packaging & logistics

transport_restrictions

UNKNOWN (lithium battery, UN38.3 not printed on the fetched EG4 documents)

Documents

datasheet EG4 14.3kWh PowerPro WallMount All Weather Battery - Spec Sheet rev VER. 1.2.1

product-page EG4 WallMount All Weather - official product page rev UNKNOWN

user-manual EG4 14.3kWh PowerPro WallMount All Weather Battery - User Manual rev 1.0.2

Recorded conflicts

environment temperature ranges Review required

charge 0 to 45 C; discharge -20 to 50 C; storage -20 to 50 C — EG4 manual 1.0.2 p.39-41

charge 0 to 50 C; discharge -20 to 55 C; storage 0 to 45 C — EG4 spec sheet VER 1.2.1

Document revision; all three ranges were restated between manual 1.0.2 and spec sheet VER 1.2.1.

physical dimensions Review required

880 x 566 x 232 mm (H x W x D) — EG4 manual 1.0.2 p.40, '34.6 in. x 22.3 in. x 9.1 in. (88.0 cm x 56.6 cm x 23.2 cm)'

916 x 566 x 232 mm — EG4 spec sheet VER 1.2.1, '36.1 x 22.3 x 9.1 in. (916 x 566 x 232 mm)'

Document revision - the height figure changed by 36 mm between manual 1.0.2 and spec sheet 1.2.1 (probably with/without the mounting bracket or the lifting lip).

nominal_voltage_v Review required

48 — existing ANMA record

51.2 — EG4 manual 1.0.2 p.39 and spec sheet VER 1.2.1, both 'Nominal Voltage 51.2V'

48 V is the nominal system class; EG4 prints 51.2 V (16S LFP) as the nominal pack voltage.

max_continuous_charge_current_a Review required

100 A default; 140 A / 200 A available via firmware update — EG4 manual 1.0.2 p.39-40 ('100/140/200A (Max. continuous)')

140 A max. continuous — EG4 spec sheet VER 1.2.1 (fetched 2026-09-02)

Document revision / firmware-dependent rating; the newer spec sheet publishes a single 140 A figure.

max_continuous_discharge_current_a Review required

200 A max. continuous — EG4 spec sheet 1.0.1 (the record's existing source_url) and manual 1.0.2 p.39

140 A max. continuous (200 A for 30 minutes maximum) — EG4 spec sheet VER 1.2.1 (fetched 2026-09-02) and the official product page 'max continuous discharge of 140A'

Document revision: EG4 restated the 200 A figure as a 30-minute rating and lowered the continuous rating to 140 A between spec-sheet revisions 1.0.1 and 1.2.1.
