Identity

architecture_note	one LUNA2000-5KW-C0 power (control) module is paired with one LUNA2000-5-E0 5 kWh battery module in the -5-S0; the -10-S0 uses 2+2 and the -15-S0 uses 3+3. The power module is mandatory and is counted separately from the battery modules.
category	batteries
ean	UNKNOWN
generation	S0 disputed
hardware_revision	UNKNOWN
legacy_name	None observed.
manufacturer	Huawei
market_version	EU datasheet 01-202411

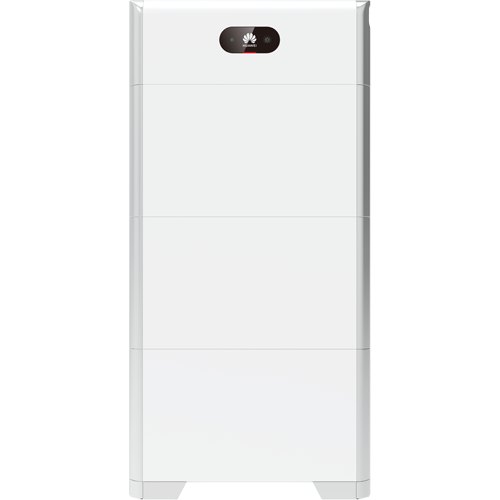

model	LUNA2000-5-S0
mpn	LUNA2000-5-S0
order_code	UNKNOWN
product_family	LUNA2000-5/10/15-S0 (Smart String ESS) disputed
product_status	active
product_status_evidence	The S0 product page and datasheet remain live on solar.huawei.com (accessed 2026-09-03), but the S0 family does NOT appear on Huawei's current Energy Storage System products list, which shows only the S1 family for residential. No end-of-life or discontinuation statement was found in any fetched Huawei document, so status is recorded as UNKNOWN rather than guessed.
region	EU/global
release_year	UNKNOWN
sku	UNKNOWN
subcategory	high_voltage_stackable_dc_coupled_battery_system
variant_note	System-level SKU. Composed of one LUNA2000-5KW-C0 power module plus 1 x LUNA2000-5-E0 battery module(s) of 5 kWh each.

Electrical

architecture	HV (high-voltage DC-coupled, series-stacked)
cell_chemistry	Lithium-iron phosphate (LiFePO4)
chemistry	LFP (LiFePO4)
communication_can	True
communication_rs485	True
cycle_life	UNKNOWN
depth_of_discharge_pct	100
expansion_rules	1 to 3 x LUNA2000-5-E0 battery modules per system (5 / 10 / 15 kWh). Parallel operation is supported via RS485/CAN but the maximum number of parallel systems is not published.
firmware_requirements	S0 user manual: SUN2000-(8K, 10K)-LC0 and SUN2000-(12K-25K)-MB0 require FusionSolarDG V100R002C00SPC125 or later
max_charge_current_a	UNKNOWN
max_charge_power_kw	UNKNOWN — Huawei's S0 table states only 'Max. output power' (a DISCHARGE figure). No charging-power row is published; the output figure must not be reused as a charge limit.
max_continuous_charge_current_a	UNKNOWN (rated by power: 2.5 kW)
max_continuous_discharge_current_a	UNKNOWN (rated by power: 2.5 kW)
max_continuous_power_kw	2.5 LUNA2000-5/10/15-S0 Specs (official product page) — 'Max. output power 2.5 kW' (LUNA2000-5-S0 column)
max_discharge_current_a	UNKNOWN
max_discharge_power_kw	2.5
max_parallel_units	UNKNOWN for the -S0 family on the datasheet; the S0 user manual states two power control modules can operate in parallel
max_series_units	3
max_towers_or_parallel_systems	UNKNOWN — the S0 specification table has no scalability row. Parallel operation is implied by 'RS485/CAN (only for parallel operation)' but no maximum count is published in any fetched document. The S1 limit of 4 must NOT be applied to S0.
min_series_units_hv	1
mixed_module_restrictions	Only one battery module type exists in this generation (LUNA2000-5-E0, 5 kWh), so no mixing question arises within S0. Mixing E0 modules with S1-generation E1 modules is NOT documented and must not be assumed.
module_energy_kwh	5 (LUNA2000-5-E0) — per MODULE, not this system
modules_installed_this_sku	1
modules_max	3
modules_min	1
nominal_energy_kwh	5
nominal_voltage_v	450 (single-phase application) / 600 (three-phase application) disputed
officially_supported_inverter_brands	['Huawei']
officially_supported_inverter_models	['SUN2000-2/3/3.68/4/4.6/5/6KTL-L1', 'SUN2000-8/10K-LC0', 'SUN2000-3/4/5/6/8/10KTL-M1', 'SUN2000-12/15/17/20/25K-MB0', 'SUN2000-5/6/8/10/12K-MAP0', 'SUN5000-8/12K-MAP0', 'SUN5000-17/25K-MB0', 'SUN2000-3/3.68/4/4.6/5/6K-LB0', 'SUN5000-3/6K-LB0'] LUNA2000-5/10/15-S0 Specs (official product page) — 'Compatible Inverters' row
operating_voltage_max_v	560 (single-phase) / 980 (three-phase)
operating_voltage_min_v	350 (single-phase) / 600 (three-phase)
peak_current_a	UNKNOWN (rated by power: 3.5 kW for 10 s)
peak_power_duration	10 s
peak_power_kw	3.5
rated_power_kw	UNKNOWN
round_trip_efficiency_pct	UNKNOWN
supported_inverter_protocols	['RS485', 'CAN (parallel operation only)']
usable_energy_kwh	5
voltage_class	HV
voltage_range_v	350-560 (single-phase inverters); 600-980 (three-phase inverters) LUNA2000-5/10/15-S0 Specs (official product page) — 'Operating voltage range (single-phase) 350 - 560 V'; '(three-phase) 600 - 980 V'

Physical / mechanical

battery_module_dimensions_mm	670 x 150 x 360 (W x D x H)
cooling	Natural convection
depth_mm	150
dimensions	670 x 150 x 600 mm
dimensions_note	W x D x H, complete system including power module and 1 battery module(s).
enclosure_material	UNKNOWN
height_mm	600
housing_color	white
ip_rating	IP 66
module_weight_kg	50
mounting_type	['floor', 'wall'] disputed
noise_emission	< 29 dB
power_module_dimensions_mm	670 x 150 x 240 (W x D x H)
power_module_weight_kg	12
shipping_weight_kg	UNKNOWN
stack_dimensions_by_size_mm	LUNA2000-5-S0 670x150x600; -10-S0 670x150x960; -15-S0 670x150x1320 (W x D x H, incl. floor stand)
stack_weight_by_size_kg	5-S0 63.8; 10-S0 113.8; 15-S0 163.8 (with floor stand toolkit)
torque_specs	UNKNOWN
weight_kg	63.8
weight_note	Huawei's label is 'Weight (with floor stand)'.
width_mm	670

Installation

connectors	UNKNOWN
indoor_outdoor	Outdoor / Indoor
installation_humidity_range	5-95 % RH
installation_note	S0 user manual: 'It is recommended that the ESS be mounted on a wall higher than the bumper to prevent collision' (garage installations)
installation_restrictions	Footnote *4: 'Outdoor installation is recommended. For indoor installation, refer to the user manual'. Floor stand standard, wall mount optional.
installation_temperature_range_c	UNKNOWN
max_installation_altitude_m	4000
maximum_modules_per_stack	3 battery expansion modules per power control module (S0 user manual)
maximum_stacks_in_parallel	2 power control modules can operate in parallel (S0 user manual)
minimum_modules_per_stack	1
mounting_orientation	upright
orientation_allowed	['floor stand (standard)', 'wall mount (optional)']
surface_requirements	UNKNOWN
two_person_lift_required	UNKNOWN (50 kg per battery module)

Environment

charge_temperature_c	-20 to +55 with derating below -10 and above +45
cooling_method	natural convection
discharge_temperature_c	-20 to +55 with derating below -10 and above +45
fan_replaceable	N/A (no fan)
humidity	5% - 95% RH
ik_rating	UNKNOWN
indoor_outdoor	Outdoor / Indoor
ip_rating	IP66
max_altitude_m	4000 disputed
nema_rating	UNKNOWN
noise_level_db	< 29 dB
operating_temperature	-20 C to +55 C
operating_temperature_c	-20 to +55 (charge/discharge derated above +45 or below -10 per S0 user manual)
operating_temperature_charge	UNKNOWN — Huawei publishes a single combined operating range for the S0 and does NOT split charge and discharge windows in any fetched document.
operating_temperature_discharge	UNKNOWN — Huawei publishes a single combined operating range for the S0 and does NOT split charge and discharge windows in any fetched document.
relative_humidity	5-95 % RH
storage_temperature	UNKNOWN
storage_temperature_c	-10 to +55 (recommended 20-30)

Interfaces & connectors

battery_terminal_type	UNKNOWN
bluetooth	UNKNOWN
can	yes (parallel operation only) disputed
communication_protocol	UNKNOWN
digital_inputs	Enable port (S0 user manual)
display	SOC status indicator, LED indicator
dry_contacts	UNKNOWN
ethernet	UNKNOWN
fe_ethernet	Not listed. Unlike the S1 generation, the S0 communication row does NOT include FE/Ethernet.
modbus_rtu	UNKNOWN
modbus_tcp	UNKNOWN
ports	UNKNOWN
protocol_notes	Datasheet 'Communication: RS485/CAN (parallel operation only)'. Manual describes COM ports on the power control module and on each expansion module.
rs485	yes (inverter-battery communication) disputed
usb	UNKNOWN
wifi	UNKNOWN

Controls & display

audible_alarm	UNKNOWN
buttons	UNKNOWN
display_type	none
leds	SOC status indicator + LED indicator
local_display	False
mobile_app	FusionSolar
touchscreen	False
web_interface	UNKNOWN

Protection

dc_switch	UNKNOWN
fire_safety	Huawei marketing: built-in intelligent extinguish bag, response in 15 s. Not on the specification table.
integrated_breakers_fuses	UNKNOWN
integrated_dc_switch	UNKNOWN
ip_rating	IP 66
over_current	UNKNOWN
over_temperature	yes (derating and shutdown limits documented)
over_voltage	UNKNOWN
protection_class	UNKNOWN
short_circuit	UNKNOWN
thermal_runaway_measures	UNKNOWN
under_voltage	UNKNOWN

Certifications

emc	[]
grid_codes	[]
list	['CE', 'RCM', 'CEC', 'VDE2510-50', 'IEC62619', 'IEC 60730', 'UN38.3']
other	['UN38.3', 'SN/T 0370.2-2009']
regional	['CE', 'RCM', 'CEC']
safety	['IEC62619', 'IEC 60730', 'VDE2510-50']
source_label	Certificates

Warranty & service

conditions	UNKNOWN
cycle_life	UNKNOWN
design_life_years	UNKNOWN
duration_years	UNKNOWN
field_replaceable_parts	['battery expansion module', 'power control module']
note	No warranty row on the official S0 specification table or datasheet; no Huawei warranty letter fetched.
standard_years	UNKNOWN (not printed on datasheet 01-202411)
throughput_guarantee_mwh	UNKNOWN

Packaging & logistics

gross_weight_kg	UNKNOWN
transport_restrictions	S0 user manual: 'Batteries have obtained the certifications of the UN38.3 ... This product belongs to class 9 dangerous goods.' Maritime transport per IMDG Code; road transport per ADR or JT/T 617. HUAWEI LUNA2000-(5-30)-S0 User Manual Issue 15 — safety/transport chapter

Documents

datasheet LUNA2000-5/10/15-S0 Datasheet (EU) rev 01-202411

datasheet LUNA2000-5/10/15-S0 Specs (official product page) rev UNKNOWN

product_index Energy Storage System Products List rev UNKNOWN

product_page LUNA2000-5-10-15-S0 Smart String Energy Storage System (product overview page) rev UNKNOWN

support_page LUNA2000-5-10-15-S0 Support / document index rev UNKNOWN

user-manual HUAWEI LUNA2000-(5-30)-S0 User Manual Issue 15 rev Issue 15

user_manual {# Located but never retrieved: listed, but deliberately not linked, and it backs no stored value. #} LUNA2000-5/10/15-S0 User Manual — located, not retrieved rev UNKNOWN
