Identity

category	batteries
ean	UNKNOWN
generation	UNKNOWN
manufacturer	LG Energy Solution
market_version	Type-R (RS485, 350-450 V class) and Type-C (CAN, 430-550 V class, 'Matched with SMA Sunny Boy Storage models')

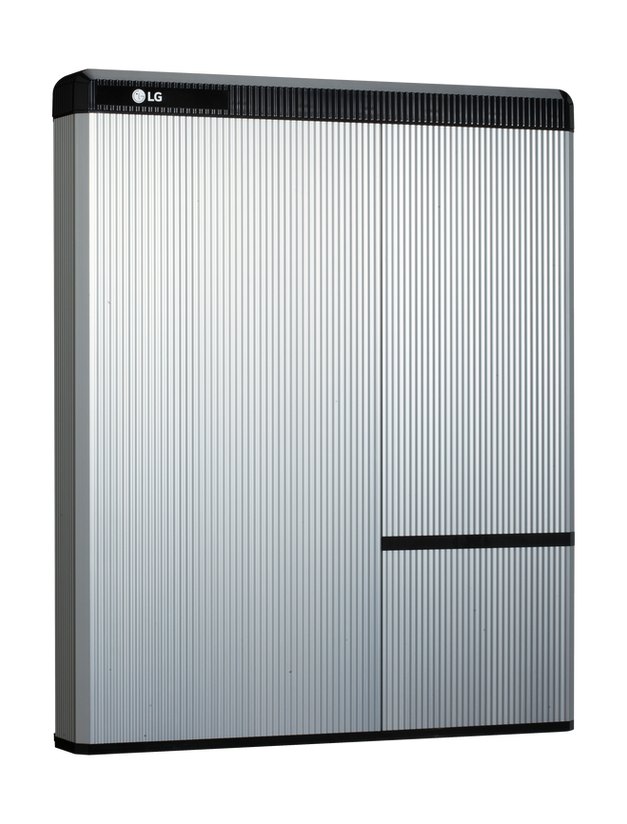

model	RESU10H
mpn	EVESPBO0100B0 (Type-R installation manual p.11, printed as 'P/N EVESPBO0100B0')
product_family	LG RESU High Voltage residential range (RESU7H / RESU10H)
product_revision	sold in two electrically different variants: RESU10H Type-R and RESU10H Type-C
product_status	discontinued
product_status_detail	discontinued (LG Energy Solution Australia RESU10H product page is headed 'RESU10H / Discontinued', checked 2026-09-02)
region	Global (Type-R and Type-C documents fetched here are the EU/AU releases)
release_year	UNKNOWN
sku	UNKNOWN

Electrical

chemistry	UNKNOWN (base RESU line historically NMC; newer RESU Prime line is LFP - not confirmed which this datasheet covers)
communication_can	yes on the Type-C variant (Type-C data sheet 'Communication Interface CAN'); the Type-R variant uses RS485
communication_rs485	True
firmware_requirements	UNKNOWN
max_continuous_charge_current_a	11.9A@420V / 14.3A@350V
max_continuous_discharge_current_a	11.9A@420V / 14.3A@350V
max_continuous_power_kw	5
max_parallel_units	UNKNOWN
max_series_units	N/A (single HV pack)
min_series_units_hv	N/A
nominal_energy_kwh	9.8
nominal_voltage_v	UNKNOWN (not explicitly stated)
officially_supported_inverter_brands	UNKNOWN
officially_supported_inverter_models	UNKNOWN
peak_current_a	18.9A@370V for 10 sec Installation Manual for RESU10H (Type-R) — Type-R manual p.12 'Peak Current 18.9A@370V for 10 sec.'; Type-C data sheet 'Peak Current 16.3A@430V for 10 sec.'
supported_inverter_protocols	['RS485']
usable_energy_kwh	9.3
voltage_class	HV
voltage_range_v	350-450 (charge 400-450V, discharge 350-430V, absolute max 520V)

Physical / mechanical

cable_gland_sizes	3/4 inch conduit plug (Type-R manual p.22)
depth_mm	206
enclosure_material	front/rear aluminium (finished Silver or Gold); top, bottom and LED cover black plastic (Type-R manual p.20)
height_mm	907
housing_color	Silver or Gold
mounting_bolt_size	M6 wall-mount bolts, 2 ea supplied (Type-R manual p.16)
mounting_hole_diameter_mm	anchor hole recommended diameter 10 mm (0.4 in) minimum, recommended length 70 mm (2.8 in) minimum (Type-R manual p.18)
mounting_type	['wall']
shipping_weight_kg	UNKNOWN
terminal_locations	power and communication terminals inside the wiring box on the rear of the pack (Type-R manual p.23-24)
torque_specs	M6 wall-mount bolt: 'Tighten to a torque of 5 N-m using the M6 torque wrench' (Type-R manual p.22)
weight_kg	97 Installation Manual for RESU10H (Type-R) — Type-R installation manual p.11, '97 kg (214 lbs)'
width_mm	744 Installation Manual for RESU10H (Type-R) — Type-R installation manual p.11, 'Dimension (W x H x D) 744 mm (29.3") x 907 mm (35.7") x 206 mm (8.1")'

Installation

clearance_bottom_mm	300
clearance_front_mm	UNKNOWN
clearance_left_mm	300
clearance_right_mm	300
clearance_top_mm	300
indoor_outdoor	Indoor / Outdoor (wall-mounted) (Type-R manual p.12 'Installation Location')
installation_temperature_range_c	UNKNOWN
max_installation_altitude_m	2000
mounting_orientation	wall-mounted, upright on a vertical wall
orientation_allowed	['vertical wall-mounted']
orientation_forbidden	["upside down on the ground ('Do not put the battery pack upside down on the ground', Type-R manual p.7)"]
surface_requirements	vertical wall; minimum fastener clearance at least 250 mm (10 in); fastener count per bracket area 4/2/4/2 (Type-R manual p.18)
two_person_lift_required	UNKNOWN (97 kg pack; optional lift handles are sold separately, Type-R manual p.15)

Environment

cooling_method	natural convection
ip_rating	IP55 Installation Manual for RESU10H (Type-R) — Type-R installation manual p.12, 'IP55'
max_altitude_m	2000
operating_temperature_c	-10 to +45 (14 to 113 F); recommended +15 to +30 (59 to 86 F) Installation Manual for RESU10H (Type-R) — Type-R installation manual p.12, '14 to 113 F (-10 to 45 C)'
relative_humidity	5% to 95%
storage_temperature_c	-30 to +55 (-22 to 131 F)

Interfaces & connectors

battery_terminal_type	Spring Type Connector - Phoenix Contact PCB Terminal Block SPT 5/3-V-7,5-ZB (Type-R manual p.12, p.26)
can	yes (Type-C data sheet 'Communication Interface CAN')
protocol_notes	Type-R manual p.26 cable spec: power 4-10 mm2 (8-12 AWG), DC 600 V insulated, max 10 m; communication 0.2-1.5 mm2 (18-24 AWG), max 10 m. Manual p.7: 'Only use the product with a LGC-authorized inverter. For a list of compatible inverters, go to: http://www.lgesspartner.com'
rs485	yes (Type-R). Communication terminal: Phoenix Contact PCB Terminal Block SPT 2,5/6-V-5,0

Controls & display

buttons	circuit breaker switch and Auxiliary Power ON/OFF switch (Type-R manual p.25)
display_type	none
leds	4 indicators: Power (green), Charging, Discharging, FAULT (Type-R manual p.27)
local_display	False
touchscreen	False

Protection

ground_fault_protection	yes - external ground fault protection (p.13)
integrated_breakers_fuses	integrated circuit breaker; the BMS trips the breaker automatically on a serious warning (p.29). Inrush current protection listed among external protections (p.13)
over_current	yes - internal and external over-current protection (p.13)
over_temperature	yes - internal and external over-temperature protection (p.13)
over_voltage	yes - internal and external over-voltage protection (Type-R manual p.13)
reverse_polarity	yes - external reverse polarity protection (p.13)
short_circuit	yes - internal short circuit and external short circuit protection (p.13)
under_voltage	yes - internal under-voltage protection (p.13)

Certifications

emc	['FCC']
other	[]
regional	['CE', 'RCM']
safety	['UL1642 (cell)', 'UL1973 (battery pack)', 'IEC 62619 (TUV)']
transport	['UN38.3']

Warranty & service

conditions	'10 years after the date of invoice commencing from 3 months after a product arrives at the delivery point or starting from the day of the successful completion of the commissioning, whichever comes earlier'; product must be registered on the 'LG ESS Battery Website' or it is excluded from coverage
cycle_life	UNKNOWN (not printed on either data sheet)
design_life_years	UNKNOWN
retained_capacity_percent	60 RESU 7H / 10H Battery Storage System Limited Warranty — 'at least 60% of Nominal Energy for the either 10 years after the date of the initial installation'
standard_years	10
throughput_guarantee_mwh	27.4 RESU 7H / 10H Battery Storage System Limited Warranty — warranty performance table, 'RESU10H 27.4 MWh'

Packaging & logistics

transport_restrictions

UN38.3 (Type-R manual p.12 'Transportation UN38.3')

Documents

certificate {# Located but never retrieved: listed, but deliberately not linked, and it backs no stored value. #} RESU Safety Data Sheet — located, not retrieved rev UNKNOWN

datasheet Data sheet for RESU10H type-C rev 2020.Feb

installation-manual {# Located but never retrieved: listed, but deliberately not linked, and it backs no stored value. #} Installation Manual for RESU10H (Type-C) — located, not retrieved rev UNKNOWN

installation-manual Installation Manual for RESU10H (Type-R) rev Final Rev3, 2017-03-16 (from file name)

product-page RESU10H product page (LG Home Battery, LG Energy Solution Australia) rev UNKNOWN

warranty RESU 7H / 10H Battery Storage System Limited Warranty rev Effective Date: 27th of August, 2021

Recorded conflicts

communication interface Review required

RS485 — RESU10H Type-R installation manual p.12

CAN — RESU10H Type-C data sheet 2020.Feb

Type-R vs Type-C variant difference, same as the voltage window.

voltage_range_v Review required

350-450 (charge 400-450 V, discharge 350-430 V, absolute max 520 V) — RESU10H Type-R installation manual p.12 (fetched 2026-09-02)

430-550 (charge 468-550 V, discharge 430-507 V) — RESU10H Type-C data sheet 2020.Feb (fetched 2026-09-02)

RESU10H was sold as two electrically distinct market variants: Type-R (lower HV window, RS485) and Type-C (higher HV window, CAN, matched to SMA Sunny Boy Storage). The existing record's 350-450 V figure is the Type-R variant. Consider splitting into two records.
