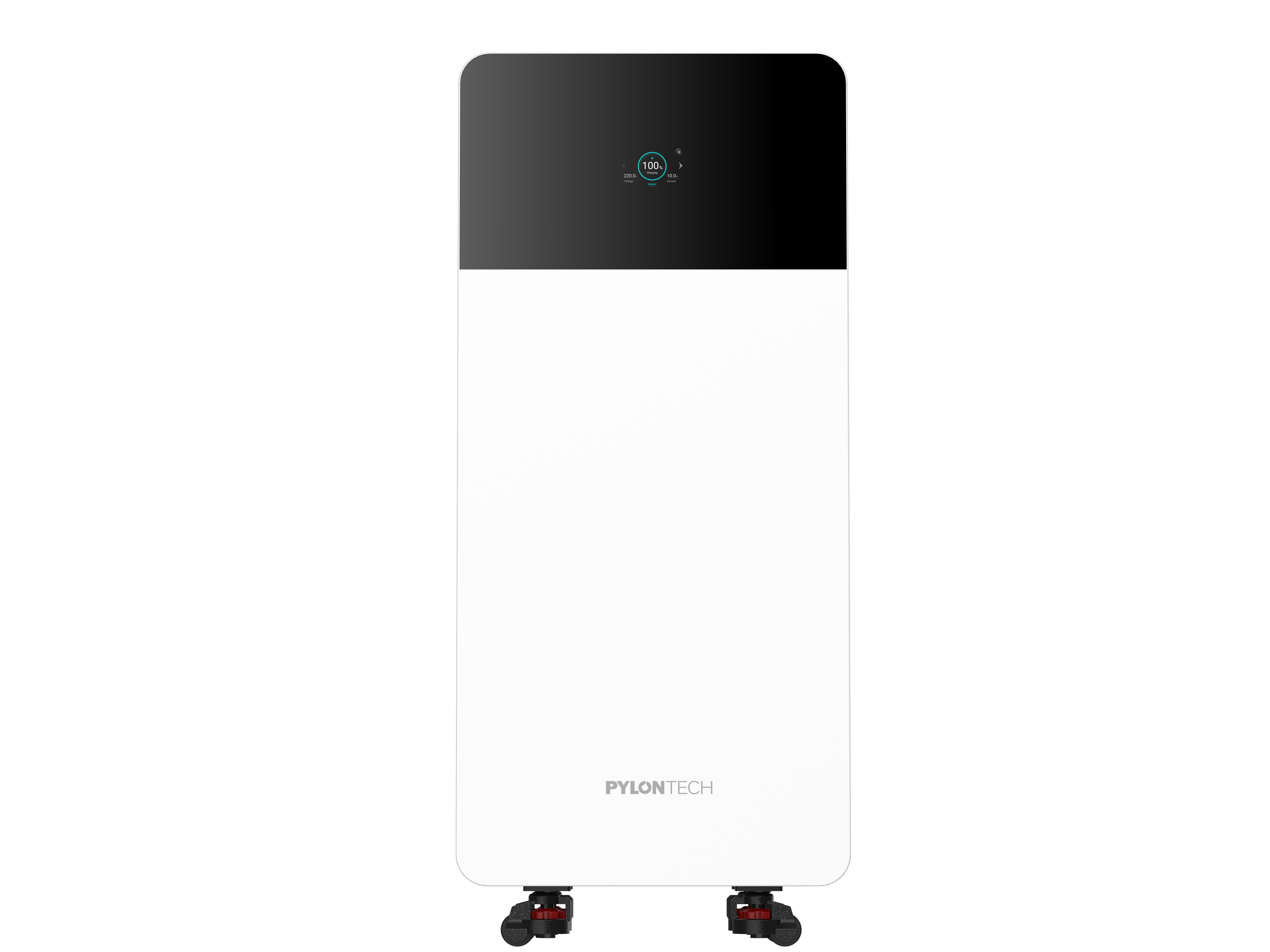

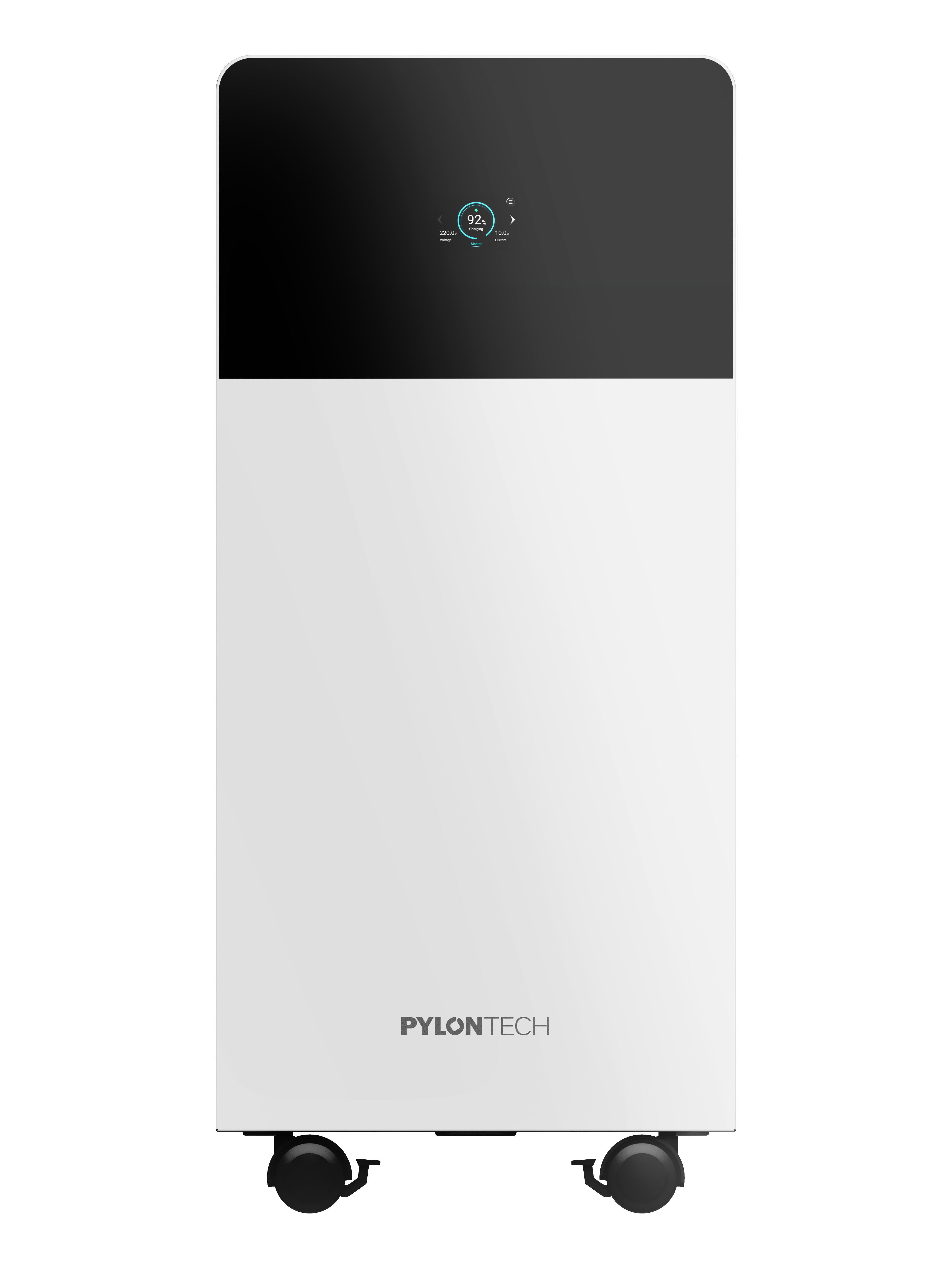

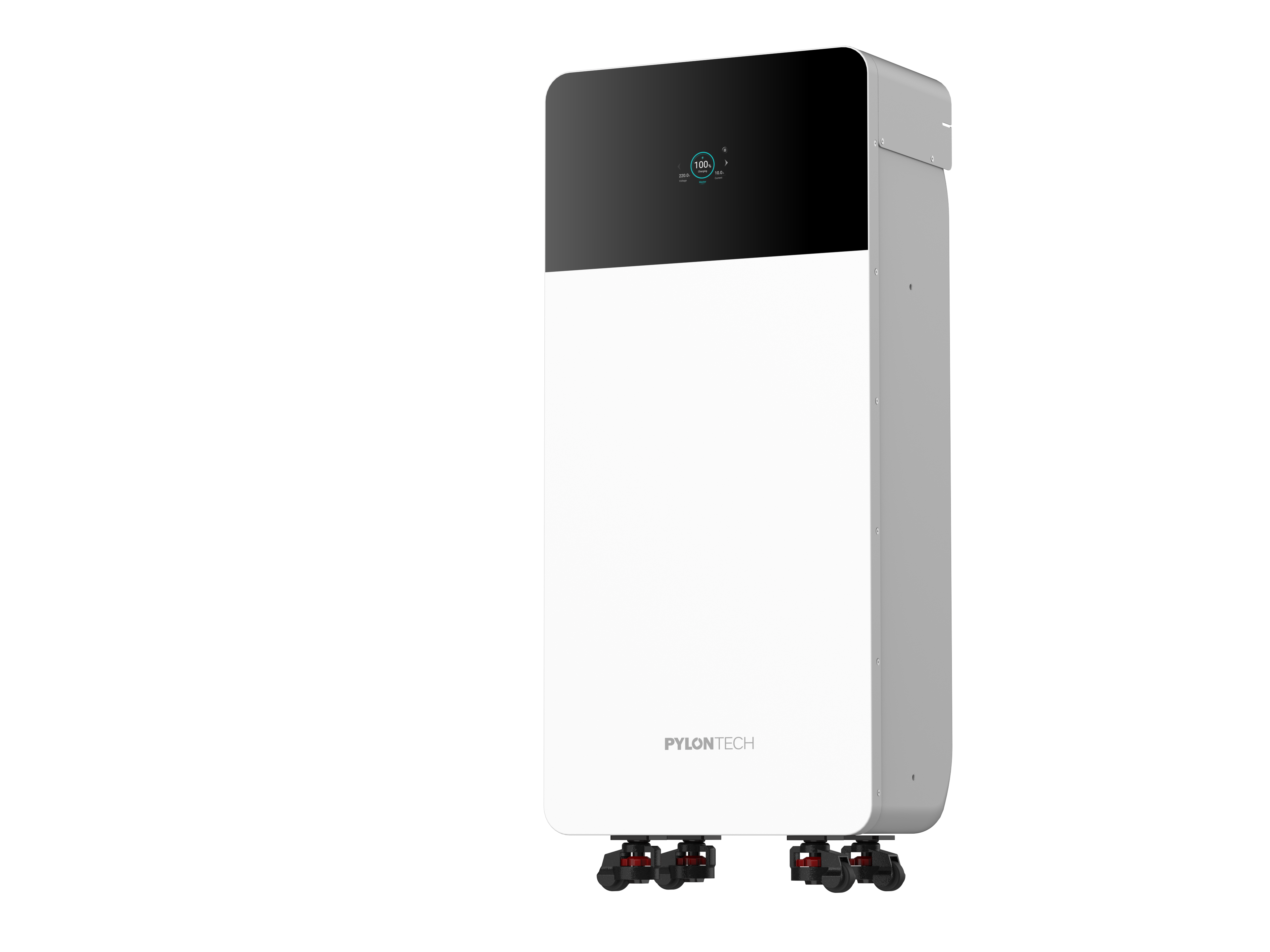

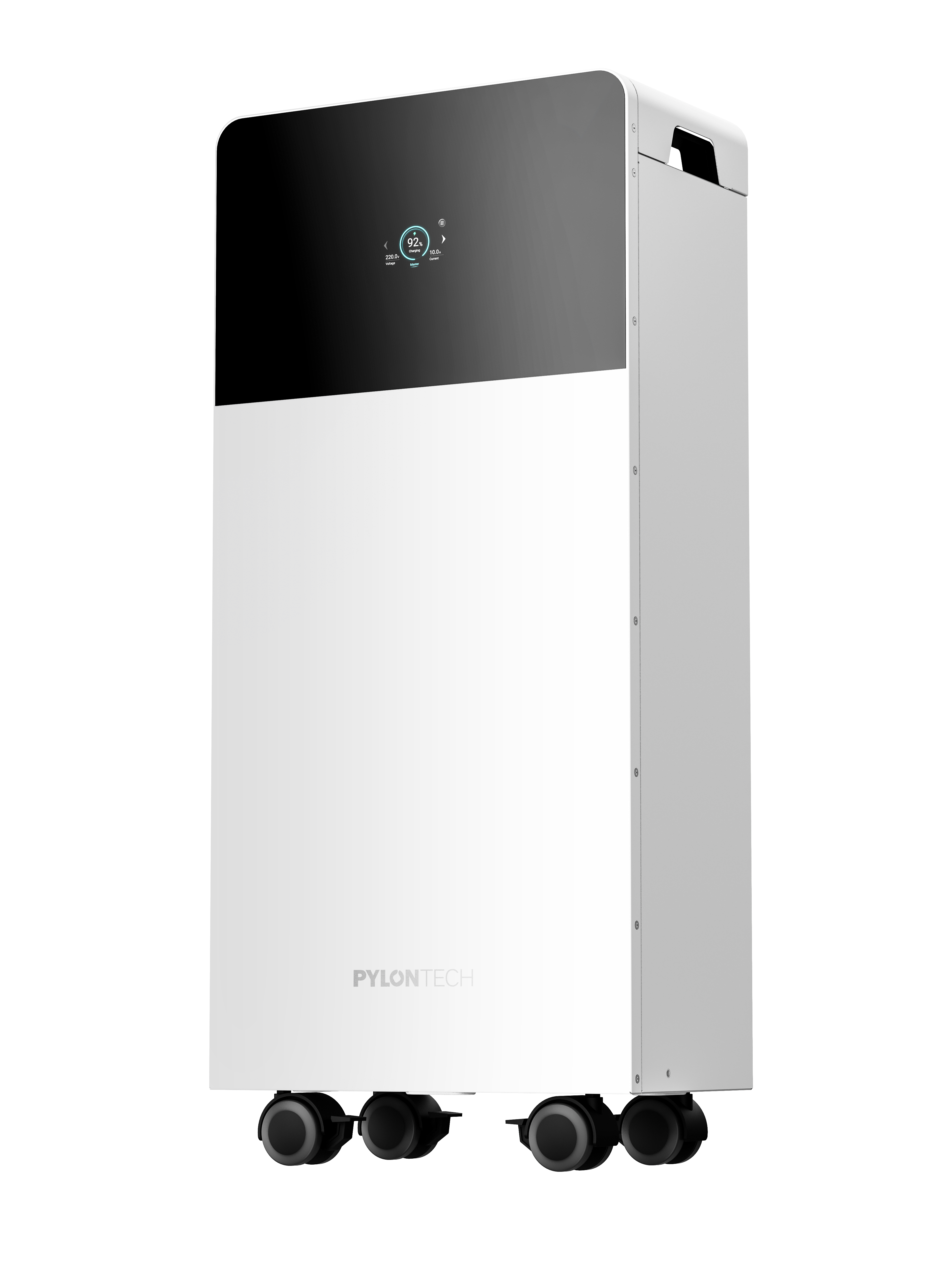

Pylontech Fidus Battery
Unknown GLOBAL
Identity
| aliases | ['Fidus', 'Fidus Battery FB-L-5.12'] |
| brand | Pylontech |
| category | batteries |
| manufacturer | Pylontech |
| manufacturer_key | pylontech |
| model | Fidus Battery |
| model_key | fidus-battery |
| model_numbers | ['FB-L-5.12'] |
| product_family | Fidus Series (Low Voltage) |
| product_status | active |
| region | GLOBAL |
| release_year | 2025 |
Electrical
| charge_current_a | 100 (normal) / 100 (max) |
| chemistry | LiFePO4 (LFP) |
| cycle_life | >8,000 @ 25C |
| depth_of_discharge_pct | 97 |
| design_life_years | 10 |
| discharge_current_a | 100 (normal) / 100 (max) / 121-200 peak @15s |
| nominal_energy_kwh | 5.12 |
| usable_energy_kwh | 4.97 |
| voltage_v | 51.2 |
Physical / mechanical
| dimensions_wdh_mm | 638*137*370 |
| weight_kg | 45 |
Installation
| system_rules | {'max_modules_single_group': 20, 'max_strings': 6, 'lv_hub_required': True, 'max_system_energy_kwh': 576, 'notes': 'LV-HUB-V2 required for multi-group parallel expansion; supports 5kWh~600kWh (1-120 modules); wall/ground/rack mounted'} |
Environment
| altitude_m | <=4000 |
| anti_corrosion | C5-M |
| humidity | 5%~95% RH No Condensation |
| storage_temperature_c | -20~60 |
| working_temperature_charge_c | -10~55 (degrades >50C) |
| working_temperature_discharge_c | -10~55 (degrades >50C) |
Interfaces & connectors
| communication | ['RS485', 'CAN'] |
Protection
| ip_rating | IP20 (IP65 variant also available) |
Certifications
| standards | ['IEC62619', 'IEC63056', 'VDE2510-50', 'IEC62477-1', 'EMC', 'CE', 'IEC62040-1', 'RoHS', 'Reach', 'WEEE', 'UN38.3'] |
Documents
compatibility-list
Compatibility List of Pylontech Low Voltage ESS and Inverters Ver.2.41
rev Ver.2.41
product-page
Fidus Battery source
Additional documented parameters
Recorded verbatim from the source; no schema field exists for these yet.
| source.category | residential_lv |
| source.status | current |
