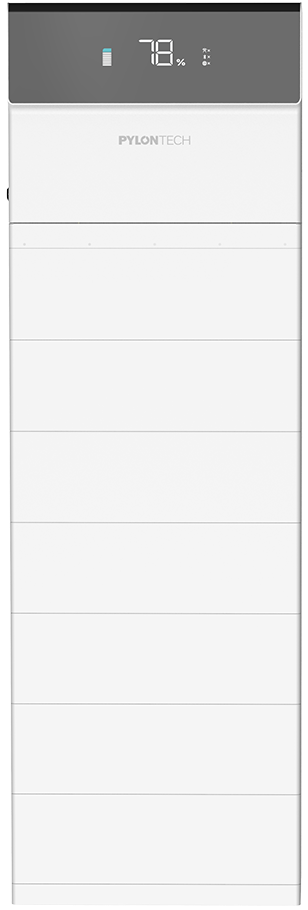

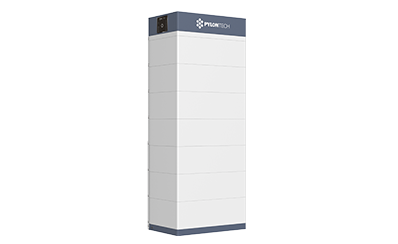

Pylontech Force-H3
Unknown GLOBAL
Identity
| aliases | ['Force H3', 'ForceH3'] |
| brand | Pylontech |
| category | batteries |
| manufacturer | Pylontech |
| manufacturer_key | pylontech |
| model | Force-H3 |
| model_key | force-h3 |
| module_model | FH10050 |
| product_family | Force Series (High Voltage, Floor-standing) |
| product_status | active |
| region | GLOBAL |
| release_year | 2024 |
Electrical
| capacity_ah | 50 |
| chemistry | LiFePO4 (LFP) |
| cycle_life | >8,000 @ 25C |
| depth_of_discharge_pct | 95 |
| design_life_years | 15+ |
| module_energy_kwh | 5.12 |
| voltage_v | 102.4 |
Installation

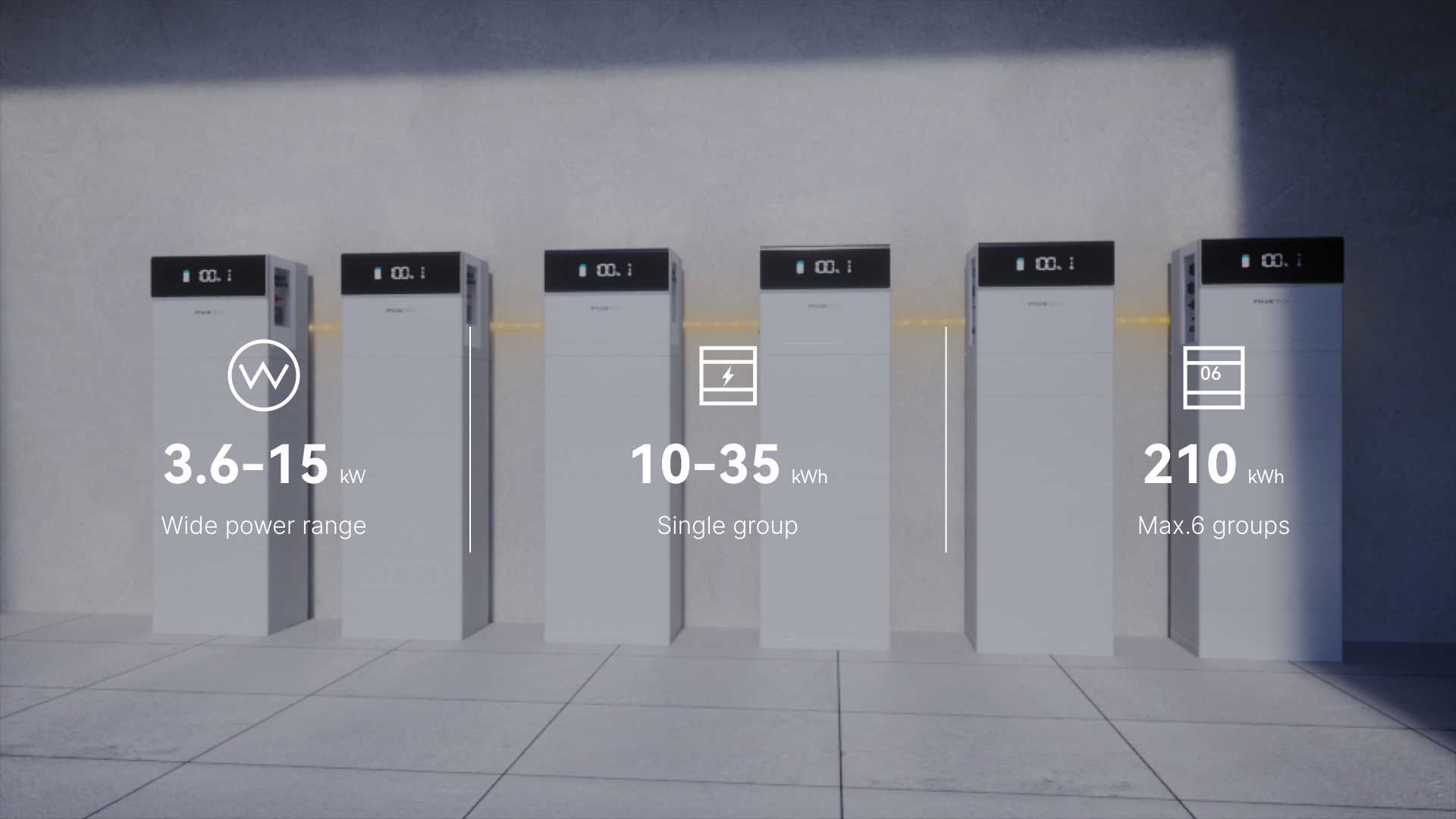

| system_rules | {'modules_per_string': '2-7', 'system_voltage_range_v': '204.8-716.8', 'system_energy_single_string_kwh': '10.24-35.84', 'max_parallel_strings': 6, 'max_system_energy_kwh': 215.04, 'bms_controller': 'FC1000-40S (estimated)'} |
Environment
| storage_temperature_c | -10~50 |
| working_temperature_c | 0~50 |
Interfaces & connectors
| additional_features | ['DRM0 (Demand Response Mode)'] |
| communication | ['CAN 2.0B', 'Modbus RTU', 'RS485', 'WiFi', 'Bluetooth', 'USB', 'Ethernet'] |
Protection
| ip_rating | IP55 |
Certifications
| standards | ['UN38.3', 'IEC 62619', 'IEC 61000', 'CE', 'FCC', 'TUV', 'VDE'] |
Documents
compatibility-list
Compatibility List of Pylontech High Voltage ESS and Inverters (Issuu)
rev Ver.2.40
compatibility-list
Compatibility List of Pylontech High Voltage ESS and Inverters Ver.2.40
rev Ver.2.40
product-page
Force-H3 source
Additional documented parameters
Recorded verbatim from the source; no schema field exists for these yet.
| source.category | residential_hv |
| source.status | current |
