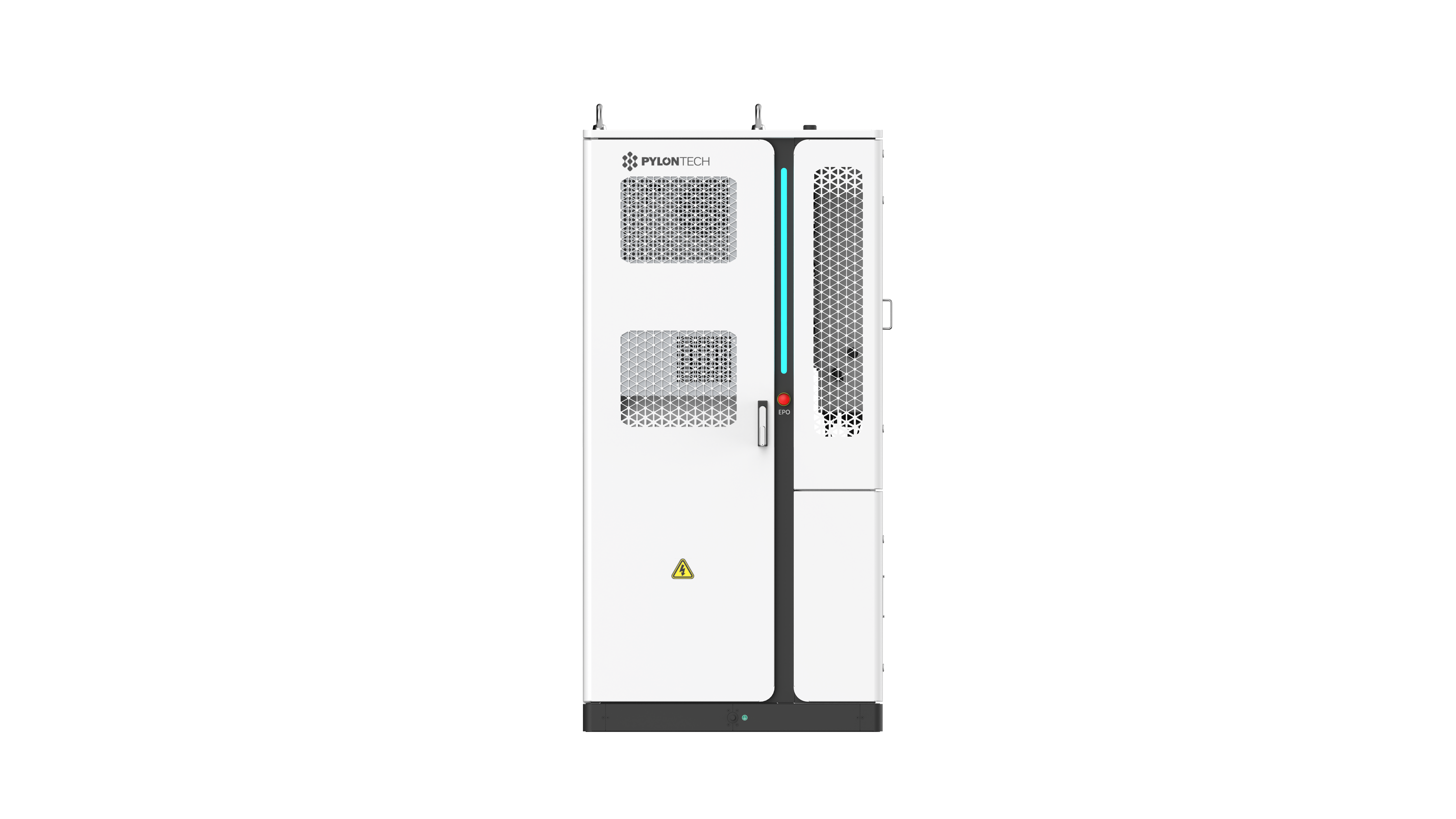

Pylontech OPTIM US A100-HY
Unknown GLOBAL
Identity
| aliases | ['A100-HY', 'OPTIM US A100 Hybrid'] |
| brand | Pylontech |
| category | batteries |
| manufacturer | Pylontech |
| manufacturer_key | pylontech |
| model | OPTIM US A100-HY |
| model_key | optim-us-a100-hy |
| module_model | M1C |
| product_family | OPTIM US Series (C&I Hybrid ESS) |
| product_status | active |
| region | GLOBAL |
| release_year | 2024 |
Electrical
| ac_voltage_vac | 400 |
| chemistry | LiFePO4 (LFP) |
| cycle_life | >7,000 |
| depth_of_discharge_pct | 98 |
| nominal_energy_kwh | 104 |
| pcs_power_kw | 50/100 |
| round_trip_efficiency_pct | 95 |
| system_sizing | 52~520kWh | 25~500kW | 1C | 400Vac |
Physical / mechanical
| dimensions_wdh_mm | 1500*1125*2195 |
| weight_kg | 1900 |
Installation
| max_parallel | 5 |
Environment
| altitude_m | <=2000 |
| working_temperature_c | -20~50 |
Interfaces & connectors
| communication | ['Modbus TCP/IP', 'Modbus RTU'] |
Protection
| ip_rating | IP55 |
Certifications
| standards | ['UN38.3', 'UN3481', 'IEC62619', 'IEC62040-1', 'CE', 'UKCA', 'VDE2510-50', 'UL1973', 'UL9540A', 'G99', 'VDE-AR-N 4105', 'EN 50549-1', 'EN 50549-10'] |
Documents
datasheet
OPTIM US A100-HY Datasheet
datasheet
OPTIM US A100-OMNI Datasheet
product-page
OPTIM US A100-HY source
Additional documented parameters
Recorded verbatim from the source; no schema field exists for these yet.
| source.category | commercial_industrial |
| source.status | current |
