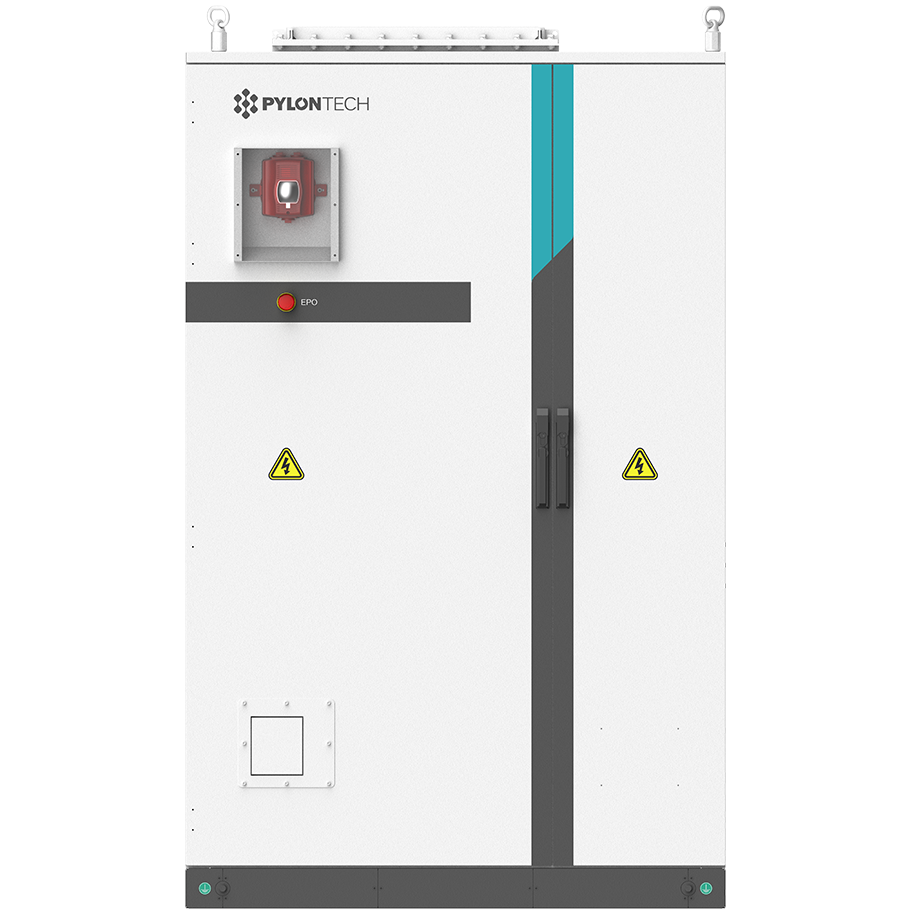

Pylontech OPTIM US A100-HY-PLUS
Unknown GLOBAL
Identity
| aliases | ['A100-HY-PLUS'] |
| brand | Pylontech |
| category | batteries |
| manufacturer | Pylontech |
| manufacturer_key | pylontech |
| model | OPTIM US A100-HY-PLUS |
| model_key | optim-us-a100-hy-plus |
| product_family | OPTIM US Series (C&I Hybrid ESS) |
| product_status | active |
| region | GLOBAL |
| release_year | 2026 |
Electrical
| ac_voltage_vac | 380/400 |
| battery_module_qty | 6 |
| chemistry | LiFePO4 (LFP) |
| dc_voltage_range_v | 302.4-388.8 |
| max_operation_current_a | 160 |
| nominal_energy_kwh | {'config1': 108, 'config2': 126} |
| pcs_power_kw | 50/60 |
| system_sizing | 50kW/108kWh and 60kW/126kWh configurations |
Environment
| altitude_m | <=3000 |
| working_temperature_c | -25~50 |
Interfaces & connectors
| communication | ['RS485', 'CAN', 'Modbus'] |
Protection
| ip_rating | IP55 |
Certifications
| standards | ['IEC62619', 'IEC62477-1', 'IEC63056', 'VDE2510-50', 'ISO 13849-1', 'IEC 62040-1', 'CE-LVD', 'IEC 61000', 'IEC 62933', 'UL 9540A'] |
Documents
datasheet
OPTIM US A100-HY Datasheet
product-page
OPTIM US A100-HY-PLUS source
Additional documented parameters
Recorded verbatim from the source; no schema field exists for these yet.
| source.category | commercial_industrial |
| source.status | current |
