Identity

aliases	['US 5000', 'US5000-B']
brand	Pylontech
category	batteries
manufacturer	Pylontech
manufacturer_key	pylontech
model	US5000
model_key	us5000
product_family	US Series (48V Low Voltage)
product_status	active
region	GLOBAL
release_year	2020

Electrical

capacity_ah	100
charge_current_a	100 (max continuous)
chemistry	LiFePO4 (LFP)
cycle_life	>8,000 @ 25C
depth_of_discharge_pct	95
design_life_years	15+
discharge_current_a	100 (max continuous); 101-120 @15min; 121-200 peak @15s
nominal_energy_kwh	4.8
short_circuit_current	<2000A / 1ms
usable_energy_kwh	4.56
voltage_v	48

Physical / mechanical

dimensions_wdh_mm	442420161
weight_kg	39.7

Installation

system_rules

{'max_modules_single_string': 16, 'max_system_energy_kwh': 76.8, 'lv_hub_required': False, 'notes': '1092W recommended per inverter-setings; supports internal compatibility up to 16 modules per single string'}

Environment

altitude_m	<4000
humidity	5%-95% No Condensation
storage_temperature_c	-20~45
working_temperature_charge_c	0~55
working_temperature_discharge_c	-10~55

Interfaces & connectors

communication

['RS485', 'CAN']

Protection

ip_rating

IP20

Certifications

standards

['UL1973', 'UL9540A', 'IEC62619', 'IEC63056', 'IEC61000-6-2', 'IEC61000-6-3', 'UN38.3']

Documents

certificate US5000 UL1973 Certificate of Compliance (CSA)

communication-manual RS485 Modbus RTU Protocol V1.0 (adapted from CAN Bus V1.2) rev V1.0

compatibility-list Compatibility List of Pylontech Low Voltage ESS and Inverters Ver.2.41 rev Ver.2.41

datasheet US Series (US2000C/US3000C/US5000) Datasheet / Product Portfolio

product-page US5000 source

user-manual US5000 Series Operation Manual rev SD21US501001

Additional documented parameters

Recorded verbatim from the source; no schema field exists for these yet.

source.category	residential_lv
source.status	current

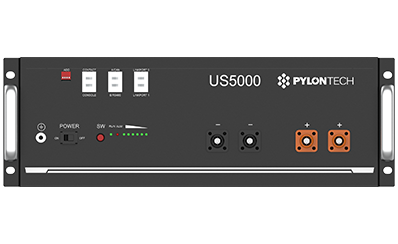

Pylontech US5000
