ANMA System Building

Identity

category	commercial_ess
manufacturer	KSTAR

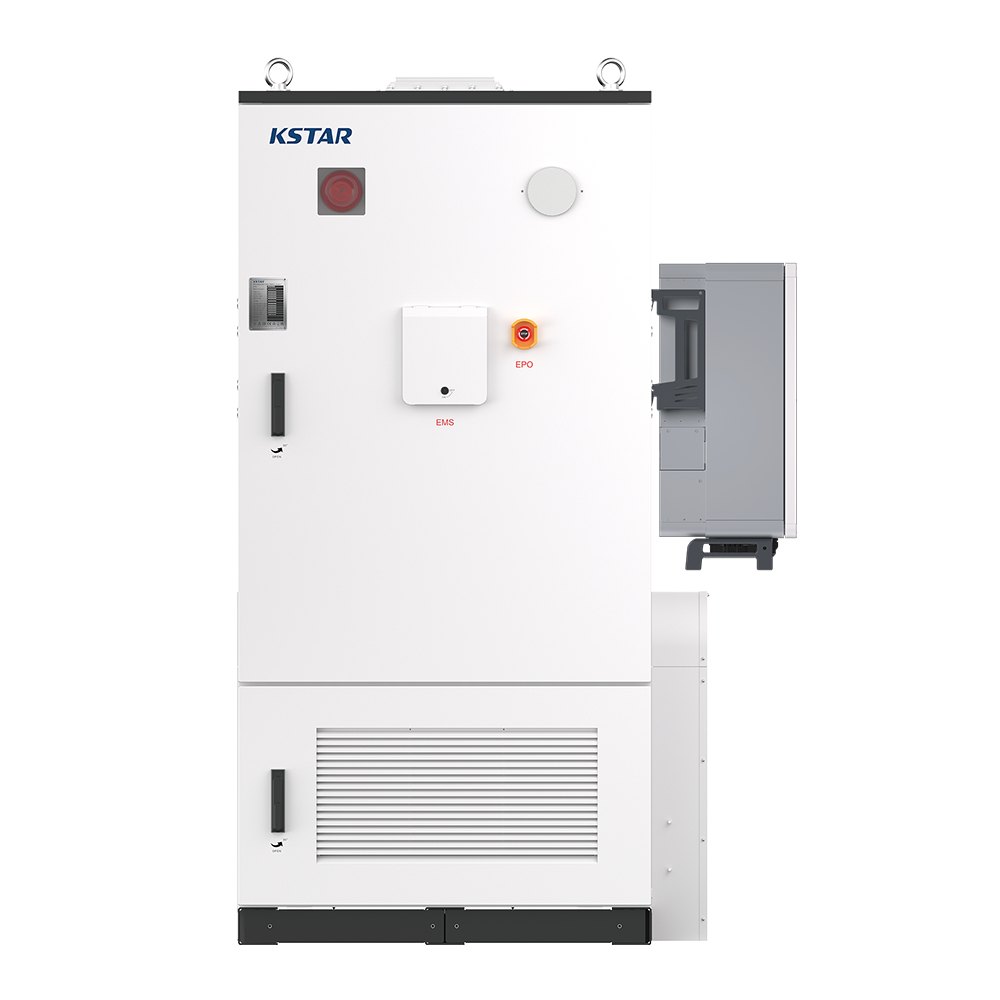

model	BC260DLE
product_status	active
region	GLOBAL
variant	—

Electrical

battery_nominal_voltage_v	832 KSTAR Datasheet KAC(80~125)DP2 / BC208DLE / BC260DLE V5
cell_capacity_ah	314 BluePulse Liquid-cooling 80-125kW / 208-260kWh
cell_chemistry	LFP BluePulse Liquid-cooling 80-125kW / 208-260kWh
chemistry	LiFePO4 (LiFe) KSTAR Datasheet KAC(80~125)DP2 / BC208DLE / BC260DLE V5
compatible_pcs	KAC(80~125)DP2 KSTAR Datasheet KAC(80~125)DP2 / BC208DLE / BC260DLE V5
continuous_discharge_current_a	100.0
cooling	liquid disputed BluePulse Liquid-cooling 80-125kW / 208-260kWh
cycle_life	6000
dc_voltage_max_v	936 KSTAR Datasheet KAC(80~125)DP2 / BC208DLE / BC260DLE V5
dc_voltage_min_v	741 KSTAR Datasheet KAC(80~125)DP2 / BC208DLE / BC260DLE V5
depth_of_discharge_pct	95.0
depth_of_discharge_percent	95 KSTAR Datasheet KAC(80~125)DP2 / BC208DLE / BC260DLE V5
fire_suppression	4+3 fire safety design KSTAR Datasheet KAC(80~125)DP2 / BC208DLE / BC260DLE V5
grid_frequency_hz	50/60 KSTAR Datasheet KAC(80~125)DP2 / BC208DLE / BC260DLE V5
max_charge_current_a	80.0
max_discharge_current_a	100.0
module_energy_kwh	52.24 KSTAR Datasheet KAC(80~125)DP2 / BC208DLE / BC260DLE V5
nominal_capacity_ah	100.0
nominal_energy_kwh	261.24 BluePulse Liquid-cooling 80-125kW / 208-260kWh
nominal_voltage_v	51.2
number_of_battery_modules	5 KSTAR Datasheet KAC(80~125)DP2 / BC208DLE / BC260DLE V5
official_product_url	https://www.kstarnewenergy.com/products/energy-storage-systems/commercial-energy-storage-systems/bluepulse-series-liquid-cooling-80-125kw---208-260kwh.html BluePulse Liquid-cooling 80-125kW / 208-260kWh — inventory record source_url
operating_voltage_max_v	57.6
operating_voltage_min_v	44.8
phase_count	3
relative_humidity_percent	5-95 (non-condensing) KSTAR Datasheet KAC(80~125)DP2 / BC208DLE / BC260DLE V5
topology	cabinet BluePulse Liquid-cooling 80-125kW / 208-260kWh
transfer_time_ms	10 KSTAR Datasheet KAC(80~125)DP2 / BC208DLE / BC260DLE V5

Physical / mechanical

dimensions_mm	1040 x 1370 x 2234 KSTAR Datasheet KAC(80~125)DP2 / BC208DLE / BC260DLE V5
mounting	19-inch Rack / Wall-mount
weight_kg	2500 KSTAR Datasheet KAC(80~125)DP2 / BC208DLE / BC260DLE V5

Environment

ip_rating	IP54 KSTAR Datasheet KAC(80~125)DP2 / BC208DLE / BC260DLE V5
max_altitude_m	3000 KSTAR Datasheet KAC(80~125)DP2 / BC208DLE / BC260DLE V5
operating_temperature_max_c	50 KSTAR Datasheet KAC(80~125)DP2 / BC208DLE / BC260DLE V5
operating_temperature_min_c	-30 KSTAR Datasheet KAC(80~125)DP2 / BC208DLE / BC260DLE V5

Interfaces & connectors

communication	CAN, RS485
communications	['Ethernet', 'CAN', 'TCP'] KSTAR Datasheet KAC(80~125)DP2 / BC208DLE / BC260DLE V5
documented_ports	[{'port_role': 'ETHERNET', 'port_label_from_manual': 'Ethernet', 'port_type': 'RJ45', 'direction': 'bidirectional', 'electrical_domain': 'communication', 'document': 1, 'page': "Datasheet, column 'BC260DLE'", 'quote': 'Communication Ethernet; CAN'}, {'port_role': 'CAN', 'port_label_from_manual': 'CAN', 'port_type': 'CAN bus', 'direction': 'bidirectional', 'electrical_domain': 'communication', 'document': 1, 'page': "Datasheet, column 'BC260DLE'", 'quote': 'Communication Ethernet; CAN'}]

Certifications

certifications

['UN38.3', 'MSDS', 'IEC 62040', 'IEC 62477', 'IEC 62619', 'IEC 63056', 'IEC 61000-6-2', 'IEC 61000-6-4']

KSTAR Datasheet KAC(80~125)DP2 / BC208DLE / BC260DLE V5

Warranty & service

warranty_years

10

Documents

datasheet Datasheet_KAC(80~125)DP2-BC208DLE_BC260DLE_EN_V5

datasheet KSTAR Datasheet KAC(80~125)DP2 / BC208DLE / BC260DLE V5

product_page BluePulse Liquid-cooling 80-125kW / 208-260kWh

quick_start_guide Quick Installation & Commissioning Guide_Standalone System_ PCS+BC260DLE Series

user_manual BC260DLE User Manual (EN) V01 2026.5.11

Recorded conflicts

electrical.nominal_energy_kwh Resolved — accepted incoming value

260 — stored value

261.24 — Rated Energy 261.24 kWh

Detected during import deep-enrich-2026-09-batch07

electrical.cooling Review required

liquid — stored value

Liquid cooling — Cooling Liquid Cooling
