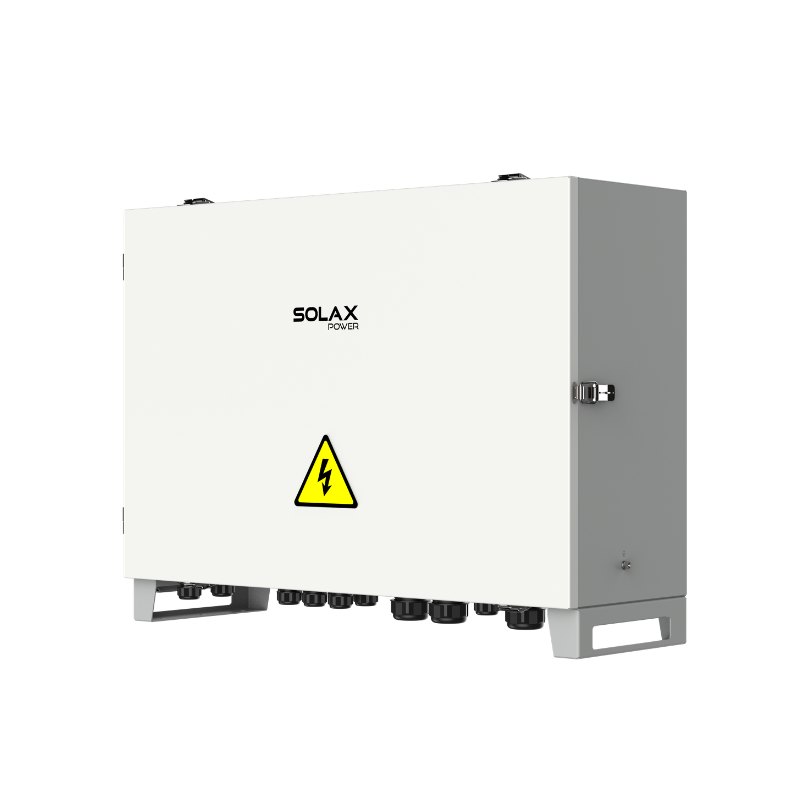

SolaX Power XCB800A
Official manufacturer GLOBAL verified Sept. 23, 2026
Identity
| category | data_loggers |
| manufacturer | SolaX Power |
| model | XCB800A |
| product_status | active |
| region | GLOBAL |
Electrical
| communication_distance_per_channel_m |
1000
XCB800A | Monitoring Device
|
| ethernet_port_count |
4
XCB800A | Monitoring Device
|
| installation |
Wall/Floor mounting
XCB800A | Monitoring Device
|
| max_connected_devices |
140
XCB800A | Monitoring Device
|
| max_devices_per_plc_channel |
60
XCB800A | Monitoring Device
|
| max_operating_altitude_m |
4000
XCB800A | Monitoring Device
|
| max_withstand_voltage_vac |
<= 1000 Vac
XCB800A | Monitoring Device
|
| official_product_url |
https://www.solaxpower.com/our-products/xcb800a.html
XCB800A | Monitoring Device
|
| optional_fiber_switch |
2x1000 Mbps fiber ports, 6x10/100/1000 Mbps Ethernet ports
XCB800A | Monitoring Device
|
| power_consumption_w |
<= 50
XCB800A | Monitoring Device
|
| rated_voltage_vac |
400-800 Vac
XCB800A | Monitoring Device
|
| relative_humidity |
Up to 100% RH (condensing)
XCB800A | Monitoring Device
|
| rs485_port_count |
6
XCB800A | Monitoring Device
|
| supply_voltage | 100-240 V AC |
Physical / mechanical
| height_mm |
270
XCB800A | Monitoring Device
|
| length_mm |
840
XCB800A | Monitoring Device
|
| mounting | DIN-rail |
| weight_kg |
<= 45
XCB800A | Monitoring Device
|
| width_mm |
615
XCB800A | Monitoring Device
|
Environment
| ip_rating |
IP66
XCB800A | Monitoring Device
|
| operating_temperature_max_c |
60
XCB800A | Monitoring Device
|
| operating_temperature_min_c |
-30
XCB800A | Monitoring Device
|
| storage_temperature_max_c |
70
XCB800A | Monitoring Device
|
| storage_temperature_min_c |
-40
XCB800A | Monitoring Device
|
Interfaces & connectors
| interfaces | RS485, Ethernet, Wi-Fi |
| supported_devices_max | 32 |
Documents
product_page
XCB800A | Monitoring Device
Additional documented parameters
Recorded verbatim from the source; no schema field exists for these yet.
| builder_completeness | partial |
| region_notes | Published on SolaX's global English site under Monitoring Devices; one specification, no regional split printed. |
