Listed as a current product in the DC distribution systems category on victronenergy.com; a newer addition to the Lynx range aimed at lithium battery strings.
region
Global (12/24/48V DC systems)
sku
LYN060404010
sku_note

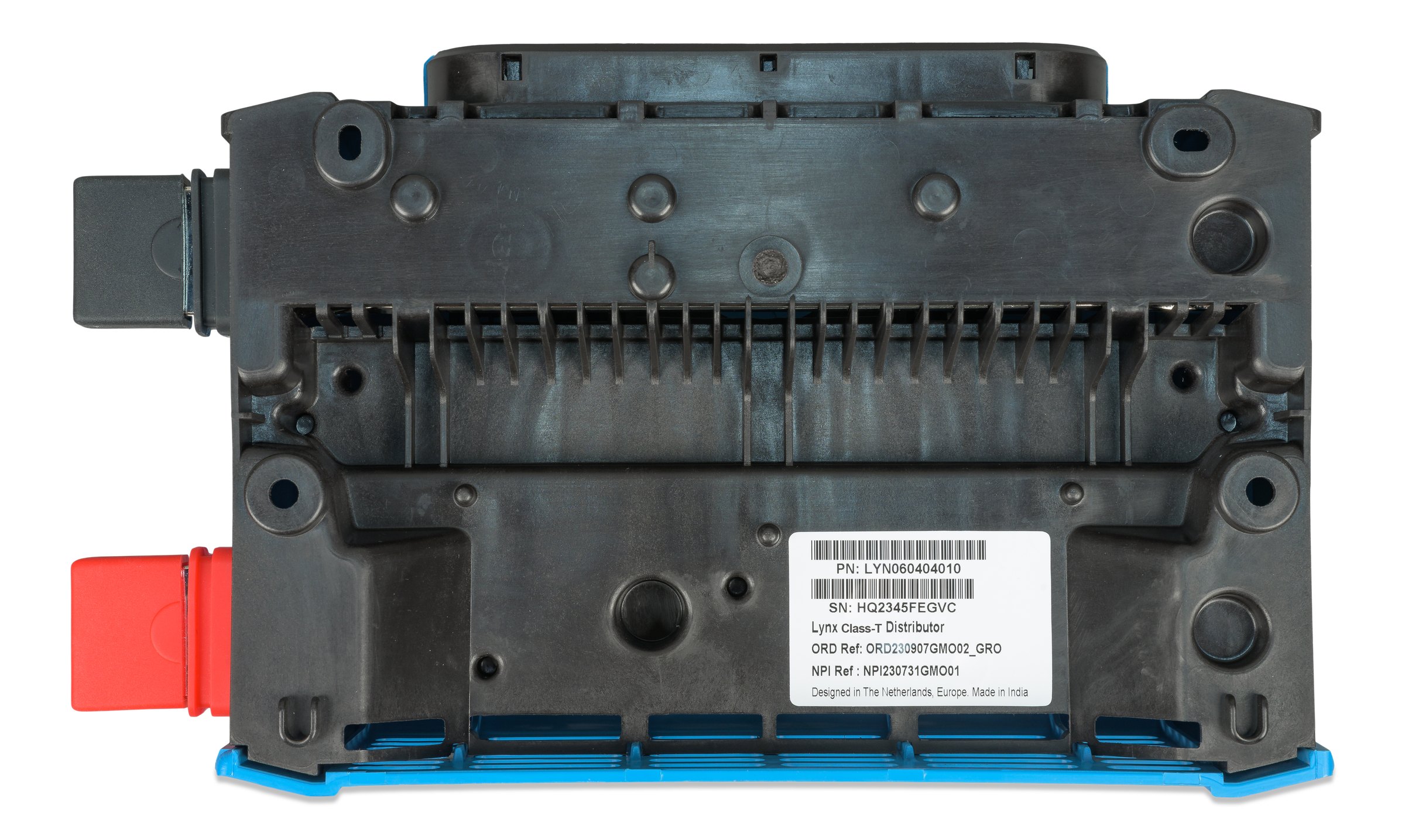

Appears as the leading token in every official product photo filename on the Victron product page, e.g. 'LYN060404010 Lynx Class-T Power In (M10) (front).png'.
Electrical
continuous_current_rating
1000Adc continuous
current_rating_statement
'The Lynx Distributor, Lynx Shunt VE.Can, Lynx Class-T Power In and the Lynx Power In are rated for a nominal current of 1000A for 12, 24 or 48 System voltages.'
reverse_polarity_protection
UNKNOWN
voltage_range
9 - 60Vdc
Physical / mechanical

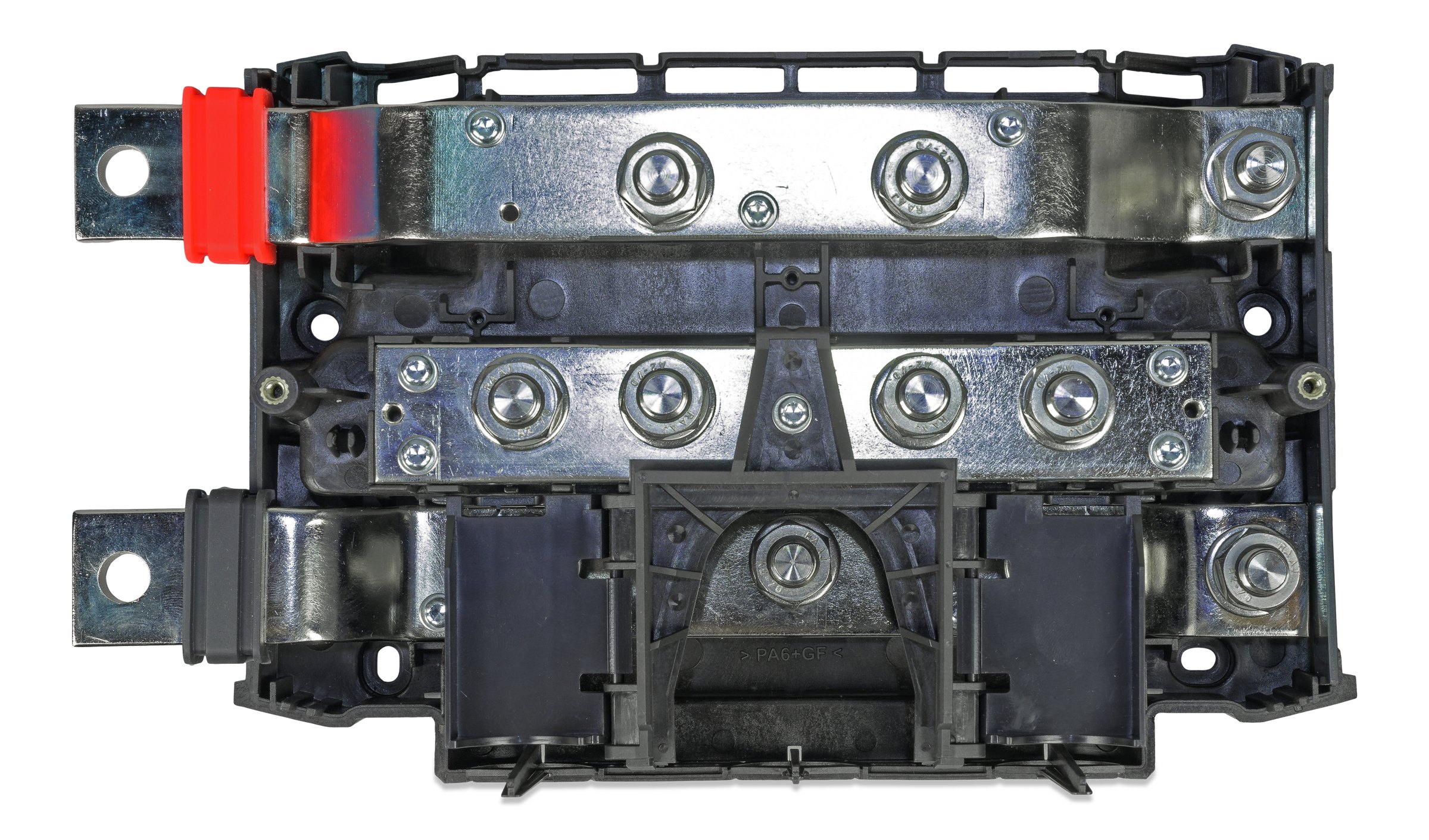

busbar_dimensions_hxw
8 x 30mm
busbar_material
Tinned copper
dimensions_hxwxd
279 x 169 x 97 mm
enclosure_material
ABS
protection_class
IP20
weight
2.1 kg
Installation
available_fuse_ratings
['225A', '250A', '350A', '400A']
bolt_torque
UNKNOWN
busbar_connection
M10
fuse_connection
3/8"
fuse_type
Class-T fuses. 'Class-T fuses are available in 225A, 250A, 350A, and 400A ratings' and are sold separately.
fuses_included
No - sold separately
ground_connection
Yes - 'a connection to ground the DC system'
number_of_battery_strings
Up to two strings of lithium batteries; for three or more strings multiple modules can be combined
number_of_fuse_positions
Two - 'connections for two Class-T fuses'
Environment
humidity
Max. 95% (non-condensing)
operating_temperature_range
-40°C to +60°C
storage_temperature_range
-40°C to +60°C
Interfaces & connectors
monitoring
None documented - no LEDs, RJ10, VE.Can or Bluetooth appear in the fetched specification table
Protection
fusing
Two Class-T fuse positions for lithium battery strings; Class-T is specified because of its high breaking capacity, appropriate for lithium batteries
Certifications
standards
['UNKNOWN - not stated in the fetched specification table']
Warranty & service
summary
5-year standard warranty
Documents
drawing
{# Located but never retrieved: listed, but deliberately not linked, and it
backs no stored value. #}
Lynx Class-T Power In (M10) enclosure dimensions — located, not retrieved
manual
{# Located but never retrieved: listed, but deliberately not linked, and it
backs no stored value. #}
Lynx Class-T Power In Manual (PDF) — located, not retrieved
