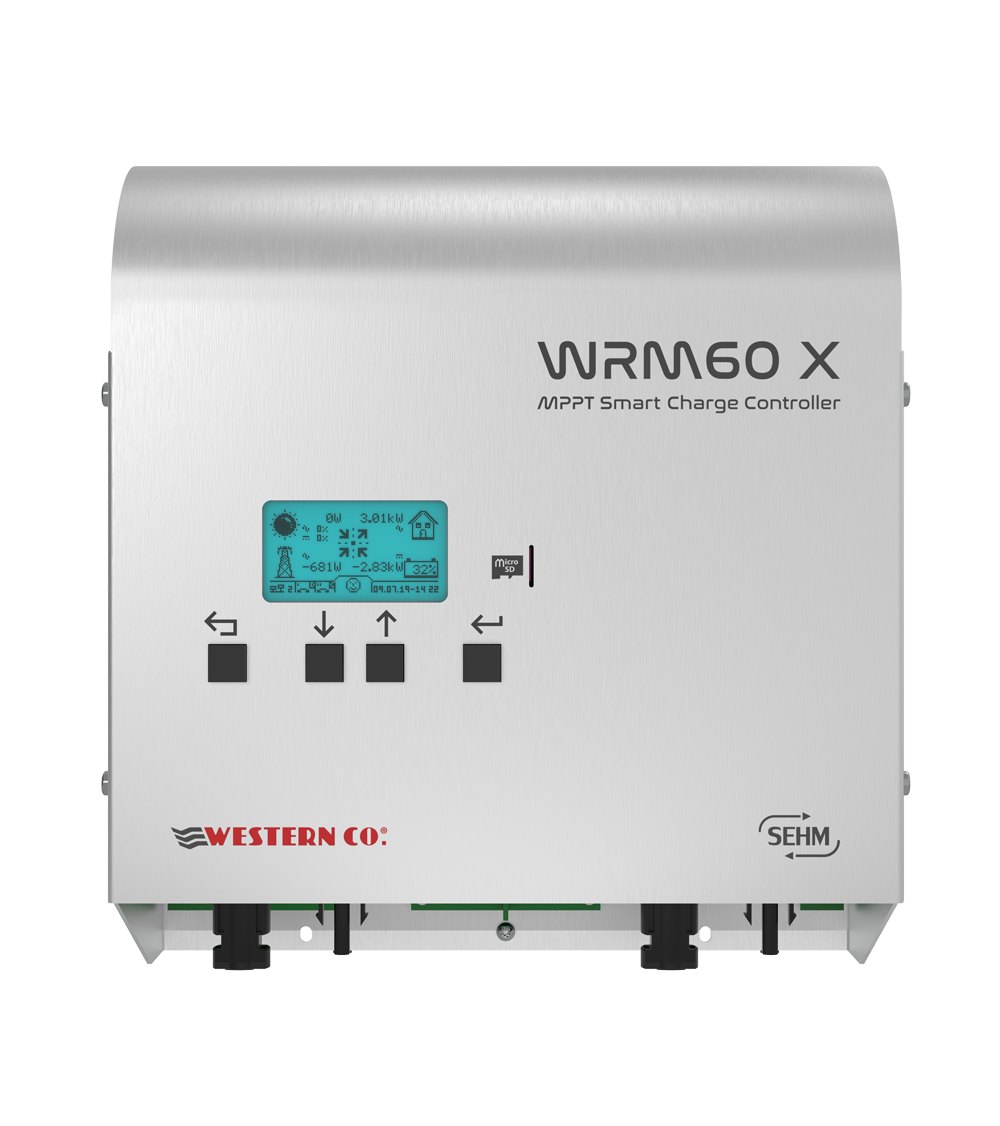

Western CO. WRM60 X

Official manufacturer GLOBAL verified Sept. 25, 2026

battery_voltage_max_v	[32, 64] Brochure WRM60 X (ITA-ENG-FRA)
battery_voltage_min_v	[20, 40] Brochure WRM60 X (ITA-ENG-FRA)
battery_voltage_nominal_v	12/24/36/48V Auto
battery_voltage_supported	24 / 48 V autodetect Brochure WRM60 X (ITA-ENG-FRA)
charge_current_a	60 Brochure WRM60 X (ITA-ENG-FRA)
efficiency_range_percent	['93.5 - 95.2', '96.0 - 97.2'] Brochure WRM60 X (ITA-ENG-FRA)
manufacturer_part_number	017742 Western CO. WRM60 X product page
max_charge_current_a	30.0
max_charge_power_w	[900, 1800] Brochure WRM60 X (ITA-ENG-FRA)
max_dc_voltage_v	100.0
max_efficiency_pct	98.0
max_efficiency_percent	97.2 Brochure WRM60 X (ITA-ENG-FRA)
max_pv_open_circuit_voltage_v	100.0
max_pv_power_w	[1800, 3600] Brochure WRM60 X (ITA-ENG-FRA)
max_pv_voltage_v	180 Brochure WRM60 X (ITA-ENG-FRA)
number_of_pv_inputs	2 Brochure WRM60 X (ITA-ENG-FRA)
self_consumption_w	2 Brochure WRM60 X (ITA-ENG-FRA)

dimensions_mm	287 x 261 x 105 Brochure WRM60 X (ITA-ENG-FRA)
weight_kg	2.5 Brochure WRM60 X (ITA-ENG-FRA)

bluetooth	True
can	True Brochure WRM60 X (ITA-ENG-FRA)
communication	RS485 (Modbus)
documented_ports	[{'port_role': 'CAN', 'port_label_from_manual': 'CAN (lithium BMS)', 'port_type': 'CAN bus', 'direction': 'bidirectional', 'electrical_domain': 'communication', 'document': 0, 'page': 'Communication row', 'quote': 'Controlled via W-BUS ... CAN (lithium BMS)'}, {'port_role': 'PV_IN', 'port_label_from_manual': '2 MPPT string inputs', 'port_type': 'terminal', 'direction': 'input', 'electrical_domain': 'dc', 'document': 0, 'page': 'Technical data table', 'quote': '2 MPPT string inputs'}, {'port_role': 'PROPRIETARY_BUS', 'port_label_from_manual': 'W-BUS', 'port_type': 'proprietary bus', 'direction': 'bidirectional', 'electrical_domain': 'communication', 'document': 0, 'page': 'Communication row', 'quote': 'Controlled via W-BUS'}]
ethernet	True
protocols	W-BUS Brochure WRM60 X (ITA-ENG-FRA)
rs485	True

certificate EC Declaration of Conformity - Charge Controllers

datasheet Brochure WRM60 X (ENG-ESP-DEU)

datasheet Brochure WRM60 X (ITA-ENG-FRA)

product_page Western CO. WRM60 X product page

user_manual WRM60 X User Manual

Recorded verbatim from the source; no schema field exists for these yet.

builder_completeness	partial
region_notes	Italian manufacturer; documentation is multilingual and not market-specific.
withheld:bluetooth	false
withheld:can	true
withheld:ethernet	true
withheld:rs485	false
