Fronius Symo Advanced 10.0-3-M
Official manufacturer AU verified Sept. 22, 2026
Unresolved safety-relevant conflict
Two sources give different figures for a value on this product and nobody has resolved it. The specifications below are shown as recorded, but this product must not be treated as verified for engineering purposes until the conflict is closed.
Two sources give different figures for a value on this product and nobody has resolved it. The specifications below are shown as recorded, but this product must not be treated as verified for engineering purposes until the conflict is closed.

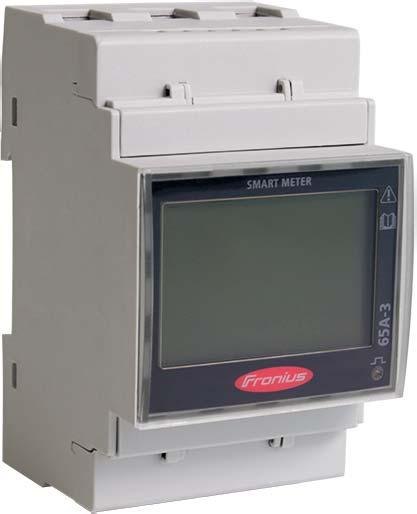

Extracted from Fronius_Smart_Meter_TS_65A-3_operating_instructions.pdf (page 1)
Identity
| brand | Fronius |
| category | inverters |
| ean | — |
| generation | SnapINverter - Advanced |
| manufacturer | Fronius International GmbH disputed |
| market_version | AU (en-au/australia) technical-data page - no UK/EU technical-data page was reachable for this model on 2026-09-01 |
| model | Symo Advanced 10.0-3-M |
| mpn | — |
| product_family | Fronius Symo Advanced (SnapINverter) |
| product_revision | — |
| product_status | active |
| region | AU |
| release_year | — |
| sku | — |
Electrical
| ac_coupling_support | — |
| backup_eps_output_support | False |
| battery_support | False |
| battery_type | — |
| battery_voltage_class | — |
| battery_voltage_max_v | — |
| battery_voltage_min_v | — |
| communication_can | — |
| communication_ethernet | True |
| communication_rs485 | True |
| communication_wifi | True |
| ct_support | — |
| generator_input_support | False |
| grid_certifications | ['IEC 62109-1', 'IEC 62109-2', 'IEC 62116', 'IEC 61727', 'VDE 0126-1-1/A1', 'VDE AR-N 4105', 'G98/1', 'G99/1', 'AS/NZS 4777.2', 'UNE 206007-1', 'CEI 0-21', 'CEI 0-16', 'NRS 097-2-1', 'TOR Erzeuger Typ A', 'EN 50549-1', 'EN 50549-2', 'IEC 61683', 'IEC 60068', 'IEC 63027:2023'] |
| grid_export_control | True |
| home_assistant_integration | — |
| max_ac_power_kw | 10 |
| max_ac_power_va |
10000
Symo Advanced 10.0-3-M - Technical Data (HTML)
|
| max_battery_charge_current_a | — |
| max_battery_charge_power_kw | — |
| max_battery_discharge_current_a | — |
| max_dc_voltage_v | 1000 |
| max_input_current_per_mppt_a |
27.0 (MPPT1) / 16.5 (MPPT2) - asymmetric
disputed
Symo Advanced 10.0-3-M - Technical Data (HTML) — Technical Data > Input Data, 'Max. input current (Idc max)' = '27,0 / 16,5 A'
|
| max_pv_input_power_w |
15000
Symo Advanced 10.0-3-M - Technical Data (HTML) — Technical Data > Input Data, 'Max. PV generator power (Pdc max)' = '15 kWpeak'
|
| max_pv_input_voltage_v |
1000
Symo Advanced 10.0-3-M - Technical Data (HTML)
|
| max_short_circuit_current_per_mppt_a |
55.7 (MPPT1) / 34.0 (MPPT2) - Isc max per the page footnote 'Isc pv = Isc max >= Isc (STC) x 1,25'
disputed
Symo Advanced 10.0-3-M - Technical Data (HTML) — Technical Data > Input Data, 'Max. short circuit current, module array*' = '55,7 / 34,0 A'
|
| modbus_rtu | True |
| modbus_tcp | True |
| mppt_max_voltage_v | 800 |
| mppt_min_voltage_v | 270 |
| mppt_voltage_max_v |
800
Symo Advanced 10.0-3-M - Technical Data (HTML)
|
| mppt_voltage_min_v |
270
Symo Advanced 10.0-3-M - Technical Data (HTML)
|
| nominal_grid_voltage_v |
400
Symo Advanced 10.0-3-M - Technical Data (HTML)
|
| num_mppt | 2 |
| number_of_pv_inputs |
6
Symo Advanced 10.0-3-M - Technical Data (HTML)
|
| official_product_url |
https://www.fronius.com/en-au/australia/solar-energy/installers-partners/technical-data/all-products/inverters/fronius-symo-advanced/symo-advanced-10-0-3-m
Symo Advanced 10.0-3-M - Technical Data (HTML)
|
| officially_supported_battery_brands | [] |
| phase_count |
3
Symo Advanced 10.0-3-M - Technical Data (HTML)
|
| phase_type | three-phase |
| pv_inputs_per_mppt | 3+3 (6 DC connections total; 3 per MPP tracker) |
| rated_ac_power_kw | 10 |
| rated_ac_power_w |
10000
Symo Advanced 10.0-3-M - Technical Data (HTML)
|
| smart_meter_support | True |
| startup_voltage_v |
200
Symo Advanced 10.0-3-M - Technical Data (HTML)
|
| strings_per_mppt_distribution |
[3, 3]
Symo Advanced 10.0-3-M - Technical Data (HTML)
|
| sunspec_support | True |
| topology | grid-tie |
Physical / mechanical
| depth_mm | 225 |
| enclosure_material | — |
| height_mm | 725 |
| housing_color | white/grey |
| mounting_bolt_size | — |
| mounting_hole_spacing_mm | — |
| mounting_type | ['wall'] |
| screw_sizes | — |
| shipping_weight_kg | 38.5 |
| terminal_locations | SnapINverter design - the connection area is separate from the power stage set compartment and is installed on the wall first; the power stage set is then snapped in and secured. Servicing requires removing only the power stage set; all cabling remains in place. |
| torque_specs | — |
| weight_kg |
32.1
Symo Advanced 10.0-3-M - Technical Data (HTML) — Technical Data > General Data, 'Weight' = '32,1 kg'
|
| width_mm | 510 |
Installation
| indoor_outdoor | Indoor and outdoor installation |
| max_installation_altitude_m | 3400 |
| mounting_orientation | — |
| surface_requirements | — |
Environment
| cooling_method | regulated air cooling (active cooling with fans) |
| ip_rating | IP 66 |
| max_altitude_m | 3400 |
| noise_level_db | — |
| operating_temperature_c | -25 to +60 |
| relative_humidity | 0-100 % |
Interfaces & connectors
| ac_terminal_type | 5-pin AC screw terminals 2.5 - 16 mm2 |
| cloud_api | Fronius Solar.web |
| digital_inputs | 6 inputs and 4 digital I/Os (interface to ripple control receiver, energy management) |
| ethernet | Ethernet LAN |
| local_api | Fronius Solar API (JSON) |
| modbus_rtu | Modbus RTU SunSpec |
| modbus_tcp | Modbus TCP SunSpec |
| protocol_notes | External input: S0 meter connection / evaluation of overvoltage protection. Datalogger and web server included. |
| pv_connector_type | 6x DC+ and 6x DC- screw terminals 2.5 - 16 mm2 |
| relay_outputs | signalling output - energy management (floating relay output) |
| rs232 | 2x RS422 (RJ45 socket) - Fronius Solar Net |
| rs485 | RS485 - Modbus RTU SunSpec or meter connection |
| sunspec | SunSpec over Modbus RTU and Modbus TCP |
| usb | USB (type A socket) - data logging, inverter update via USB flash drive |
| wifi | Wi-Fi |
Controls & display
| display_type | — |
| local_display | — |
| web_interface | integrated datalogger and web server |
Protection
| afci |
Arc fault circuit interrupter (Fronius Arc Guard): Yes - certified to IEC 63027:2023
Symo Advanced 10.0-3-M - Technical Data (HTML) — Technical Data > Protection Devices, 'Arc fault circuit interrupter (Fronius Arc Guard) Yes'
|
| anti_islanding | yes (IEC 62116) |
| insulation_monitoring | DC insulation measurement: Yes |
| integrated_dc_switch | True |
| over_temperature | overload behaviour: operating point shift, power limitation |
| overvoltage_category | 2 (DC) / 3 (AC), according to IEC 62109-1 |
| protection_class | 1 |
| reverse_polarity | DC reverse polarity protection: Yes |
| short_circuit | — |
| surge_protection | — |
Certifications
| emc | ['interference emission class B', 'IEC 62920 / CISPR 11 (certificate listed)', 'ETSI EN 300 328', 'ETSI EN 301 489-1', 'ETSI EN 301 489-17'] |
| grid_codes | ['IEC 62116', 'IEC 61727', 'VDE 0126-1-1/A1', 'VDE AR-N 4105', 'G98/1', 'G99/1', 'AS/NZS 4777.2', 'UNE 206007-1', 'CEI 0-21', 'CEI 0-16', 'NRS 097-2-1', 'TOR Erzeuger Typ A', 'EN 50549-1', 'EN 50549-2'] |
| other | ['IEC 61683 (efficiency measurement certificate)', 'TUEV factory inspection 2025'] |
| regional | ['UNKNOWN'] |
| safety | ['IEC 62109-1', 'IEC 62109-2', 'IEC 63027:2023 (arc fault detection)', 'IEC 60068'] |
Warranty & service
| conditions | A 'Fronius 10 Year Warranty Plus Brochure (AU)' is listed in the page downloads but was not fetched. |
| extended_options_years | — |
| field_replaceable_parts | ['power stage set (SnapINverter: only the power stage set is removed for servicing)'] |
| standard_years | — |
Packaging & logistics
| gross_weight_kg | 38.5 |
| package_depth_mm | — |
| package_height_mm | — |
| package_width_mm | — |
Documents
Documented compatibility
Documented pairings only. A product absent here has no fetched document naming the pairing — that is not a statement that it fails.
inverter_meter
Fronius Smart Meter TS 65A-3
COMPATIBLEmanufacturer-documented
Fronius Smart Meter TS 65A-3 Operating Instructions 42,0426,0349,EN 006-05082020 (https://www.europe-solarstore.com/download/fronius/monitoring-and-control/Fronius_Smart_Meter_TS_65A-3_operating_instructions.pdf) plus the RS485 row on https://www.fronius.com/en-au/australia/solar-energy/installers-partners/technical-data/all-products/inverters/fronius-symo-advanced/symo-advanced-10-0-3-m ('RS485 - Modbus RTU SunSpec or meter connection'), both fetched 2026-09-01
Recorded conflicts
electrical.max_short_circuit_current_per_mppt_a Review required
55.7 (MPPT1) / 34.0 (MPPT2) - Isc max per the page footnote 'Isc pv = Isc max >= Isc (STC) x 1,25' — stored value
[55.7, 34.0] — Max. short circuit current, module array | 55,7 / 34,0 A
Detected during import v1-freeze-2026-09-batch08
electrical.max_input_current_per_mppt_a Review required
27.0 (MPPT1) / 16.5 (MPPT2) - asymmetric — stored value
[27.0, 16.5] — Max. input current (Idc max) | 27,0 / 16,5 A (MPPT1 / MPPT2; 'Number of MPP trackers | 2')
Detected during import v1-freeze-2026-09-batch08
identity.manufacturer Review required
Fronius International GmbH — stored value
Fronius — incoming package
Detected during import v1-freeze-2026-09-batch08
identity.manufacturer Review required
Fronius International GmbH — stored value
Fronius — incoming package
Detected during import v1-freeze-2026-09-batch08
identity.manufacturer Review required
Fronius International GmbH — stored value
Fronius — incoming package
Detected during import inverter-mppt-topology-2026-09-batch02
identity.manufacturer Review required
Fronius International GmbH — stored value
Fronius — incoming package
Detected during import anma-image-enrichment-2026-09-11
identity.manufacturer Review required
Fronius International GmbH — stored value
Fronius — incoming package
Detected during import anma-image-enrichment-2026-09-11
Additional documented parameters
Recorded verbatim from the source; no schema field exists for these yet.
| AC output current (Iac nom) | 14,4 A |
| European efficiency (etaEU) | 95.5 / 97.1 / 96.3 % |
| MPP adaptation efficiency | >99,9% |
| Max. efficiency (PV - grid) | 97,8 % |
| Max. input current (Idc max) | 27,0 / 16,5 A |
| Max. short circuit current, module array | 55,7 / 34,0 A |
| Night-time consumption | < 1 W |
| Nominal input voltage (Udc,r) | 600 V |
| Usable MPP voltage range | 200 - 800 V |
| image_enrichment_pass | 2026-09-11 promote-existing-to-primary |
