Identity

brand	FusionSolar / SUN2000
category	inverters
ean	UNKNOWN
generation	M1 (three-phase 1100 V DC platform); two current variants exist - standard (11 A/15 A per MPPT) and 'High Current Version' (13.5 A/19.5 A per MPPT), 'Subject to the product nameplate' disputed
hardware_revision	UNKNOWN
legacy_name	UNKNOWN
manufacturer	Huawei
manufacturer_legal_entity	UNKNOWN
market_version	UNKNOWN

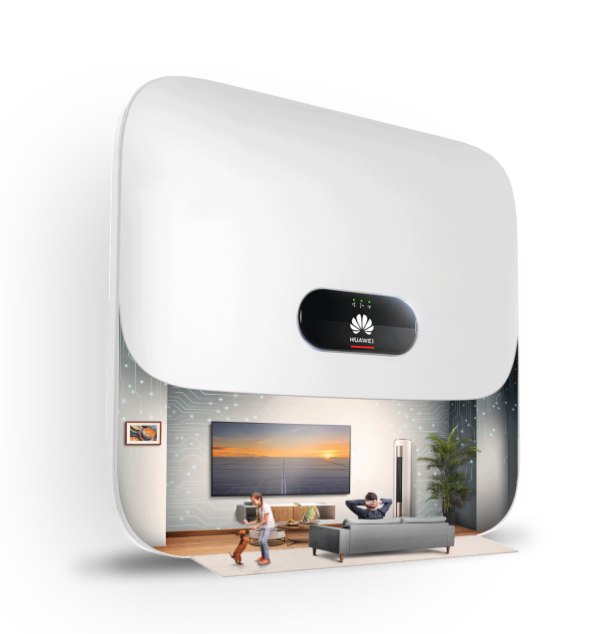

model	SUN2000-10KTL-M1
mpn	UNKNOWN
order_code	UNKNOWN
product_family	SUN2000-3/4/5/6/8/10KTL-M1
product_revision	UNKNOWN
product_status	active
product_status_evidence	No live solar.huawei.com product page was fetched for the -M1 family this session; only datasheet PDFs. Status not asserted.
region	EU / MEA / global (same manual covers all; SUN2000-10KTL-BEM1 is a separate 10 kVA-capped sibling in the same manual)
release_year	UNKNOWN
sku	UNKNOWN
subcategory	three-phase residential hybrid inverter (battery-ready, DC-coupled)
variant_note	The -M1 suffix denotes the battery-capable three-phase 1100 V DC platform. It is NOT the same product as the -M0 sibling in the shared APAC datasheet: -M0 has no battery interface and a different depth (166 mm vs 146.5 mm). ANMA's pre-existing SUN2000-10KTL-M1 record cites a user-manual 'High Current Version' at 13.5 A/19.5 A per MPPT; that user manual was NOT fetched in this session, so no high-current value is recorded here.

Electrical

ac_coupling_support	UNKNOWN
backup_eps_output_support	true via external BackupBox-B1 (official specs page Output (Off Grid): max apparent power 3300 VA, rated output voltage 220 V/230 V, max output current 15 A, PF 0.8 leading...0.8 lagging)
battery_support	True
battery_type	Huawei LUNA2000 / Smart String ESS
battery_voltage_class	HV
battery_voltage_max_v	980 SUN2000-3/4/5/6/8/10KTL-M1 (High Current Version) - official Specs page (HTML) — Input (DC Battery), 'Operating voltage range 600 - 980 V'
battery_voltage_min_v	600
communication_can	UNKNOWN
communication_ethernet	True
communication_rs485	True
communication_wifi	True
ct_support	UNKNOWN
dc_ac_ratio_guidance	UNKNOWN
european_efficiency	98.1%
european_efficiency_pct	98.1
generator_input_support	UNKNOWN
grid_certifications	['EN/IEC 62109-1', 'EN/IEC 62109-2', 'IEC 62116', 'G98', 'G99', 'EN 50438', 'CEI 0-21', 'VDE-AR-N-4105']
grid_export_control	UNKNOWN
home_assistant_integration	UNKNOWN
max_ac_apparent_power_va	11000
max_ac_power_kw	11
max_active_power_w	UNKNOWN (no separate max active power row on either fetched datasheet)
max_battery_charge_current_a	16.7 (manual 10.1 'Battery maximum current 16.7 A'; specs page 'Max. operating current 16.7 A' - not split into charge/discharge by either source) SUN2000-(3KTL-10KTL)-M1 User Manual - 10.1 SUN2000 Technical Specifications (HTML) — 10.1 Input, 'Battery maximum current 16.7 A'
max_battery_charge_power_kw	10 (official specs page: 'Max. charge power 10,000 W') SUN2000-3/4/5/6/8/10KTL-M1 (High Current Version) - official Specs page (HTML) — Input (DC Battery), 'Max. charge power 10,000 W'
max_battery_discharge_current_a	16.7 (same single figure; sources do not separate charge and discharge)
max_battery_discharge_power_kw	10 (official specs page, 10KTL-M1 column: 'Max. discharge power 10,000 W')
max_dc_voltage_v	1100
max_efficiency	98.6%
max_efficiency_pct	98.6
max_input_current_per_mppt_a	11
max_output_current_a	16.9
max_pv_input_power_w	15000
max_recommended_pv_power_w	15000
max_short_circuit_current_per_mppt_a	15
modbus_rtu	UNKNOWN
modbus_tcp	UNKNOWN
mppt_max_voltage_v	980
mppt_min_voltage_v	140
mppt_voltage_max_v	980
mppt_voltage_min_v	140
night_power_consumption_w	< 5.5
nominal_frequency	50 Hz/60 Hz
nominal_voltage	220 Vac/380 Vac, 230 Vac/400 Vac, 3W/N+PE (three-phase)
num_mppt	2
num_pv_inputs	2
num_pv_inputs_note	'Number of MPP trackers 2' and 'Max. input number per MPP tracker 1' -> 2 DC inputs total on a single unit.
officially_supported_battery_brands	['Huawei LUNA2000 (Smart String ESS) - closed ecosystem']
oversizing_limits	Recommended max. PV power 15000 Wp against 10000 W rated AC.
phase_type	three-phase
power_factor_range	0.8 leading ... 0.8 lagging
pv_inputs_per_mppt	1
rated_ac_power_kw	10
rated_ac_power_w	10000
rated_input_voltage_v	600
rated_output_current_a	UNKNOWN (no 'Rated output current' row on either fetched datasheet)
smart_meter_support	UNKNOWN
startup_voltage_v	200
string_rules	UNKNOWN
sunspec_support	UNKNOWN
thd	<= 3 %
topology	grid-tie (hybrid-capable via LUNA2000/Smart String ESS, DC-coupled)
voltage_range	UNKNOWN

Physical / mechanical

bracket_dimensions_mm	UNKNOWN
cable_entry_positions	All ports on the bottom: ground screw, AC output port (AC), communications port (COM), Smart Dongle port (GPRS/4G/WLAN-FE), battery terminals (BAT+/BAT-), DC input terminals (PV2+/PV2-), DC input terminals (PV1+/PV1-), DC switch (DC SWITCH), hole for the DC switch locking screw
cable_gland_sizes	UNKNOWN
cooling	Natural convection
depth_mm	146.5
dimensions_note	'Dimension (incl. mounting bracket) 525 x 470 x 146.5 mm'; 'Weight (incl. mounting bracket) 17 kg (37.5 lb)'.
enclosure_material	UNKNOWN
height_mm	470
housing_color	UNKNOWN
ip_rating	IP65
mounting_bolt_size	M6x60 expansion bolts (delivered with the SUN2000); if other lengths/quantities are needed, M6 stainless steel expansion bolts. Supplied bolts are for solid concrete walls only. SUN2000-(3KTL-10KTL)-M1 User Manual - 10.1 SUN2000 Technical Specifications (HTML) — 4.5.1 Wall-mounted Installation, 'M6x60 expansion bolts are delivered with the SUN2000'
mounting_hole_diameter_mm	UNKNOWN
mounting_hole_spacing_mm	UNKNOWN (manual Figure 4-7 only)
mounting_plate_dimensions_mm	UNKNOWN (manual Figure 4-7 'Mounting bracket dimensions' is a drawing; numbers not present as text)
mounting_type	['wall', 'pole']
noise_db	UNKNOWN
screw_sizes	Two M6 screw holes reserved on each of the left and right sides of the enclosure for installing an awning; anti-theft lock hole diameter 8 mm (lock user-supplied)
shipping_weight_kg	UNKNOWN
terminal_locations	bottom of enclosure (see cable_entry_positions); LED indicator and front panel on the front; heat sink and ventilation valve on the rear/side; hanging kit + mounting bracket on the rear
torque_specs	UNKNOWN
weight_kg	17 disputed SUN2000-(3KTL-10KTL)-M1 User Manual - 10.1 SUN2000 Technical Specifications (HTML) — 10.1 General Specifications, 'Weight 17 kg (including only the rear mounting kit of the SUN2000)'
width_mm	525 SUN2000-3-10KTL-M1 datasheet (MEA) — General Data, 'Dimension (incl. mounting bracket) 525 x 470 x 146.5 mm'

Installation

ac_connector	UNKNOWN
altitude_derating_note	Manual: 'derated when the altitude is greater than 3000 m'. Datasheet/specs page: 'Derated above 2000 m'. See data_conflicts.
cable_entry	UNKNOWN
clearance_bottom_mm	UNKNOWN (manual Figure 4-2 only)
clearance_front_mm	UNKNOWN
clearance_left_mm	UNKNOWN (manual Figure 4-2 'Installation space' is a drawing; values not present as text)
clearance_right_mm	UNKNOWN (manual Figure 4-2 only)
clearance_top_mm	UNKNOWN (manual Figure 4-2 only)
cooling_airflow_requirements	UNKNOWN
corrosive_environment_restriction	Do not install outdoors in salt areas - defined as the region within 500 metres from the coast or prone to sea breeze; corrosion there may cause fire
dc_connector	UNKNOWN
dc_switch	UNKNOWN
direct_sunlight_restriction	Recommended: install in a sheltered place or a place with an awning
indoor_outdoor	indoor or outdoor (IP65)
installation_humidity_range	UNKNOWN
installation_temperature_range_c	UNKNOWN
max_installation_altitude_m	4000
minimum_wall_thickness_mm	UNKNOWN
mounting	UNKNOWN
mounting_orientation	vertical, or a maximum back tilt of 15 degrees SUN2000-(3KTL-10KTL)-M1 User Manual - 10.1 SUN2000 Technical Specifications (HTML) — 4.3.2 Space Requirements, 'Install the SUN2000 vertically or at a maximum back tilt of 15 degrees'
orientation_allowed	['vertical', 'back tilt up to 15 degrees']
orientation_forbidden	['forward tilted', 'excessive back tilted (>15 degrees)', 'side tilted', 'horizontal', 'upside down', 'stacked installation (not recommended)']
other_restrictions	Do not install where personnel can easily contact the enclosure or heat sinks (extremely hot during operation); not in areas with flammable or explosive materials; not within children's reach
surface_requirements	Mounting structure must be fireproof; do not install on flammable building materials; installation surface must be solid enough to bear the weight load; in residential areas do not install on drywalls or similar weak sound-insulating walls (the noise generated by the SUN2000 is noticeable)
two_person_lift_required	UNKNOWN
ventilation_requirements	Must be installed in a well-ventilated environment to ensure good heat dissipation; when installing multiple units use horizontal mode if space allows, otherwise triangle (staggered) mode; stacked installation not recommended

Environment

altitude_note	'Max. operating altitude 4,000 m (13,123 ft.)'; APAC sheet adds '(Derating above 2000 m)'.
cooling_method	natural convection
corrosion_class	UNKNOWN
environmental_compliance	RoHS 6
fan_replaceable	N/A (fanless, natural convection)
ik_rating	UNKNOWN
ip_rating	IP65
max_altitude_m	4000
nema_rating	UNKNOWN
noise_level_db	29 dB (A) (typical working condition) SUN2000-(3KTL-10KTL)-M1 User Manual - 10.1 SUN2000 Technical Specifications (HTML) — 10.1 General Specifications, 'Noise 29 dB (A) (typical working condition)'
operating_temperature	-25 ~ +60 C (-13 F ~ 140 F)
operating_temperature_c	-25 to +60 (derated when the temperature is higher than 45)
pollution_degree	UNKNOWN
relative_humidity	0-100% RH (operating); storage 5-95% RH non-condensing disputed
salt_mist_resistance	not suitable for salt areas (within 500 m of coast / prone to sea breeze)
storage_temperature_c	-40 to +70
uv_resistance	UNKNOWN

Interfaces & connectors

ac_terminal_type	Waterproof quick-connect terminal (manual 10.1 'Output terminal'); AC connector accepts 3-, 4- or 5-core cable (L1/L2/L3, +N and/or +PE); strip length 12-16 mm; conductor 4-6 mm2, cable OD 10-21 mm SUN2000-(3KTL-10KTL)-M1 User Manual - 10.1 SUN2000 Technical Specifications (HTML) — 10.1 General Specifications, 'Output terminal Waterproof quick-connect terminal'
analog_inputs	UNKNOWN
auxiliary_power_output	UNKNOWN
backup_eps_terminal	external Backup Box-B1 (listed on official specs page as the off-grid output device)
battery_terminal_type	BAT+ / BAT- terminals on the bottom of the enclosure (connector type not stated in fetched sources)
bluetooth	UNKNOWN
can	UNKNOWN
cellular	via optional 4G Smart Dongle SDongleA-03-EU (LTE-FDD B1/B3/B7/B8/B20, LTE-TDD B38/B40, WCDMA B1/B8, GSM 900/1800) or SDongleB-06-EU (LTE-FDD B1/B3/B5/B8, LTE-TDD B7/B20/B28/B38/B40/B41, GSM 900/1800). SDongleA-03 no longer placed on the market.
cloud_api	UNKNOWN (FusionSolar cloud/app)
digital_inputs	DIN1-DIN4 on the COM port (pins 8, 10, 12, 14) plus DIN5 (pin 15) used for rapid shutdown; EN enable signal on pin 11
display	LED Indicators
dongle_support	Smart Dongle-WLAN-FE (WLAN/Ethernet); Smart Dongle-4G (4G/3G/2G, optional)
dry_contacts	UNKNOWN
ethernet	via optional WLAN-FE Smart Dongle SDongleA-05 disputed
fe	Optional, via Smart Dongle-WLAN-FE
fusionsolar_monitoring	Yes - 'LED Indicators; Integrated WLAN + FusionSolar App'
generator_start_contact	UNKNOWN
generator_terminal	UNKNOWN
local_api	UNKNOWN
local_api_availability	UNKNOWN
modbus_rtu	UNKNOWN (not stated in the fetched manual/specs sources)
modbus_tcp	UNKNOWN
mqtt	UNKNOWN
ocpp	UNKNOWN
programmable_relay	UNKNOWN
protocol_notes	Manual 10.1 'remote ripple control: Supported'. DC MBUS used towards SUN2000-450W-P2 / SUN2000-600W-P optimizers. Signal cable: outdoor shielded twisted pair, conductor 0.2-1 mm2 (0.2-0.5 mm2 when smart power sensor and battery are both connected), cable OD 4-11 mm.
pv_connector_type	Staubli MC4 (manual 10.1 'Input terminal') SUN2000-(3KTL-10KTL)-M1 User Manual - 10.1 SUN2000 Technical Specifications (HTML) — 10.1 General Specifications, 'Input terminal Staubli MC4'
rapid_shutdown_interface	DIN5 on the COM port (manual COM pin table); 'PV module safe shutdown, optimizer: Supported'
register_doc_availability	UNKNOWN
relay_outputs	UNKNOWN
rs232	UNKNOWN
rs485	Supported - two buses on the 16-pin COM port: RS485A1/RS485B1 (pins 1-4) and RS485A2/RS485B2 (pins 7, 9, for power meter / battery) disputed
smart_load_output	UNKNOWN
smartlogger_compatibility	UNKNOWN
sunspec	UNKNOWN
usb	UNKNOWN (Smart Dongle port labelled GPRS/4G/WLAN-FE)
wifi	Built-in WLAN 2400-2483.5 MHz, 802.11b/g/n, 20/40 MHz, <= 20 dBm EIRP; app connection via built-in Wi-Fi supports device commissioning only
wlan	Yes, integrated WLAN
zigbee	UNKNOWN

Controls & display

audible_alarm	UNKNOWN
buttons	UNKNOWN
display_type	none (LED indicators only)
leds	LED1 and LED2 (running/grid state: steady green = grid-tied operation; green blinking at long intervals with LED2 off = DC on, AC off), LED3 (communication status, short/long interval blink patterns)
local_display	False
mobile_app	FusionSolar App
remote_display_option	UNKNOWN
status_indicators	3 LED indicators on the front panel
touchscreen	False
web_interface	UNKNOWN

Protection

afci	Supported (arc fault protection) disputed
anti_islanding	Supported; active anti-islanding method: AFD disputed
dc_reverse_polarity_protection	Yes
dc_switch	UNKNOWN
decisive_voltage_class	PV and AC port: DVCC; communication port: DVCA
ground_fault_protection	UNKNOWN
insulation_monitoring	Supported (insulation resistance detection) disputed
integrated_breakers_fuses	UNKNOWN (a three-phase AC switch must be installed externally; one AC output switch per inverter; a knife switch may not be used)
integrated_dc_switch	True
over_current	Output overcurrent protection: Supported. Max output overcurrent protection 31.8 A; max output fault current 50.2 A (10KTL-M1).
over_temperature	UNKNOWN (self-derating above 45 C documented)
over_voltage	AC overvoltage protection: Yes (specs page). Overvoltage category PV II / AC III.
overvoltage_category	PV II / AC III
pid_recovery	Yes - 'Integrated PID recovery'
pid_repair	Supported
protection_class	I
pv_string_fault_detection	Supported
rcmu	Yes ('Residual current monitoring')
residual_current_monitoring	Supported (RCMU). Manual 5.4: if the external AC switch performs earth-leakage protection its rated leakage action current must be >= 100 mA; for N inverters on a common RCD, >= N x 100 mA.
reverse_polarity	DC reverse polarity / input reverse connection protection: Supported
short_circuit	AC short-circuit protection: Yes
surge_protection	DC surge protection: DC common mode 10 kA; AC surge protection: common mode 5 kA, differential mode 5 kA. Both 'compatible with TYPE II protection class according to EN/IEC 61643-11'. disputed SUN2000-(3KTL-10KTL)-M1 User Manual - 10.1 SUN2000 Technical Specifications (HTML) — 10.1 Protection, 'DC surge protection DC common mode: 10 kA'; 'AC surge protection Common mode: 5 kA; differential mode: 5 kA'
under_voltage	UNKNOWN

Certifications

emc	['UNKNOWN']
grid_codes	['G98', 'G99', 'EN 50438', 'CEI 0-21', 'VDE-AR-N-4105', 'AS 4777', 'C10/11', 'ABNT', 'UTE C15-712', 'RD 1699', 'TOR D4', 'NRS 097-2-1', 'IEC61727', 'IEC62116', 'DEWA']
grid_standards	['G98', 'G99', 'EN 50438', 'CEI 0-21', 'VDE-AR-N-4105', 'AS 4777', 'C10/11', 'ABNT', 'NRS 097-2-1']
note	Grid-code list merged from the two fetched datasheets; the EU sheet's list is followed by 'others' and is not exhaustive.
other	['IEC60068', 'IEC61683', 'RoHS 6', 'EN/IEC 61643-11 (surge protection class reference)']
regional	['UNKNOWN']
regional_certifications	UNKNOWN
safety	['EN/IEC 62109-1', 'EN/IEC 62109-2', 'IEC 62116']
safety_standards	['EN/IEC 62109-1', 'EN/IEC 62109-2', 'IEC 62116']

Warranty & service

conditions	UNKNOWN
design_life_years	UNKNOWN
extended_options_years	UNKNOWN
extension_options	UNKNOWN
fan_replaceable	N/A (fanless)
field_replaceable_parts	UNKNOWN
fuse_replaceable	UNKNOWN
note	No warranty row on either fetched datasheet.
service_intervals	UNKNOWN
standard_warranty	UNKNOWN
standard_years	UNKNOWN

Documents

datasheet SUN2000-3-10KTL-M1 datasheet (MEA) rev UNKNOWN (no version string in fetched content)

datasheet SUN2000-3/4/5/6/8/10KTL-M1 (High Current Version) - official Specs page (HTML) rev UNKNOWN

datasheet SUN2000-3/4/5/6/8/10KTL-M1 datasheet rev Version No.:04-(20201006)

datasheet SUN2000-5/8/10KTL-M0 & SUN2000-5/8/10KTL-M1 datasheet (APAC) rev Version No.:01-(20190716)

user-manual SUN2000-(3KTL-10KTL)-M1 Series User Manual Issue 17, 2024-01-12 (distributor-hosted copy of the Huawei manual) rev Issue 17

user-manual SUN2000-(3KTL-10KTL)-M1 User Manual (AU-hosted PDF) rev UNKNOWN

user-manual SUN2000-(3KTL-10KTL)-M1 User Manual - 10.1 SUN2000 Technical Specifications (HTML) rev EDOC1100163578, page Update Date 2026-04-02

Documented compatibility

Documented pairings only. A product absent here has no fetched document naming the pairing — that is not a statement that it fails.

inverter_battery

Huawei LUNA2000-7-S1 (of the -5/7/10/12/14/15/17/19/21-S1 family) COMPATIBLEofficially-verified

Huawei SUN2000 + LUNA2000 datasheets

Huawei LUNA2000-5-S0 COMPATIBLEofficially-verified

Huawei LUNA2000-5/10/15-S0 official specs page 'Compatible Inverters' row

inverter_meter

Huawei DTSU666-H (100A and 250A variants) COMPATIBLEmanufacturer-documented

Huawei DTSU666-H product page

inverter_evse

go-e GmbH go-eCharger Gemini (11kW and 22kW variants) COMPATIBLEinferred-from-electrical-parameters

go-e Gemini Datasheet (open local API/Modbus TCP/MQTT) + third-party EMS tools (evcc, openWB)

Recorded conflicts

electrical.max_recommended_pv_power_w Review required

15000 Wp — EU datasheet 04-(20201006) 'Recommended max PV power'

15000 Wp — APAC datasheet 01-(20190716) 'Recommended max. PV power'

battery.max_operating_current_a Review required

16.7 A — SUN2000-3/4/5/6/8/10KTL-M1 datasheet, Version No.:04-(20201006), row 'Max operating current'

16 A — SUN2000-5/8/10KTL-M0-M1 datasheet (APAC), Version No.:01-(20190716), row 'Max operating current'

protection.insulation_monitoring Review required

Supported (insulation resistance detection) — stored value

Yes — incoming package
